Yamaha GP800 '98-04, GP800R '03-05, XL/XLT800 '00-04 Individual Gaskets

$27.19
SKU 007-280

Yamaha GP800 '98-04, GP800R '03-05, XL/XLT800 '00-04 Individual Gaskets.
Stock Carburetor: Mikuni 44mm I-Series Dual Carb.
Note: All Gaskets Are Sold Each.

Ref. # Description Qty Req. OEM Number

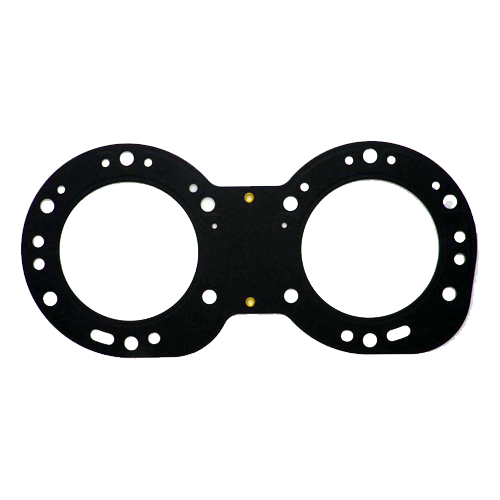

Ref. 1 Head Gasket 1 66E-11181-00-00
Ref. 2 Cylinder Base Gasket 2 66E-11351-01-00
Ref. 3 Power Valve Cover Gasket 2 66E-1131B-00-00

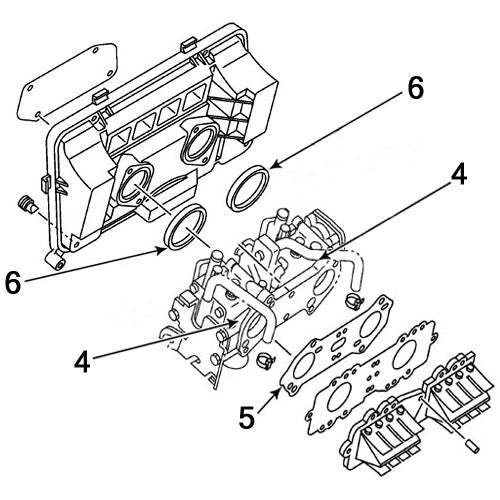

Ref. 4 Carburetor To Mount Plate Base Gasket 2 66E-14398-00-00

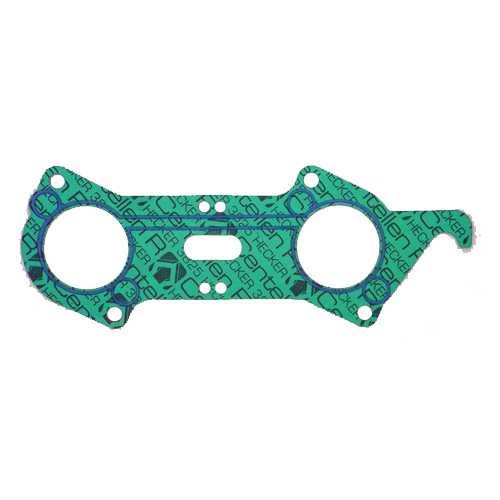

Ref. 5 Carburetor Mount Plate Intake Manifold Gasket 1 66E-13556-00-00

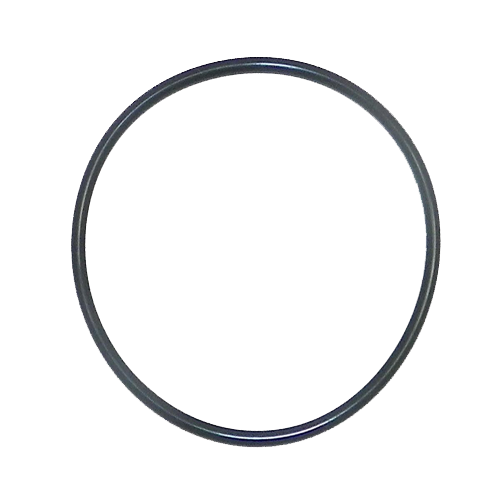

Ref. 6 Flame Arrestor O-Ring 2 66E-13473-00-00

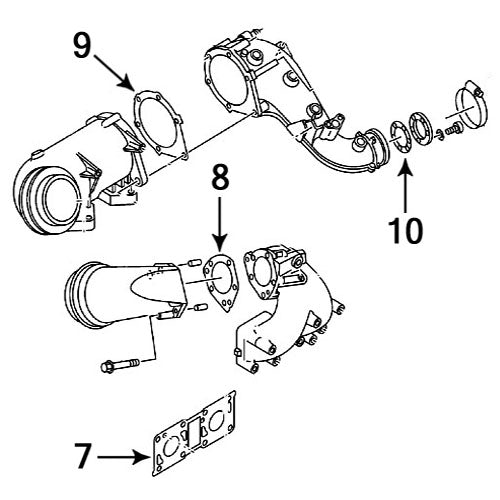

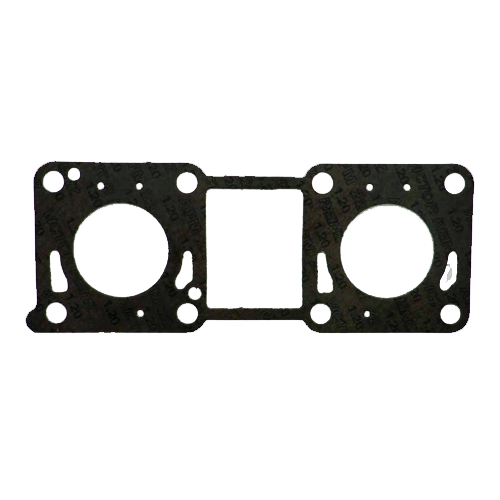

Ref. 7 Cylinder To Exhaust Manifold Gasket 1 66E-14613-00-00

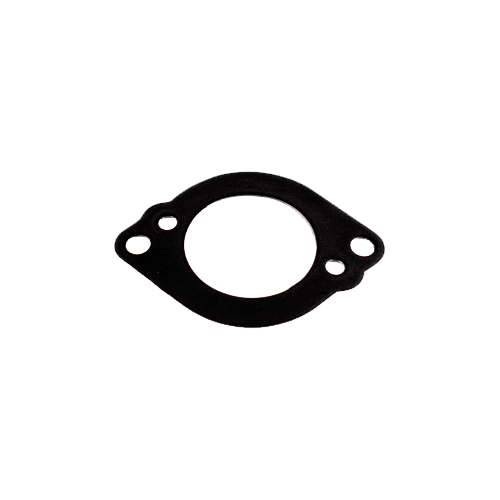

Ref. 8 Exhaust Manifold To Head Pipe Gasket 1 66E-14749-00-00
Ref. 9 Exhaust Outer Cover Gasket 1 66E-41124-10-00
Ref. 10 Exhaust Tail Pipe Gasket 1 66E-14623-00-00

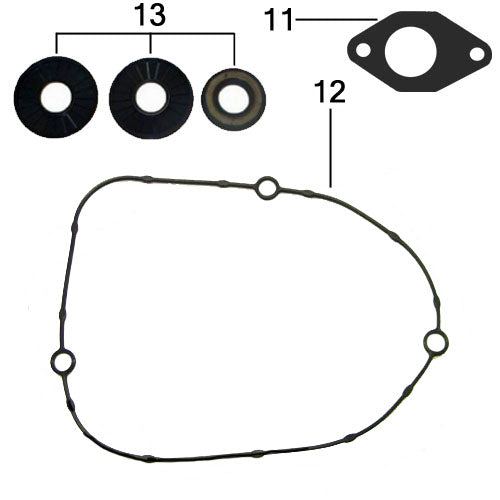

Ref. 11 Oil Pump Gasket 1 63M-13116-00-00

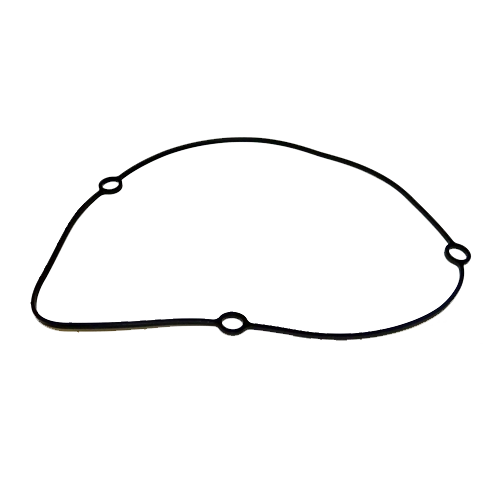

Ref. 12 Flywheel Cover Gasket 1 66E-81168-00-00

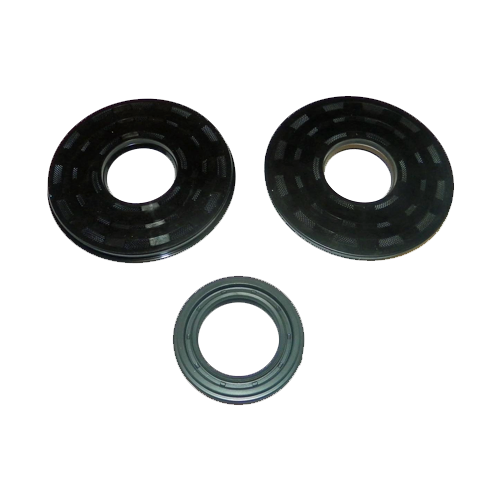

Ref. 13 Crankshaft Oil Seal Kit 1 Kit 42.2518
N/S Power Valve Oil Seal 4 93109-08M07-00
N/S - Not Shown On Diagram
