Yamaha GP1200R '00-02, XL1200 Ltd. '99-05 Individual Gaskets

SKU
Original price $1.14 - Original price $56.34
Original price
$1.14
$1.14 - $56.34
Current price $1.14

2000-2002 Yamaha GP1200R, 1999-2005 XLT1200 Power Valve Motor 155hp Individual Gaskets.
Stock Carburetor: Mikuni 44mm I-Series Triple Carb.
Note: All Gaskets Are Sold Each.

Ref. # Description Qty Req. OEM Number

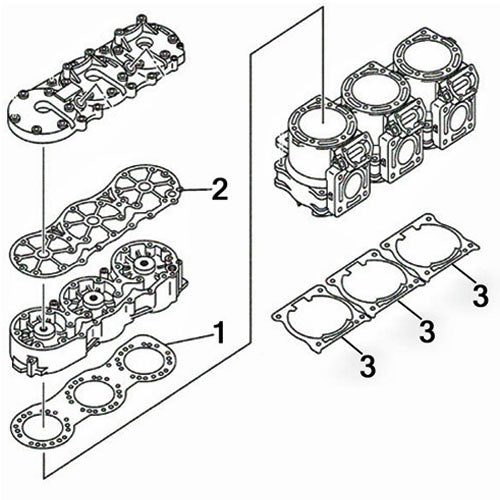

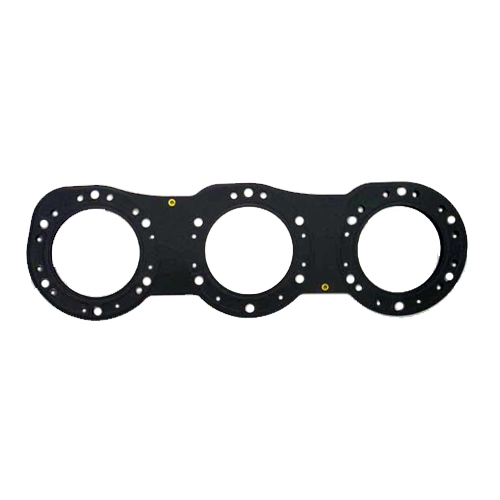

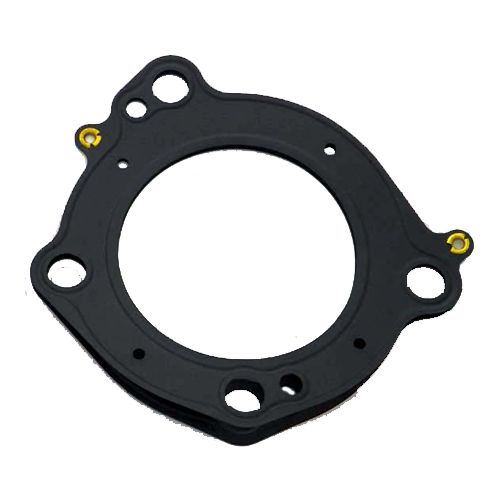

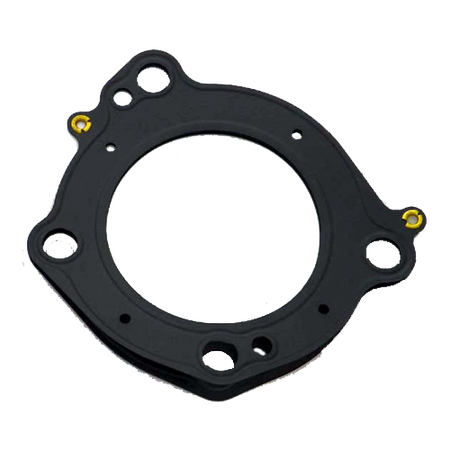

Ref. 1 Head Gasket 1 66V-11181-00-00

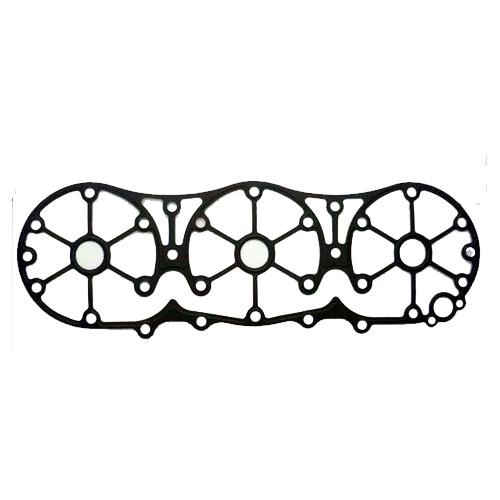

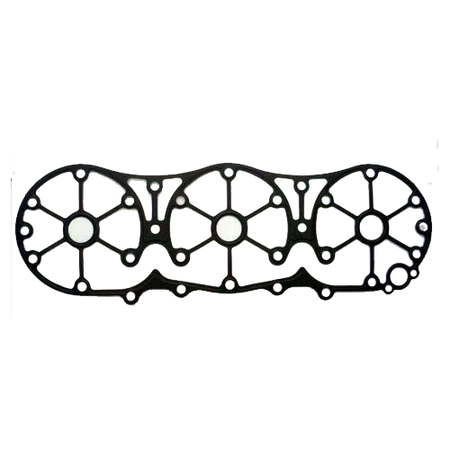

Ref. 2 Head Cover Gasket 1 66V-11193-00-00

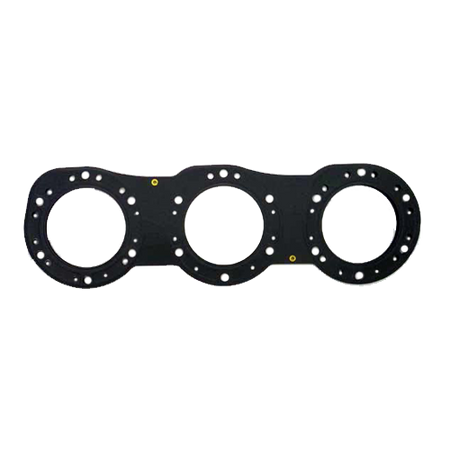

Ref. 3 Cylinder Base Gasket 3 66E-11351-00-00

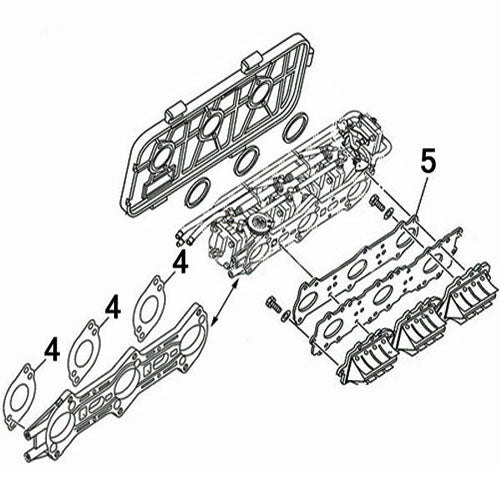

Ref. 4 Carburetor To Carburetor Plate Gasket 3 66E-14398-00-00

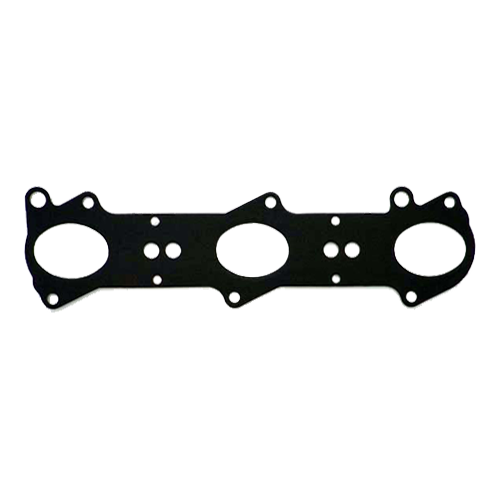

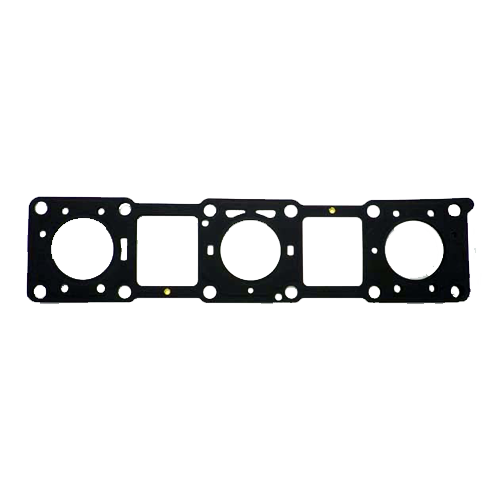

Ref. 5 Intake Manifold Gasket 1 66V-13556-00-00

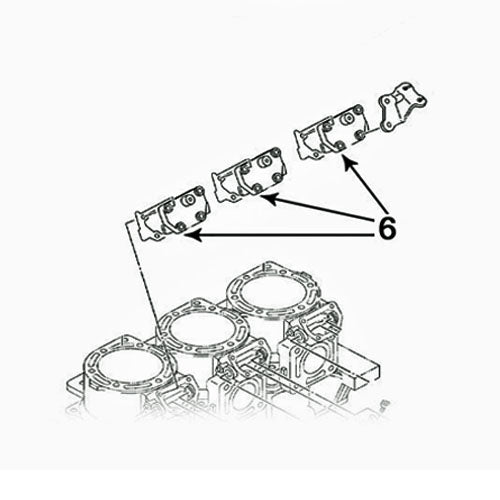

Ref. 6 Power Valve Cover Gasket 3 66E-1131B-00-00

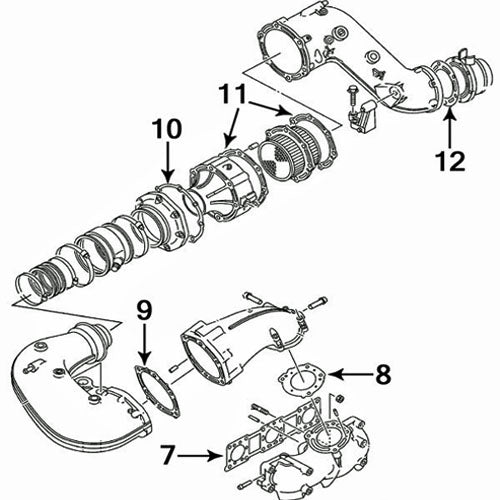

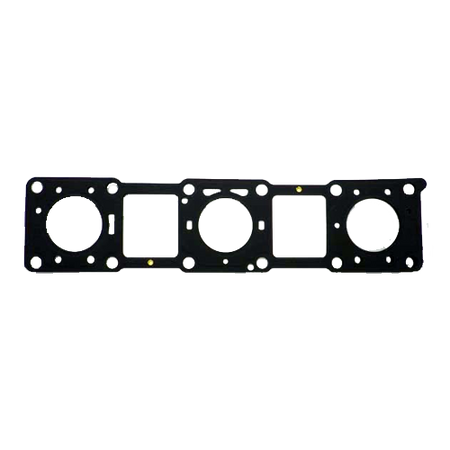

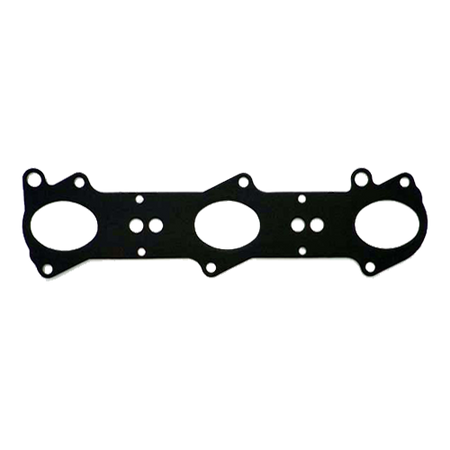

Ref. 7 Cylinder To Exhaust Manifold Gasket 1 66V-14613-00-00
Ref. 8 Exhaust Manifold to Head Pipe Gasket 1 66V-14739-00-00

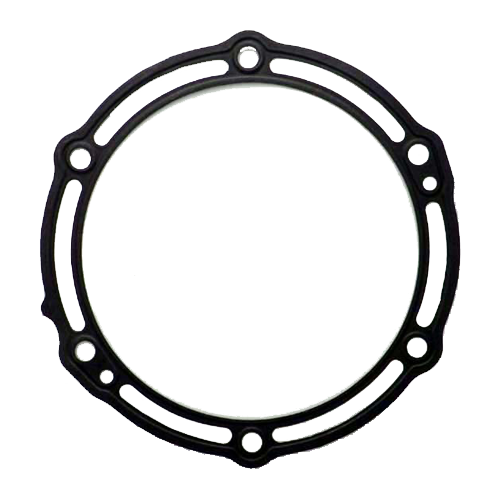

Ref. 9 Exhaust Chamber Muffler Damp Gasket 1 66V-14749-00-00

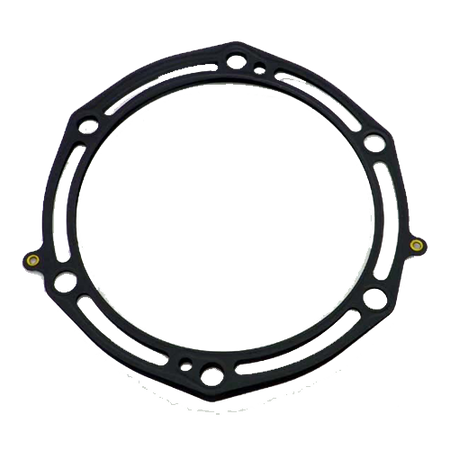

Ref. 10 Exhaust Outer Cover 1 1 66V-41114-00-00
Ref. 11 Exhaust Outer Cover 2 2 66V-41124-00-00
Ref. 12 Exhaust Pipe Tail Cone Gasket 1 66V-14623-00-00

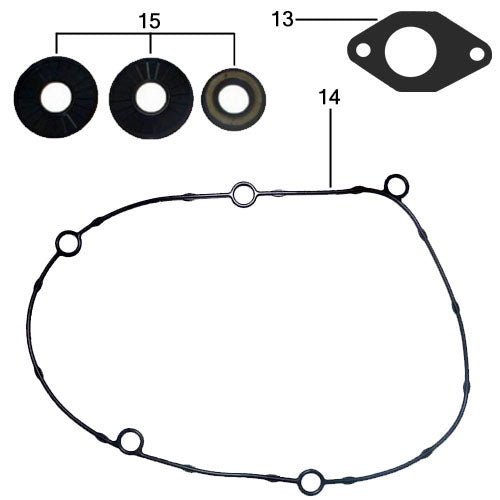

Ref. 13 Oil Pump Gasket 1 63M-13116-00-00

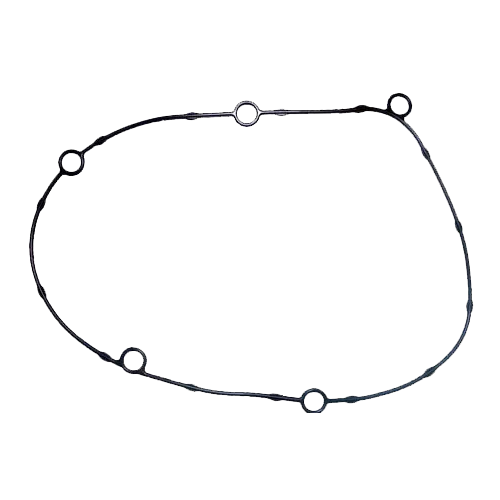

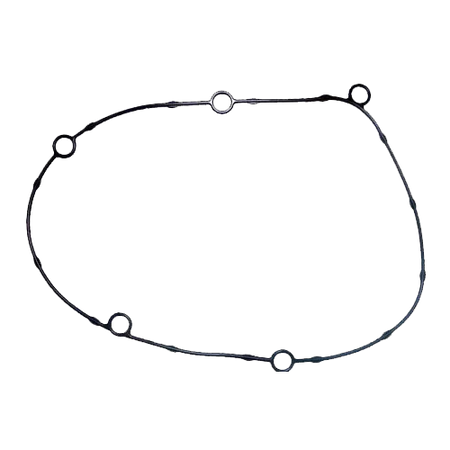

Ref. 14 Flywheel Cover Gasket 1 66V-81168-00-00

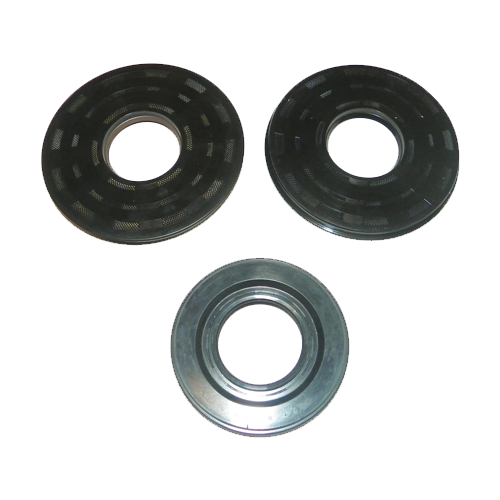

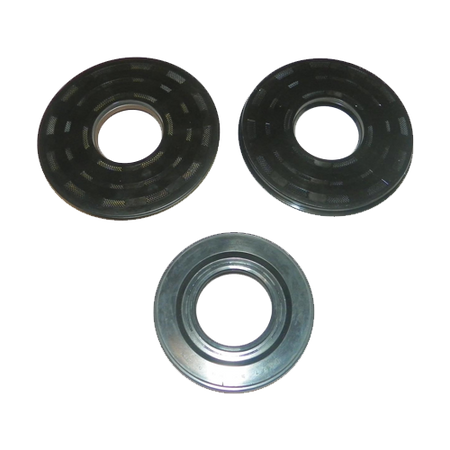

Ref. 15 Crankshaft Oil Seal Kit 1 Kit N/A
N/S Power Valve Oil Seal 6 93109-08M07-00
N/S - Not Shown On Diagram
