Yamaha 760 WaveRaider '96+, WaveBlaster II '96+, WaveVenture '96+, XL760 Individual Gaskets

$45.96
SKU 007-412

Yamaha 760 WaveRaider '96+, WaveBlaster II '96+, WaveVenture '96+, XL760 Individual Gaskets.
Stock Carburetor: Mikuni 44mm Dual Carb.
Note: All Gaskets Are Sold Each.

Ref. # Description Qty Req. OEM Number

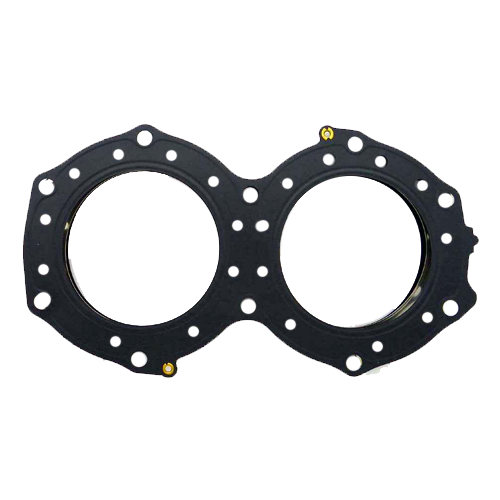

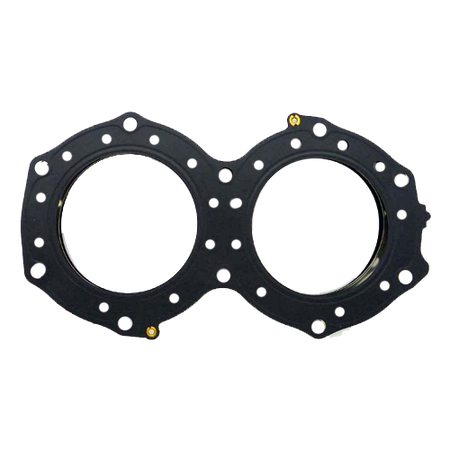

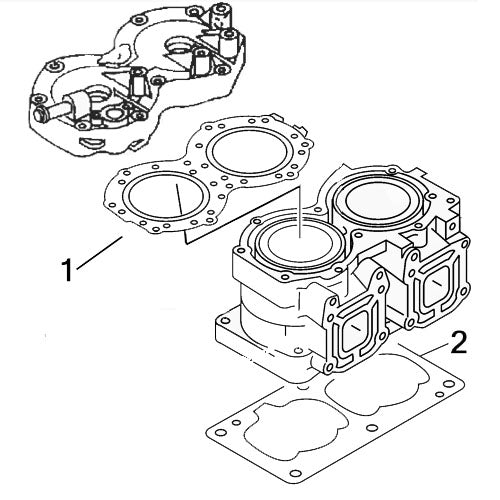

Ref. 1 Head Gasket 1 64X-11181-00-00
Ref. 2 Cylinder Base Gasket 1 6M6-11351-A2-00

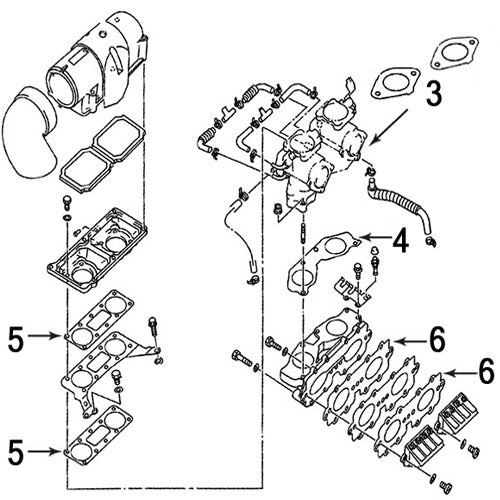

Ref. 3 Carburetor To Mount Plate Base Gasket 2 62T-14398-00-00
Ref. 4 Carburetor Mount Plate To Intake Manifold Gasket 1 64X-13556-00-00
Ref. 5 Flame Arrestor Gasket 2 64X-13674-00-00
Ref. 6 Reed Valve Plate Gasket 2 62T-13566-00-00

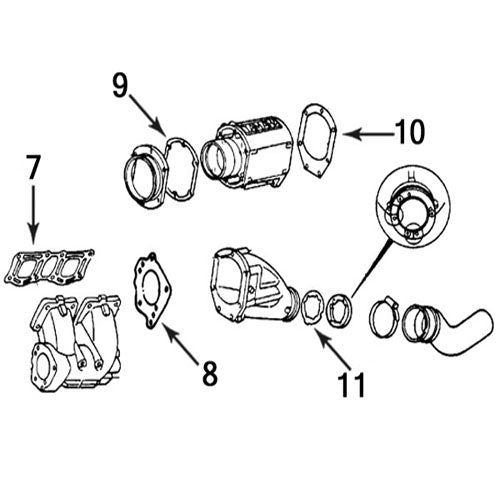

Ref. 7 Exhaust Manifold To Cylinder Gasket 1 62T-14613-00-00
Ref. 8 Exhaust Manifold To Head Pipe Gasket 1 64X-14749-00-00
Ref. 9 Exhaust Outer Cover Gasket #1 1 62T-41114-01-00
Ref. 10 Exhaust Outer Cover Gasket #2 1 64X-41124-00-00
Ref. 11 Exhaust Tail Pipe Gasket 1 64X-14623-00-00

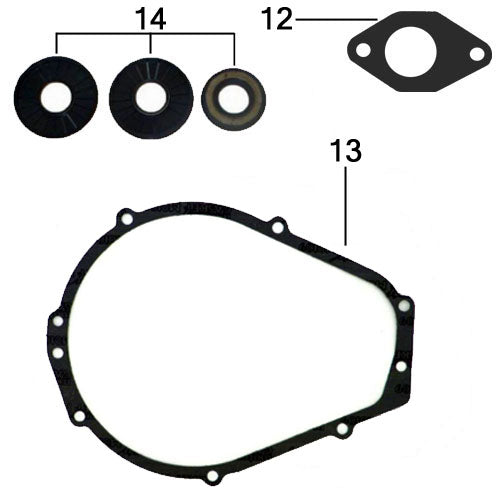

Ref. 12 Oil Pump Gasket 1 6R8-13116-A0-00
Ref. 13 Flywheel Cover Gasket 1 6M6-81365-A0-00
Ref. 14 Crankshaft Oil Seal Kit 1 Kit 42.2510
