Yamaha 701 WaveBlaster '96 Individual Gaskets

$22.56
SKU 007-413

Yamaha 701 WaveBlaster 1996 Individual Gaskets.
Stock Carburetor: Mikuni 38mm Dual Carb.
Note: All Gaskets Are Sold Each.

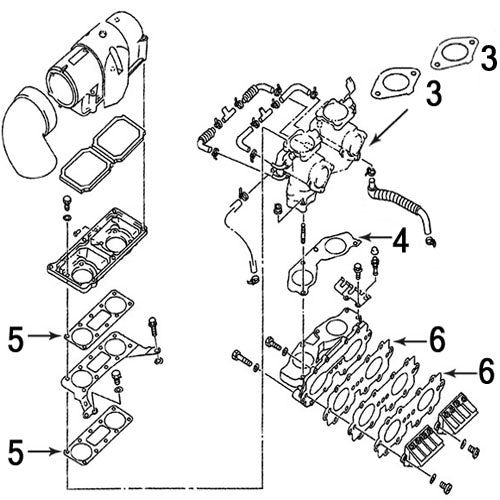

Ref. # Description Qty Req. OEM Number
Ref. 1 Head Gasket 1 62T-11181-00-00
Ref. 2 Cylinder Base Gasket 1 6M6-11351-A2-00
Ref. 3 Carburetor To Mount Plate Base Gasket 2 ----
Ref. 4 Carburetor Mount Plate To Intake Manifold Gasket 1 62T-13556-00-00
Ref. 5 Flame Arrestor Gasket 2 62T-13674-00-00
Ref. 6 Reed Valve Plate Gasket 2 62T-13566-00-00
Ref. 7 Exhaust Silencer Gasket 1 6R7-14755-A0-00
Ref. 8 Exhaust Outer Cover Gasket 1 6R7-41114-A0-00
Ref. 9 Exhaust Coupler Joint 2 1 61L-14625-00-00
Ref. 10 Exhaust Pipe Gasket 1 6M6-14739-A1-00
Ref. 11 Exhaust Manifold To Cylinder Gasket 1 61X-14613-A0-00
Ref. 12 Exhaust Manifold To Head Pipe Gasket 1 6R7-14749-A0-00
Ref. 13 Oil Pump Gasket 1 6R8-13116-A0-00
Ref. 14 Flywheel Cover Gasket 1 6M6-81365-A0-00
Ref. 15 Crankshaft Oil Seal Kit 1 Kit 42.2510
