Yamaha 701 61X WaveBlaster '93-95 Individual Gaskets

$22.56
SKU 007-413

Yamaha 701 61X WaveBlaster '93-95 Individual Gaskets.
Stock Carburetor: Mikuni 44mm Single Carb.
Note: All Gaskets Are Sold Each.

Ref. # Description Qty Req. OEM Number

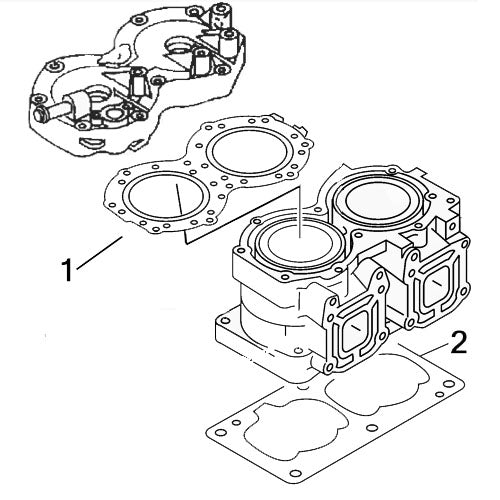

Ref. 1 Head Gasket 1 61X-11181-A0-00
Ref. 2 Cylinder Base Gasket 1 6M6-11351-A1-00

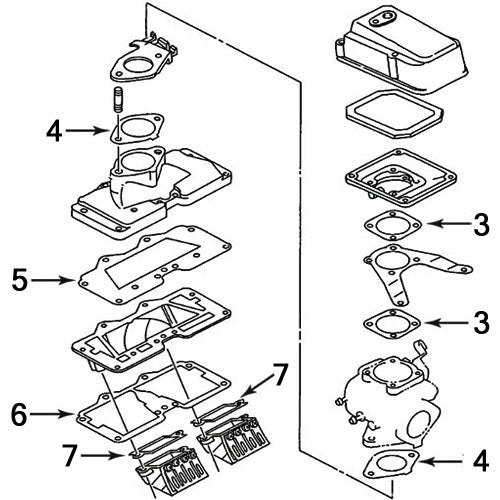

Ref. 3 Flame Arrestor Gasket 2 6M6-13674-A1-00
Ref. 4 Carburetor Base Gasket 2 6M6-13556-00-00
Ref. 5 Upper Intake Manifold Gasket 1 61X-13563-A0-00
Ref. 6 Lower Intake Manifold Gasket 1 61X-13566-A0-00
Ref. 7 Reed Block Gasket 2 61X-13621-A0-00

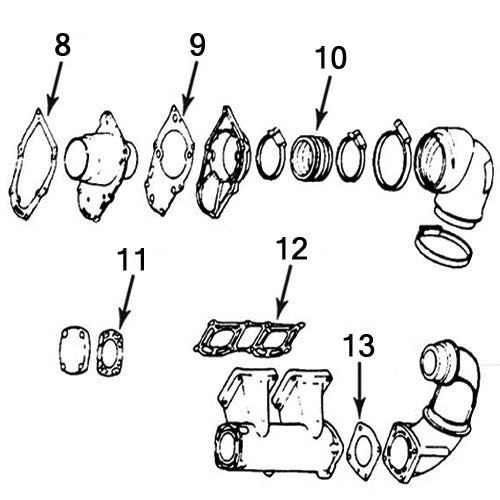

Ref. 8 Exhaust Silencer Gasket 1 6R7-14755-A0-00
Ref. 9 Exhaust Outer Cover Gasket 1 6R7-41114-A0-00
Ref. 10 Exhaust Coupler Joint 2 1 61L-14625-A0-00
Ref. 11 Exhaust Muffler Damper 1 Gasket 1 6M6-14739-A1-00
Ref. 12 Exhaust Manifold To Cylinder Gasket 1 61X-14613-A0-00
Ref. 13 Exhaust Manifold To Head Pipe Gasket 1 6R7-14749-A0-00

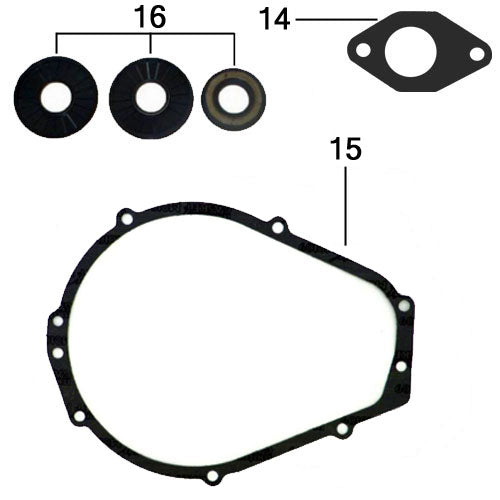

Ref. 14 Oil Pump Gasket 1 6R8-13116-A0-00
Ref. 15 Flywheel Cover Gasket 1 6M6-81365-A0-00
Ref. 16 Crankshaft Oil Seal Kit 1 Kit 42.2510
