Yamaha 500 Piston Rings - 2-Stroke

Yamaha 500 Piston Rings - 2-Stroke

by WSM Performance
SKU
$21.34 - $21.34
$21.34
$21.34 - $21.34
$21.34

Highly functional Piston Rings fit WSM Performance Pistons. Meticulous product design and advanced manufacturing backed by a strong production system make Riken Piston Rings the top choice for performance and value.

Note: Wiseco Performance Pistons use their own proprietary style piston rings. Please see the Wiseco Piston Ring section for ring replacement on Wiseco Pistons.

Fits The Following Models:

  • 1989-1990 Yamaha Wave Jammer 500
  • 1989-1993 Yamaha Wave Runner 500

WSM Performance Pistons.

2-Stroke Motor.

Standard Size Bore: 72mm

Ring End Gap: .008~.014

One Kit Does One Piston.

Part Number Piston Size Bore Size
NLA
 Standard 72.00mm
010-901-04 0.25 72.25mm
010-901-05 0.50 72.50mm
010-901-06 0.75 72.75mm
010-901-07 1.00 73.00mm

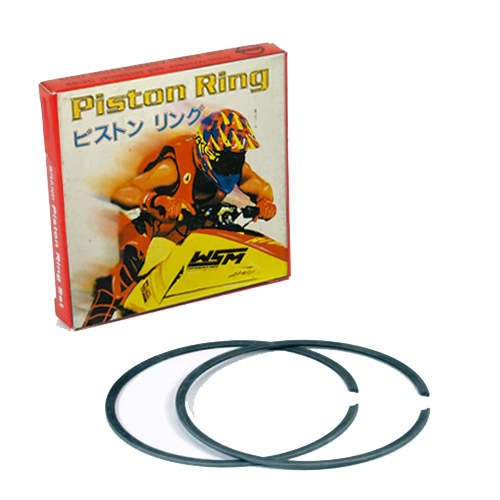

Note: Generic image and may not depict your actual kit.
