Yamaha 4-Stroke 1800 FX SHO '15, FX Cruiser SHO '15-18, FX Cruiser SVHO '14-18, FZR/FZS '14-16 - Individual Gaskets

$2.81
SKU 008-692-02

Fits: 2017-2019 Yamaha GP1800, 2014-2016 Yamaha FZR 1800, 2014-2016 Yamaha FZS 1800, 2014-2019 Yamaha FX SVHO 1800, 2014-2019 Yamaha FX Cruiser SVHO 1800, 2017-2019 Yamaha FX Cruiser SVHO Ltd. 1800.

REF.# OEM NUMBER PART NUMBER DESCRIPTION REQ'D
1 93210-24M79-00 008-692-02 Oil Cap O-Ring 1
2 6BH-11193-00-00 007-593-09 Valve Cover Gasket 1
3 90430-10007-00 007-594-15 Oil Pipe Gasket #1 4

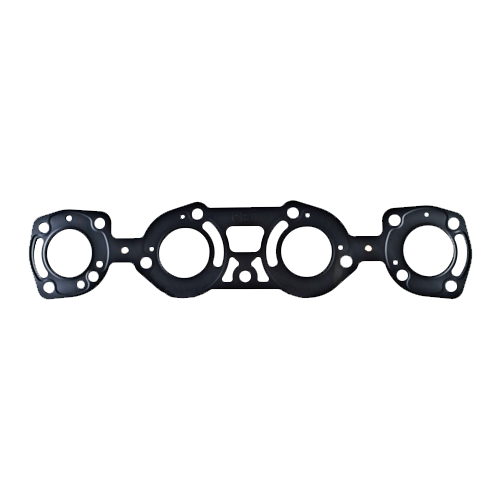

4 6ET-14613-00-00 007-594-21 Exhaust Manifold Gasket 1
5 6BH-14613-00-00 007-594-19 Exhaust Pipe Gasket 1
6 6BH-11181-00-00 007-593-11 Cylinder Head Gasket 1
7 6S5-14739-00-00 007-594-10 Muffler Damper Gasket #1 1
8 6BH-14749-00-00 007-594-11 Muffler Damper Gasket #2 1

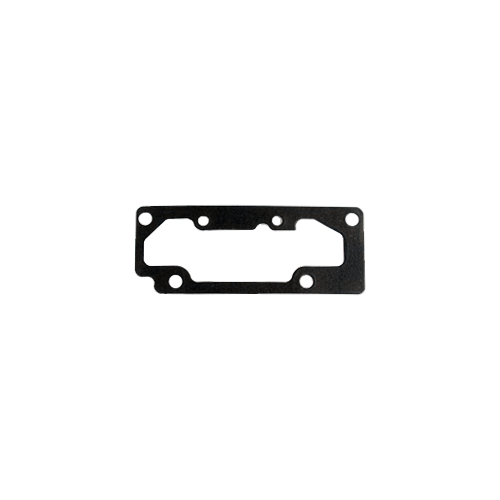

9 6BH-1131B-00-00 007-597-07 Crankcase Cover Gasket 1

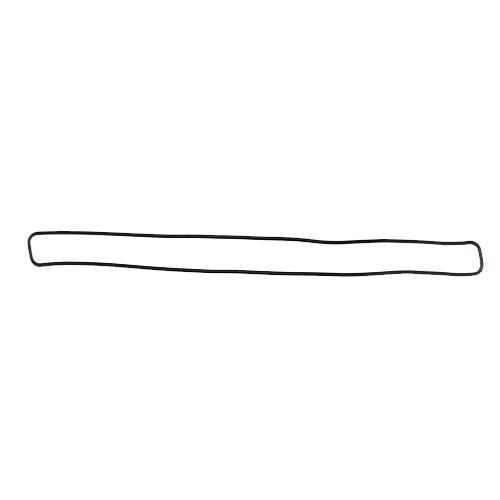

10 6CS-12517-00-00 008-687 Water Inlet Gasket 1

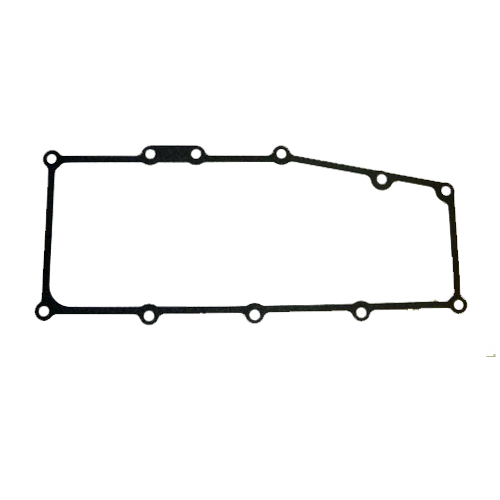

11 6BH-13557-00-00 007-594-12 Water Intake Gasket 1

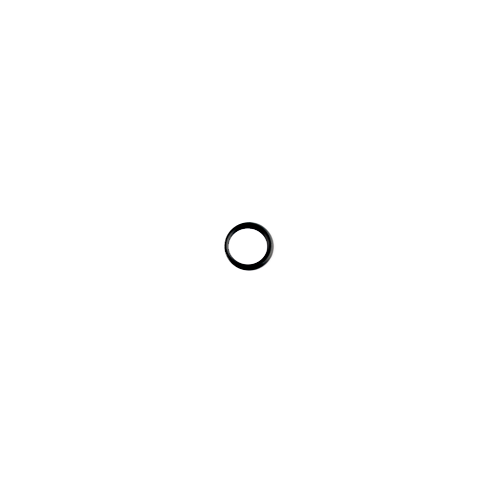

12 93210-11453-00 008-686 Case Dowel O-Ring 1

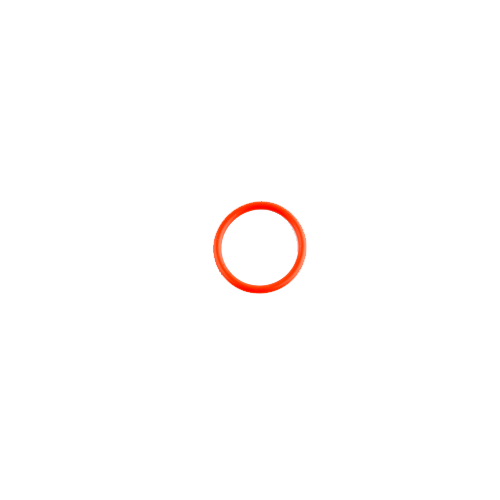

13 93210-21631-00 008-689-03 Oil Pump Connector O-Ring 2
14 6S5-13563-00-00 007-594-13 Oil Pump Gasket 1

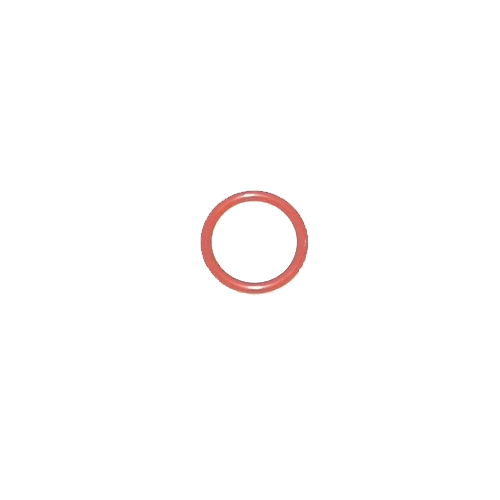

15 93210-18322-00 008-689-02 Oil Cooler Connector O-Ring 4

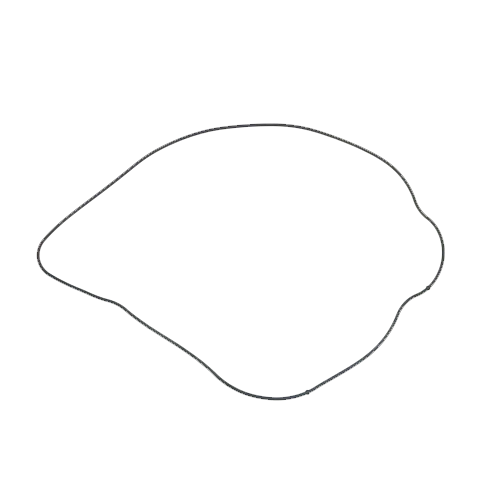

16 6S5-81168-00-00 008-689 Generator Cover O-Ring 1
17 6S5-81167-10-00 009-702-06T Oil Seal 1

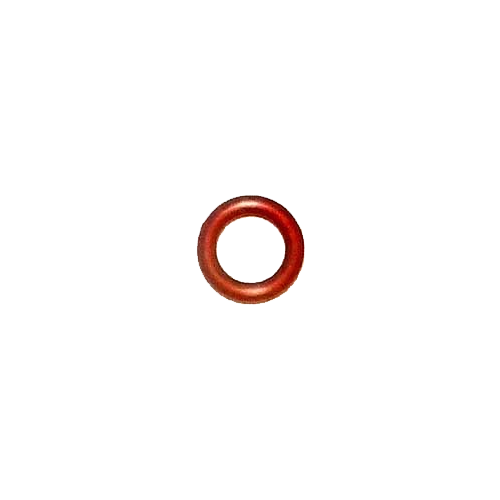

18 68V-1416A-00-00 008-441 Injection Nozzle O-Ring 4
19 8FP-13556-10-00 008-683-16 Manifold Gasket 4
20 6BH-13645-00-00 007-591-04 Intake Manifold Gasket 1

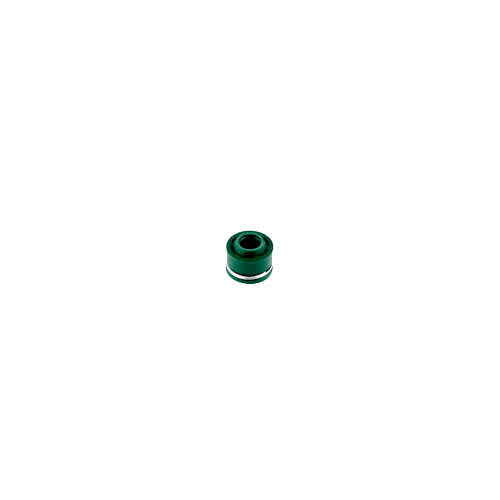

21 51Y-12119-00-00 010-053 Valve Stem Seal 16

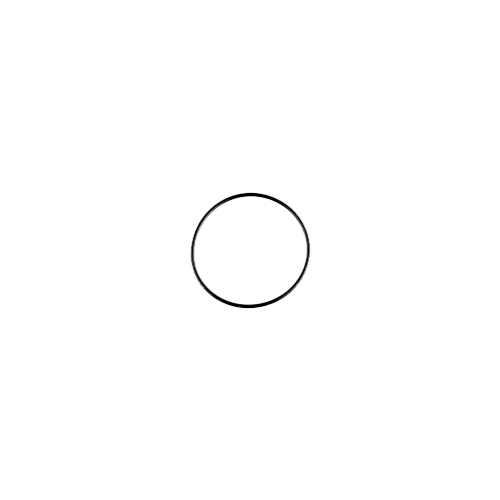

22 93210-32172-00 008-689-04 Earth Plate O-Ring 1

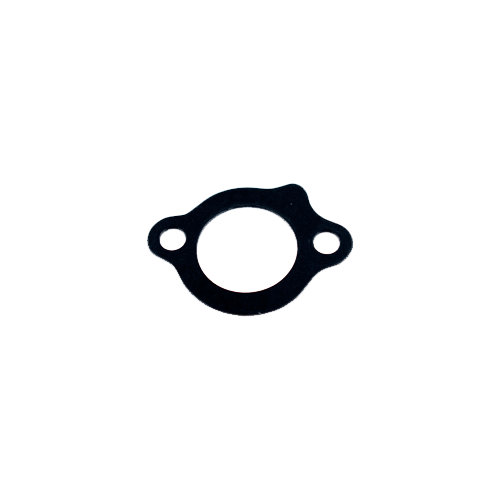

23 (N/S) 6S5-121E2-00-00 007-594-14 Cam Chain Tensioner Gasket 1

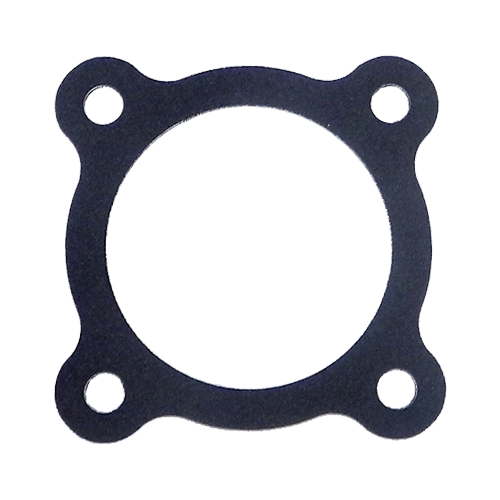

24 (N/S) 6CR-14536-00-00 007-594-22 Throttle Plate Gasket 1
25 (N/S) 6S5-13477-00-00 007-594-18 Oil Pipe Gasket #2 1
NOTE: Ref. N/S - Item not shown on diagram

VER: 122.007.677
