Yamaha 4-Stroke 1800 FX HO '13/18, FX Cruiser HO '13-18, VXR/VXS 1800 '13-18 - Individual Gaskets

$2.81
SKU 008-692-02

Fits: 2013-2019 Yamaha VXR 1800, 2013-2016 Yamaha VXS 1800, 2016-2018 Yamaha VX Cruiser HO, 2013,2015-2019 Yamaha FX HO 1800, 2013-2019 Yamaha FX Cruiser HO 1800.

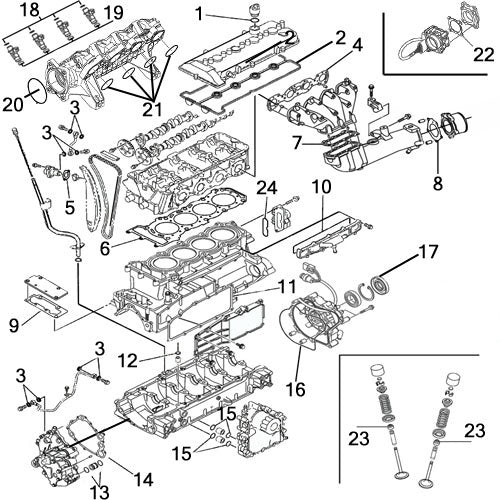

REF.# OEM NUMBER PART NUMBER DESCRIPTION REQ'D
1 93210-24M79-00 008-692-02 Oil Cap O-Ring 1
2 6BH-11193-00-00 007-593-09 Head Gasket 1
3 90430-10007-00 007-594-15 Oil Pipe Gasket #1 4
4 6BH-14613-00-00 007-594-19 Exhaust Pipe Gasket 1
5 6S5-121E2-00-00 007-594-14 Cam Chain Tensioner Gasket 1
6 6BH-11181-00-00 007-593-11 Cylinder Head Gasket 1
7 6S5-14739-00-00 007-594-10 Muffler Damper Gasket #1 1
8 6BH-14749-00-00 007-594-11 Muffler Damper Gasket #2 1
9 6BH-1131B-00-00 007-597-07 Crankcase Cover Gasket 1
10 6CS-12517-00-00 008-687 Water Inlet Gasket 1
11 6BH-13557-00-00 007-594-12 Water Intake Gasket 1
12 93210-11453-00 008-686 Case Dowel O-Ring 1
13 93210-21631-00 008-689-03 Oil Pump Connector O-Ring #1 2
14 6S5-13563-00-00 007-594-13 Oil Pump Gasket 1
15 93210-18322-00 008-689-02 Oil Cooler Connector O-Ring #2 4
16 6S5-81168-00-00 008-689 Generator Cover O-Ring 1
17 6S5-81167-10-00 009-702-06T Oil Seal 1
18 68V-1416A-00-00 008-441 Injection Nozzle O-Ring 4
19 8FP-13556-10-00 008-683-16 Fuel Injector Seal 4

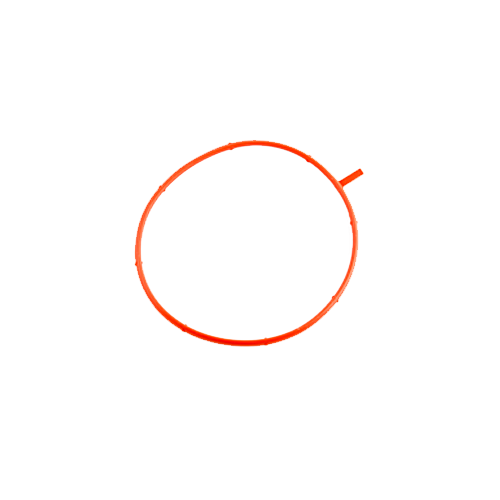

20 6BH-14156-00-00 008-683-17 Insulating Gasket 1

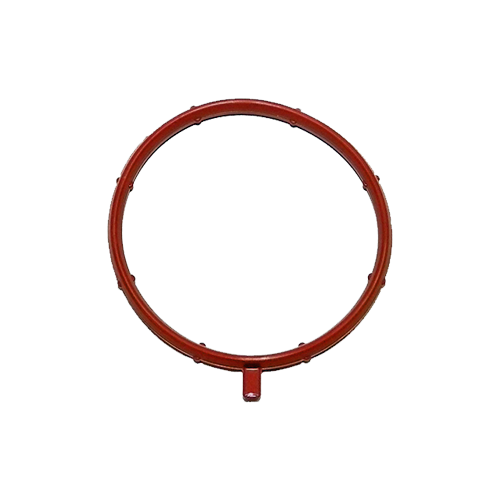

21 6BH-14126-00-00 008-683-18 Plenum O-Rings 4
22 6CR-14536-00-00 007-594-22 Throttle Plate Gasket 1
23 51Y-12119-00-00 010-053 Valve Stem Seal 16
24 93210-32172-00 008-689-04 Earth Plate O-Ring 1
25 (N/S) 6S5-13477-00-00 007-594-18 Oil Pipe Gasket #2 1
NOTE: Ref. N/S - Item not shown on diagram

VER: 121.007.675
