Yamaha 4-Stroke 1800 FX/Cruiser SHO '08-10, FZR/FZS '09-10 - Individual Gaskets

$2.81
SKU 008-692-02

Fits: 2008-2010 Yamaha FX SHO 1800, 2008-2010 Yamaha FX Cruiser SHO 1800, 2009-2010 Yamaha FZR 1800, 2009-2010 Yamaha FZR 1800.

REF.# OEM NUMBER PART NUMBER DESCRIPTION REQ'D
1 93210-24M79-00 008-692-02 Oil Cap O-Ring 1

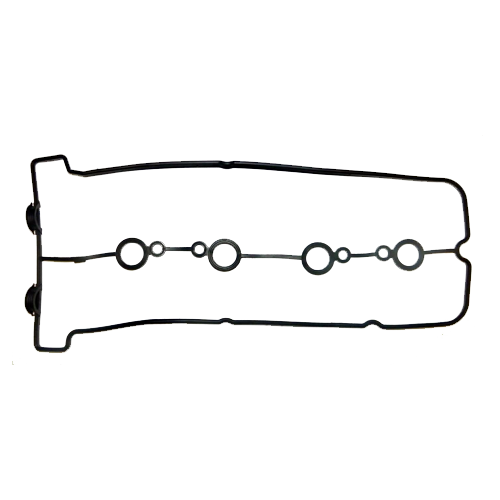

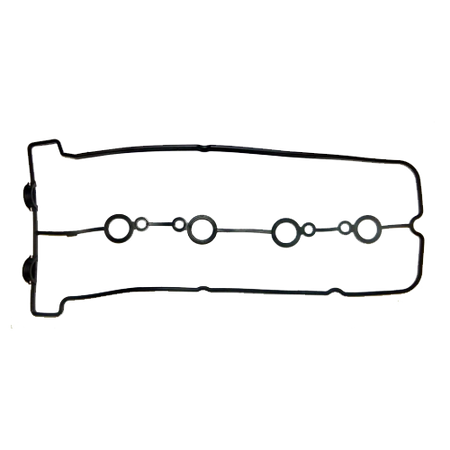

2 6S5-11193-00-00 007-593-08 Head Gasket 1
3 90430-10007-00 007-594-15 Oil Pipe Gasket #1 8
4 6S5-14739-00-00 007-594-10 Muffler Damper Gasket #1 1

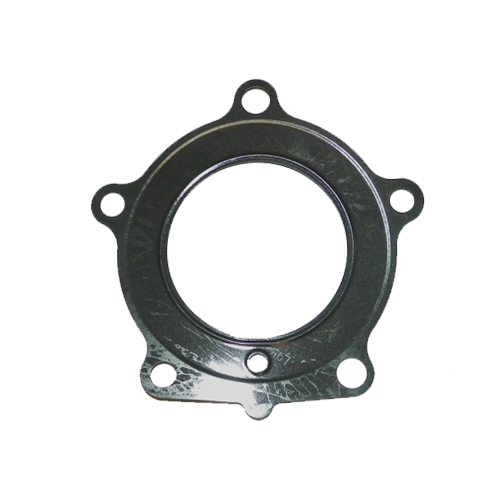

5 6S5-14749-00-00 007-594-11 Muffler Damper Gasket #2 2
6 6S5-121E2-00-00 007-594-14 Chain Tensioner Gasket 1

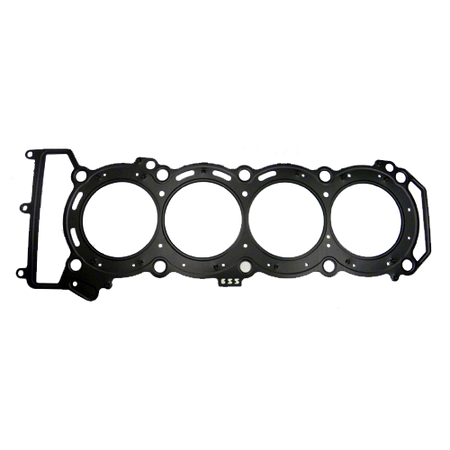

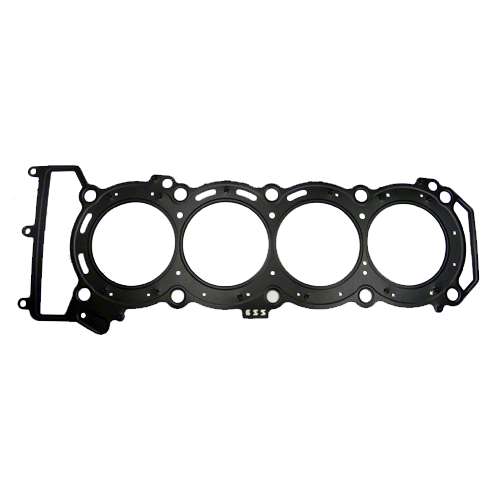

7 6S5-111-81-00-00 007-593-07 Cylinder Head Gasket 1
8 93210-60ME8-00 008-689-04 Earth Plate O-Ring 1

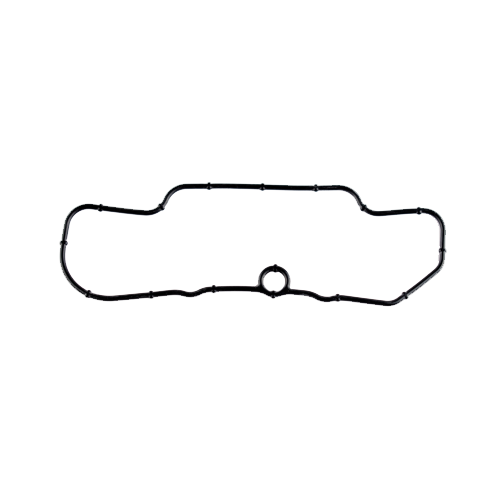

9 6S5-1416A-00-00 008-688 Fuel Injector O-Ring 1
10 6S5-12517-00-00 008-687 Water Inlet Gasket 1
11 93210-11453-00 008-686 Case Dowel O-Ring 1
12 93210-21631-00 008-689-03 Oil Pump Connector O-Ring #1 4
13 6S5-13563-00-00 007-594-13 Oil Pump Gasket 1
14 93210-18322-00 008-689-02 Oil Cooler Connector O-Ring #2 4
15 6S5-81168-00-00 008-689 Generator Cover O-Ring 1
16 6S5-81167-00-00 009-702-06T Oil Seal 1

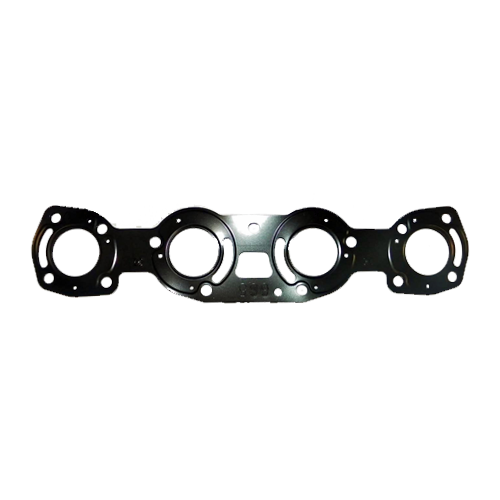

17 6S5-14613-00-00 007-594-09 Exhaust Manifold Gasket 1
18 60E-14147-00-00 008-441 Injection Nozzle O-Ring 4

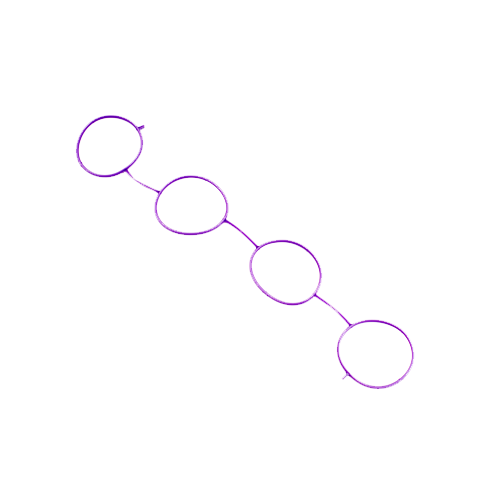

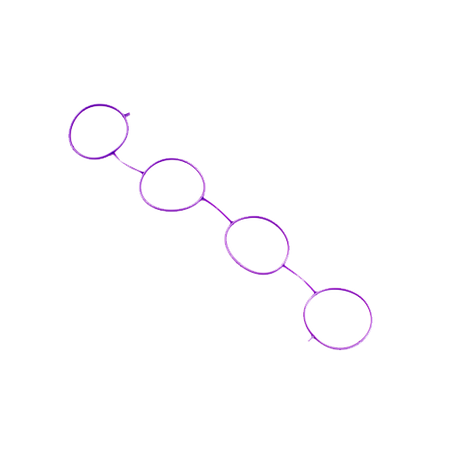

19 6S5-13645-00-00 008-685 Manifold Gasket 1

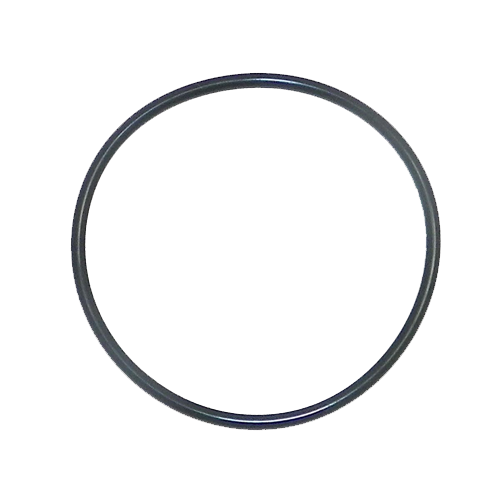

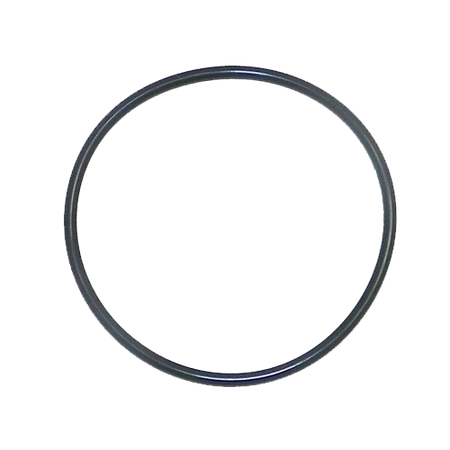

20 6S5-14147-00-00 008-683-20 Throttle Plate O-Ring 1

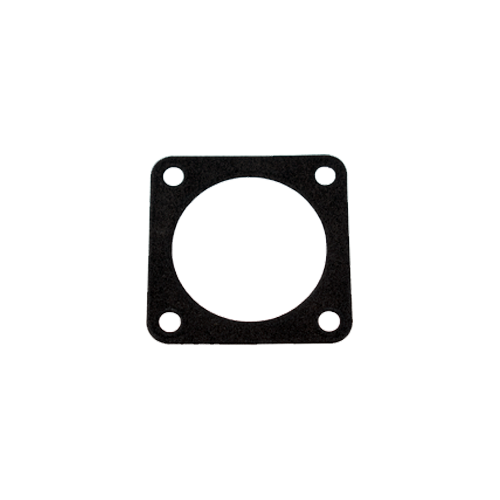

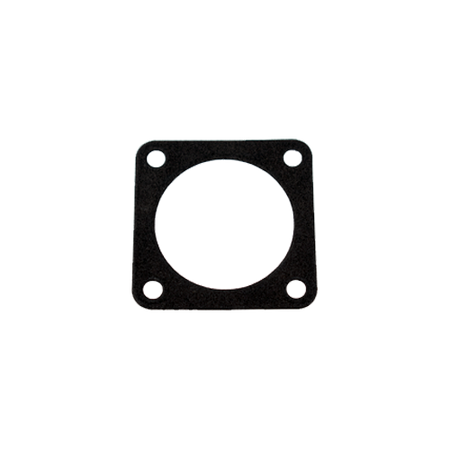

21 6S5-14536-00-00 007-594-16 Throttle Body Gasket 1
22 51Y-12119-00-00 010-053 Valve Stem Seal 16
23 6S5-13557-00-00 007-594-12 Water Intake Gasket 1
24 (N/S) 6S5-13476-00-00 007-594-17 Oil Pipe Gasket #2 1
25 (N/S) 6S5-13477-00-00 007-594-18 Oil Pipe Gasket #3 1

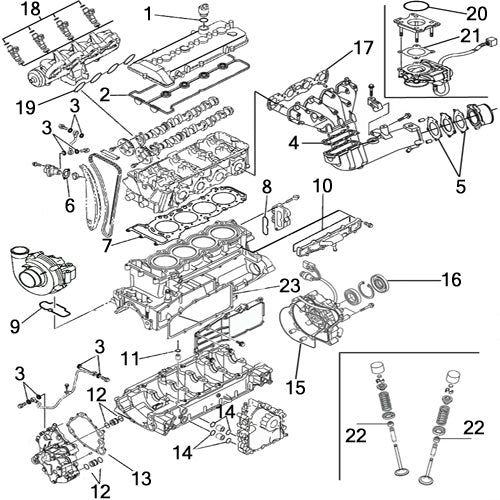

NOTE: Ref. N/S - Item not shown on diagram
