Yamaha 4-Stroke 1800 FX / Cruiser HO'09-12, VXR/VXS '11-12- Individual Gaskets

$12.19
SKU 007-591-04

Fits: 2005-2017 Yamaha VX 1100 Sport, 2005-2017 Yamaha VX 1100 Deluxe, 2007-2011 VX 1100, 2007-2015 Yamaha VX Cruiser 11001 2015 Yamaha 1100 V1/V1 Sport.

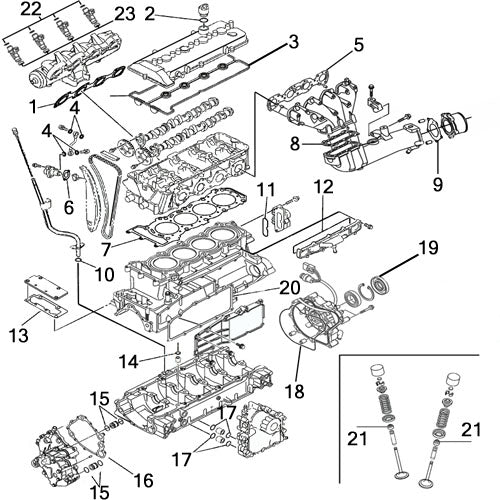

REF.# OEM NUMBER PART NUMBER DESCRIPTION REQ'D
1 6BH-13645-00-00 007-591-04 Manifold Gasket 1
2 93210-24M79-00 008-692-02 Oil Cap O-Ring 1
3 6BH-11193-00-00 007-593-09 Head Gasket 1
4 90430-10007-00 007-594-15 Oil Pipe Gasket #1 4
5 6BH-14613-00-00 007-594-19 Exhaust Pipe Gasket 1
6 6S5-121-E2-00-00 007-594-14 Cam Chain Tensioner Gasket 1
7 6BH-11181-00-00 007-593-11 Cylinder Head Gasket 1
8 6S5-14739-00-00 007-594-10 Muffler Gasket  #1 1

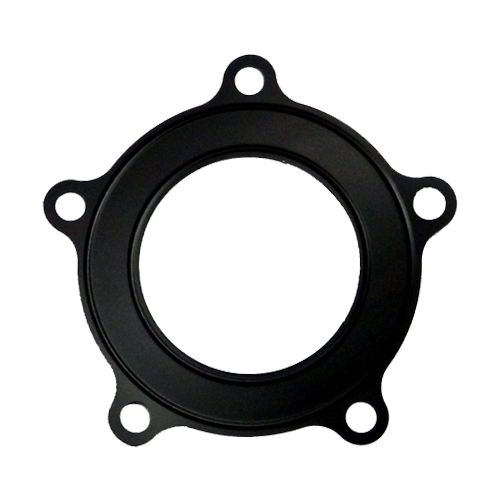

9 6BH-14749-00-00 007-594-20 Muffler Gasket  #2 2

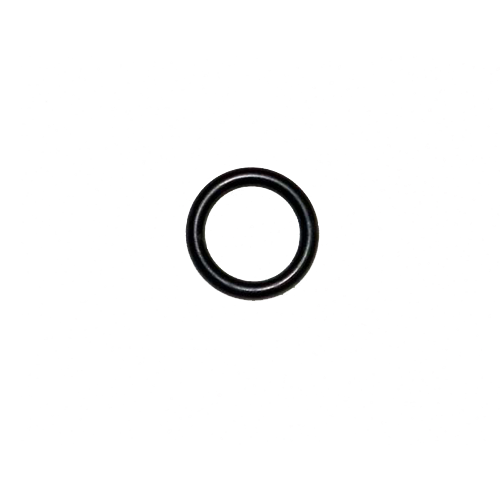

10 93210-12790-00 008-689-01 Oil Level O-Ring 1
11 93210-60ME-8-00 008-689-04 Earth Plate O-Ring 1
12 6S5-12517-01-00 008-687 Water Inlet Gasket 1
13 6BH-1131B-00-00 007-597-07 Cover Gasket 1
14 93210-11453-00 008-686 O-Ring 1
15 93210-21631-00 008-689-03 Oil Pump Connector O-Ring #1 4
16 6S5-13563-00-00 007-594-13 Oil Pump Gasket 1
17 93210-18322-00 008-689-02 Oil Cooler Connector O-Ring #2 4
18 6S5-88168-00-00 008-689 Generator Cover O-Ring 1
19 6S5-81167-10-00 009-702-06T Oil Seal 1
20 6BH-13557-00-00 007-594-12 Water Intake Gasket 1
21 51Y-12119-00-00 010-053 Valve Stem Seal 16
22 60E-14147-00-00 008-441 Injection Nozzle O-Ring 4
23 8FP-13556-00-00 008-683-16 Manifold Gasket #2 4

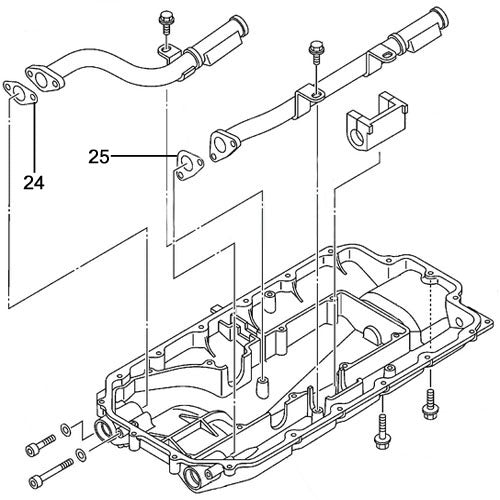

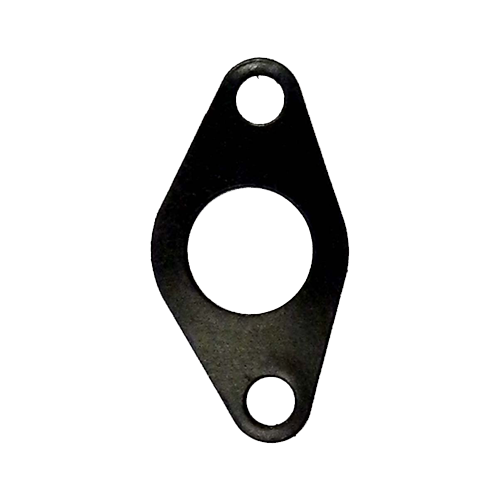

24 6S5-13476-00-00 007-594-17 Oil Pipe Gasket #2 1
25 6S5-13477-00-00 007-594-18 Oil Pipe Gasket #3 1
