Yamaha 4-Stroke 1100 VX Sport/Deluxe '05-15, VX Cruiser '07-15- Individual Gaskets

$3.97
SKU 008-683-09

Fits: 2005-2017 Yamaha VX 1100 Sport, 2005-2017 Yamaha VX 1100 Deluxe, 2007-2011 VX 1100, 2007-2015 Yamaha VX Cruiser 11001 2015 Yamaha 1100 V1/V1 Sport.

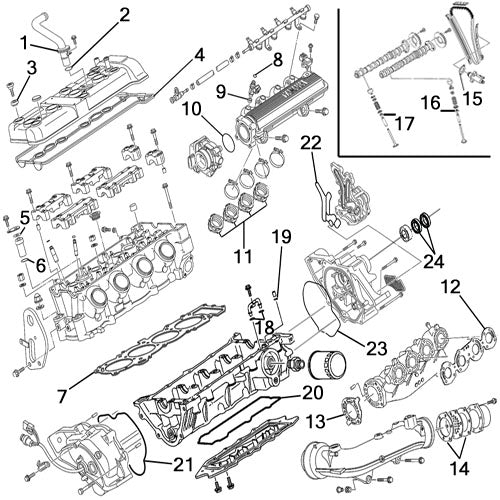

REF.# OEM NUMBER PART NUMBER DESCRIPTION REQ'D
1 60E-12494-00-00 008-683-09* Pipe Seal 1

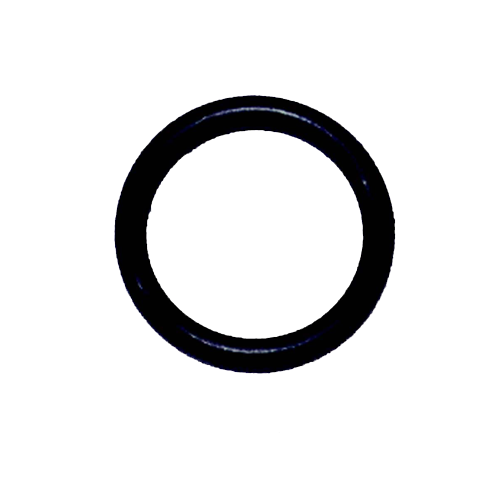

2 93210-18417-00 008-692 Pipe O-Ring #1 1

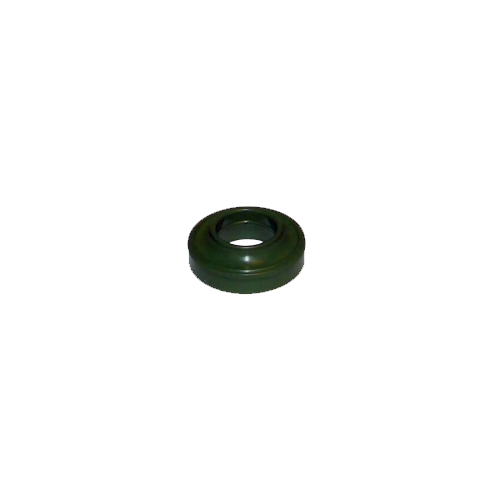

3 4KG-1111G-00-00 009-791 Valve Cover Hold Down Seal 6
4 60E-11193-01-00 007-593-04 Head Cover Gasket 1

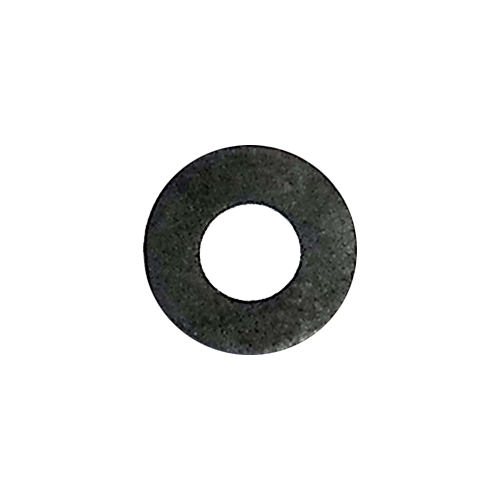

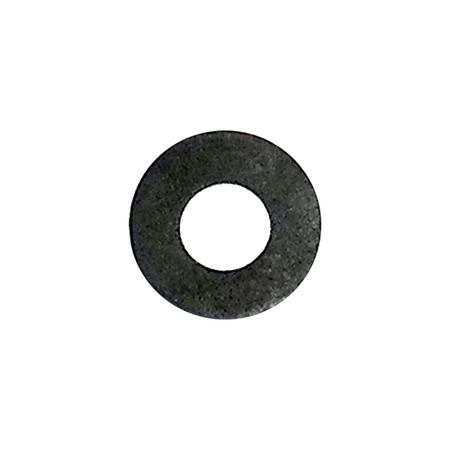

5 60E-12474-00-00 007-597-02 Pipe Gasket 1
6 93210-18417-00 008-692 Pipe O-Ring #2 1

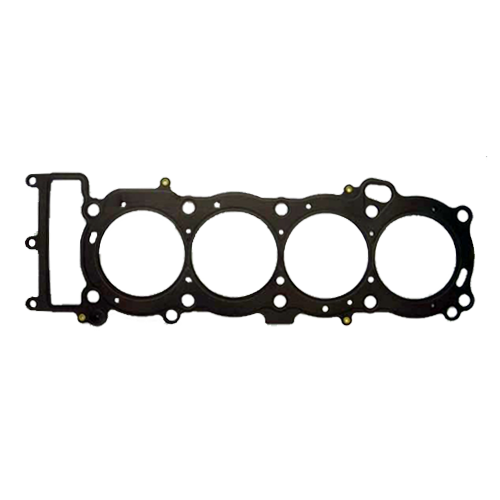

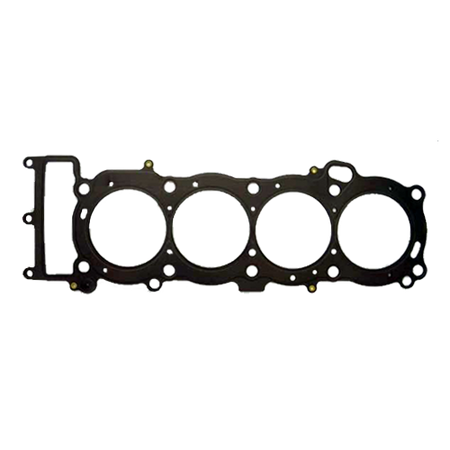

7 6D3-11181-00-00 007-593-03 Cylinder Head Gasket 1
8 60E-14147-00-00 008-441 Fuel Injector O-Ring 4
9 90430-09002-00 008-683-07 Fuel Injector Seal 4

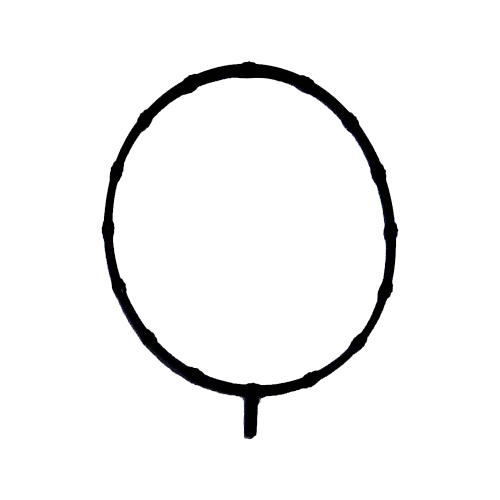

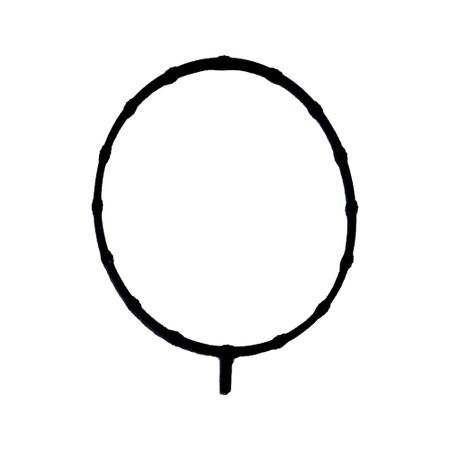

10 6D3-14457-00-00 008-683-12 Throttle Body O-Ring 1

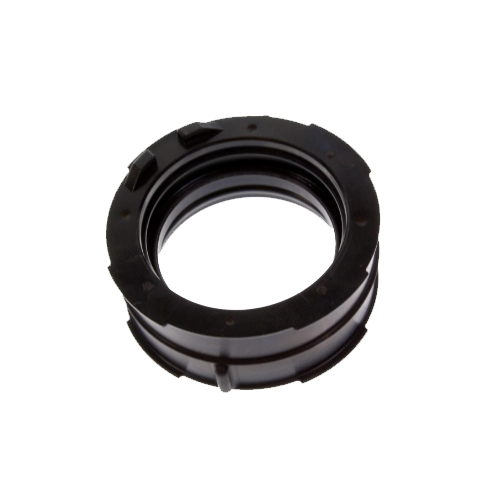

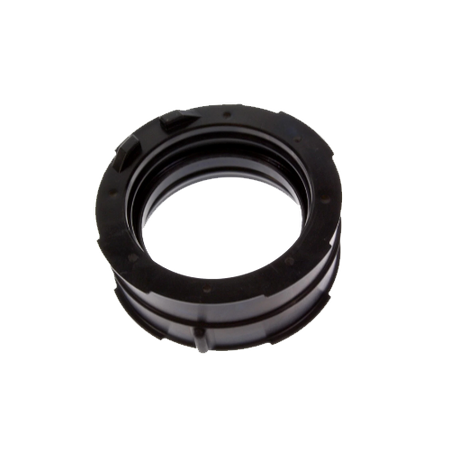

11 6D3-13795-00-00 008-683-13 Plenum Connector 4

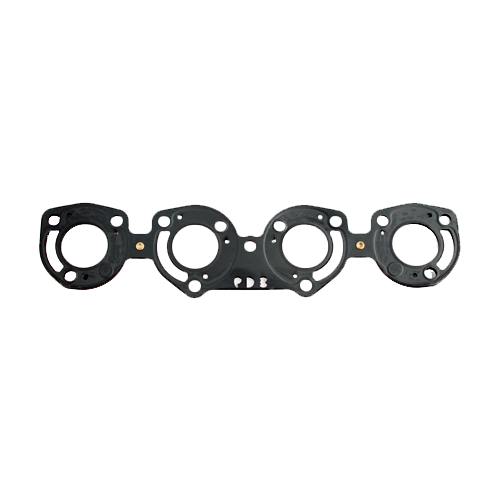

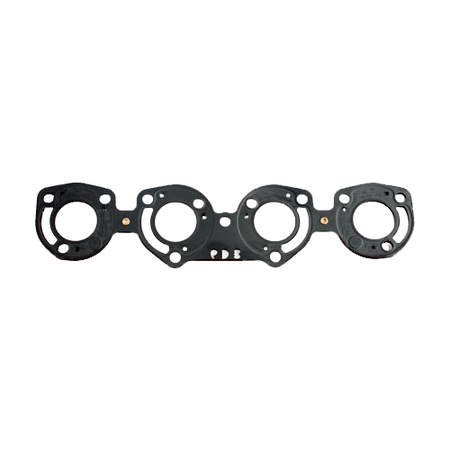

12 6D3-14613-00 007-594-05 Exhaust Manifold Gasket 1

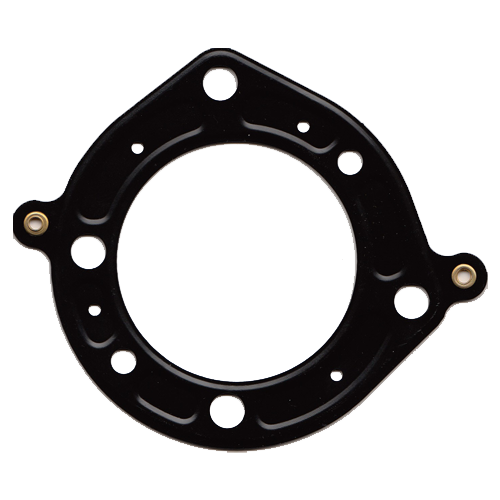

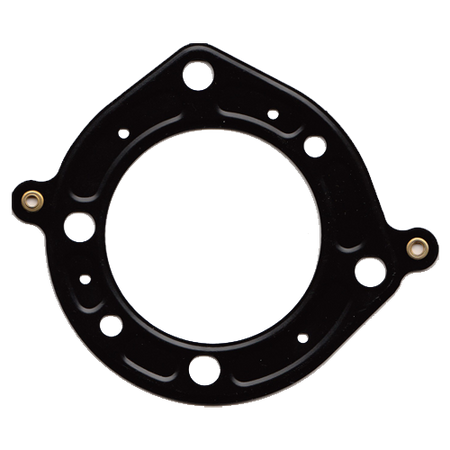

13 6D3-14739-00 007-594-06 Exhaust Muffler Dampner 1
14 6D3-14623-00 007-594-03 Exhaust Pipe Gasket 2

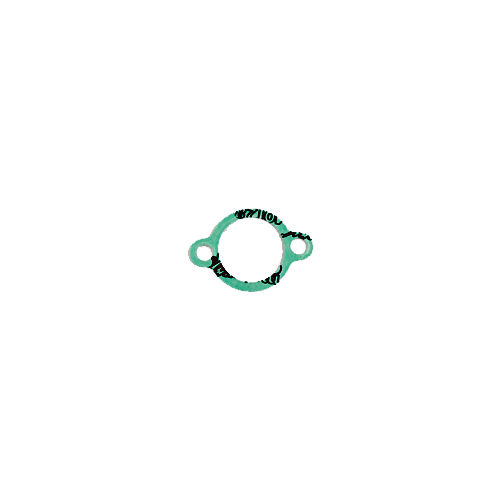

15 4FM-12213-00-00 007-597 Chain Tensioner Gasket 1
16 4TV-12119-00-00 010-051 Intake Valve Stem Seal 12
17 4SV-12119-00-00 010-052 Exhaust Valve Stem Seal 8

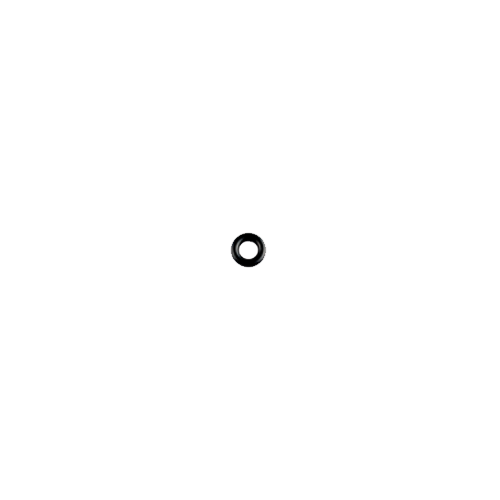

18 93210-06667-00 008-683-19 Crankcase O-Ring #1 2
19 93210-08001-00 526-07 Crankcase O-Ring #2 1

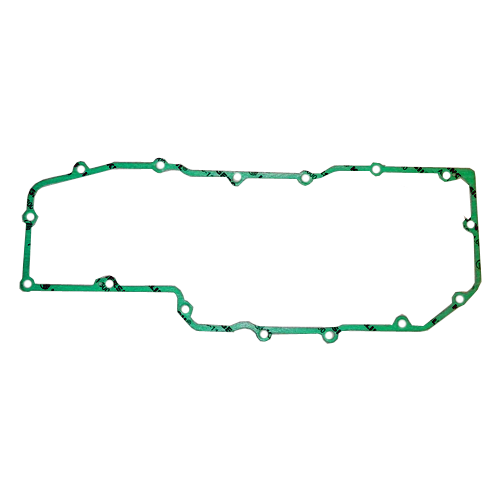

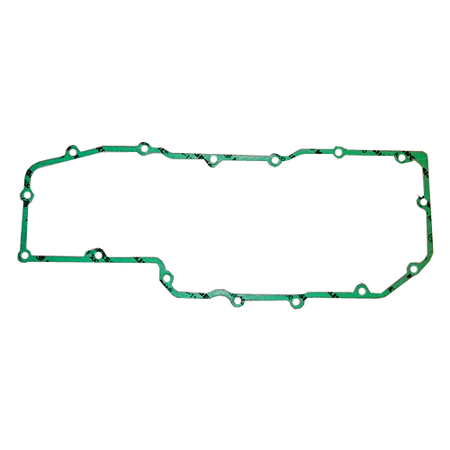

20 6B6-13557-00-00 007-597-01 Oil Pan Gasket 1

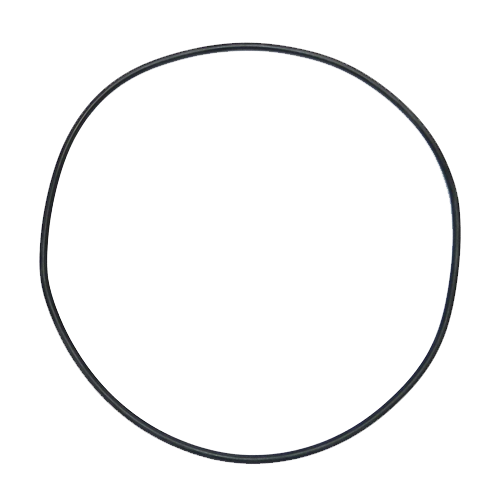

21 93212-04001-00 008-418-01 Generator Cover Gasket 1

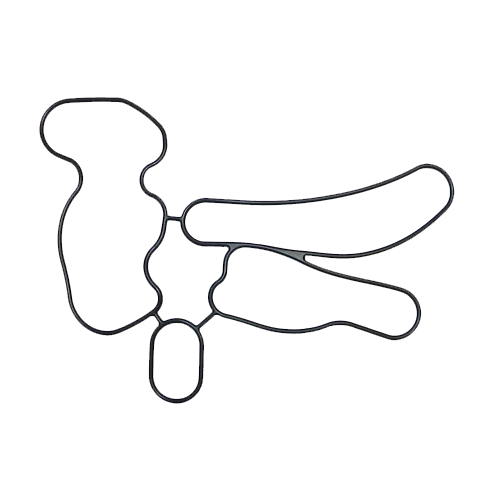

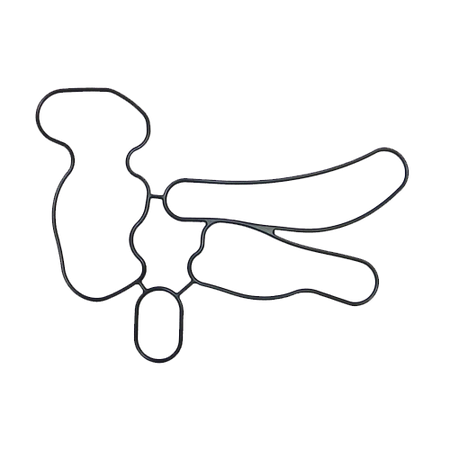

22A 6D3-13563-00-00 008-689-05 Oil Pump O-Ring #1 (2005-08) 1

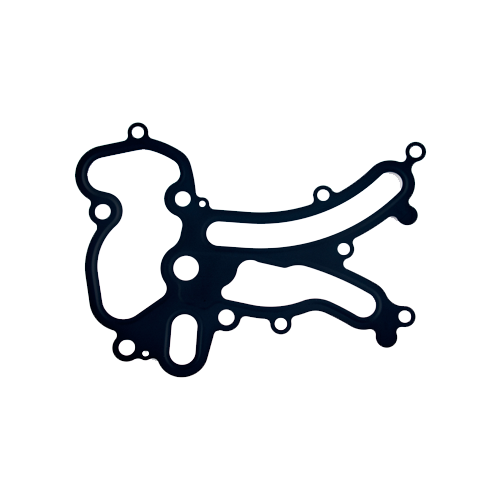

22B 6B6-13563-01-00 007-594-08 Oil Pump Gasket (2009-15) 1

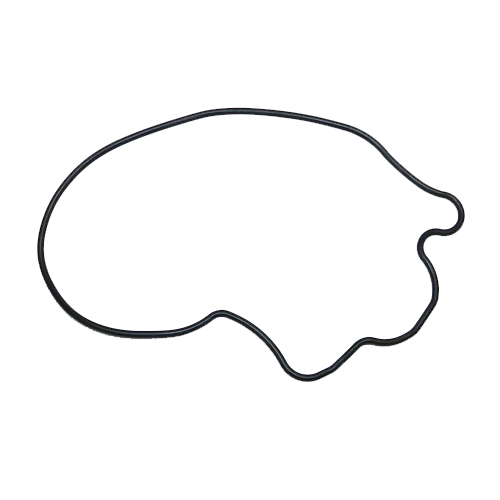

23 6B6-13475-00-00 008-689-06 Oil Pump O-Ring #2 1

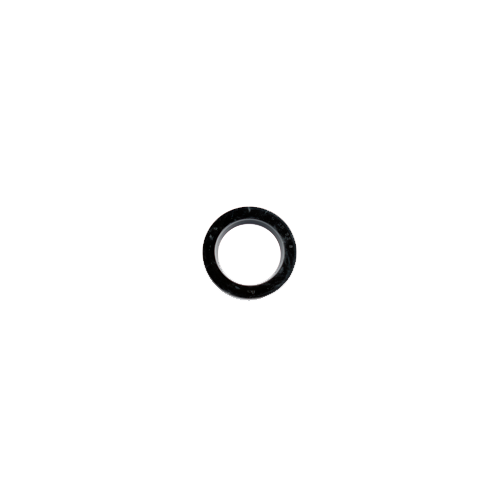

24 93101-35004-00 009-702-05J Oil Seal 2
25 60E-13473-00-00 008-692-01 Dip Stick O-Ring 1

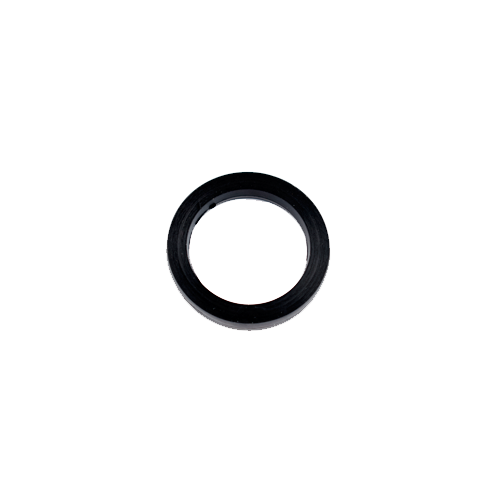

26 60E-13473-00-00 008-692-01 Oil Cooler O-Ring #1 1

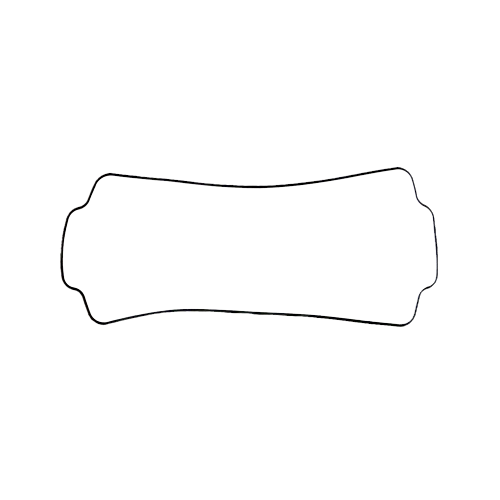

27 60E-13475-00-00 007-597-03 Oil Cooler Gasket #1 1

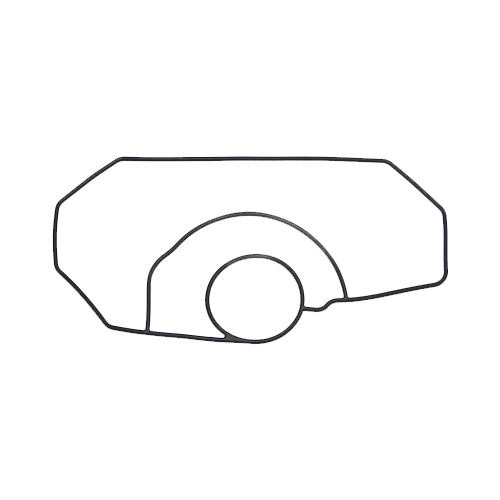

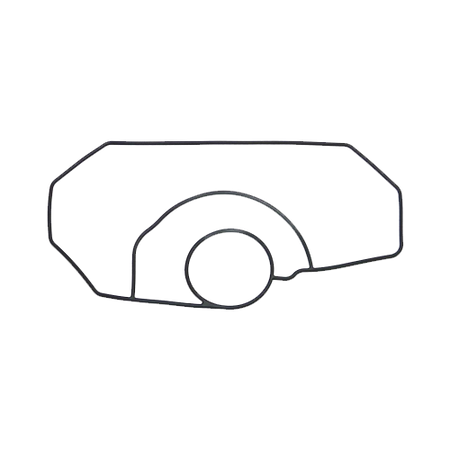

28 6D3-13477-00-00 007-597-04 Oil Cooler Gasket #2 2

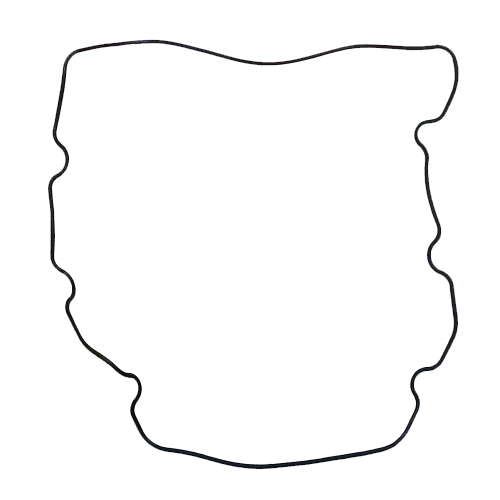

29 60E-13476-10-00 007-597-05 Oil Cooler Gasket #3 4
30 93210-18322-00 008-689-02 Oil Cooler O-Ring #2 1
NOTE: Part Numbers Marked "*" Are Not Included In Complete or Top End Kits.
