Yamaha 1800 FX SHO '11/15, FX Cruiser '11-16, FZR/FZS 1800 '11-13 Individual Gaskets

$2.81
SKU 008-692-02

Fits: 2011-2013 Yamaha FZR 1800, 2011-2013 Yamaha FZS 1800, 2011-2015 Yamaha FX SHO 1800, 2011-2016 Yamaha FX Cruiser SHO 1800.

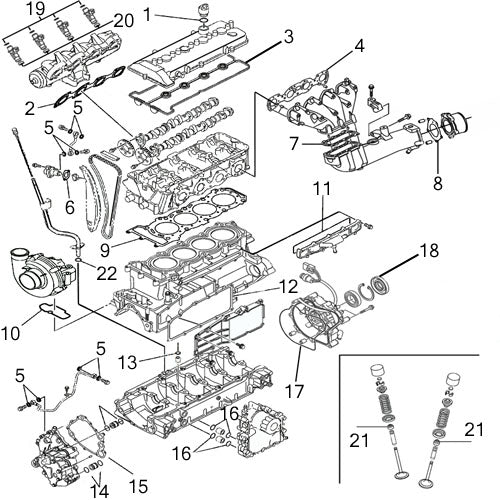

REF.# OEM NUMBER PART NUMBER DESCRIPTION REQ'D
1 93210-24M79-00 008-692-02 Oil Cap O-Ring 1
2 6BH-13645-00-00 007-591-04 Manifold Gasket 1
3 6BH-11193-00-00 007-593-09 Head Gasket 1

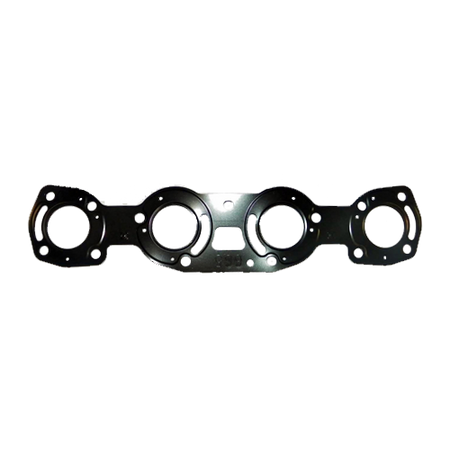

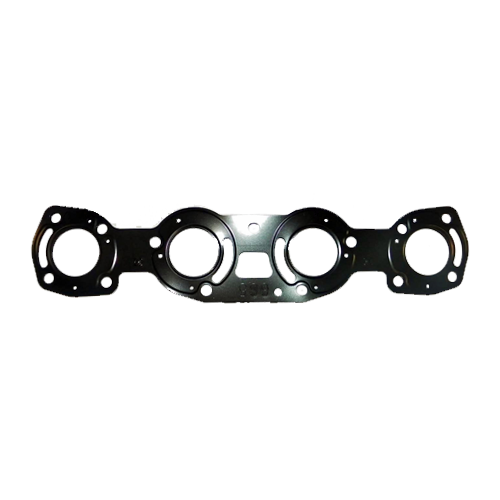

4 6S5-14613-00-00 007-594-09 Exhaust Pipe Gasket 1
5 90430-10007-00 007-594-15 Oil Pipe Gasket #1 8
6 6S5-121E2-00-00 007-594-14 Cam Chain Tensioner Gasket 1
7 6S5-14739-00-00 007-594-10 Muffler Damper Gasket #1 1
8 6BH-14749-00-00 007-594-20 Muffler Damper Gasket #2 1
9 6BH-11181-00-00 007-593-11 Cylinder Head Gasket 1

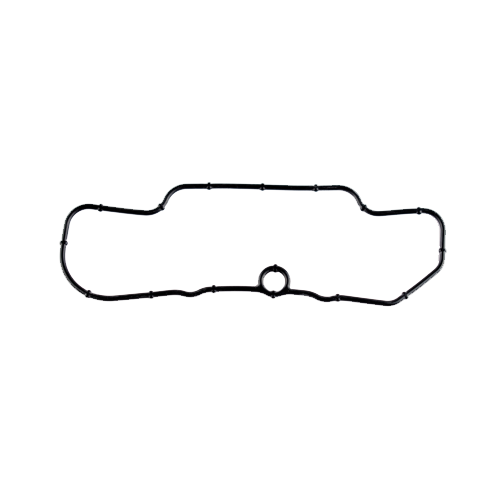

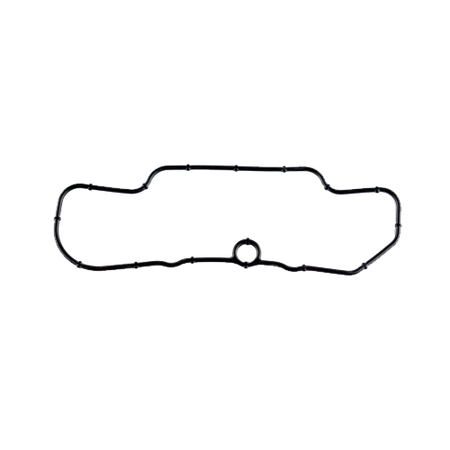

10 6S5-1416A-00-00 008-688 Fuel Injector O-Ring 1
11 6CS-12517-00-00 008-687 Water Inlet Gasket 1
12 6BH-13557-00-00 007-594-12 Water Intake Gasket 1
13 93210-11453-00 008-686 Case Dowel O-Ring 1
14 93210-21631-00 008-689-03 Oil Pump Connector O-Ring 2
15 6S5-13563-00-00 007-594-13 Oil Pump Gasket 1
16 93210-18322-00 008-689-02 Oil Cooler Connector O-Ring 4
17 6S5-81168-00-00 008-689 Generator Cover O-Ring 1
18 6S5-81167-10-00 009-702-06T Oil Seal 1
19 68V-1416A-00-00 008-441 Injection Nozzle O-Ring 4
20 8FP-13556-10-00 008-683-16 Manifold Gasket #2 4
21 51Y-12119-00-00 010-053 Valve Stem Seal 16
22 (N/S) 6S5-13477-00-00 007-594-18 Oil Pipe Gasket #2 1

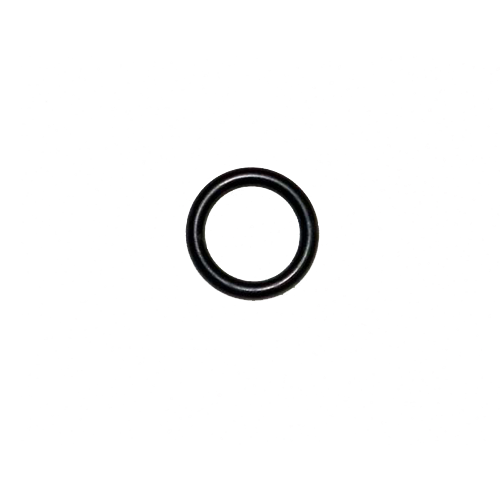

23 (N/S) 93210-12790-00 008-689-01 Oil Level O-Ring 1
NOTE: Ref. N/S - Item not shown on diagram
