Yamaha 1200 GP1200 '97-99, XL1200 '98, SUV1200 '99-04 Individual Gaskets

SKU
Original price $1.14 - Original price $141.11
Original price
$1.14
$1.14 - $141.11
Current price $1.14

Yamaha GP1200 '97-99, XL1200 '98, SUV1200 '99-04 Individual Gaskets.
Stock Carburetor: Mikuni 44mm Triple Carb.
Note: All Gaskets Are Sold Each.

Ref. # Description Qty Req. OEM Number

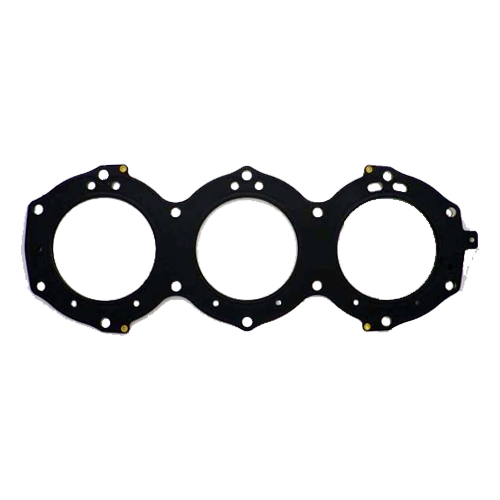

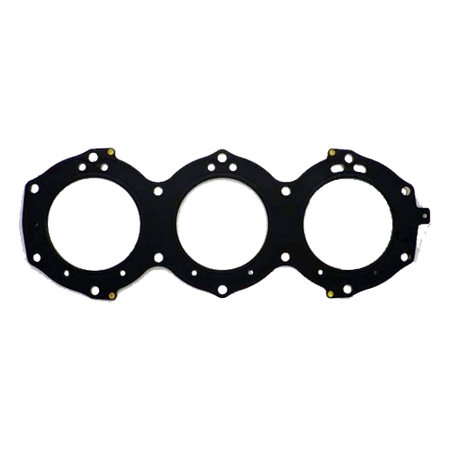

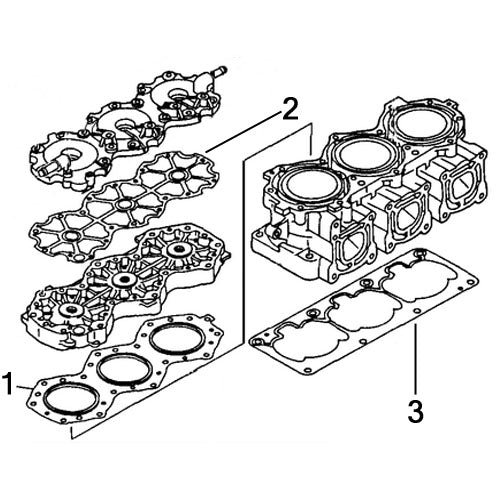

Ref. 1 Head Gasket 1 65U-11181-00-00

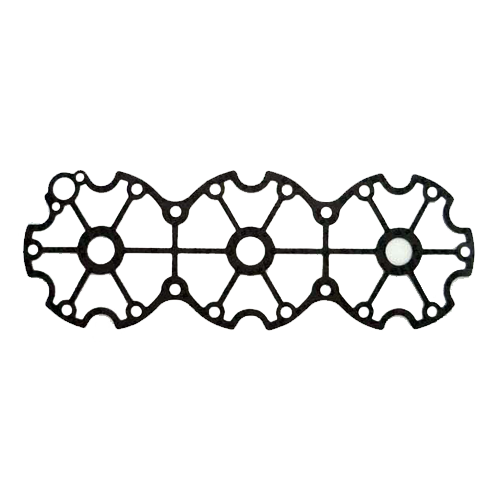

Ref. 2 Head Cover Gasket 1 63M-11193-00-00

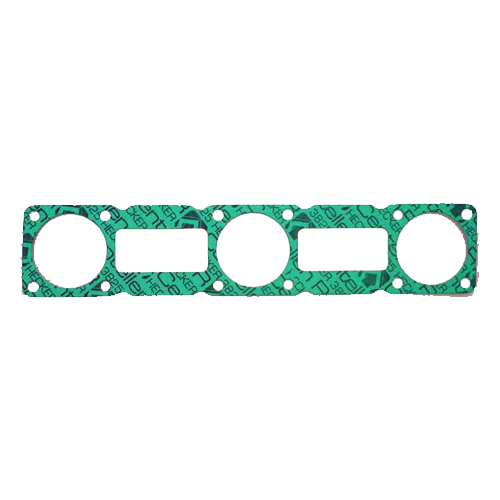

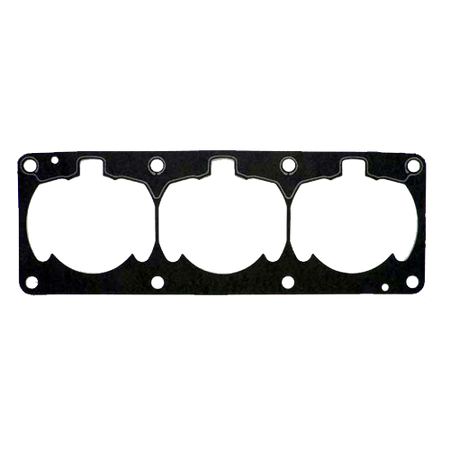

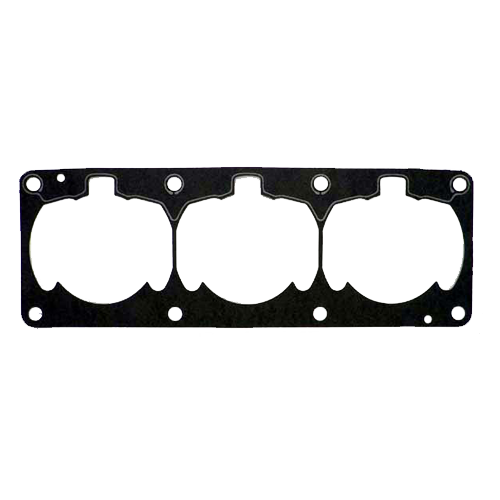

Ref. 3 Cylinder Base Gasket 1 63M-11351-01-00

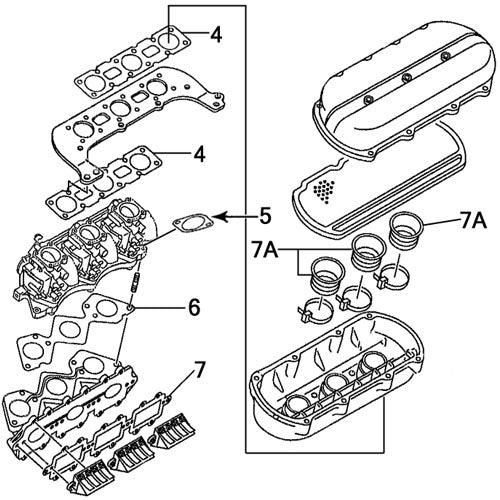

Ref. 4 Flame Arrestor Gasket 2 65U-13674-00-00
Ref. 5 Carburetor To Carburetor Plate Gasket 3 64X-13556-00-00

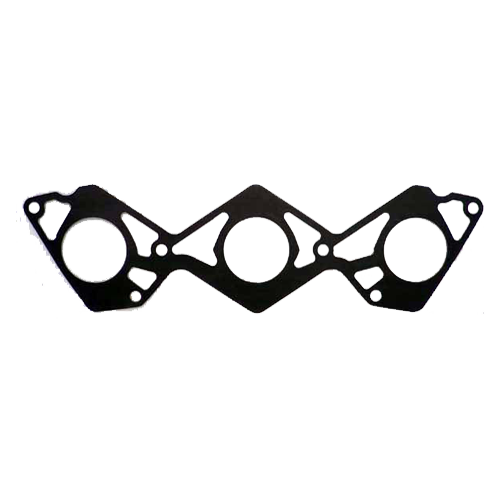

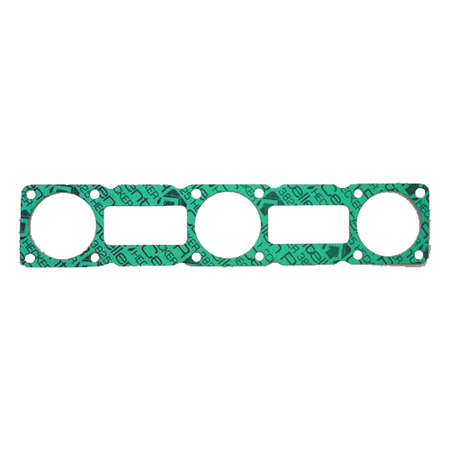

Ref. 6 Carburetor Plate To Intake Manifold Gasket 1 65U-13556-00-00

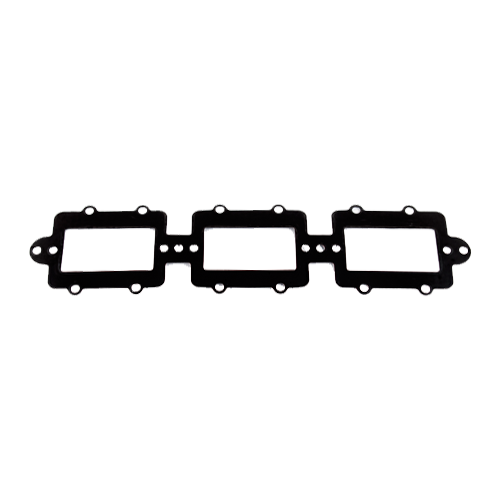

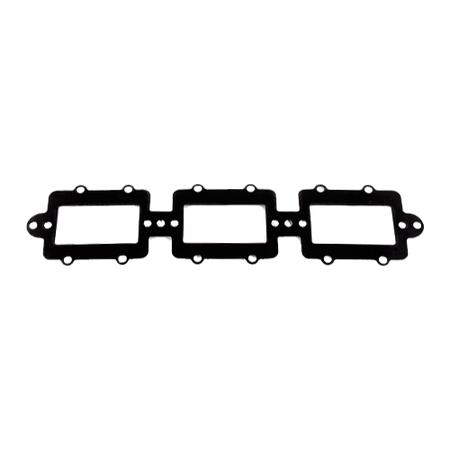

Ref. 7 Intake Manifold To Crankcase Gasket 1 65U-13566-00-00
Ref. 7A Intake Air Funnel 3 65U-14469-00-00

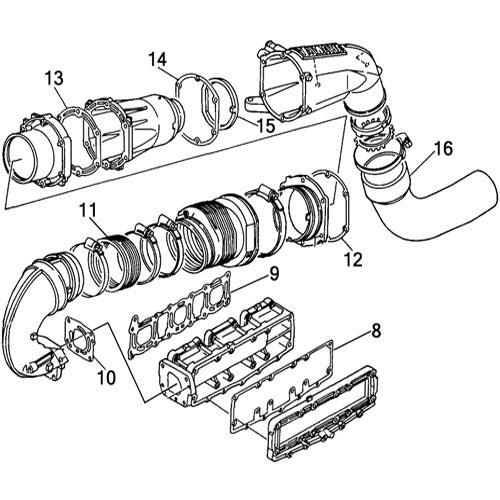

Ref. 8 Muffler Damper 1 Gasket 1 63M-14739-00-00

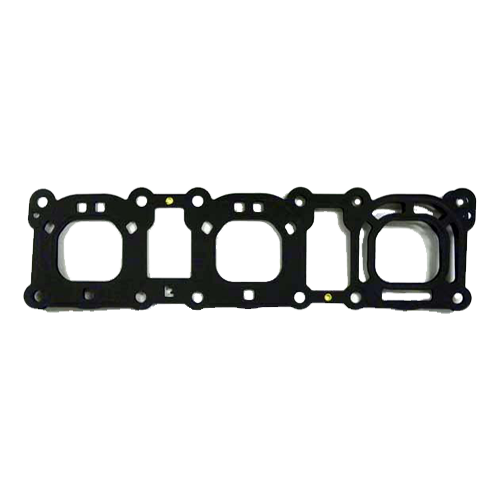

Ref. 9 Cylinder To Exhaust Manifold Gasket 1 65U-14613-00-00
Ref. 10 Exhaust Manifold To Head Pipe Gasket 1 63M-14749-00-00

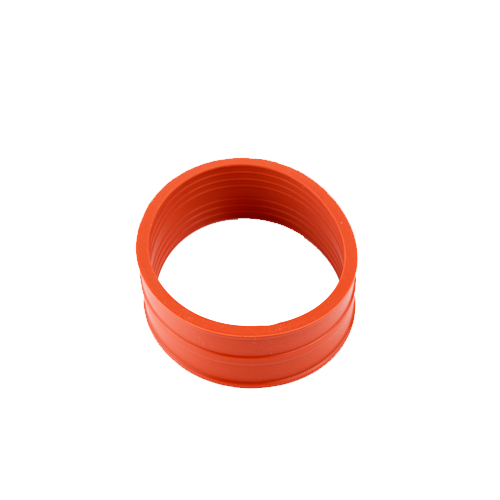

Ref. 11 Exhaust Coupler Joint 2 1 62T-14625-00-00
Ref. 12 Exhaust Outer Cover Gasket #1 1 63M-41114-00-00
Ref. 13 Exhaust Inner Cover Gasket 1 63M-41122-00-00
Ref. 14 Exhaust Outer Cover Gasket #2 1 63M-41114-00-00

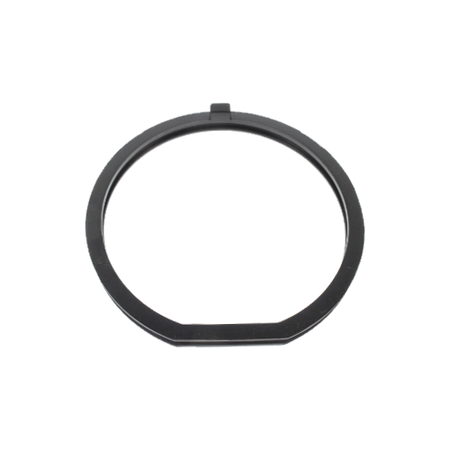

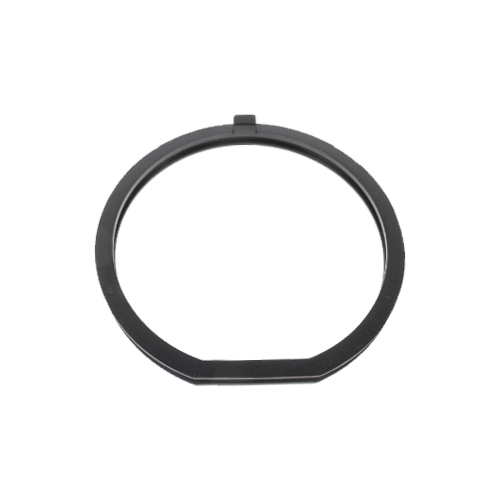

Ref. 15 Exhaust Rubber Seal 1 1 63M-15761-00-00
Ref. 16 Exhaust Outlet Pipe 1 65U-14752-00-00

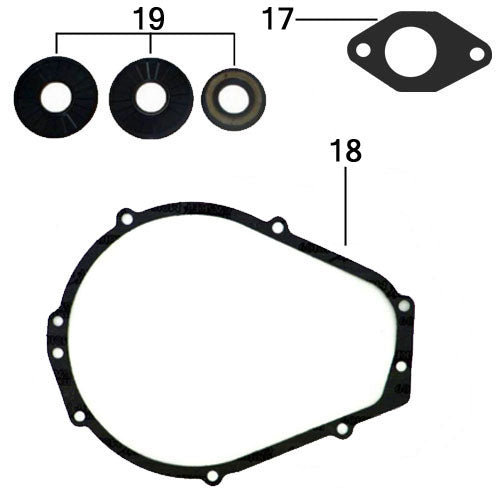

Ref. 17 Oil Pump Gasket 1 63M-13116-00-00

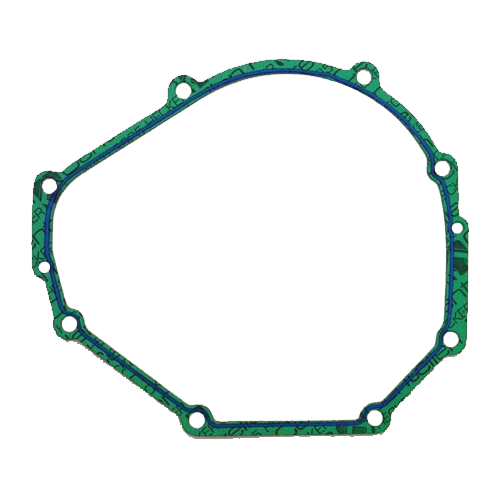

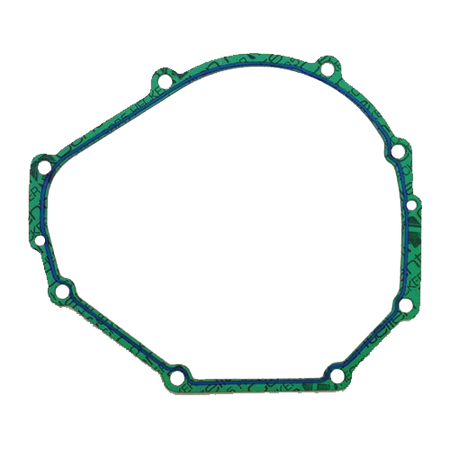

Ref. 18 Flywheel Cover Gasket 1 63M-81365-00-00
Ref. 19 Crankshaft Oil Seal Kit 1 Kit 42.2510
