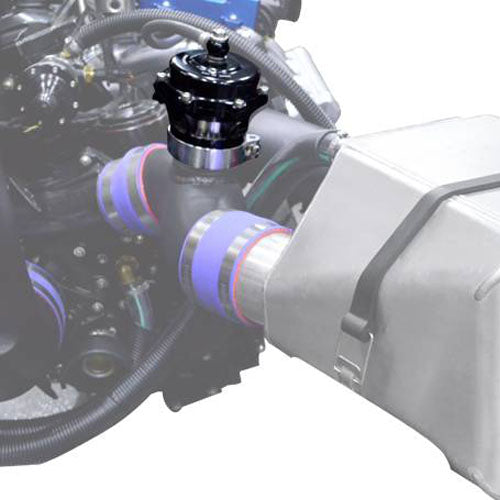

TiAL Performance 50mm Blow-Off Valve Kit

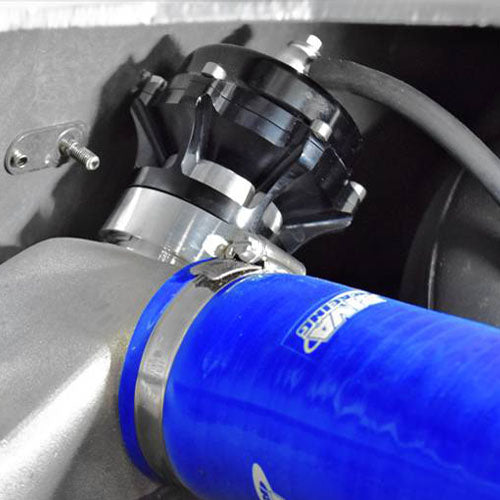

Improves supercharger reliability and performance by relieving unwanted pressure during off-throttle operation. Reduces supercharger clutch & gear wear and eliminates heat soak in discharge tube. The body and all internal components are CNC-machined from 6061 aluminum alloy. Features a large 50mm valve. The V-Band design aluminum mounting clamp provides secure and clean mounting. Clamp uses Stainless Steel hardware for a long lasting, corrosion-free appearance. Valve seal utilizes a Viton O-ring that is clamped in place for maximum durability. Valve stem and guide are Teflon-lubricated and hard anodize-coated for wear resistance. Blow-off Valve also comes with our own machined aluminum banjo-type air fitting and bolt with oversized 10mm hose barb for quick actuator response. INCLUDES 11 PSI (YELLOW) SPRING.

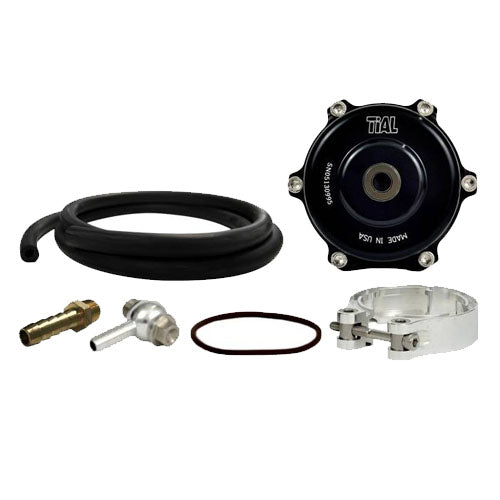

Included with TiAL Blow-Off Valve:
- 50mm Valve Assembly with 11psi (yellow) Spring
- V-band Clamp
- TiAL Air Fitting
- High Pressure Viton O-ring
- 7/32" Vacuum Line (3ft)
- 1/4" barbed x 1/8" NPT fitting
- A single Q BOV can support up to 1,800hp
- The V-Band design aluminum mounting clamp gives a very clean and unique appearance. The clamp uses Stainless Steel hardware for a long lasting, corrosion-free appearance.
- The valve seal utilizes a Viton O-ring that is clamped in place to prevent the possibility of sticking to the seat and pulling out. The valve stem and guide are Teflon-lubricated, hard anodize-coated for wear resistance.
Optional Parts: Sea-Doo RXP/RXT 300 GEN-4 Power Cooler Sea-Doo 230/300 Boost/Vacuum Port Adapter Sea-Doo 300 Intercooler Tubing Upgrade Kit without TiAL Blow-off Valve
