Sea Doo Spark 900 ACE '14-24 Individual Gaskets
Couldn't load pickup availability
Need help identifying the right part for your ski? Contact Customer Support with your questions about compatibility, fitment, availability, or technical specifications.
How-To Videos Brought To You By Erickson Machine and Performance.
Sea Doo Spark 900 ACE '14-24 Individual Gaskets.
The Sea-Doo 900 ACE is a Rotax engine known for its performance, efficiency, and reliability.
Note: All Gaskets Are Sold Each.

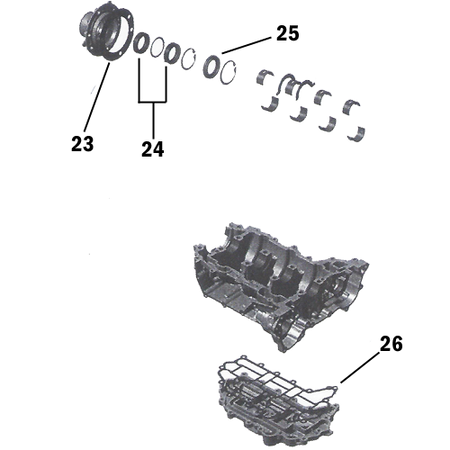

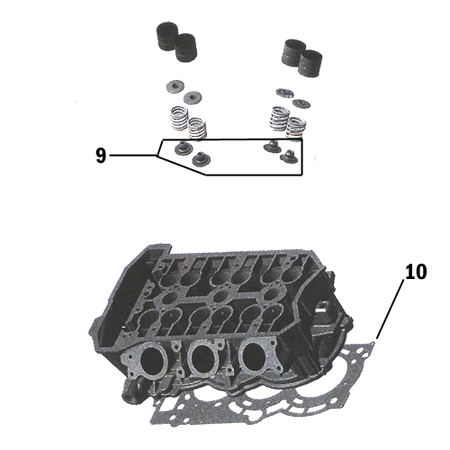

| DESCRIPTION | REF. NO. | REQ | O.E. NO. | PART NO. |

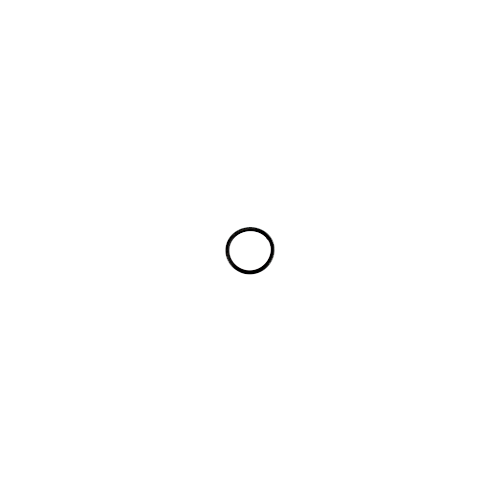

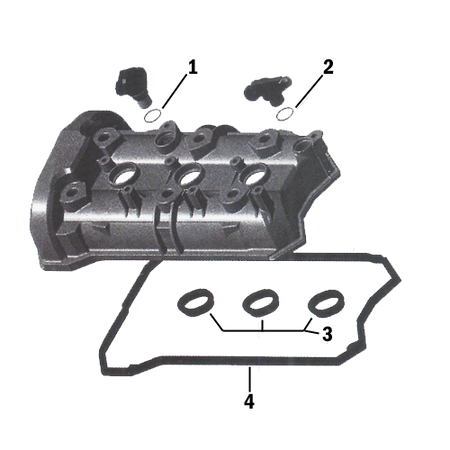

| Cam Sensor O-Ring | 1 | 1 | 420631890 | 008-599-27 |

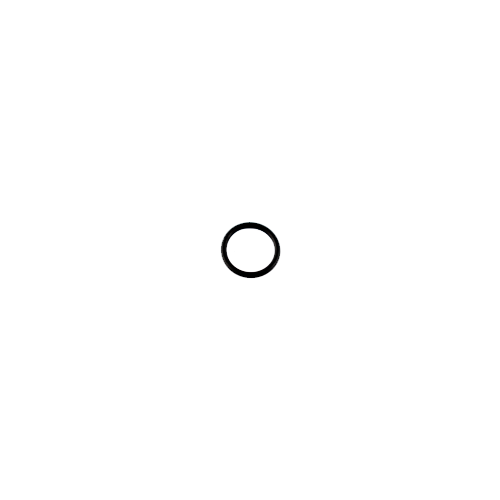

| Oil Pipe O-Ring | 2 | 1 | 420631240 | 008-599-26 |
| Plug Passage Gaskets | 3 | 3 | 420431751 | 007-573-12 |

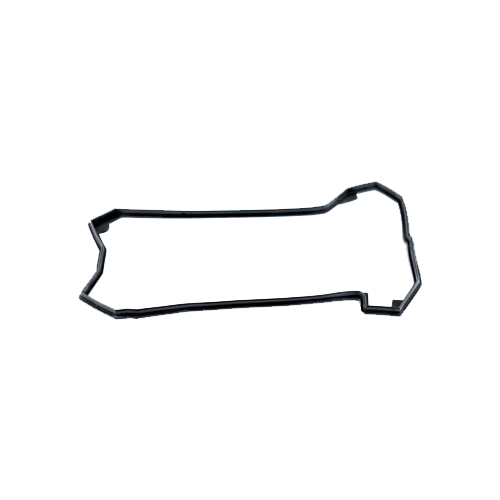

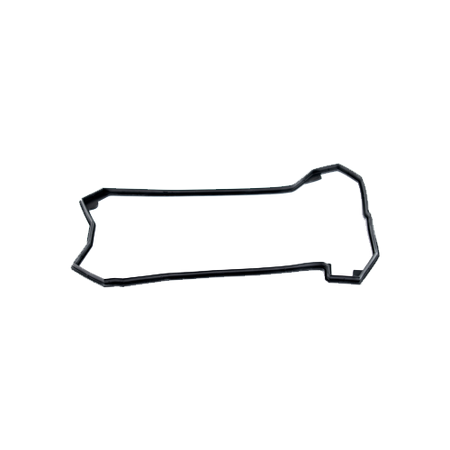

| Valve Cover Gasket | 4 | 1 | 420431801 | 007-399-08 |

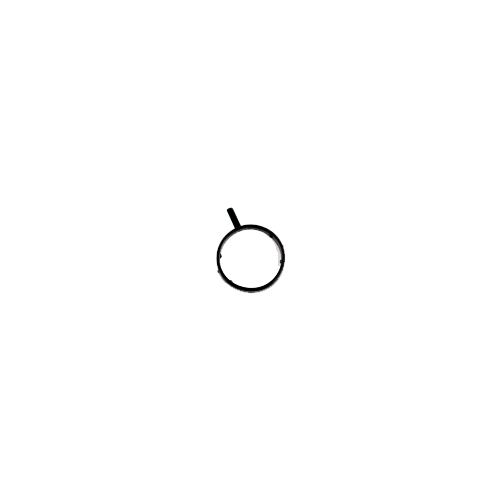

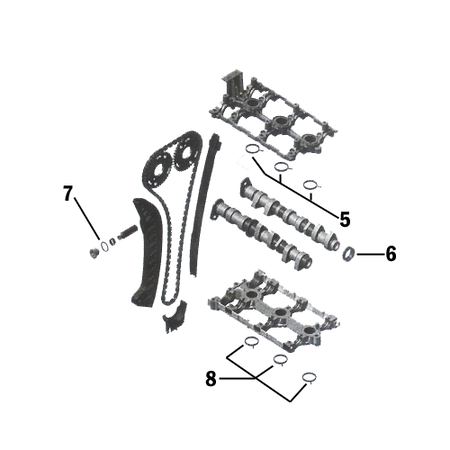

| Cam Cradle Seals (Upper) | 5 | 3 | 420431760 | 007-573-14 |

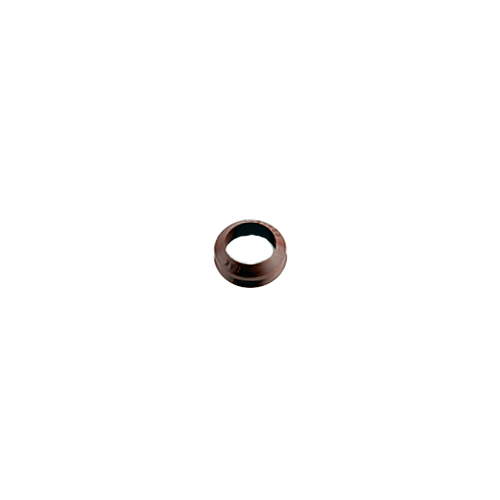

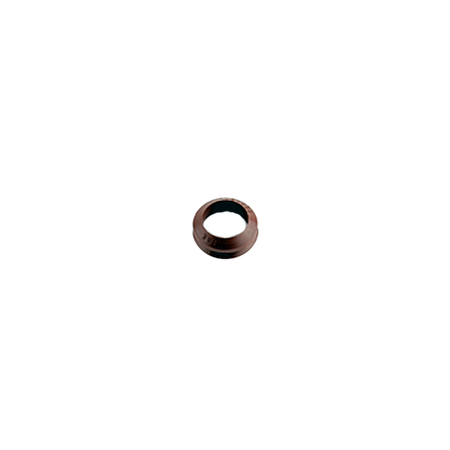

| Camshaft V-Ring | 6 | 1 | 420630127 | 008-600-12 |
| Cam Chain Plug Gasket) | 7 | 3 | 420430624 | 007-588-01 |
| Cam Cradle Seals (Upper) | 8 | 3 | 420431760 | 007-573-14 |

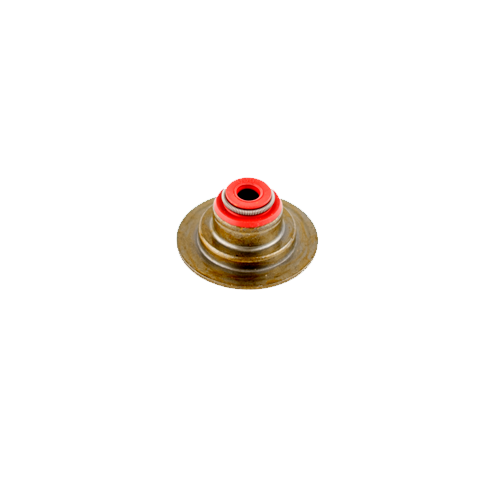

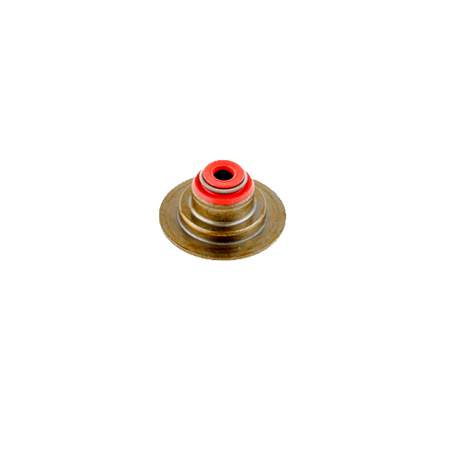

| Valve Stem Seals | 9 | 12 | 420431671 | 010-050-02 |

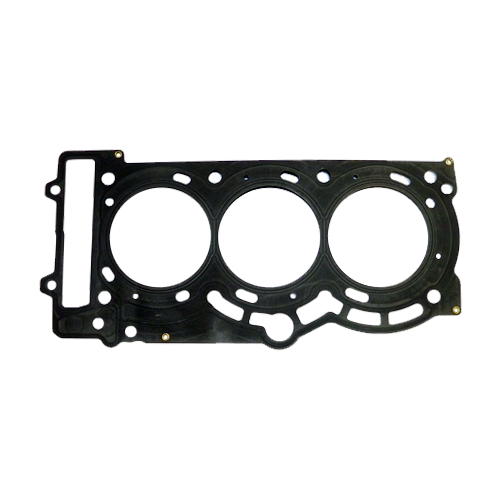

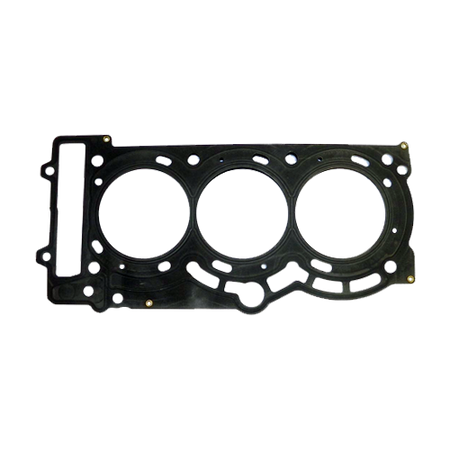

| Cylinder Head Gasket | 10 | 1 | 420431811 | 007-399-07 |

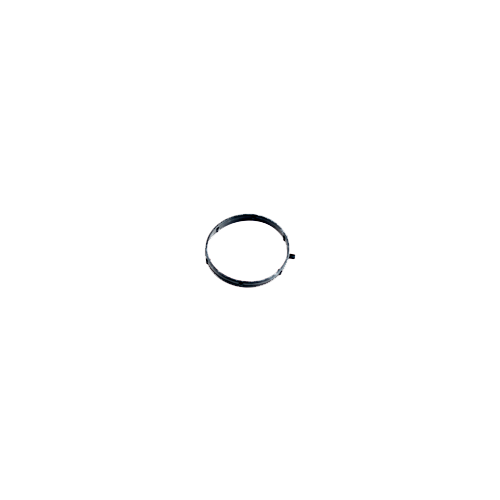

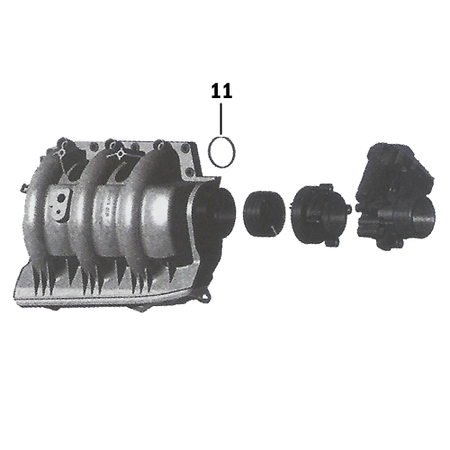

| Intake Gasket | 11 | 3 | 420431662 | 007-573-13 |

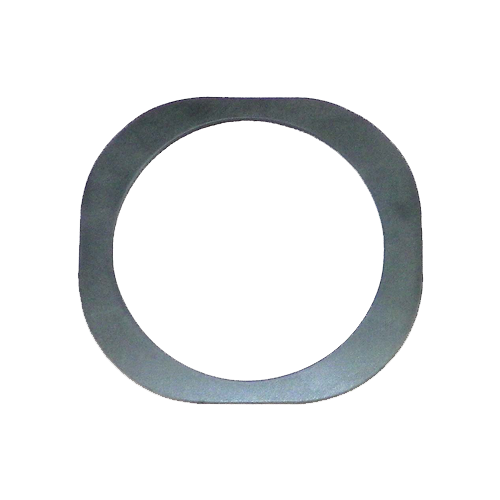

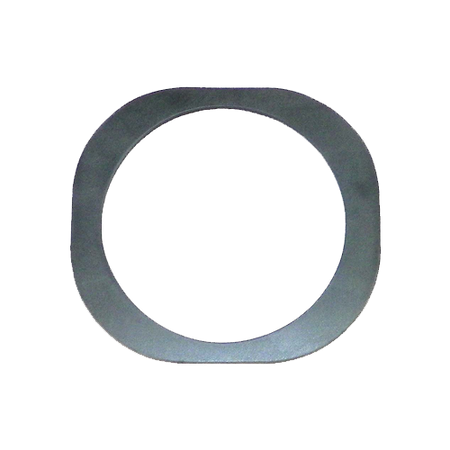

| Exhaust Gasket | 12 | 1 | 268000112 | 007-553-01 |

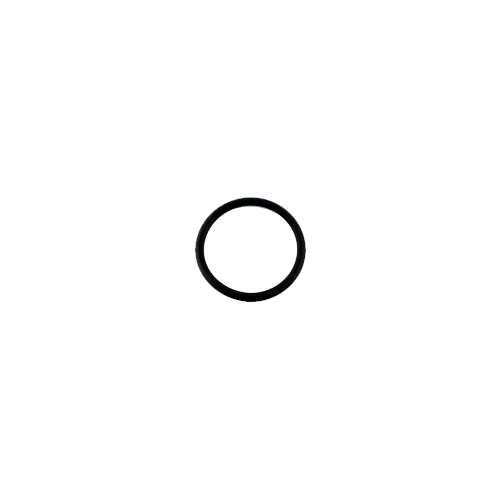

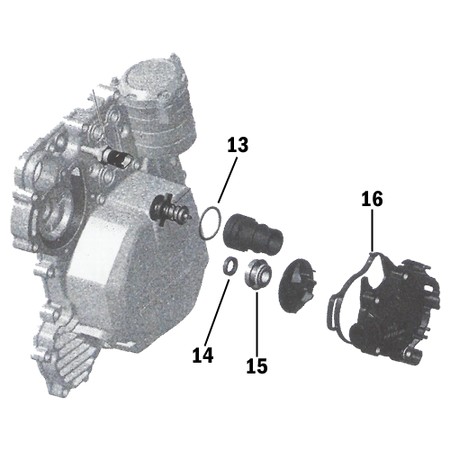

| Thermostat O-Ring | 13 | 1 | 420950893 | 008-599-25 |

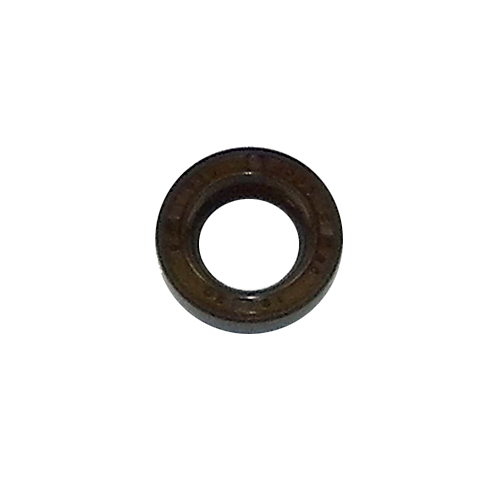

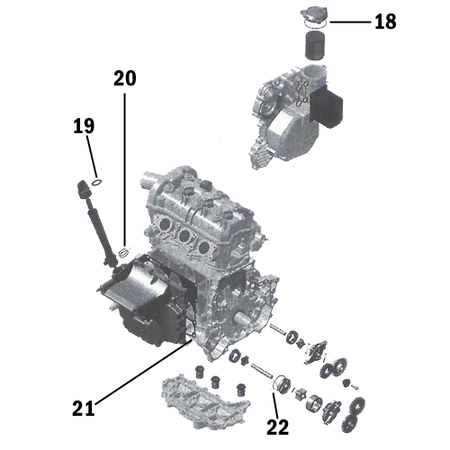

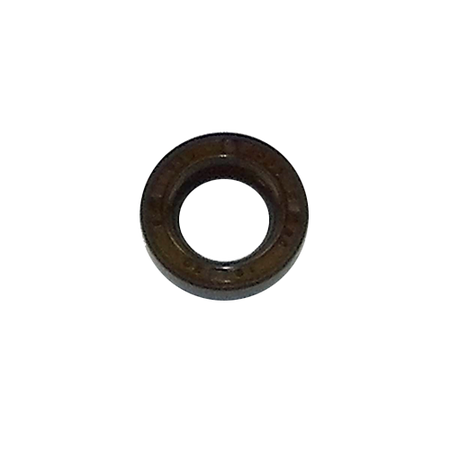

| Water Pump Oil Seal | 14 | 1 | 420931802 | 009-798-01 |

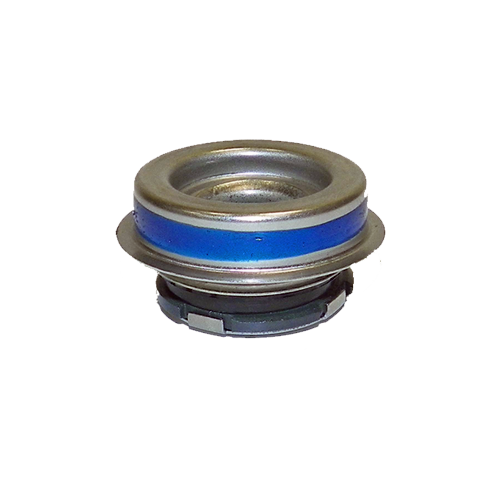

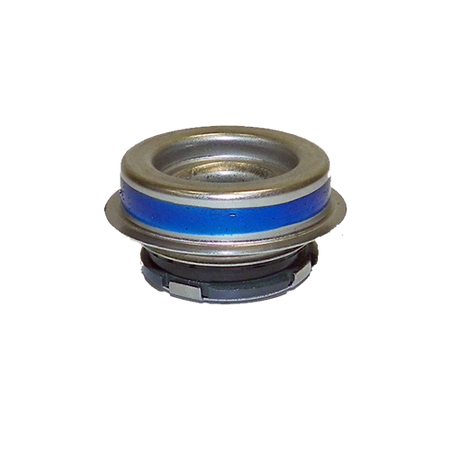

| Water Pump Mechanical Seal | 15 | 1 | 420850946 | 009-798 |

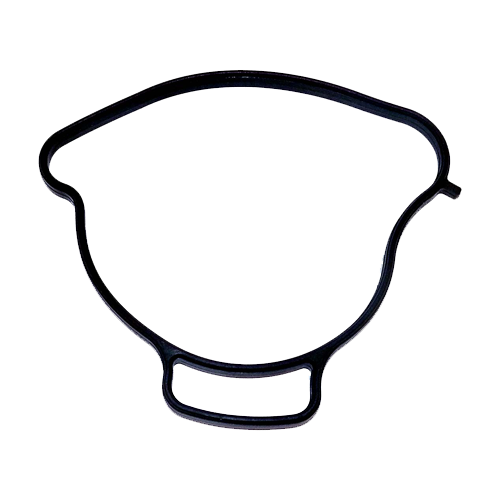

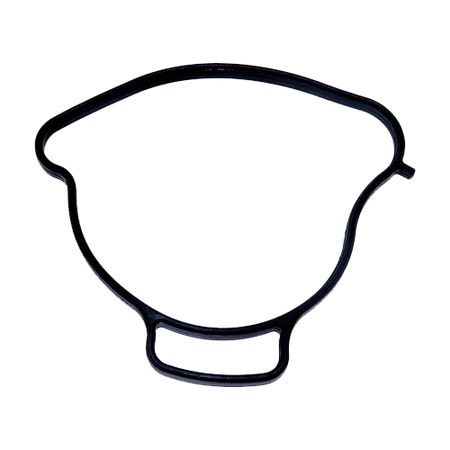

| Water Pump Housing Seal | 16 | 1 | 420431680 | 008-599-29 |

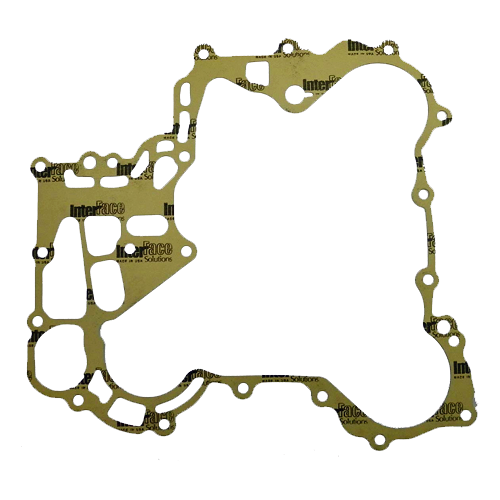

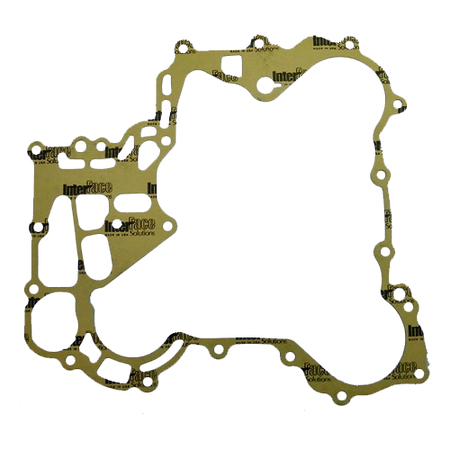

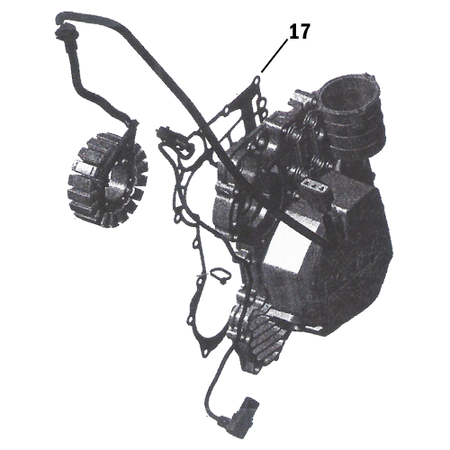

| Mag Cover Gasket | 17 | 1 | 420431640 | 007-573-10 |

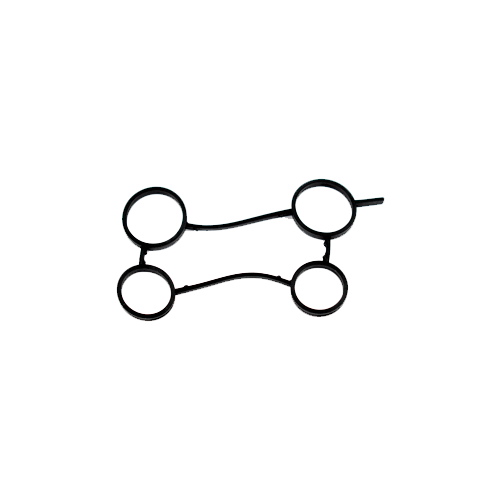

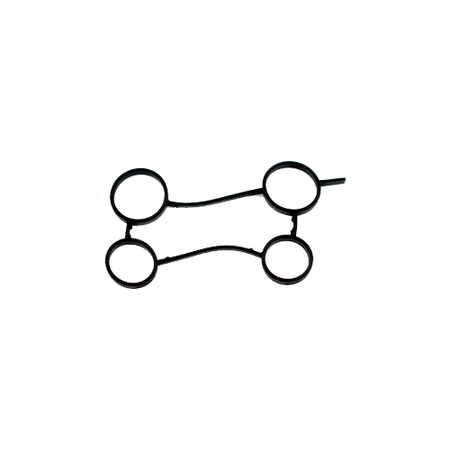

| Oil Radiator O-Ring | 18 | 1 | 420431870 | 008-600-11 |

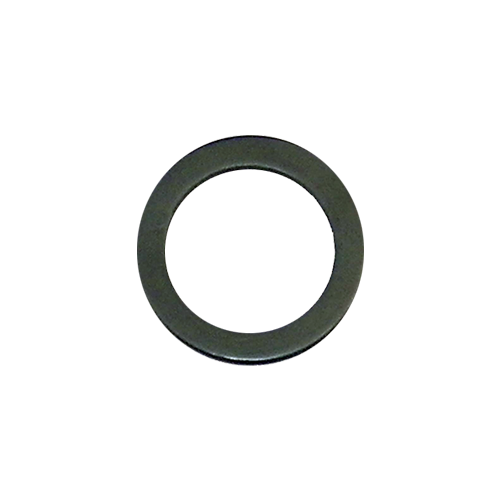

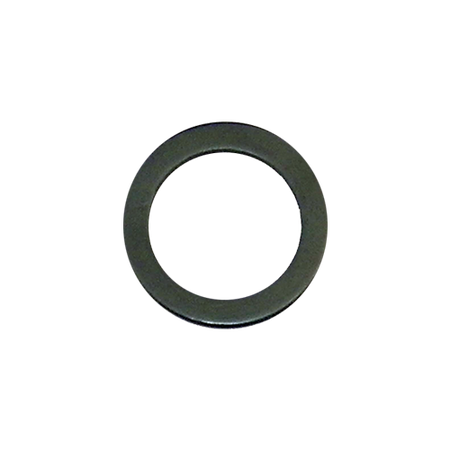

| Dip Stick O-Ring | 19 | 1 | 420431790 | 008-600-10 |

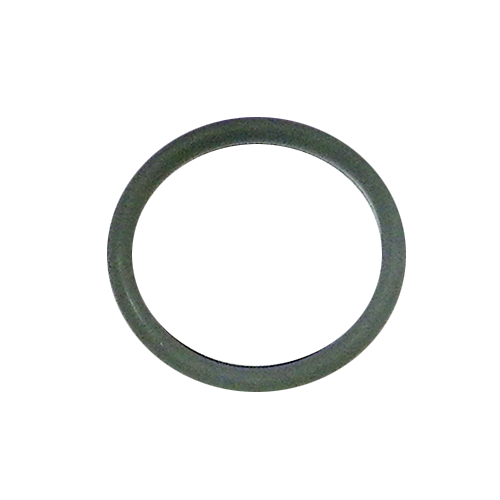

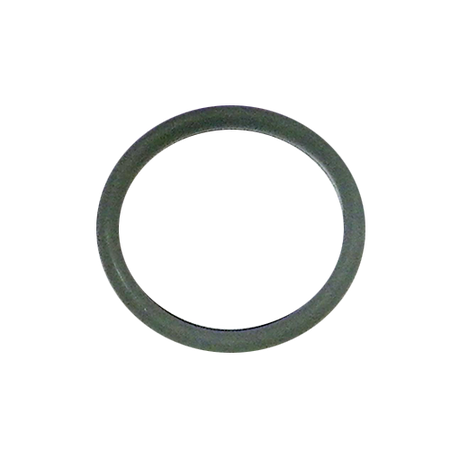

| Dip Stick Tube O-Ring | 20 | 2 | 420430440 | 008-599-24 |

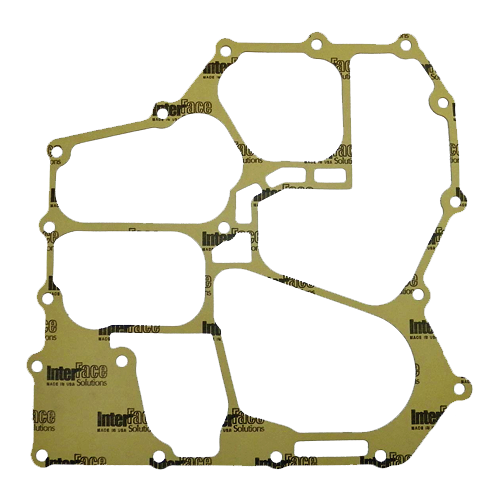

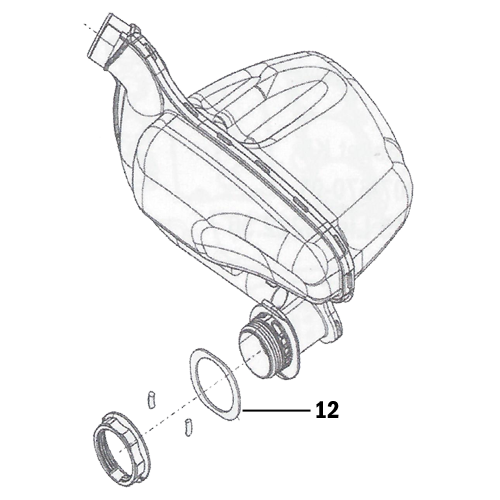

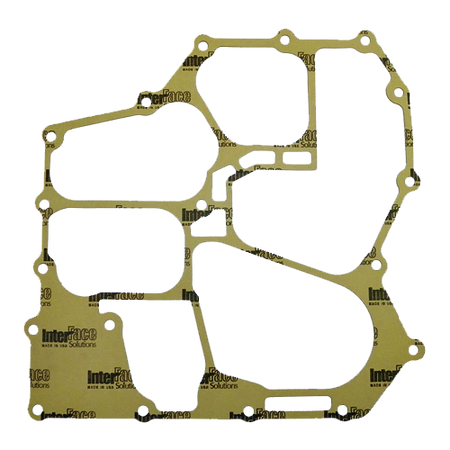

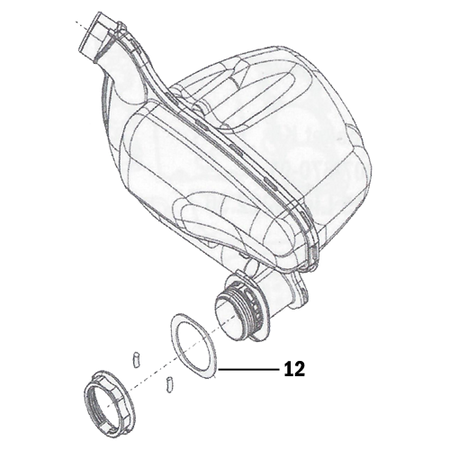

| Oil Injection Tank Gasket | 21 | 1 | 420431840 | 007-573-11 |

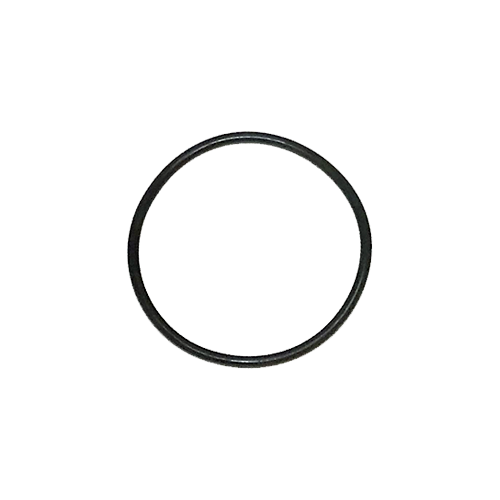

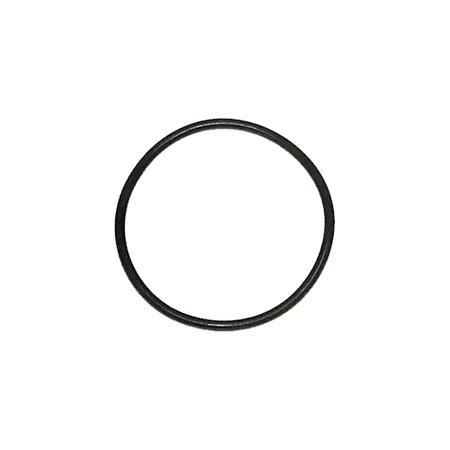

| Oil Pump Housing O-Ring | 22 | 1 | 420631830 | 008-599-28 |

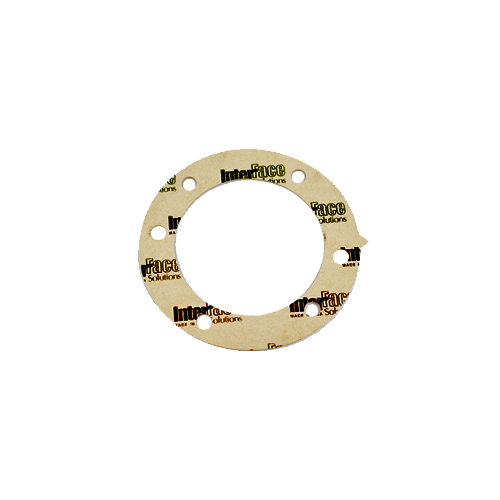

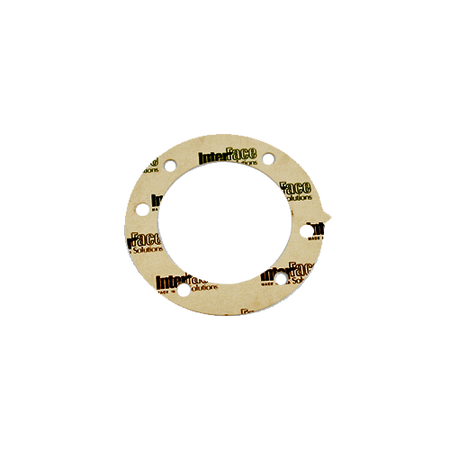

| PTO Cover Gasket | 23 | 1 | 420450080 | 007-573-08 |

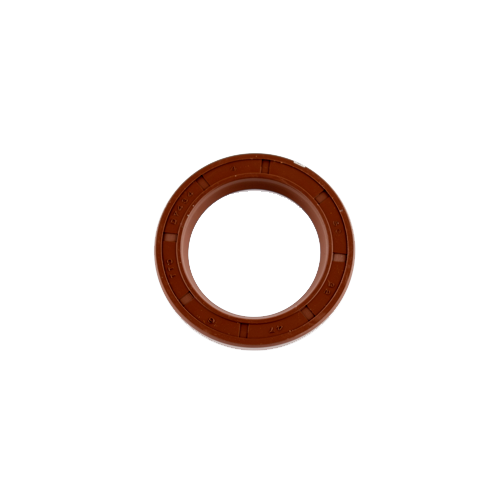

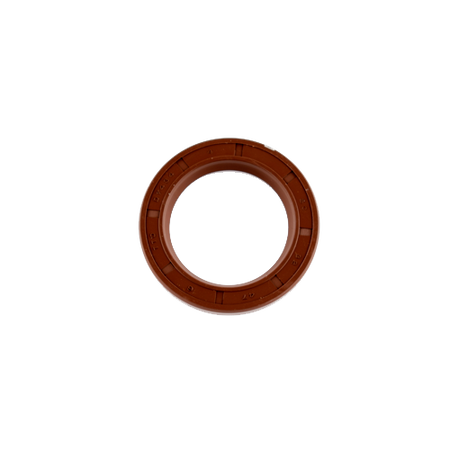

| Outer Crank Seal | 24 | 2 | 420450165 | 009-789 |

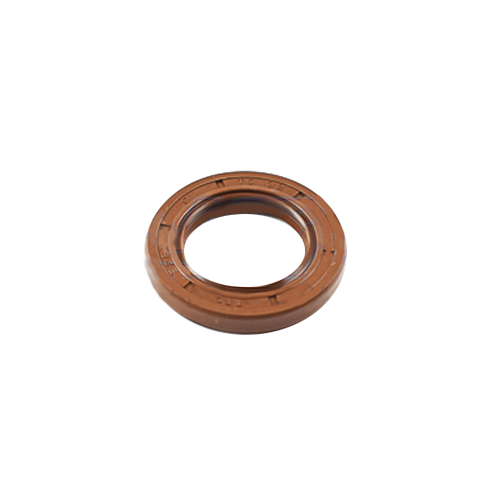

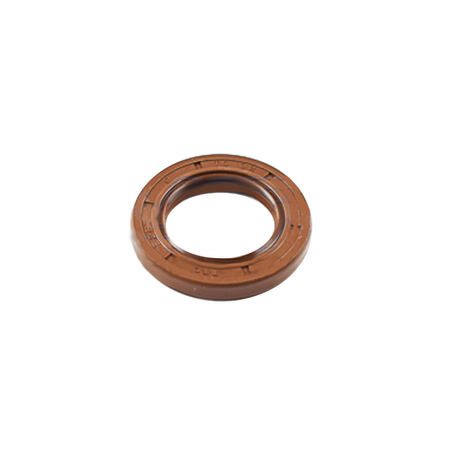

| Inner Crank Seal | 25 | 1 | 420850220 | 009-789-01 |

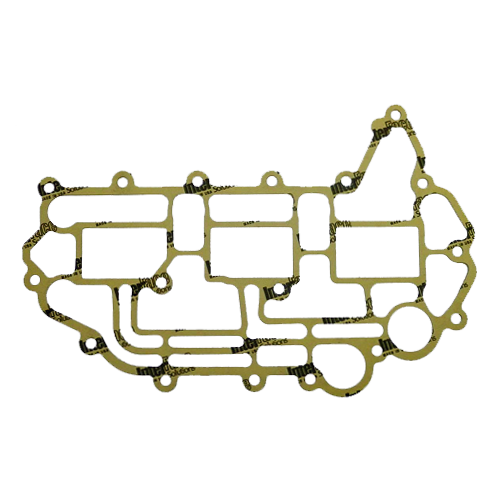

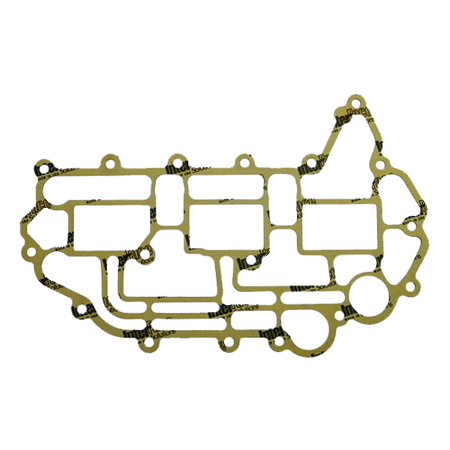

| Oil Pan Gasket | 26 | 1 | 420431820 | 007-573-09 |
- 2014 Sea Doo Spark DT 900 Gaskets
- 2014 Sea Doo Spark NA 900 Gaskets
- 2017 Sea Doo GTI SE HO 900 Gaskets
- 2017 Sea Doo GTS STDR HO 900 Gaskets
- 2018 Sea Doo GTI P SE 90 900 Gaskets
- 2018 Sea Doo GTI P STD 90 900 Gaskets
- 2018 Sea Doo GTS P STDR 90 900 Gaskets
- 2015-2020 Sea Doo Spark 2Up 900 Gaskets
- 2015-2020 Sea Doo Spark 2Up HO 900 Gaskets
- 2015-2020 Sea Doo Spark 3Up HO 900 Gaskets
- 2017, 2019 Sea Doo GTI STD HO 900 Gaskets
- 2017-2023 Sea Doo Spark TRIXX 2Up 900 Gaskets
- 2017-2025 Sea Doo Spark TRIXX 3Up 900 Gaskets
- 2020-2022 Sea Doo GTI STD 90 900 Gaskets
- 2021-2025 Sea Doo Spark 60 2Up 900 Gaskets
- 2021-2025 Sea Doo Spark 90 2Up 900 Gaskets
- 2021-2025 Sea Doo Spark 90 3Up 900 Gaskets
- 2024-2025 Sea Doo Spark TRIXX 1Up 900 Gaskets
