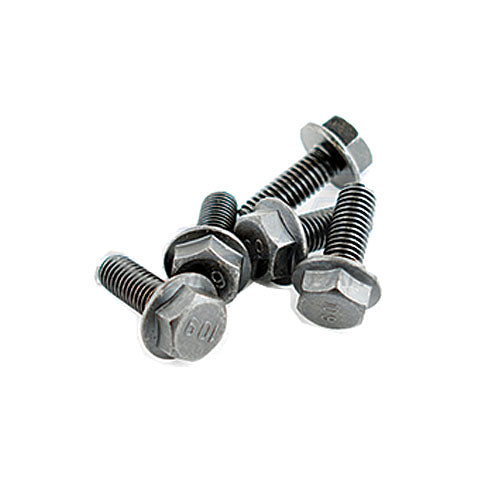

Sea Doo Engine Hardware

$0.78
SKU 014-106
REF # DESCRIPTION SIZE REQ'D
580 (Yellow)

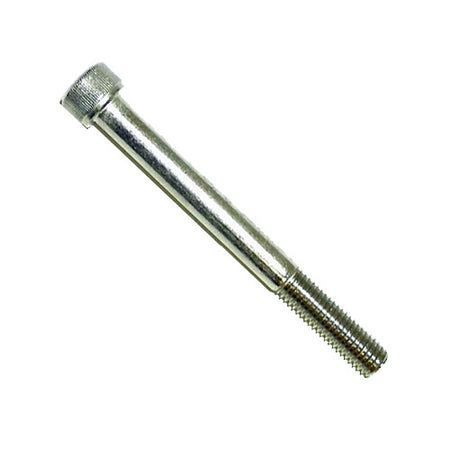

A Head Cover Allen Head Bolt 6 x 25 9
B Head Cover Allen Head Bolt 6 x 35 2
C Head Hex Head Bolt 8 x 55 12
D Cylinder Allen Head Bolt 8 x 70 8
E Crankcase Allen Head Bolt (outer) 8 x 45 6
F Crankcase Hex Head Bolt (inner) 8 x 65 6
G Crankcase Allen Head Bolt 8 x 75 2
580 (White)
A Head Cover Allen Head Bolt 6 x 25 9
B Head Cover Allen Head Bolt 6 x 35 2
H Head Allen Head Bolt 8 x 55 12
D Cylinder Allen Head Bolt 8 x 70 8
E Crankcase Allen Head Bolt (outer) 8 x 45 6
I Crankcase Allen Head Bolt (inner) 8 x 65 6
650
J Crankcase Allen Head Bolt 10 x 75 2
D Head Allen Head Bolt 8 x 70 12
D Cylinder Allen Head Bolt 8 x 70 8
E Crankcase Allen Head Bolt (outer) 8 x 45 6
D Crankcase Allen Head Bolt (inner) 8 x 70 6
J Crankcase Allen Head Bolt 10 x 75 2
720
D Head Allen Head Bolt 8 x 70 12
H Head Allen Head Bolt 8 x 55 10
C Head Hex Head Bolt 8 x 55 As Needed
K Cylinder Allen Head Bolt 8 x 90 8
E Crankcase Allen Head Bolt (outer) 8 x 45 6
D Crankcase Allen Head Bolt (inner) 8 x 70 6
G Crankcase Allen Head Bolt 8 x 75 As Needed
J Crankcase Allen Head Bolt 10 x 75 2
800
A Head Cover Allen Head Bolt 6 x 25 4
D Head Allen Head Bolt 8 x 70 12
C Head Hex Head Bolt 8 x 55 10
J Cylinder Allen Head Bolt 10 x 75 4
L Cylinder Allen Head Bolt 10 x 105 4
E Crankcase Allen Head Bolt (outer) 8 x 45 As Needed
H Crankcase Allen Head Bolt (outer) 8 x 55 10
J Crankcase Allen Head Bolt (inner) 10 x 75 12
951
A Head Cover Allen Head Bolt 6 x 25 4
M Head Allen Head Bolt 10 x 60 7
N Stud Nut *Carb models only* 10mm 8
D Cylinder Allen Head Bolt 8 x 70 8
H Head Allen Head Bolt 8 x 55 10
J Crankcase Allen Head Bolt (inner) 10 x 75 12
O Rod Bolt - -
4-Tec
A Head Cover Allen Head Bolt 6 x 25 4

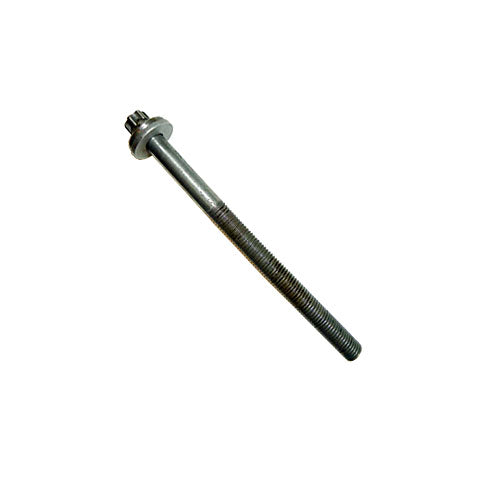

P Headbolt Torx Head 11 x 147 8
Q Crankcase Torx Head Bolt 10 x 82 8
E Crankcase Allen Head Bolt (outer) 8 x 45 -
R Rocker Arm Torx Head Bolt 8 x 72 6
S Engine Plug Screw 30 x 1.5 8
O Con. Rod Torx Head Bolt 0 x 50 6
T Magneto Bolt - -
1503 Torx Bolts
R Rocker Arm Torx Head Bolt 420641080 / 8 x 72 6
O Connecting Rod Torx Head Bolt 420640990, 711640990 6
Q Crankcase Torx Head Bolt 420640990, 711640990/10 x 82 8
P Head Torx Head Bolt 290641110/11 x 147 8



A - Head Cover Allen Head Bolt 6 x 25 - 205062560, 290840863
B - Head Cover Allen Head Bolt 6 x 35

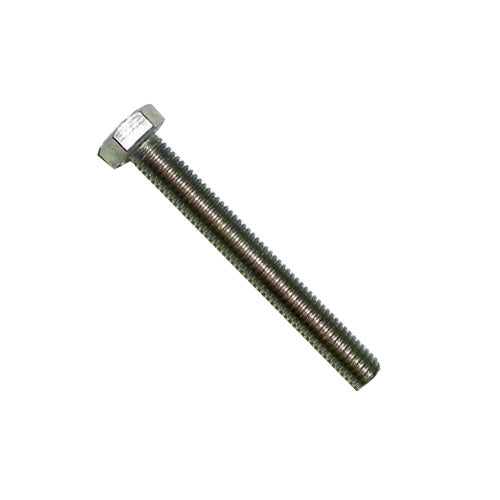

C - Head Hex Head Bolt 8 x 55 - 290240328, 420240328
D - Cylinder Allen Head Bolt 8 x 70 - 290841998, 420841998
E - Crankcase Allen Head Bolt (outer) 8 x 45 - 205084560, 290841563
F - Crankcase Hex Head Bolt (inner) 8 x 65 - 290841303, 420841303, 90119-08015-00, 90119-08M29-00, 90119-08M95-00, 92150-3708
G - Crankcase Allen Head Bolt 8 x 75 - 290841833
H - Head Allen Head Bolt 8 x 55 - 290240328, 420240328
I - Crankcase Allen Head Bolt (inner) 8 x 65
J - Crankcase Allen Head Bolt 10 x 75 - 290941333, 420941333
K - Cylinder Allen Head Bolt 8 x 90 - 290440368, 420440368
L - Cylinder Allen Head Bolt 10 x 105 - 290941903, 420941903
M - Head Allen Head Bolt 10 x 60 - 290841708, 420841708

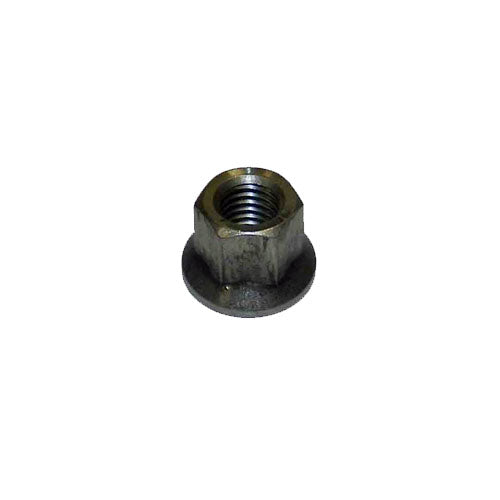

N - Stud Nut 10mm *Carb models only - 290842863, 420842863
O - Con. Rod Torx Head Bolt 10 x 50 - 420640990, 420640991, 711640990
P - Headbolt Torx Head 11 x 147 - 290641110, 420641110
Q - Crankcase Torx Head Bolt 10 x 82 - 420640990, 420640991, 711640990
R - Rocker Arm Torx Head Bolt 8 x 72 - 420641080, 711641080

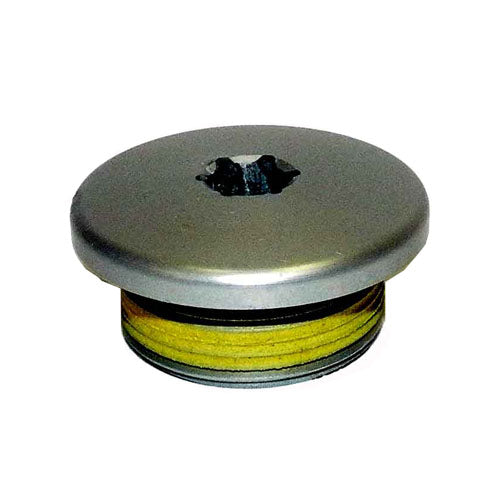

S - Engine Plug Screw 30 x 1.5 - 420641170, 420641171
T - Magneto Bolt - 295501043, 295501161, 295501162
