Sea Doo 951 XP Di '01-04 Power Valve Rebuild Kit

Sea Doo 951 XP Di '01-04 Power Valve Rebuild Kit

by WSM Performance
SKU
$1.81 - $212.68
$1.81
$1.81 - $212.68
$1.81

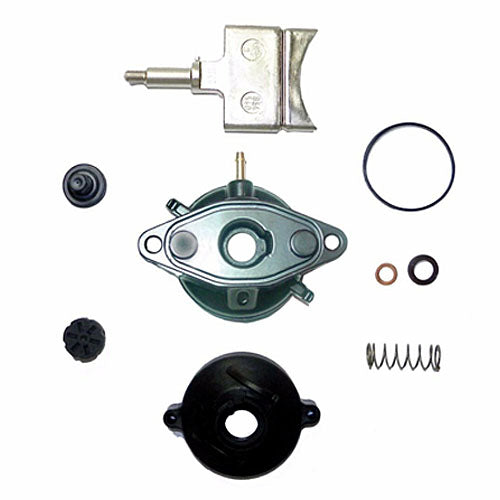

Sea Doo 951 XP Di '01-04 Power Valve Rebuild Kit.
Note: All Pieces Are Sold Each. Kits Are For One Power Valve.

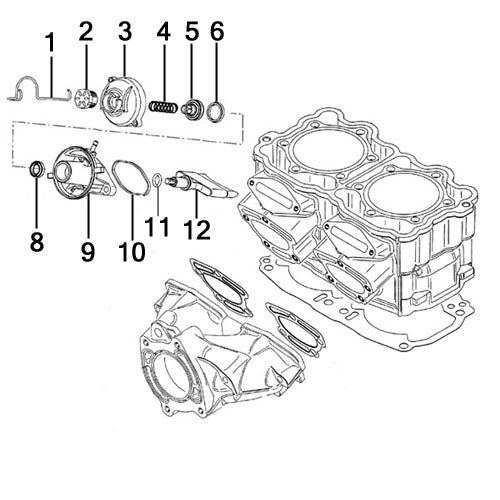

REF. NO. DESCRIPTION O.E. NO. REO'D
1-12 Sea Doo 951 XP Di Power Valve Rebuild Kit - 1
1 SD Power Valve Cap Hold Down Spring 420838083 2
2 SD Power Valve Housing Adjustment Screw 290241220 2
3 SD Power Valve Housing Cover 290911558 2
4 SD Power Valve Compression Spring 420939130 2
5 SD Power Valve Exhaust Piston 420854560 2
6 SD Power Valve Grooved Ring 420931950 2
7 SD Power Valve Sealing Ring 420931970 2
8 SD Power Valve Exhaust Housing 420854556 2
9 SD Power Valve Housing Rubber Ring 420931670 2
10 SD Power Valve Stem 0-Ring 420250460 4
11 SD 951 Di Power Valve 420854540 2

420838082, 420838083, 290241220, 420241220, 420241221, 420911555, 420911558, 290939130, 420939130, 290854560, 420854560, 290931950, 420931950, 290931970, 420931970, 290854555, 420854555, 420854556, 290931670, 420931670, 290250460, 290250462, 420250460, 420250462, 290854540, 420854540
