Sea Doo 951 RX Di '00 Individual Gaskets
SKU
Original price
$0.66
-
Original price
$79.21
Original price
$0.66
$0.66
-
$79.21
Current price
$0.66
Sea Doo 951 RX Di Individual Gaskets.
Intake System: Direct Injection.
Note: All Gaskets Are Sold Each.

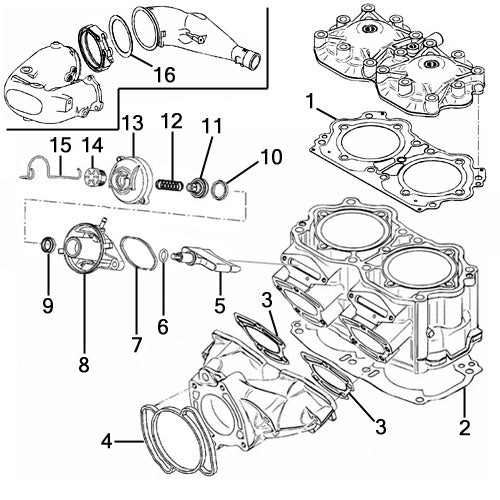

| Ref. # | Description | OEM # | Qty. Req. |
| 1 | Head Gasket (Stainless Steel) | 420931706 | 1 |
| 2A | Cylinder Base Gasket (.020/.5mm) | 420931905 | 1 |
| 2B | Cylinder Base Gasket (.023/.6mm) | 420931906 | 1 |
| 2C | Cylinder Base Gasket (.032/.8mm) | 420931907 | 1 |
| 3 | Exhaust Manifold To Cylinder Gasket | 420931653 | 1 |
| 4 | Exhaust Manifold To Head Pipe Gasket | 295500815 | 1 |
| 5 | SD 951 Power Valve | 420854540 | 2 |
| 6 | Power Valve Stem O-Ring | 420250460 | 2 |
| 7 | Power Valve Housing O-Ring | 290931670 | 2 |
| 8 | Power Valve Housing | 420854556 | 2 |
| 9 | Power Valve Sealing O-Ring | 420931970 | 2 |
| 10 | Power Valve Grooved Ring | 420931950 | 2 |
| 11 | Power Valve Exhaust Valve | 420854560 | 2 |
| 12 | Power Valve Compression Spring | 420939130 | 2 |
| 13 | Power Valve Cover | 420911555 | 2 |
| 14 | Power Valve Cover Adjustment Screw | 420241220 | 2 |
| 15 | Power Valve Hold Down Clip Spring | 420838082 | 2 |
| 16 | Exhaust Sealing Ring | 274000511 | 1 |
| N/S | Oil Pump O-Ring | 293300018 | 1 |
| N/S | Flywheel Cover O-Ring | 290931690 | 1 |
| N/S | Crankshaft Oil Seal Kit (Outer Seals Only) | - | 1 |
| NOTE: N/S - Item Not Shown On Diagram. | |||
290931705, 290931706, 420931706, 290931990, 420931990, 290931970, 420931970, 290931950, 420931950, 290854560, 420854560, 290939130, 420939130, 420911555, 420911558,
