Sea Doo 951 GTX Di '01-03 Individual Gaskets

$38.46
SKU 007-399-01

Sea Doo 951 GTX Di '01-03 Individual Gaskets.
Intake System: Direct Injection.
Note: All Gaskets Are Sold Each.

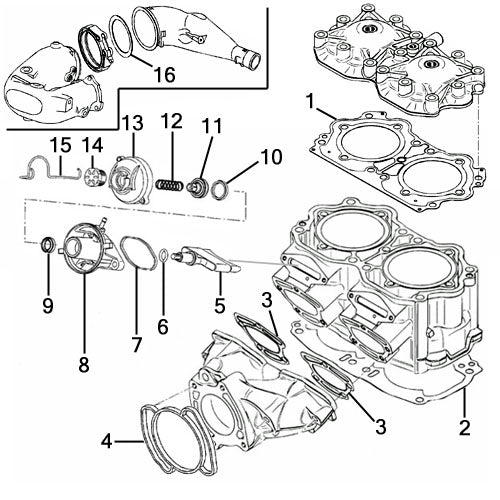

Ref. # Description OEM # Qty. Req.
1 Head Gasket (Stainless Steel) 420931706 1
2A Cylinder Base Gasket (.020/.5mm) 420931905 1
2B Cylinder Base Gasket (.023/.6mm) 420931906 1
2C Cylinder Base Gasket (.032/.8mm) 420931907 1
3 Exhaust Manifold To Cylinder Gasket 420931653 1
4 Exhaust Manifold To Head Pipe Gasket 420931990 1
5 SD 951 Power Valve 420854540 2
6 Power Valve Stem O-Ring 420250460 2
7 Power Valve Housing O-Ring 290931670 2
8 Power Valve Housing 420854556 2
9 Power Valve Sealing O-Ring 420931970 2
10 Power Valve Grooved Ring 420931950 2
11 Power Valve Exhaust Valve 420854560 2
12 Power Valve Compression Spring 420939130 2
13 Power Valve Cover 420911555 2
14 Power Valve Cover Adjustment Screw 420241220 2
15 Power Valve Hold Down Clip Spring 420838082 2
16 Exhaust Sealing Ring 274000511 1
N/S Oil Pump O-Ring 293300018 1
N/S Flywheel Cover O-Ring 290931690 1
N/S Crankshaft Oil Seal Kit (Outer Seals Only) - 1
NOTE: N/S - Item Not Shown On Diagram.

290931705, 290931706, 420931706, 290931990, 420931990, 290931970, 420931970, 290931950, 420931950, 290854560, 420854560, 290939130, 420939130, 420911555, 420911558,
