Sea Doo 951 GTX '01-02 Individual Gaskets

$39.04
SKU 007-399

Sea Doo 951 GTX '01-02 Individual Gaskets.
Stock Carburetor: Mikuni SBN 50mm Dual Carb.
Note: All Gaskets Are Sold Each.

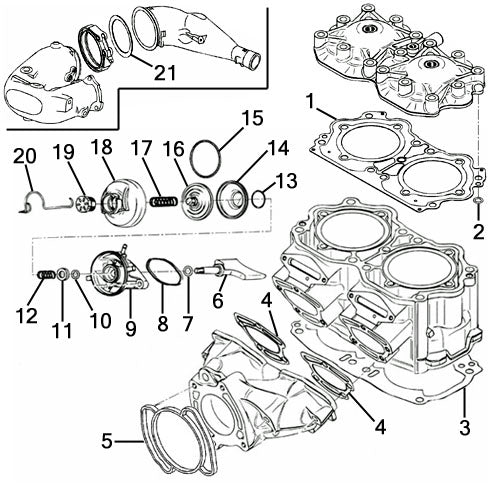

Ref. # Description OEM # Qty. Req.
1 Head Gasket (Stainless Steel) 420931702 1
2 Cylinder Stud O-Ring 420850460 8
3A Cylinder Base Gasket (.020/.5mm) 420931905 1
3B Cylinder Base Gasket (.023/.6mm) 420931906 1
3C Cylinder Base Gasket (.032/.8mm) 420931907 1
4 Exhaust Manifold To Cylinder Gasket 420931653 2
5 Exhaust Manifold To Head Pipe Gasket 420931990 1
6 SD 951 Power Valve 420854410 2
7 Power Valve Stem O-Ring 420430110 2
8 Power Valve Housing O-Ring 290931670 2
9 Power Valve Housing 420854435 2
10 Power Valve O-Ring 290931765 2
11 Power Valve Support O-Ring 420926220 2
12 Power Valve Clip Spring 420838260 2
13 Power Valve Below Spring (Small) 420838253 2
14 Power Valve Bellow 420260723 2
15 Power Valve Below Spring (Large) 420239048 2
16 Power Valve Exhaust Piston 420854449 2
17 Power Valve Compression Spring 290939137 2
18 Power Valve Cover 420911555 2
19 Power Valve Cover Adjustment Screw 420241220 2
20 Power Valve Hold Down Clip Spring 420838082 2
21 Exhaust Sealing Ring 274000511 2

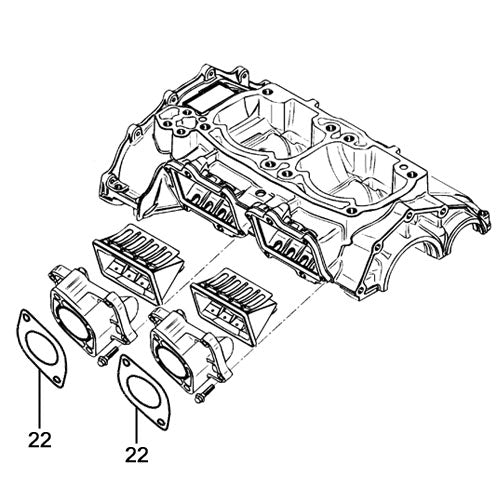

22 Carb. Base Gasket - 50mm 270500384 2
N/S Oil Pump O-Ring 293300018 1
N/S Flywheel Cover O-Ring 290931690 1
N/S Crankshaft Oil Seal Kit (Outer Seals Only) - 1 Kit
NOTE: N/S - Item Not Shown On Diagram.

290850460, 290931702, 290931906, 293250081, 293250080, 290854410, 290854435, 290854438, 420854436, 420854438, 290430110, 290931765, 420430110, 420931765, 290926220, 420926220, 290838260, 420838260, 420260723, 420260728, 290239048, 420239048, 420838253, 290939137, 420939137, 420911555, 420911558, 290241220, 420241220, 420241221, 420838082, 420838083, 293250066, 293250135, 290931690, 420931690
