Sea Doo 951 GSX Ltd. '97-99 Individual Gaskets
SKU
Original price
$0.66
-
Original price
$79.21
Original price
$0.66
$0.66
-
$79.21
Current price
$0.66
Sea Doo 951 GSX Ltd. '97-99 Individual Gaskets.
Stock Carburetor: Mikuni SBN 50mm Dual Carb.
Note: All Gaskets Are Sold Each.

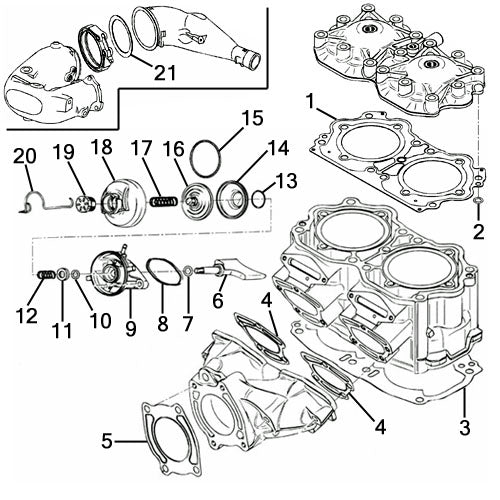

Ref. # | Description | OEM # | Qty. Req. |

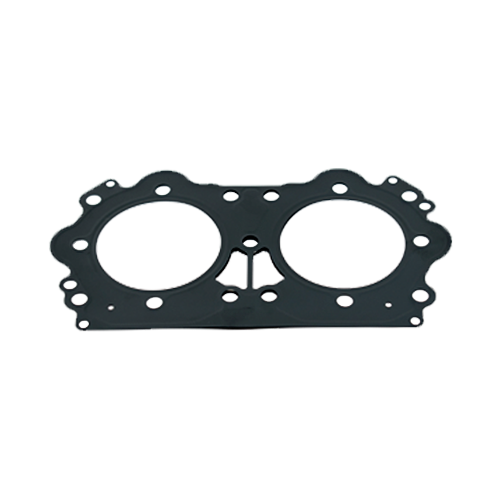

1 | Head Gasket (Stainless Steel) | 420931702 | 1 |
2 | Cylinder Stud O-Ring | 420850460 | 8 |
3A | Cylinder Base Gasket (.020/.5mm) | 420931905 | 1 |
3B | Cylinder Base Gasket (.023/.6mm) | 420931906 | 1 |
3C | Cylinder Base Gasket (.032/.8mm) | 420931907 | 1 |
4 | Exhaust Manifold To Cylinder Gasket | 420931653 | 2 |
5 | Exhaust Manifold To Head Pipe Gasket | 295500815 | 1 |

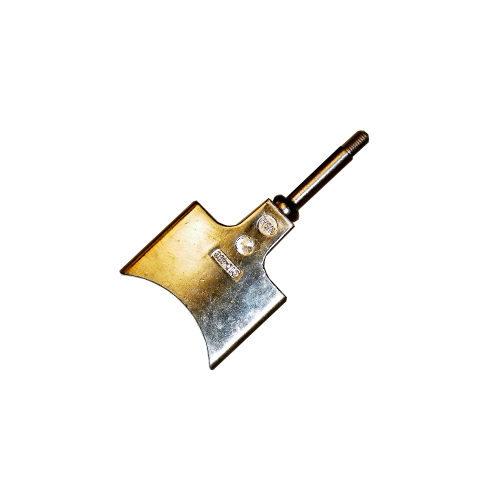

6 | SD 951 Power Valve | 420854410 | 2 |
7 | Power Valve Stem O-Ring | 420430110 | 2 |
8 | Power Valve Housing O-Ring | 290931670 | 2 |

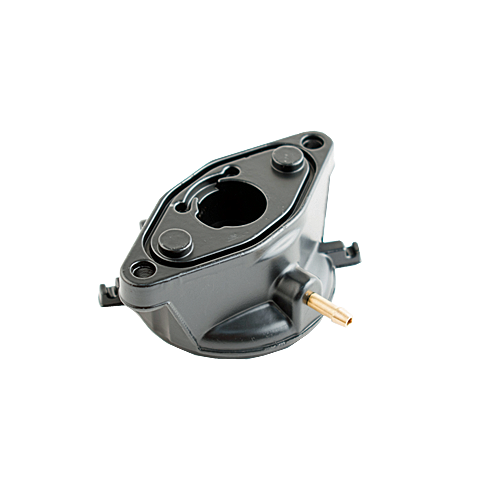

9 | Power Valve Housing | 420854435 | 2 |
10 | Power Valve O-Ring | 290931765 | 2 |
11 | Power Valve Support O-Ring | 420926220 | 2 |
12 | Power Valve Clip Spring | 420838260 | 2 |
13 | Power Valve Below Spring (Small) | 420838253 | 2 |
14 | Power Valve Bellow | 420260723 | 2 |
15 | Power Valve Below Spring (Large) | 420239048 | 2 |
16 | Power Valve Exhaust Piston | 420854449 | 2 |
17 | Power Valve Compression Spring | 290939137 | 2 |
18 | Power Valve Cover | 420911555 | 2 |
19 | Power Valve Cover Adjustment Screw | 420241220 | 2 |
20 | Power Valve Hold Down Clip Spring | 420838082 | 2 |
21 | Exhaust Sealing Ring | 274000511 | 2 |

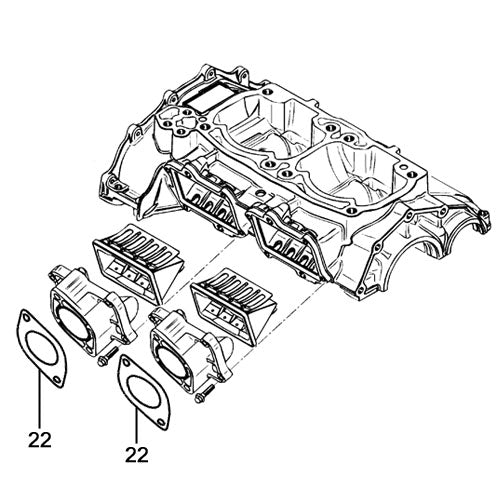

22 | Carb. Base Gasket - 50mm | 270500384 | 2 |
N/S | Oil Pump O-Ring | 293300018 | 1 |
N/S | Flywheel Cover O-Ring | 290931690 | 1 |
N/S | Crankshaft Oil Seal Kit (Outer Seals Only) | - | 1 Kit |
NOTE: N/S - Item Not Shown On Diagram. |
290850460, 290931702, 290931906, 293250081, 293250080, 290854410, 290854435, 290854438, 420854436, 420854438, 290430110, 290931765, 420430110, 420931765, 290926220, 420926220, 290838260, 420838260, 420260723, 420260728, 290239048, 420239048, 420838253, 290939137, 420939137, 420911555, 420911558, 290241220, 420241220, 420241221, 420838082, 420838083, 293250066, 293250135, 290931690, 420931690
