Sea Doo 800 XP '95-99 Individual Gaskets

SKU
Original price $0.66 - Original price $79.21
Original price
$0.66
$0.66 - $79.21
Current price $0.66

Sea Doo 800 XP '95-99 Individual Gaskets.
Stock Carburetor: Mikuni SBN 40mm Dual Carb.
Note: All Gaskets Are Sold Each.

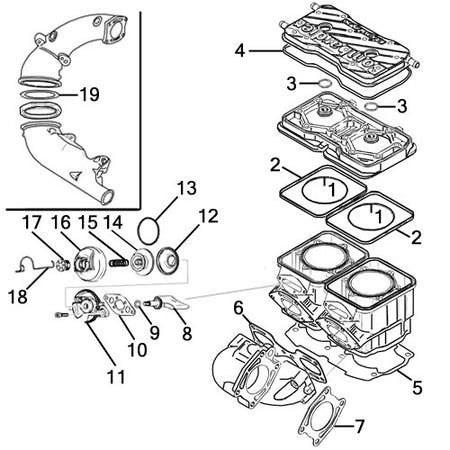

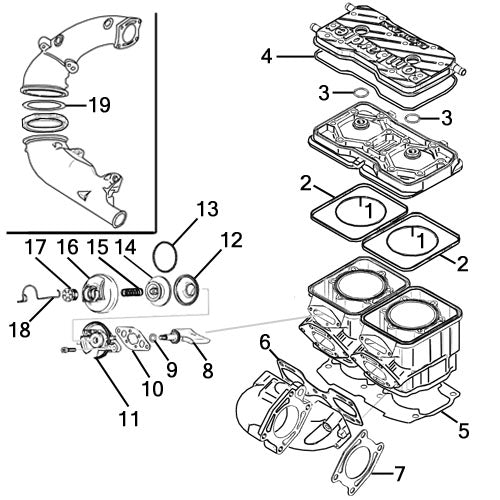

Ref. # Description OEM # Qty. Req.
1 Cylinder O-Ring (Inner) 290931410 2
2 Cylinder O-Ring (Outer) 290931420 2
3 Spark Plug O-Ring 290430782 2
4 Head Cover O-Ring 290831550 1
5 Cylinder Base Gasket 290931460 1
6 Exhaust Manifold To Cylinder Gasket 420931481 1
7 Exhaust Manifold To Head Pipe Gasket 420931503 1
8 Power Valve 420854358 2
9 Power Valve Stem O-Ring 420430110 2
10 Power Valve Housing 290854360 2
11 Power Valve Housing Gasket 420931540 2
12 Power Valve Bellows 420260723 2
13 Power Valve Bellow Spring 420239048 2
14 Power Valve Exhaust Piston 420854449 2
15 Power Valve Compression Spring 420939137 2
16 Power Valve Cover 420911558 2
17 Power Valve Cover Adjustment Screw 420241221 2
18 Power Valve Cover Hold Down Spring Clip 420838082 2
19 Exhaust Pipe Gasket (Brass) 274000169 1

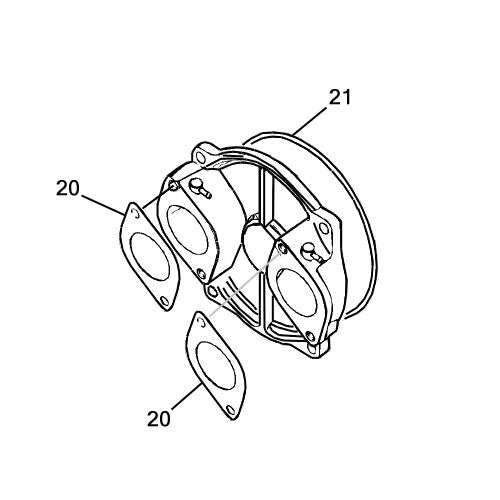

20 Carb. Base Gasket - Mikuni 40mm SBN 293250042 2
21 Rotary Cover O-Ring 290831765 1
22 Oil Injection O-Ring 293300018 1
23 Flywheel Cover O-Ring 290831555 1
N/S Crankshaft Oil Seal Kit (Outer Seals Only) - 1 Kit
NOTE: N/S - Item Not Shown On Diagram.
