Sea Doo 800 GTX '96-97 Individual Gaskets
Couldn't load pickup availability
How-To Videos Brought To You By Erickson Machine and Performance.
Need help choosing the right part? Feel free to e-mail us.
Sea Doo 800 GTX '96-97 Individual Gaskets.
Stock Carburetor: Mikuni SBN 40mm Dual Carb.
Note: All Gaskets Are Sold Each.

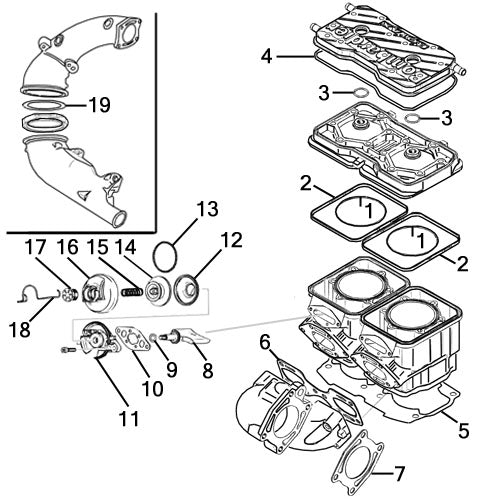

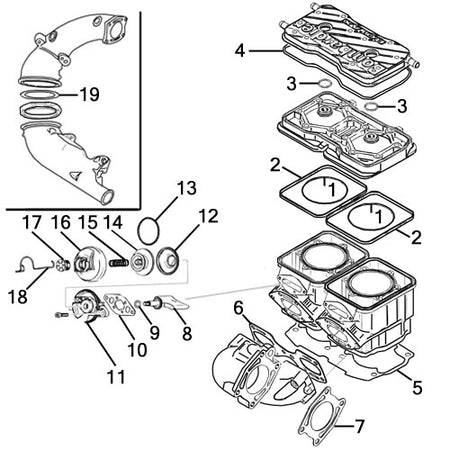

| Ref. # | Description | OEM # | Qty. Req. |
| 1 | Cylinder O-Ring (Inner) | 290931410 | 2 |
| 2 | Cylinder O-Ring (Outer) | 290931420 | 2 |
| 3 | Spark Plug O-Ring | 290430782 | 2 |
| 4 | Head Cover O-Ring | 290831550 | 1 |
| 5 | Cylinder Base Gasket | 290931460 | 1 |

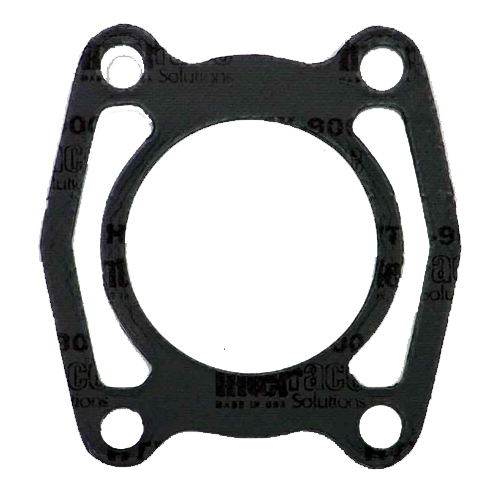

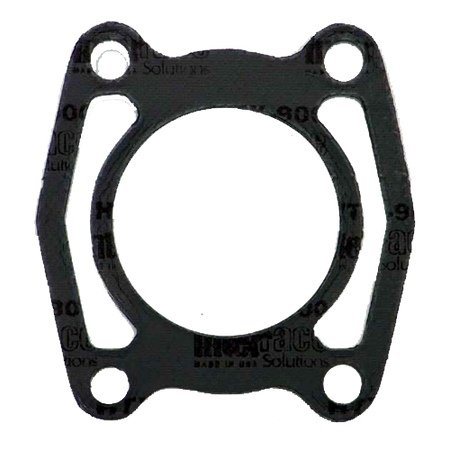

| 6 | Exhaust Manifold To Cylinder Gasket | 420931481 | 1 |
| 7 | Exhaust Manifold To Head Pipe Gasket | 420931503 | 1 |
| 8 | Power Valve | 420854358 | 2 |
| 9 | Power Valve Stem O-Ring | 420430110 | 2 |
| 10 | Power Valve Housing | 290854360 | 2 |
| 11 | Power Valve Housing Gasket | 420931540 | 2 |
| 12 | Power Valve Bellows | 420260723 | 2 |
| 13 | Power Valve Bellow Spring | 420239048 | 2 |
| 14 | Power Valve Exhaust Piston | 420854449 | 2 |

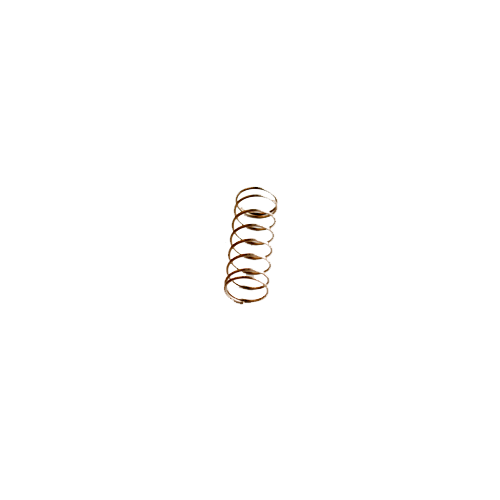

| 15 | Power Valve Compression Spring | 420939137 | 2 |

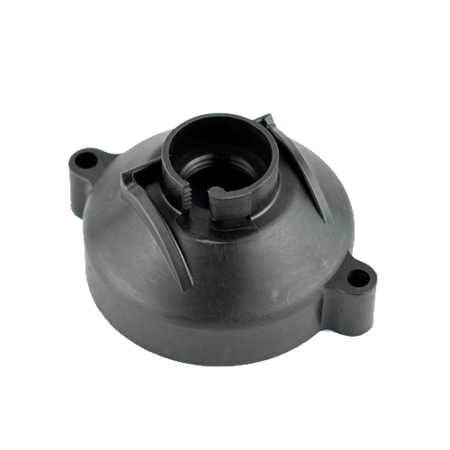

| 16 | Power Valve Cover | 420911558 | 2 |
| 17 | Power Valve Cover Adjustment Screw | 420241221 | 2 |

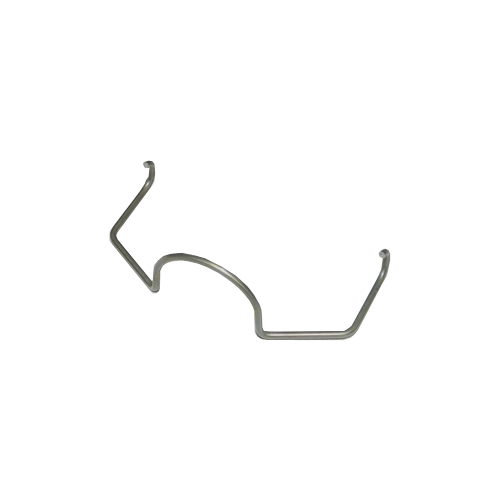

| 18 | Power Valve Cover Hold Down Spring Clip | 420838082 | 2 |

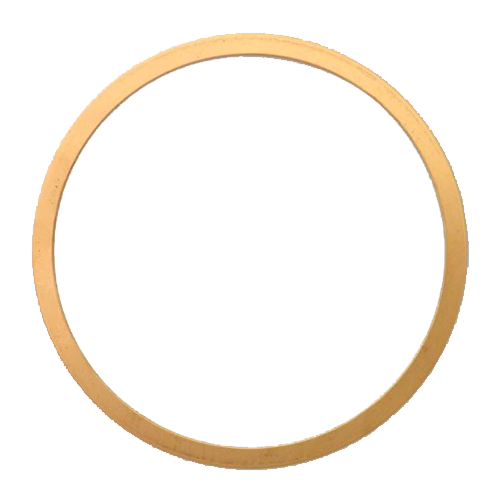

| 19 | Exhaust Pipe Gasket (Brass) | 274000169 | 1 |

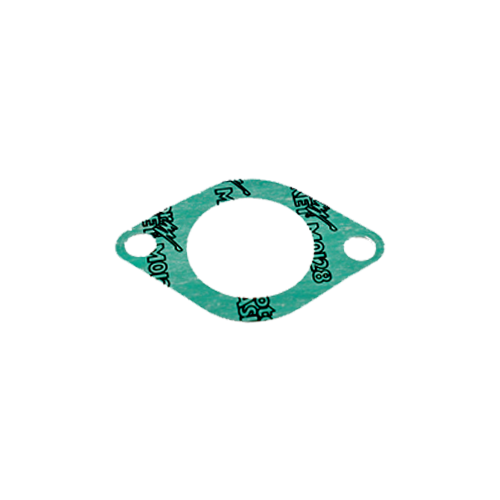

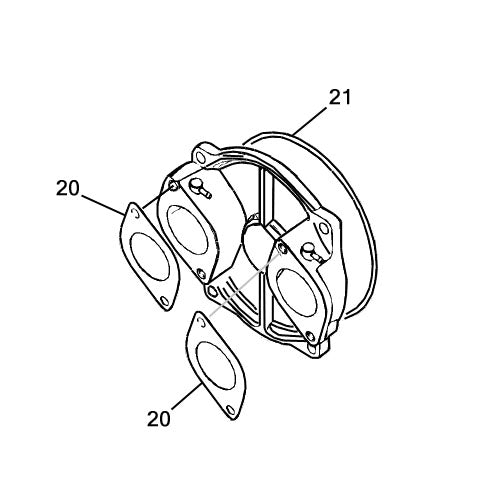

| 20 | Carb. Base Gasket - Mikuni 40mm SBN | 293250042 | 2 |
| 21 | Rotary Cover O-Ring | 290831765 | 1 |
| 22 | Oil Injection O-Ring | 293300018 | 1 |
| 23 | Flywheel Cover O-Ring | 290831555 | 1 |
| N/S | Crankshaft Oil Seal Kit (Outer Seals Only) | - | 1 Kit |
| NOTE: N/S - Item Not Shown On Diagram. | |||
