Sea Doo 720 GSi '97-98 Individual Gaskets.
Stock Carburetor: Mikuni SBN 39mm Single Carb.
Note: All Gaskets Are Sold Each.
Ref. # | Description | OEM # | Qty. Req. |

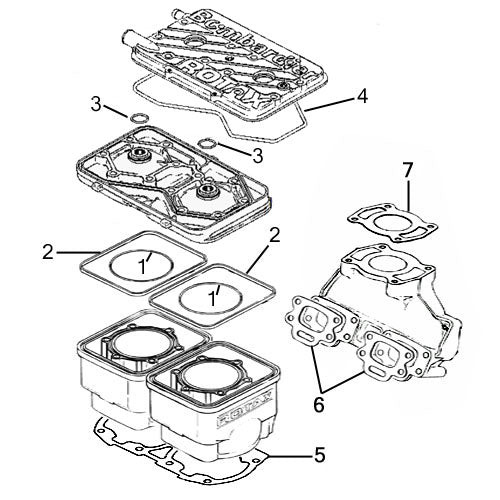

1 | Cylinder O-Ring (Inner) | 290931410 | 2 |
2 | Cylinder O-Ring (Outer) | 290850045 | 2 |
3 | Spark Plug O-Ring | 290430782 | 2 |
4 | Head Cover O-Ring | 290950360 | 1 |
5 | Cylinder Base Gasket | 290931400 | 1 |
6 | Exhaust Manifold To Cylinder Gasket | 290850635 | 2 |
7 | Exhaust Manifold To Head Pipe Gasket | 290950250 | 1 |

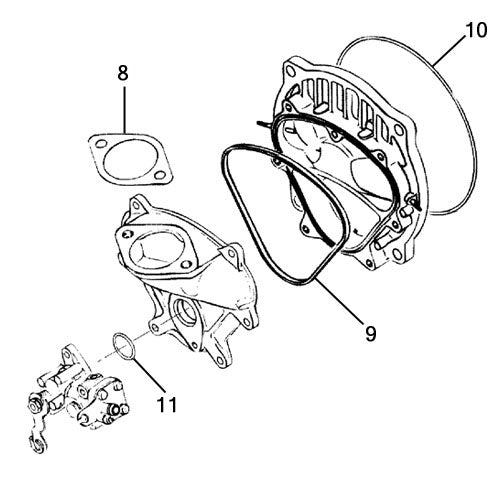

8 | Carb. Base Gasket - Mikuni 39mm SBN | 293250070 | 1 |
9 | Rotary Cover Front O-Ring | 290850160 | 1 |
10 | Rotary Cover Rear O-Ring | 293300023 | 1 |
11 | Oil Injection O-Ring | 293300018 | 1 |

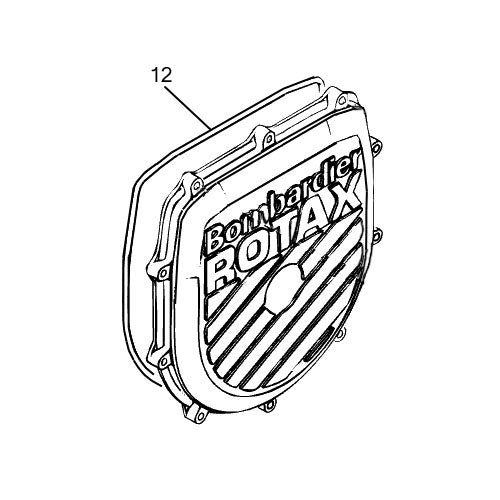

12 | Flywheel Cover O-Ring | 290831555 | 1 |
N/S | Crankshaft Oil Seal Kit (Outer Seals Only) | - | 1 Kit |
NOTE: N/S - Item Not Shown On Diagram. |
