GasketsSea Doo 650 GTX '95 Individual Gaskets.
Stock Carburetor: Mikuni SBN 38mm Dual Carb.
Note: All Gaskets Are Sold Each.
| Ref. # | Description | OEM # | Qty. Req. |

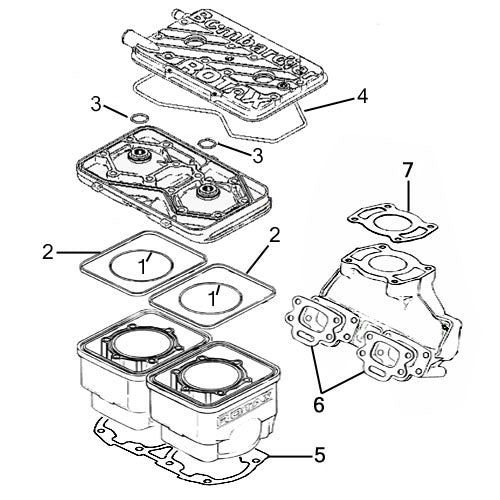

| 1 | Cylinder O-Ring (Inner) | 290931220 | 2 |
| 2 | Cylinder O-Ring (Outer) | 290850045 | 2 |
| 3 | Spark Plug O-Ring | 290430782 | 2 |
| 4 | Head Cover O-Ring | 290950320 | 1 |
| 5 | Cylinder Base Gasket | 290931160 | 1 |
| 6 | Exhaust Manifold To Cylinder Gasket | 290850635 | 2 |
| 7 | Exhaust Manifold To Head Pipe Gasket | 290950250 | 1 |

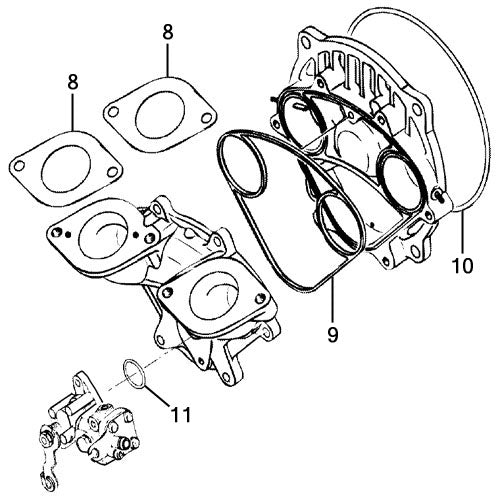

| 8 | Carb. Base Gasket - Mikuni 38mm SBN | 290850372 | 2 |
| 9 | Rotary Cover Front O-Ring | 290931440 | 1 |
| 10 | Rotary Cover Rear O-Ring | 293300023 | 1 |
| 11 | Oil Injection O-Ring | 293300018 | 1 |

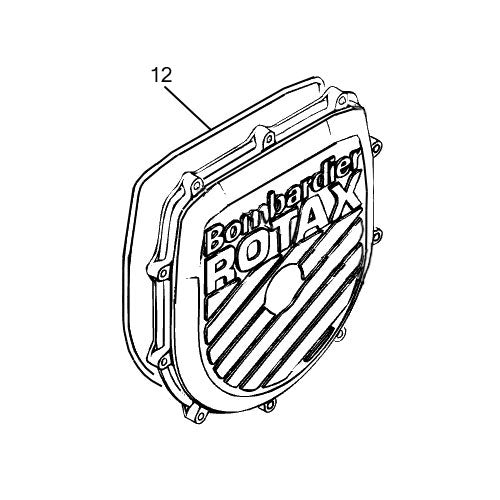

| 12 | Flywheel Cover O-Ring | 290831555 | 1 |
| 13 | Starter Gasket | 290830905 | 1 |
| N/S | Crankshaft Oil Seal Kit (Outer Seals Only) | - | 1 Kit |
| NOTE: N/S - Item Not Shown On Diagram. | |||
