Sea Doo 580 Individual Gaskets

$3.31
SKU 008-580

Sea Doo 580 (All) Individual Gaskets.
Stock Carburetor: Mikuni BN 38mm Single Carb.
Note: All Gaskets Are Sold Each. "*" See Below For Applications.

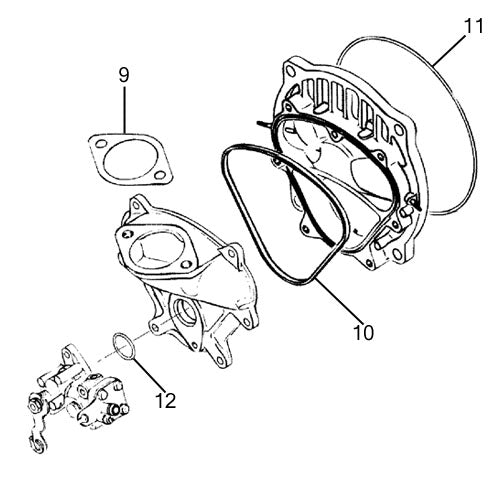

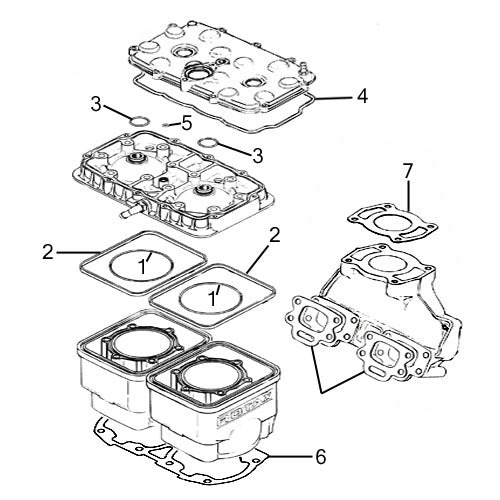

Ref. # Description OEM # Qty. Req.
1 Cylinder O-Ring (Inner) 293300026 2
2 Cylinder O-Ring (Outer) 290850040 2
3 Spark Plug O-Ring 290430782 2
4A Head Cover O-Ring '88-91 Models 293300027 1
4B Head Cover O-Ring '92-96 Models 290950360
5 Sensor O-Ring 290430200 1

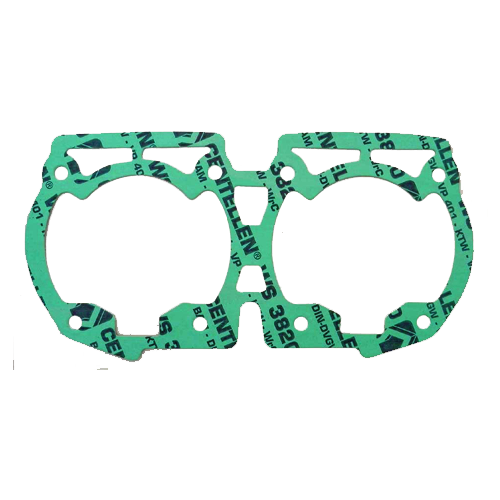

6A Cylinder Base Gasket '88-91 Models 290850775 1
6B Cylinder Base Gasket '92-96 Models 290931160 1

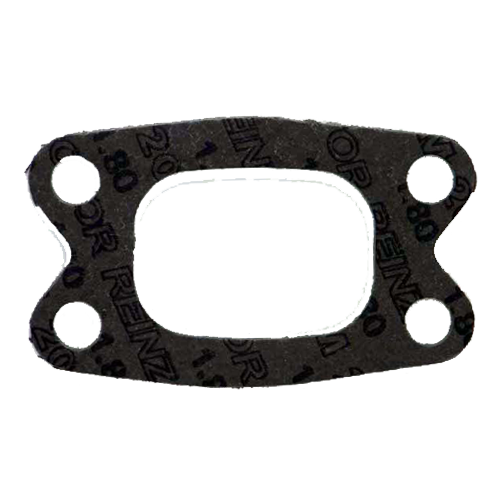

7A Exhaust Manifold To Cylinder Gasket '88-91 Models 290850630 2
7B Exhaust Manifold To Cylinder Gasket '92-96 Models 290850637 2

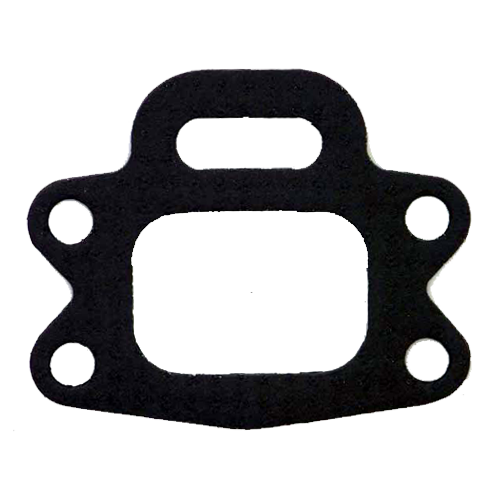

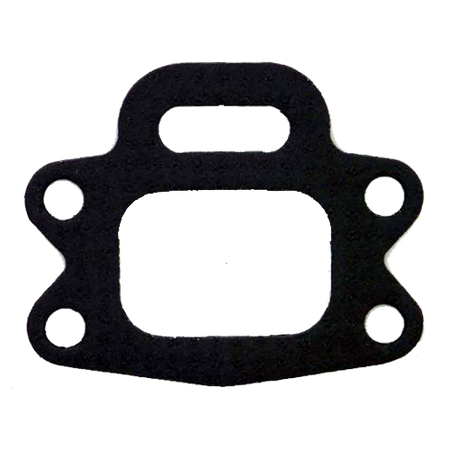

8 Exhaust Manifold To Head Pipe Gasket 290950250 1
9 Carb. Base Gasket - Mikuni 38mm 290850372 1

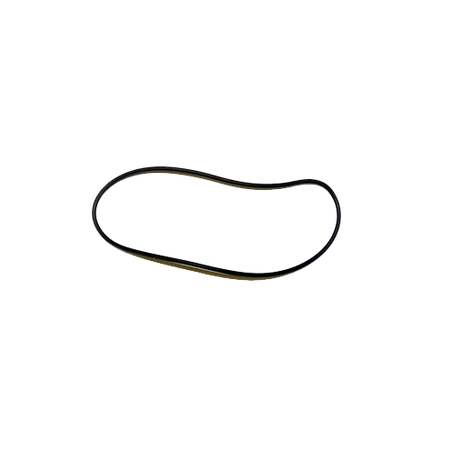

10A Rotary Cover Front O-Ring* 290850160 1
10B Rotary Cover Front O-Ring* 290831705 1
11 Rotary Cover Rear O-Ring 293300023 1

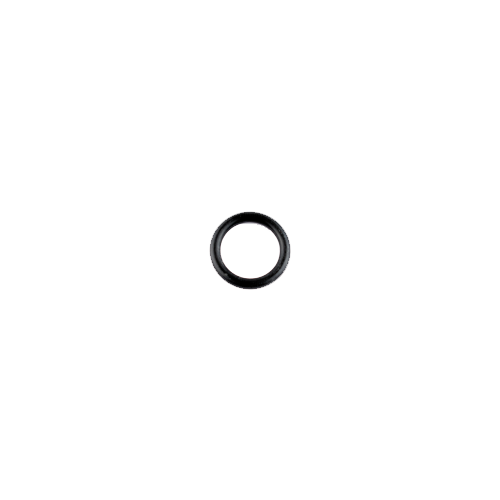

12 Oil Injection O-Ring 293300018 1

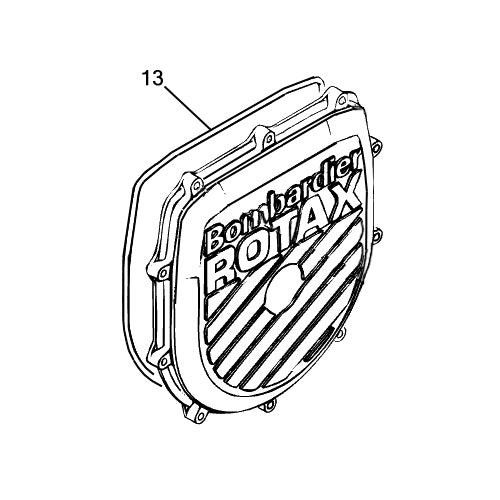

13A Flywheel Cover O-Ring '89-91 290950130 1
13B Flywheel Cover O-Ring '92 & Up 290831555 1

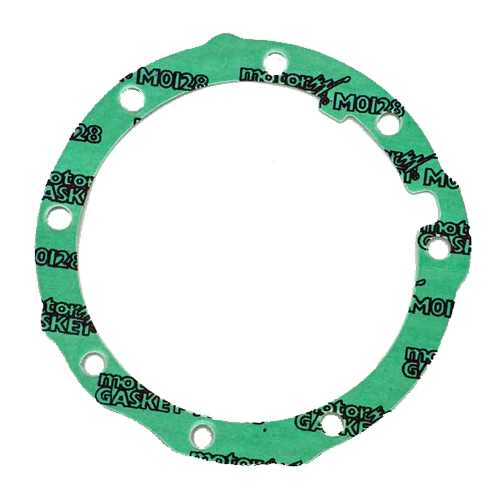

14A Flywheel Housing Gasket - Yellow Motor '88-91 290850600 1
14B Flywheel Housing Gasket - White Motor 290850605 1
15 Starter Gasket '88-94 290830905 1
16 Water Pump Gasket '88-90 290831615 1
17 Water Pump O-Ring ' 91 293300021 1
N/S Crankshaft Oil Seal Kit (Outer Seals Only) - 1 Kit
NOTE: N/S - Item Not Shown On Diagram.

* Ref: 10A Fits: 1993 Sea Doo SPX 580, 1989-1996 Sea Doo SP 580, 1993-1996 Sea Doo SPI 580, 1992-1996 Sea Doo GTS 580, 1992-1993 Sea Doo GTX 580, 1991-1992 Sea Doo XP 580
* Ref: 10B Fits: 1993 Sea-Doo SPX 580, 1991-1994 Sea-Doo SP 580, 1993-1994 Sea-Doo SPI 580, 1990-1991 Sea-Doo GT 580, 1992-1994 Sea-Doo GTS 580, 1992-1993 Sea-Doo GTX 580, 1991-1992 Sea-Doo XP 580
