Sea Doo 1503 / ACE 1630 4-Tec 02-24 Individual Gaskets

SKU
Original price $1.37 - Original price $100.50
Original price
$1.37
$1.37 - $100.50
Current price $1.37

Sea Doo 1503 / ACE 1630 4-Tec 02-24 Individual Gaskets.
The Sea-Doo ACE 1630 is a Rotax engine known for its performance, efficiency, and reliability. The 1630 ACE is available in different horsepower models, including: 1630 ACE - 325, 1630 ACE - 300, 1630 ACE - 230, 1630 ACE - 170, and 1630 ACE - 130.
Note: All Gaskets Are Sold Each.

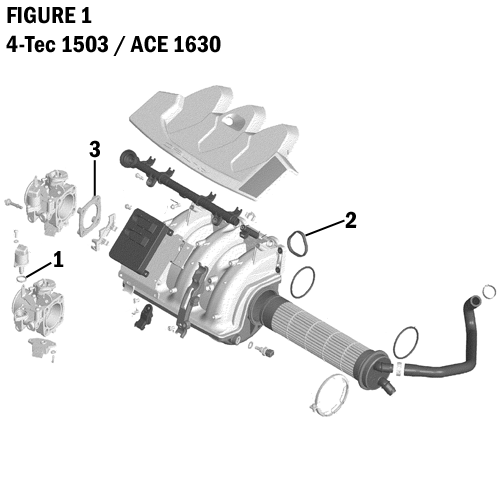

REF. NO. DESCRIPTION REQ O.E. NO. PART NO.

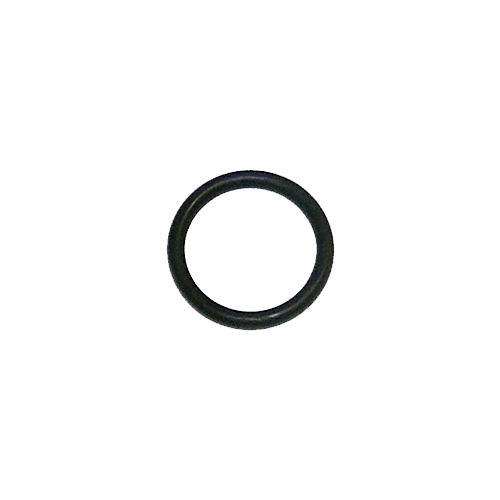

1 Throttle Positioning Sensor O-Ring 1 420631780 008-605-01

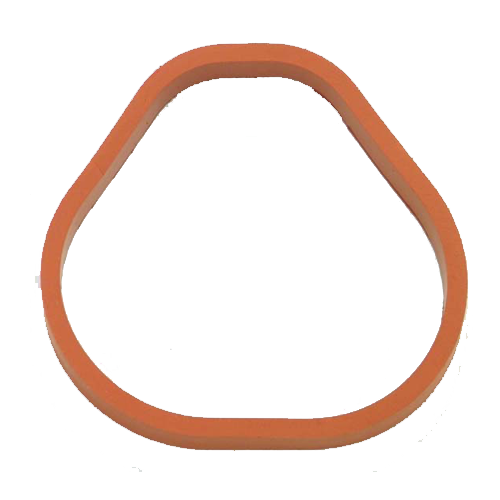

2 Intake Rubber Ring 3 420950740 007-573-05
3 Throttle Body Gasket 1 290950792 007-574-02

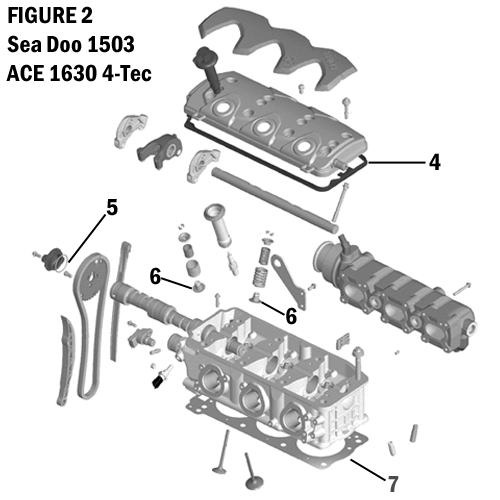

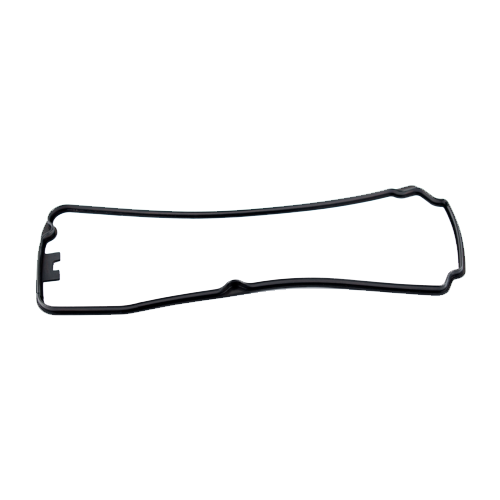

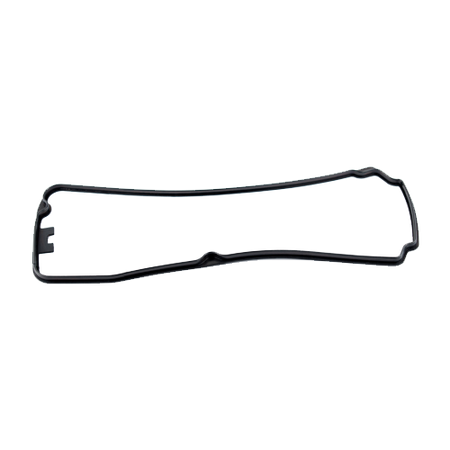

4 Valve Cover Gasket 1 420950820 007-399-06

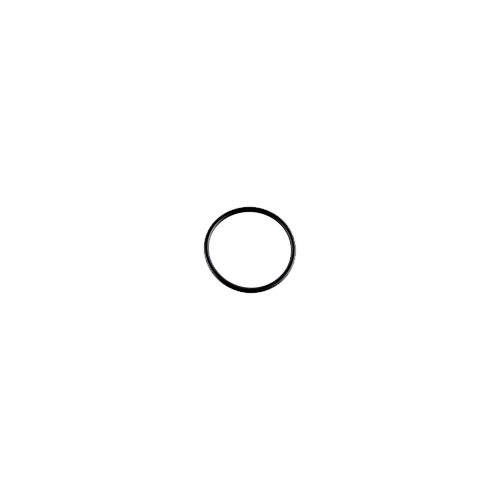

5 Cam Cover O-Ring 1 420950870 008-600-01

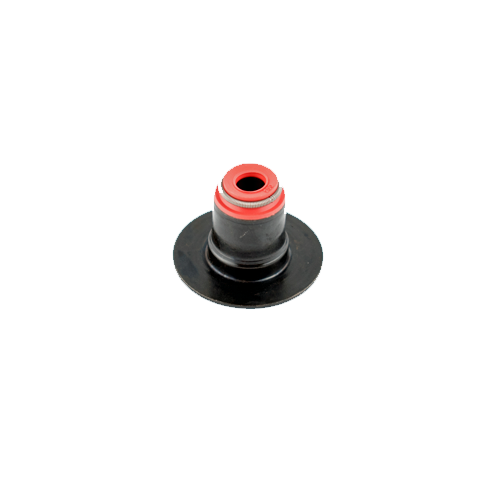

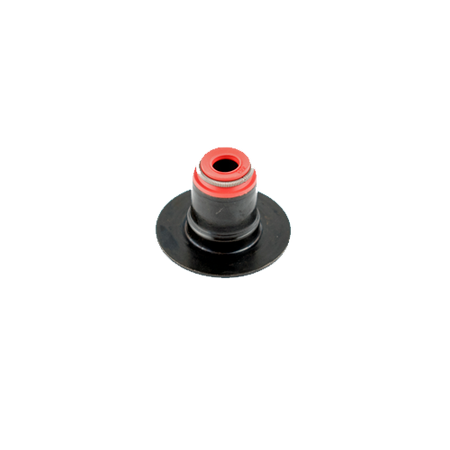

6 Valve Stem Seal 12 420630202 010-050

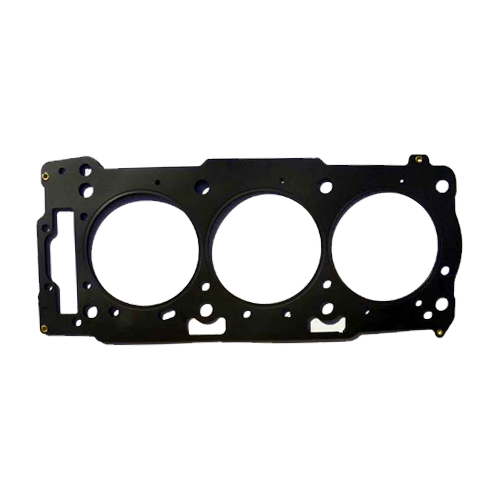

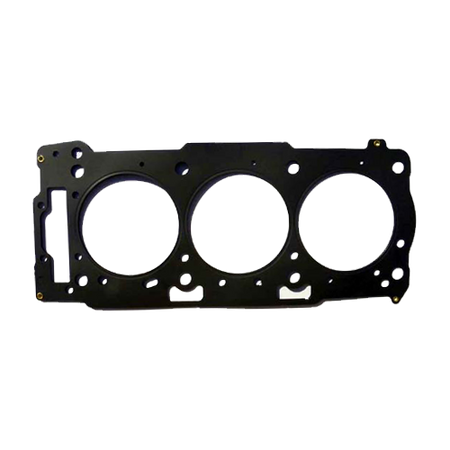

7 Cylinder Head Gasket 1 420950771 007-399-05

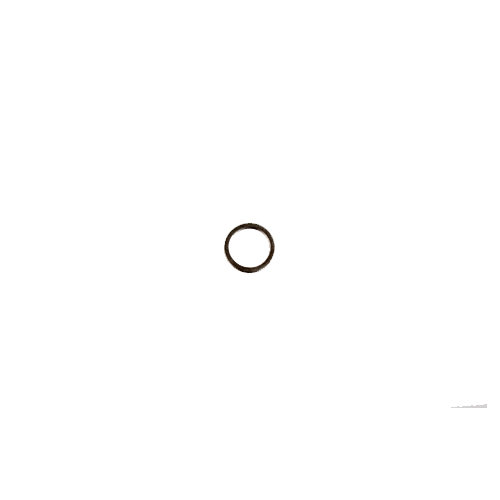

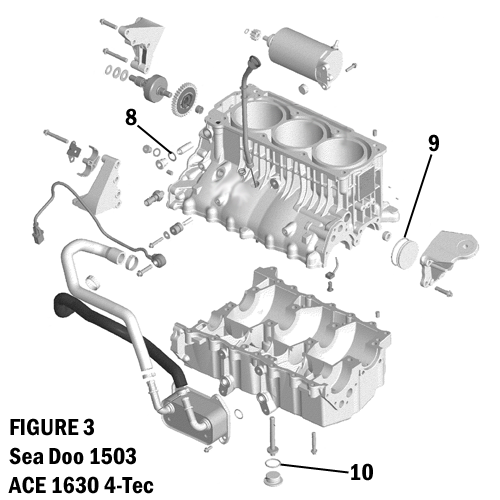

8 Chain Tensoiner O-Ring 1 420430623 007-588-01

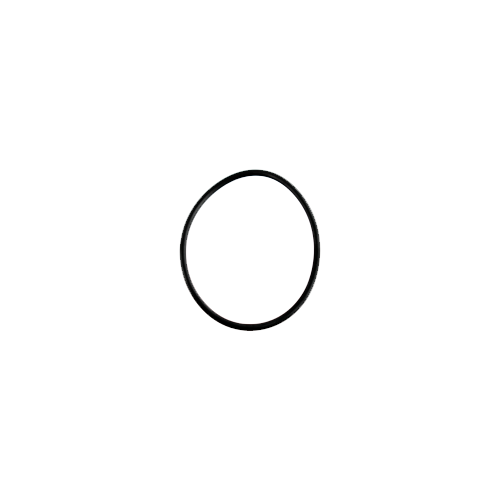

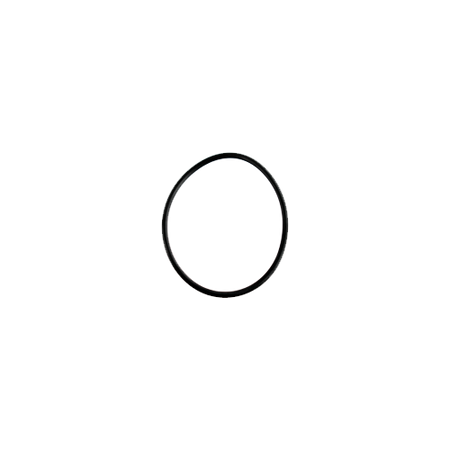

9 End Cap O-Ring 1 420430405 008-600-03

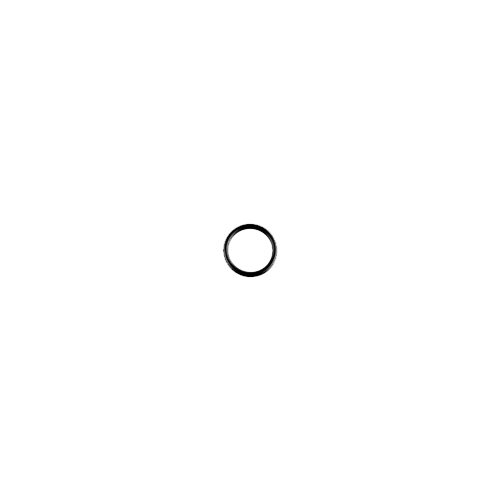

10 Crankcase O-Ring 1 420250055 008-600-04

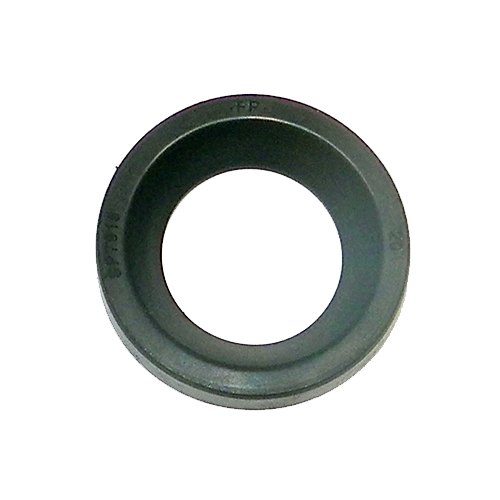

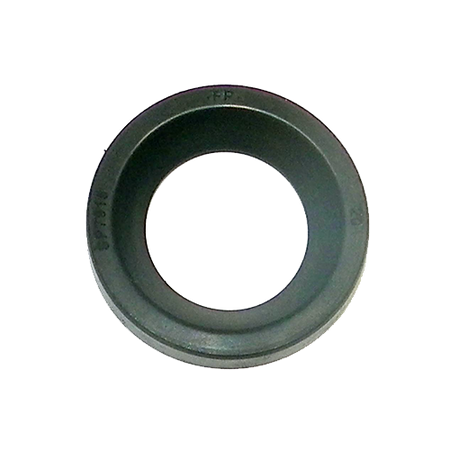

11 Crankshaft Sealing Ring 1 420630550 008-599-09

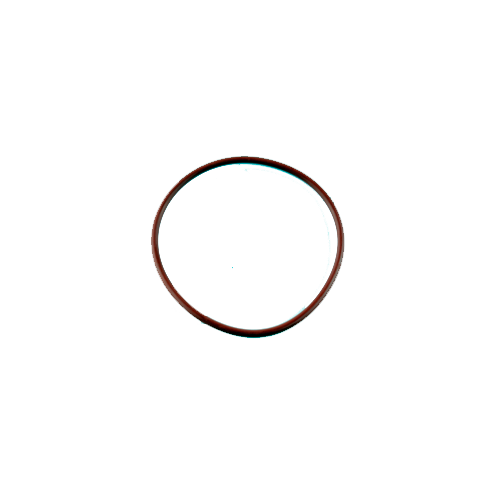

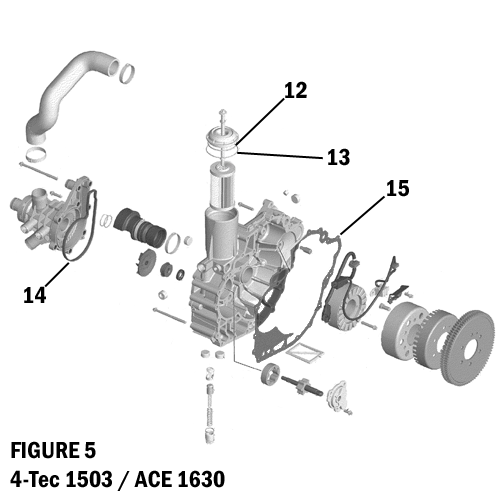

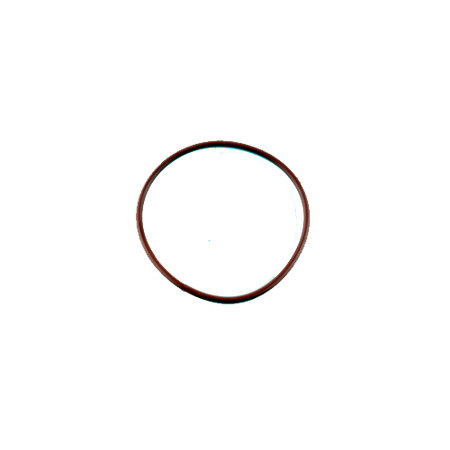

12 Oil Filter Cap O-Ring 1 420230920 008-599-16

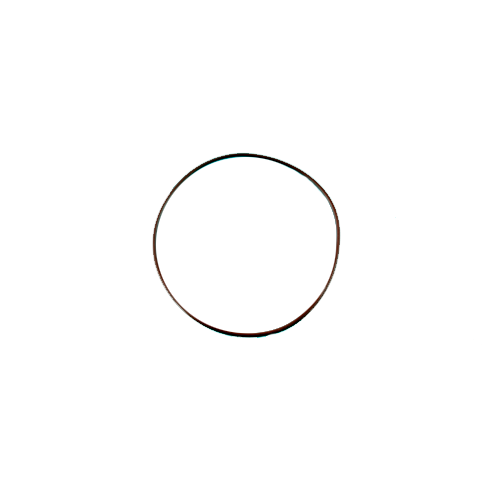

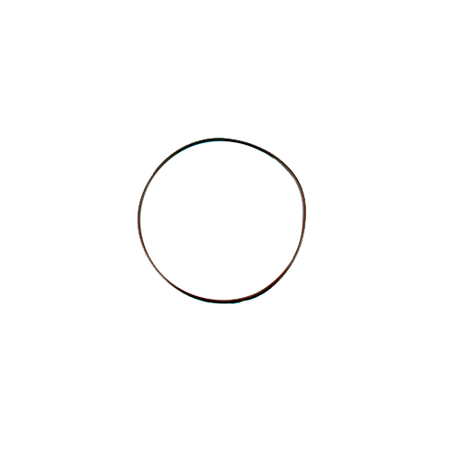

13 Oil Filter Cap O-Ring 1 420850500 008-599-15

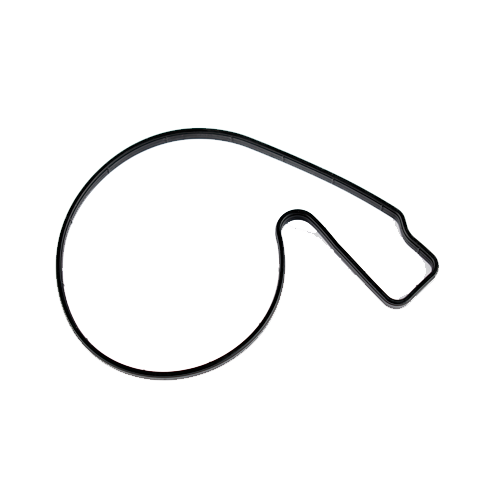

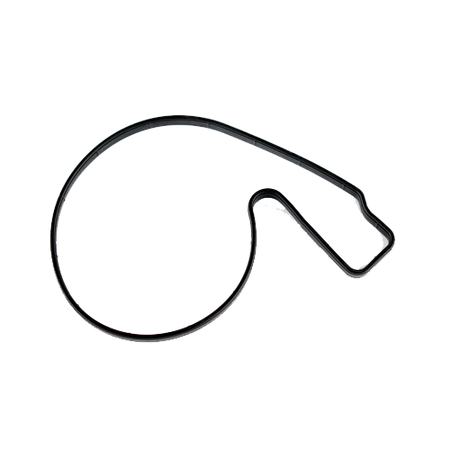

14 Water Pump Housing O-Ring 1 420950840 008-599-12

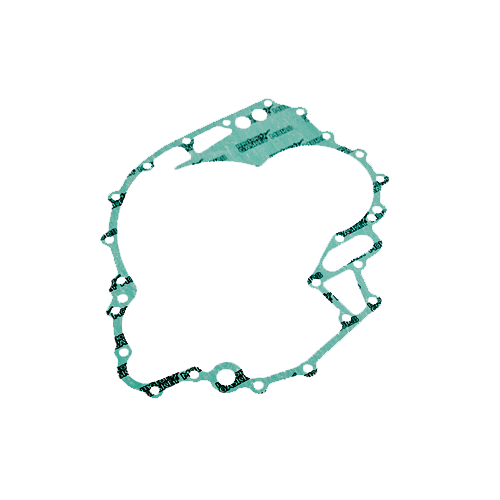

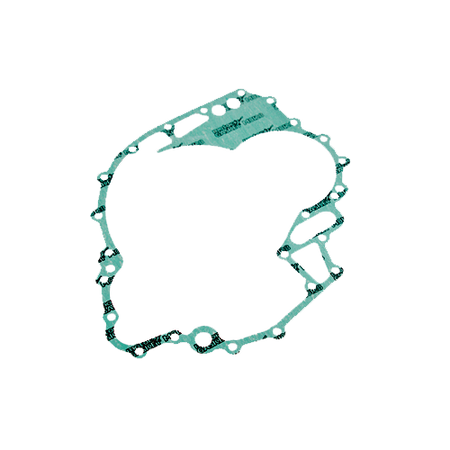

15 Timing Drive Cover Gasket 1 420931130 007-573-01

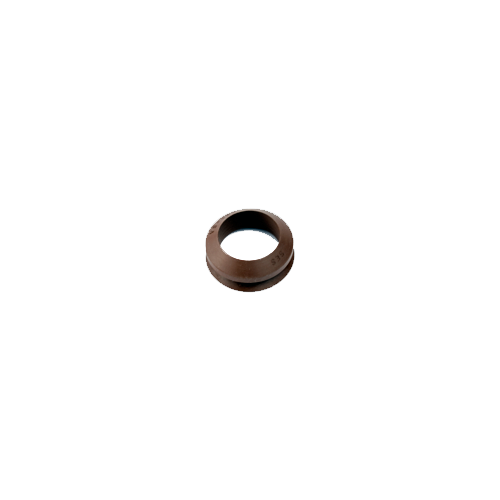

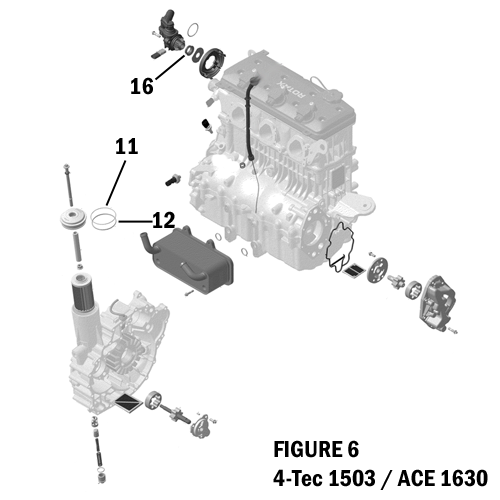

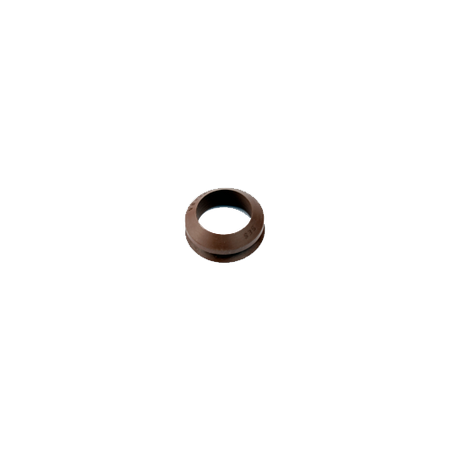

16 Cam Sensor V-Ring 1 420630125 008-600-09

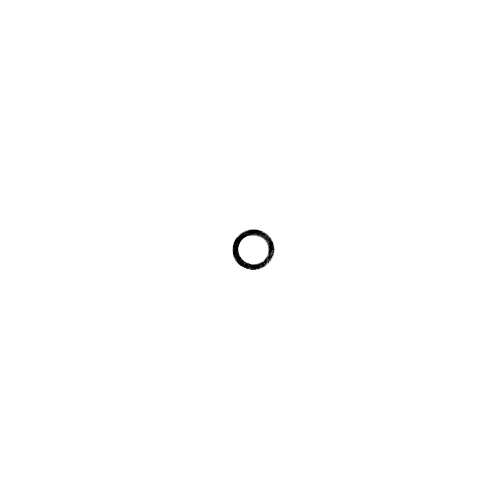

N/A Engine Block Aluminum Washer 1 420250015 008-400

290889770, 420889770, 420889772, 420889773, 420889775, 420889776, 420889777

  • 2004 Sea Doo RXP S/C 1503 Gaskets
  • 2006 Sea Doo GTX LTD 1503 Gaskets
  • 2006 Sea Doo Islandia / SE 220 1503 Gaskets
  • 2006 Sea Doo Utopia / SE 205 1503 Gaskets
  • 2007 Sea Doo Challenger Wake 155 1503 Gaskets
  • 2007 Sea Doo Challenger Wake S/C 215 1503 Gaskets
  • 2007 Sea Doo GTI SE DT 1503 Gaskets
  • 2007 Sea Doo GTI STD DT 1503 Gaskets
  • 2007 Sea Doo GTX SCIC 1503 Gaskets
  • 2007 Sea Doo GTX Wake NA 1503 Gaskets
  • 2007 Sea Doo Islandia / SE 155 1503 Gaskets
  • 2007 Sea Doo RXP BVIC 1503 Gaskets
  • 2007 Sea Doo RXP NA 1503 Gaskets
  • 2007 Sea Doo RXT SCIC 1503 Gaskets
  • 2007 Sea Doo Speedster Wake 155 1503 Gaskets
  • 2007 Sea Doo Speedster Wake S/C 215 1503 Gaskets
  • 2008 Sea Doo Challenger Wake 310 1503 Gaskets
  • 2008 Sea Doo Challenger Wake 430 1503 Gaskets
  • 2008 Sea Doo Islandia SE 430 1503 Gaskets
  • 2008 Sea Doo RXP 155 1503 Gaskets
  • 2008 Sea Doo RXP 155 S/C 1503 Gaskets
  • 2008 Sea Doo Speedster 310 1503 Gaskets
  • 2008 Sea Doo Speedster 430 1503 Gaskets
  • 2008 Sea Doo Speedster Wake 310 1503 Gaskets
  • 2008 Sea Doo Speedster Wake 430 1503 Gaskets
  • 2008 Sea Doo Utopia / SE 310 1503 Gaskets
  • 2008 Sea Doo Utopia SE 430 1503 Gaskets
  • 2009 Sea Doo Challenger SP 155 1503 Gaskets
  • 2009 Sea Doo Challenger SP 215 1503 Gaskets
  • 2009 Sea Doo GTX LTD IS 255 1503 Gaskets
  • 2009 Sea Doo Islandia SE 215 1503 Gaskets
  • 2009 Sea Doo RXP 215 1503 Gaskets
  • 2009 Sea Doo RXT IS 255 1503 Gaskets
  • 2009 Sea Doo Speedster Wake 215 1503 Gaskets
  • 2009 Sea Doo Utopia / SE 215 1503 Gaskets
  • 2009 Sea Doo Wake 255 1503 Gaskets
  • 2011 Sea Doo GTS Pro 130 1503 Gaskets
  • 2012     Sea Doo Challenger / SE 1 x 215 1503 Gaskets
  • 2012 Sea Doo Challenger / SE 1 x 260 1503 Gaskets
  • 2012 Sea Doo Challenger / SE 2 x 155 1503 Gaskets
  • 2012 Sea Doo Challenger S 1 x 260 1503 Gaskets
  • 2012 Sea Doo Challenger S 2 x 155 1503 Gaskets
  • 2012 Sea Doo Challenger SE 2 x 215 1503 Gaskets
  • 2012 Sea Doo Challenger SE 2 x 260 1503 Gaskets
  • 2012 Sea Doo SP 1 x 260 1503 Gaskets
  • 2012 Sea Doo SP 2 x 155 1503 Gaskets
  • 2012 Sea Doo SP 2 x 215 1503 Gaskets
  • 2012 Sea Doo SP 2 x 260 1503 Gaskets
  • 2012 Sea Doo Speedster 1 x 155 1503 Gaskets
  • 2012 Sea Doo Speedster 1 x 260 1503 Gaskets
  • 2012 Sea Doo Speedster 2 x 255 1503 Gaskets
  • 2012 Sea Doo Wake 2 x 155 1503 Gaskets
  • 2012 Sea Doo Wake 2 x 215 1503 Gaskets
  • 2012 Sea Doo Wake 2 x 260 1503 Gaskets
  • 2014 Sea Doo GTI LTD 1503 Gaskets
  • 2014 Sea Doo GTS DT 1503 Gaskets
  • 2014 Sea Doo GTX 155 STD 1503 Gaskets
  • 2015 Sea Doo GTI 1503 Gaskets
  • 2015 Sea Doo GTS 1503 Gaskets
  • 2016 Sea Doo GTI DTF 1503 Gaskets
  • 2016 Sea Doo GTX S 1503 Gaskets
  • 2017 Sea Doo GTI STD 155 1503 Gaskets
  • 2017 Sea Doo GTR STD 230 1503 Gaskets
  • 2017 Sea Doo GTR X 230 1503 Gaskets
  • 2017 Sea Doo GTX LTD 230 1503 Gaskets
  • 2017 Sea Doo GTX STD 155 1503 Gaskets
  • 2017 Sea Doo GTXS LTD 260 1503 Gaskets
  • 2017 Sea Doo GTXS STD 155 1503 Gaskets
  • 2017 Sea Doo RXT STD 260 1503 Gaskets
  • 2017 Sea Doo RXT STDRS 260 1503 Gaskets
  • 2017 Sea Doo Wake STD 155 1503 Gaskets
  • 2018 Sea Doo GTI P LTD 155 1503 Gaskets
  • 2018 Sea Doo GTI P SE 130 1503 Gaskets
  • 2018 Sea Doo GTI P SE 155 1503 Gaskets
  • 2018 Sea Doo GTR P STD 230 1503 Gaskets
  • 2018 Sea Doo GTR P X 230 1503 Gaskets
  • 2018 Sea Doo GTX P LTD 230 1503 Gaskets
  • 2018 Sea Doo GTX P STD 155 1503 Gaskets
  • 2018 Sea Doo GTX P STD 230 1503 Gaskets
  • 2018 Sea Doo RXP P X 300 1630 Gaskets
  • 2018 Sea Doo RXP P XRS 300 1630 Gaskets
  • 2018 Sea Doo RXT P X 300 1630 Gaskets
  • 2018 Sea Doo RXT P XRS 300 1630 Gaskets
  • 2018 Sea Doo Wake P Pro 230 1503 Gaskets
  • 2018 Sea Doo Wake P STD 155 1503 Gaskets
  • 2019 Sea Doo Fish Pro 155 1503 Gaskets
  • 2019 Sea Doo GTI STD Rental 1503 Gaskets
  • 2019 Sea Doo GTR STD HO 1503 Gaskets
  • 2019 Sea Doo GTR X HO 1503 Gaskets
  • 2019 Sea Doo GTX LTD HO 1503 Gaskets
  • 2019 Sea Doo GTX STD HO 1503 Gaskets
  • 2019 Sea Doo Wake Pro HO 1503 Gaskets
  • 2019 Sea Doo Wake STD NA 1503 Gaskets
  • 2020 Sea Doo GTI 130 Rental 1630 Gaskets
  • 2023 Sea Doo Explorer Pro 170 1630 Gaskets
  • 2024 Sea Doo Explorer Pro 230 1630 Gaskets
  • 2024 Sea Doo GTR-X 300 1630 Gaskets
  • 2002-2003 Sea Doo GTX 1503 Gaskets
  • 2003-2004 Sea Doo GTX LTD S/C 1503 Gaskets
  • 2003-2006 Sea Doo GTX S/C 1503 Gaskets
  • 2003-2006 Sea Doo GTX Wake 1503 Gaskets
  • 2003-2006 Sea Doo Sportster 155 1503 Gaskets
  • 2004-2006 Sea Doo GTX STD 1503 Gaskets
  • 2004-2006 Sea Doo Speedster 200 1503 Gaskets
  • 2005, 2007 Sea Doo GTX LTD SCIC 1503 Gaskets
  • 2005-2006 Sea Doo RXP 1503 Gaskets
  • 2005-2006 Sea Doo RXT 1503 Gaskets
  • 2005-2006 Sea Doo Sportster S/C 215 1503 Gaskets
  • 2005-2009 Sea Doo Challenger S/C 215 1503 Gaskets
  • 2006, 2019 Sea Doo GTI SE 1503 Gaskets
  • 2006, 2019 Sea Doo GTI STD 1503 Gaskets
  • 2006-2010 Sea Doo GTI Rental 1503 Gaskets
  • 2007, 2019 Sea Doo GTI SE NA 1503 Gaskets
  • 2007, 2019 Sea Doo GTX STD NA 1503 Gaskets
  • 2007-2009 Sea Doo Challenger / SE 155 1503 Gaskets
  • 2007-2009 Sea Doo Speedster 215 1503 Gaskets
  • 2007-2009 Sea Doo Utopia / SE 155 1503 Gaskets
  • 2007-2011 Sea Doo Challenger / SE 215 1503 Gaskets
  • 2007-2011 Sea Doo Speedster 155 1503 Gaskets
  • 2008, 2014-2016 Sea Doo GTX LTD 215 1503 Gaskets
  • 2008-2009 Sea Doo RXT X 255 1503 Gaskets
  • 2008-2009 Sea Doo Wake 215 1503 Gaskets
  • 2008-2009 Sea Doo Wake 215 1503 Gaskets
  • 2008-2009, 2011-2013 Sea Doo GTX 215 1503 Gaskets
  • 2008-2011 Sea Doo Challenger / SE 310 1503 Gaskets
  • 2008-2011 Sea Doo Challenger SE 430 1503 Gaskets
  • 2008-2011 Sea Doo RXP X 255 1503 Gaskets
  • 2008-2013, 2015-2016 Sea Doo GTX 155 1503 Gaskets
  • 2008-2016 Sea Doo GTI 130 1503 Gaskets
  • 2008-2016 Sea Doo Wake 155 1503 Gaskets
  • 2008-2017 Sea Doo GTI SE 130 1503 Gaskets
  • 2008-2017 Sea Doo GTI SE 155 1503 Gaskets
  • 2009-2010 Sea Doo RXT 215 1503 Gaskets
  • 2009-2011 Sea Doo Challenger SE 255 1503 Gaskets
  • 2009-2011 Sea Doo Speedster 255 1503 Gaskets
  • 2009-2016 Sea Doo Wake Pro 215 1503 Gaskets
  • 2010-2011 Sea Doo Challenger SE 510 1503 Gaskets
  • 2010-2011 Sea Doo Challenger SP 310 1503 Gaskets
  • 2010-2011 Sea Doo Challenger SP 430 1503 Gaskets
  • 2010-2011 Sea Doo GTX IS 215 1503 Gaskets
  • 2010-2011 Sea Doo Speedster 510 1503 Gaskets
  • 2010-2011 Sea Doo Wake / SE 430 1503 Gaskets
  • 2010-2011 Sea Doo Wake / SE 510 1503 Gaskets
  • 2010-2011 Sea Doo Wake 310 1503 Gaskets
  • 2010-2012 Sea Doo RXT IS 260 1503 Gaskets
  • 2010-2015 Sea Doo RXT X 260 1503 Gaskets
  • 2010-2016 Sea Doo GTX LTD IS 260 1503 Gaskets
  • 2011-2013 Sea Doo GTS Rental 1503 Gaskets
  • 2011-2014, 2016 Sea Doo GTS 130 1503 Gaskets
  • 2011-2016 Sea Doo RXT 260 1503 Gaskets
  • 2011-2016 Sea Doo RXT X AS 260 1503 Gaskets
  • 2011-2017 Sea Doo GTI LTD 155 1503 Gaskets
  • 2012-2013, 2015 Sea Doo GTX S 155 1503 Gaskets
  • 2012-2015 Sea Doo RXP X 260 1503 Gaskets
  • 2012-2016 Sea Doo GTR 215 1503 Gaskets
  • 2016-2023 Sea Doo RXP X 300 1630 Gaskets
  • 2016-2023 Sea Doo RXT X 300 1630 Gaskets
  • 2016-2024 Sea Doo GTX LTD 300 1630 Gaskets
  • 2017-2022 Sea Doo RXP XRS 300 1630 Gaskets
  • 2017-2022 Sea Doo RXT XRS 300 1630 Gaskets
  • 2018-2019 Sea Doo RXT STD 230 1503 Gaskets
  • 2020-2021 Sea Doo GTX Fish Pro 170 1630 Gaskets
  • 2020-2023 Sea Doo GTI SE 130 1630 Gaskets
  • 2020-2023 Sea Doo GTI SE 170 1630 Gaskets
  • 2020-2023 Sea Doo GTI STD 130 1630 Gaskets
  • 2020-2023 Sea Doo GTX STD 170 1630 Gaskets
  • 2020-2023 Sea Doo Wake STD 170 1630 Gaskets
  • 2020-2024 Sea Doo GTR 230 1630 Gaskets
  • 2020-2024 Sea Doo GTX STD 230 1630 Gaskets
  • 2020-2024 Sea Doo Wake Pro 230 1630 Gaskets
  • 2021-2023 Sea Doo GTX Pro 130 Rental 1630 Gaskets
  • 2021-2024 Sea Doo GTX STD 300 1630 Gaskets
  • 2022-2023 Sea Doo Fish Pro Scout 130 1630 Gaskets
  • 2022-2023 Sea Doo Fish Pro Sport 170 1630 Gaskets
  • 2022-2023 Sea Doo Fish Pro Trophy 170 1630 Gaskets
