Mikuni SBN46i Carburetor Parts

$3.03
SKU BN34/125

INDIVIDUAL GENUINE MIKUNI PARTS FOR
46i Series MIKUNI SBN CARBURETOR. SOLD EACH.

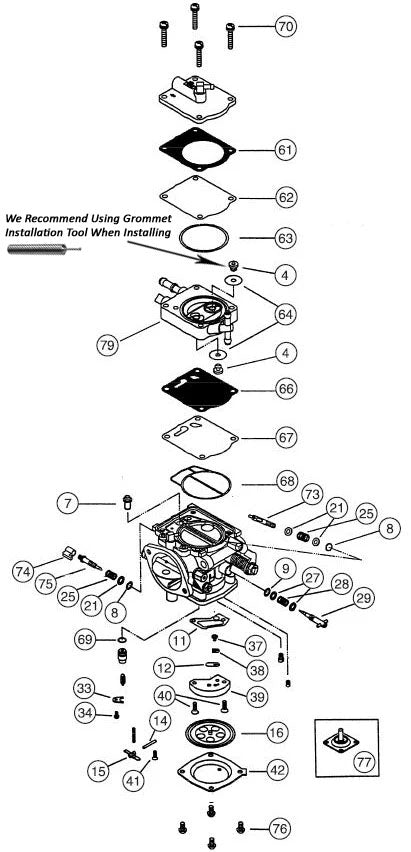

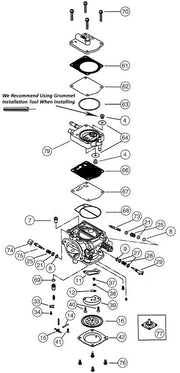

REF # DESCRIPTION MIKUNI #

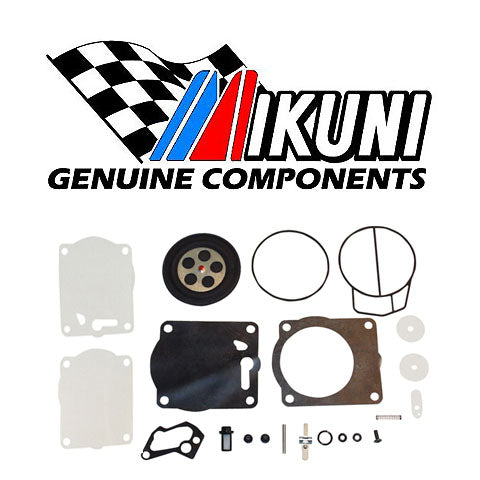

* PARTS INCLUDED IN KIT PART # MK-BN46I

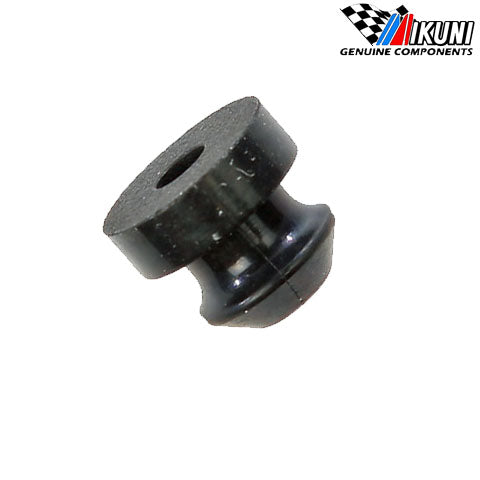

4. Grommet, Check Valve (req. 2 / Sold Each) BN34/125

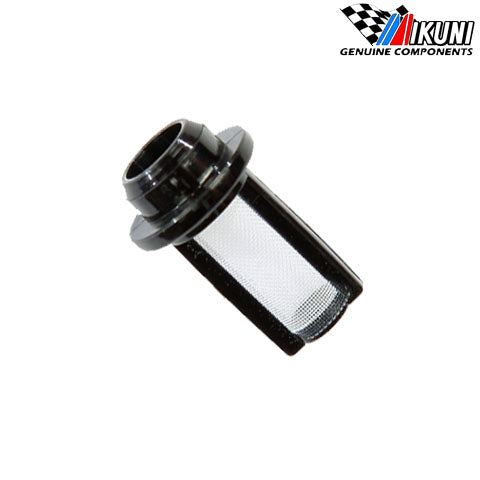

7. Internal Fuel Filter BN44/146
8. O-Ring, Hi Speed (req. 2 / Sold Each) B30/305

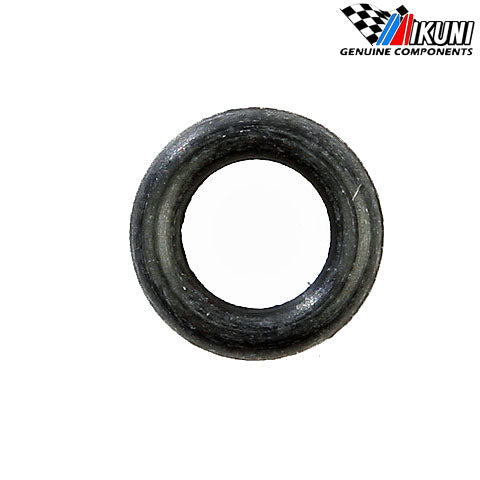

9. O-Ring, Low Speed (req. 2 / Sold Each) MD12/16

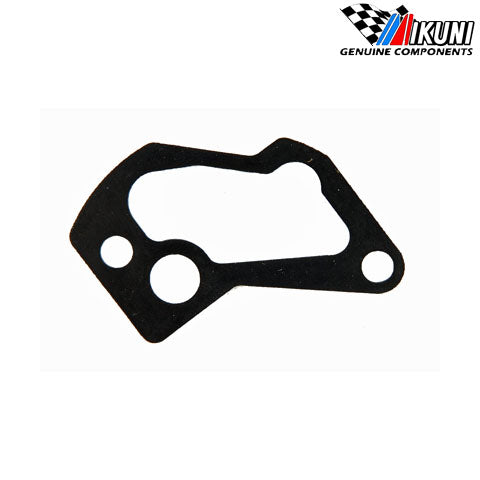

11. Gasket Valve Body BN34/123

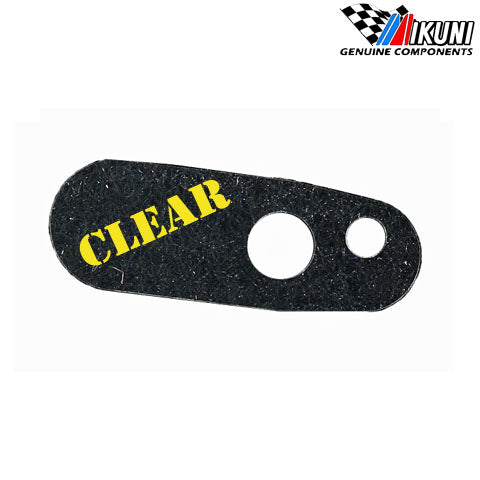

12. Check Valve (Clear) BN34/107

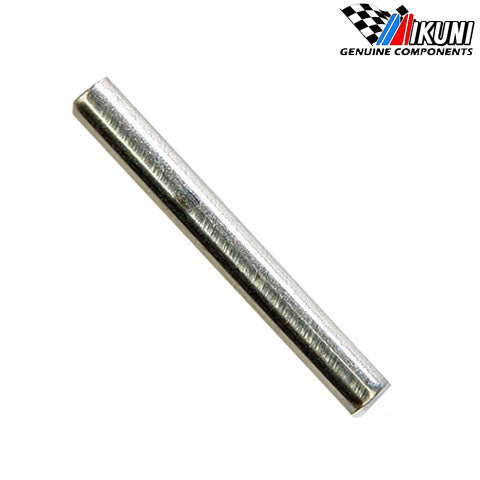

14. Pin, Arm VM30/97

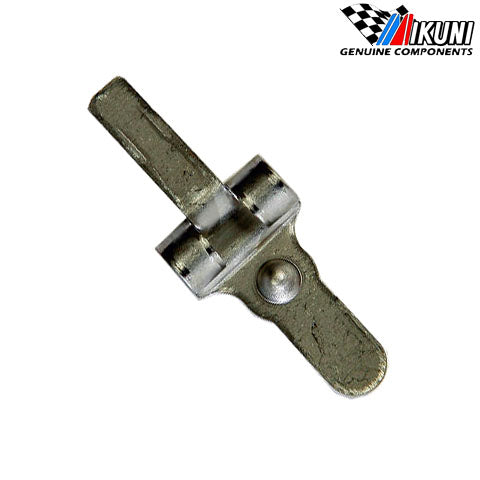

15. Arm (Stainless) BN38/534

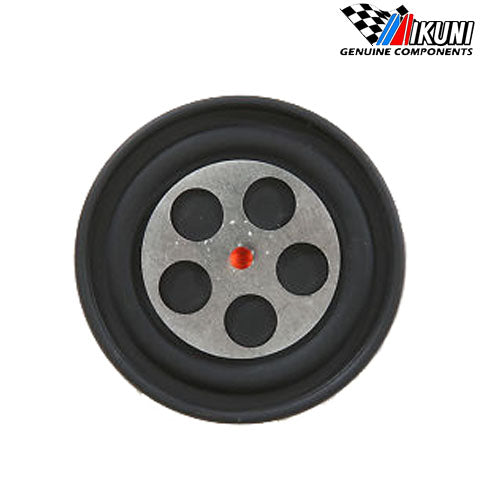

16. Diaphragm Assembly BN44/145
61. Gasket, Pump BN46I/13

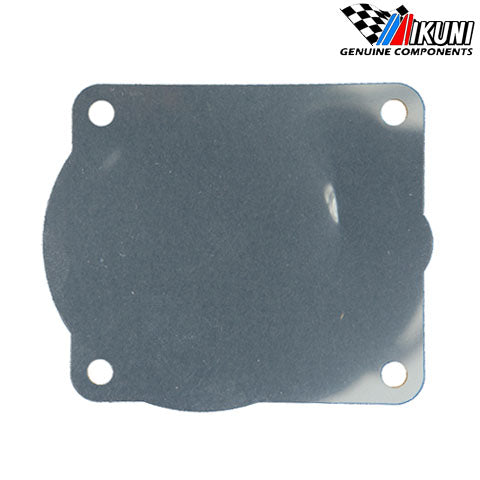

62. Diaphragm, Pump (Clear) BN46I/14

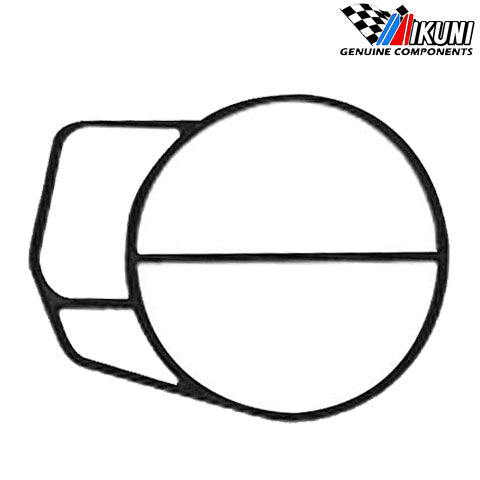

63. O-Ring 616-73002
64. Check Valve (req. 2 / Sold Each) BN46I/11

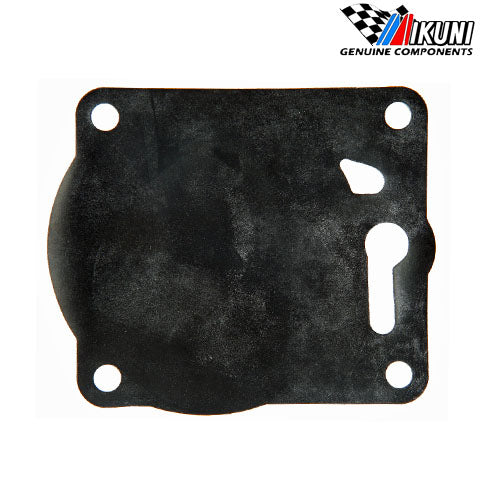

66. Diaphragm, Damper BN46I/34

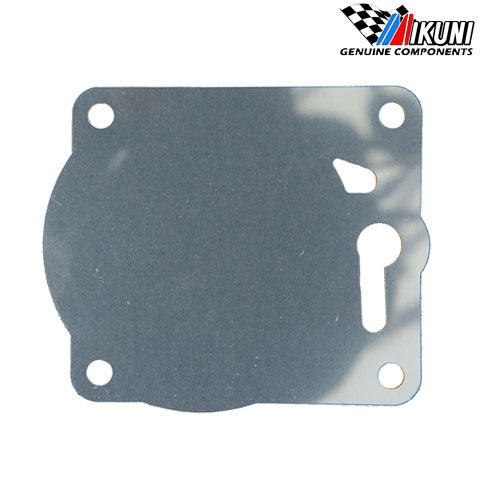

67. Diaphragm, Damper (clear) BN46I/15
68. O-Ring 616-73003
69. O-Ring, Needle Valve KV/10
PARTS NOT INCLUDED IN KIT PART # MK-BN46I

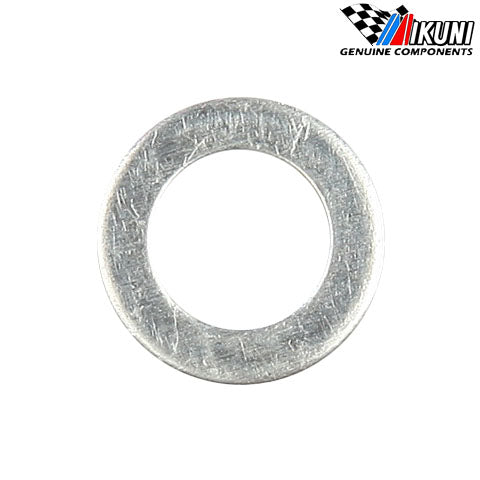

21. Washer, Aluminum (req. 3 / Sold Each) BN38/39
25. Spring (req. 2 / Sold Each) BN38/344
27. Washer, Aluminum (req. 2 / Sold Each) BN38/172
28. Spring, Low Speed BN38/343

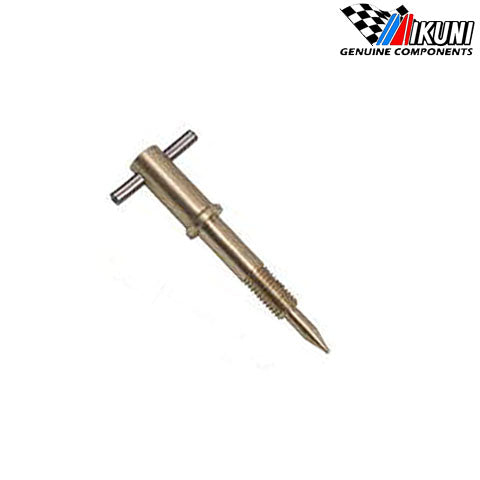

29b. Adjuster, Low Speed BN38/166

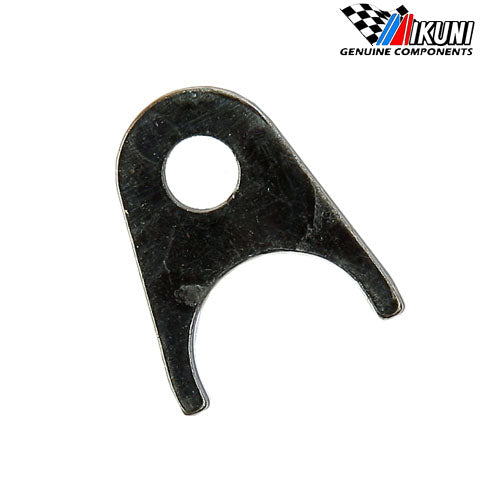

33. Plate, Needle Valve Retainer BN34/177-GG

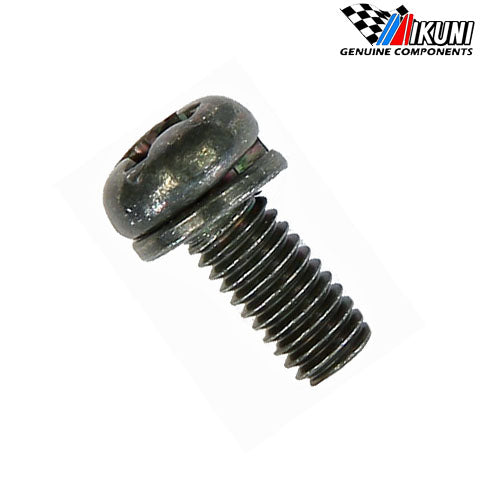

34. Screw with Washer CW2=0307-G
37. Screw BV15/121-05
38. Plate, Valve BN34/108-GG

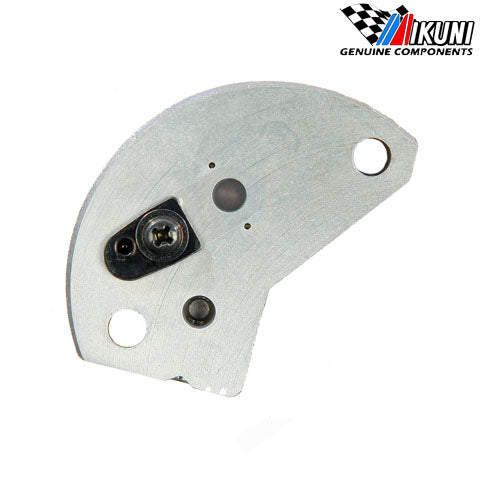

39. Valve Body Assembly BN44/165

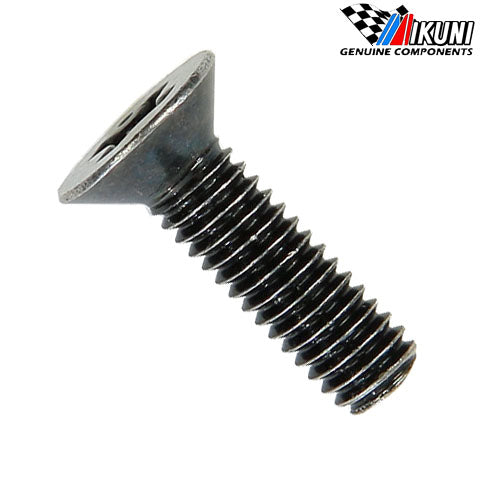

40. Screw (req. 2 / Sold Each) C5=0414-G

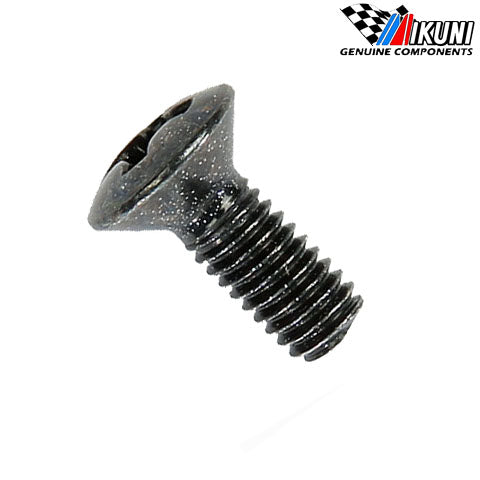

41. Screw C6=0308-G

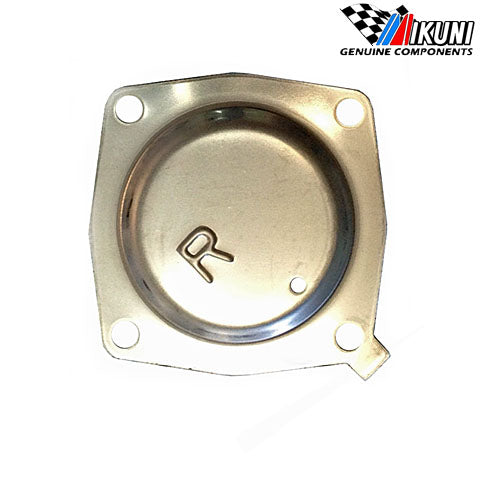

42. Cover (Stainless) BN44/147

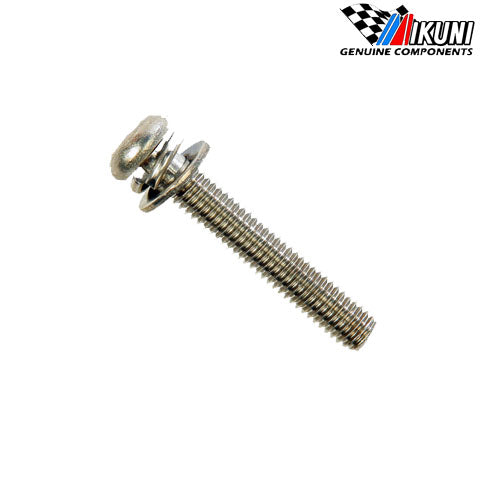

70. Screw with 2 Washers (req. 4 / Sold Each) BN34/120-35
73. Stop Screw, Idle BN38I/40
76. Screw (req. 4 / Sold Each) C2S=0514

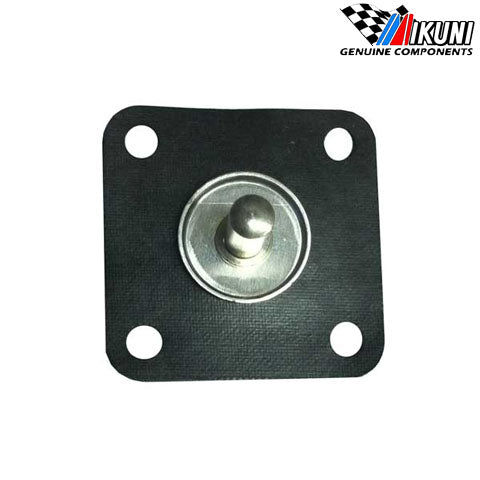

77. Diaphragm, Accelerator. Pump BN40I/22
79. Body Assembly, Pump BN46I/49



* Note: Generic images and may not depict actual item.
