Mikuni SBN38/44/40i Carburetor Parts

$3.03
SKU BN38/547

THESE ARE INDIVIDUAL PARTS FOR
38/44/46/40i MIKUNI SBN CARBURETOR. SOLD EACH.

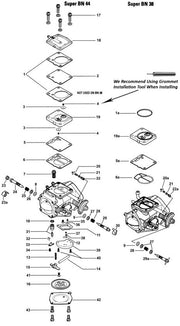

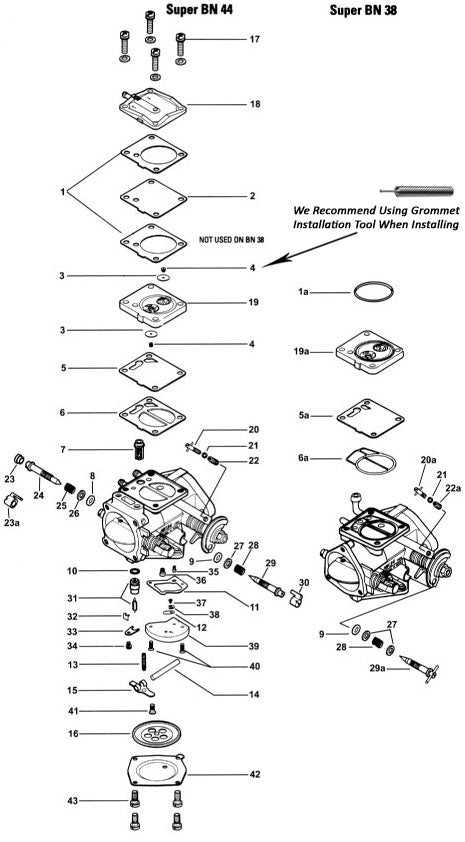

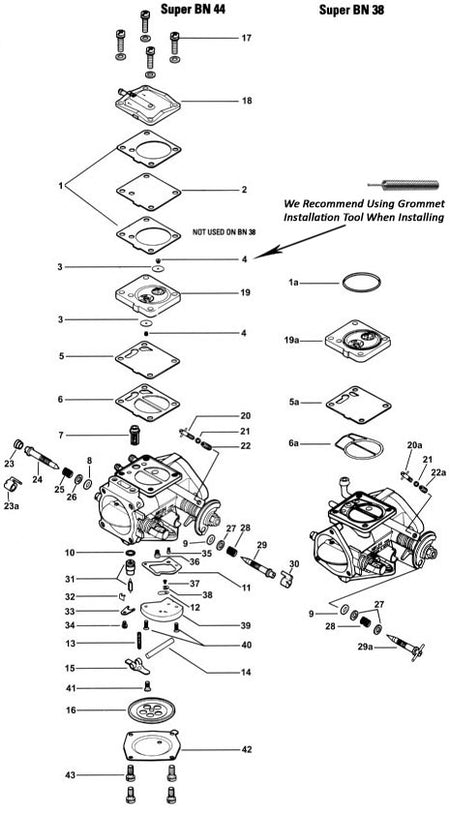

REF # DESCRIPTION MIKUNI #
PARTS INCLUDED IN KIT PART # MK-BN38/44 SPR

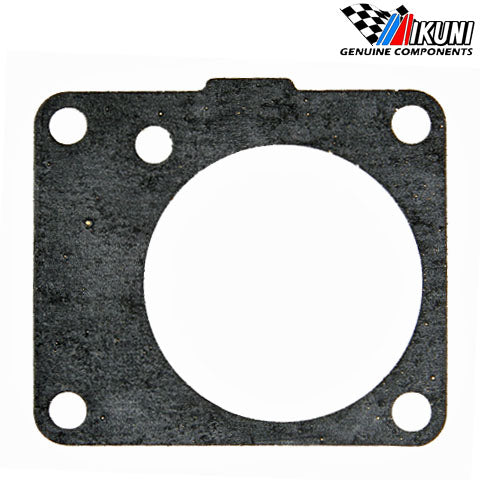

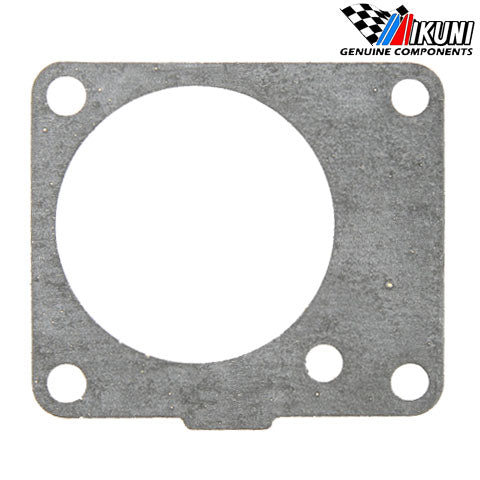

1. Gasket, Pump (req. 2 / Sold Each) BN38/547

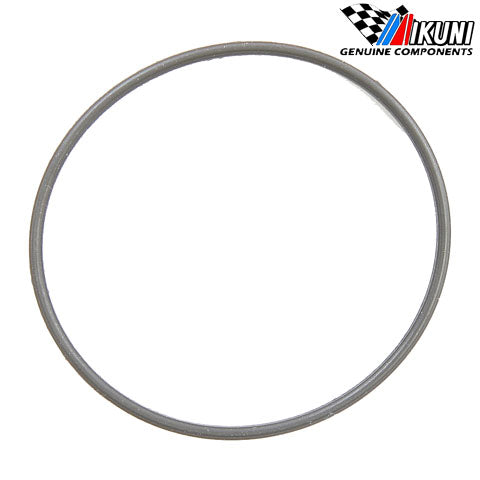

1a. *O-Ring 616-72001

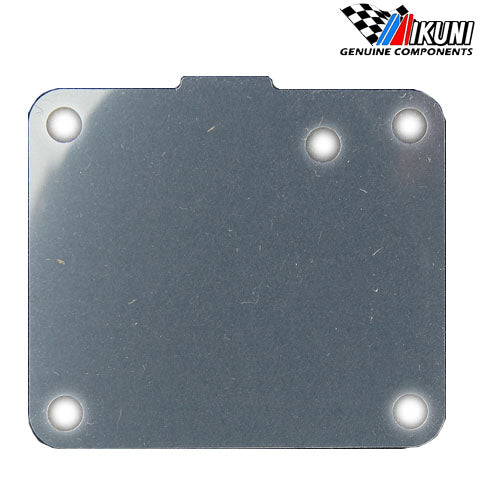

2. Diaphragm, Pump (Clear) BN34/97

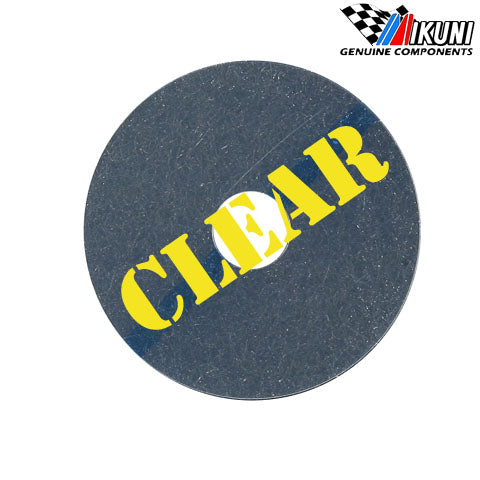

3. Check Valve Clear (req. 2 / Sold Each) BN34/124

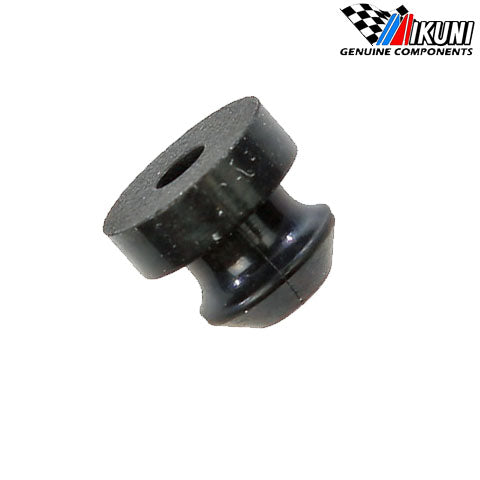

4. Grommet, Check Valve (req. 2 / Sold Each) BN34/125

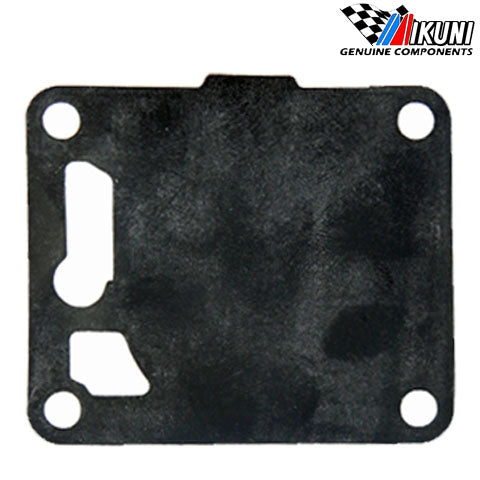

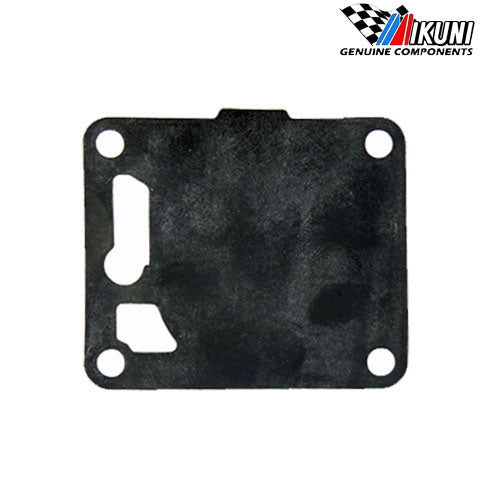

5. **Diaphragm, Damper (Early SBN/Large Hole) BN34/100

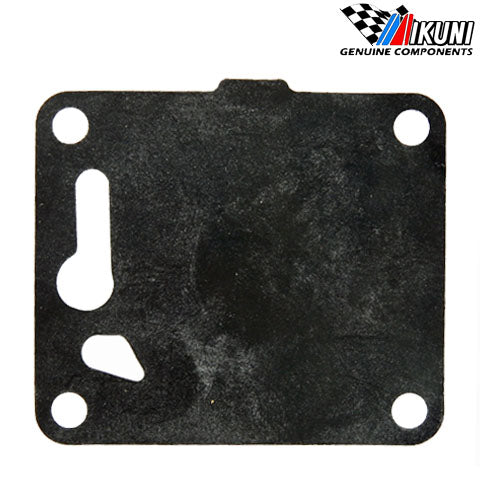

5a. *Diaphragm, Damper (Small Hole) BN34/129

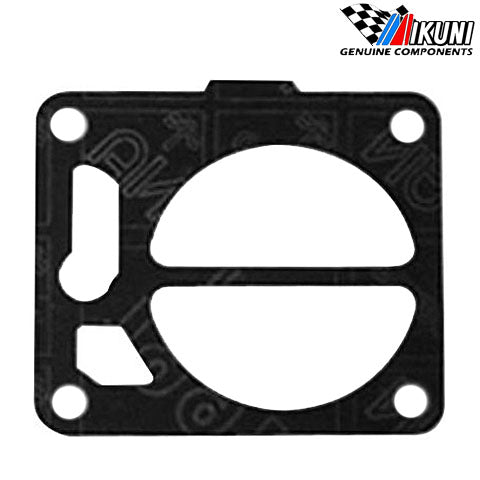

6. **Gasket, Damper BN34/101

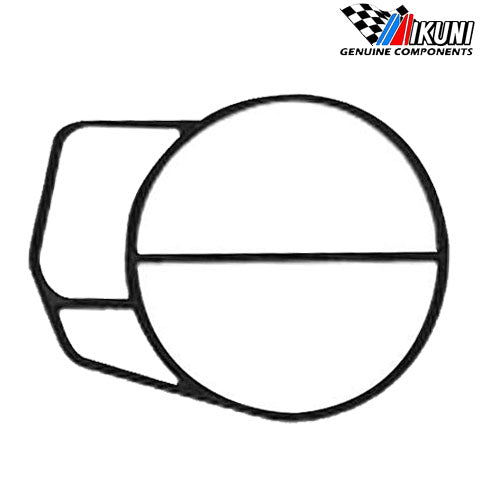

6a. *O-Ring 616-92007

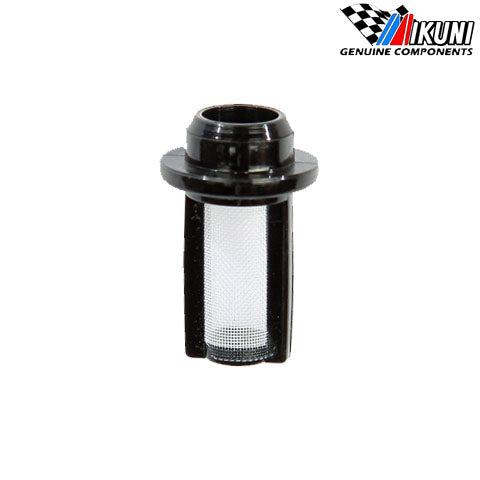

7. Filter BN44/146
8. O-Ring, High Speed B30/305

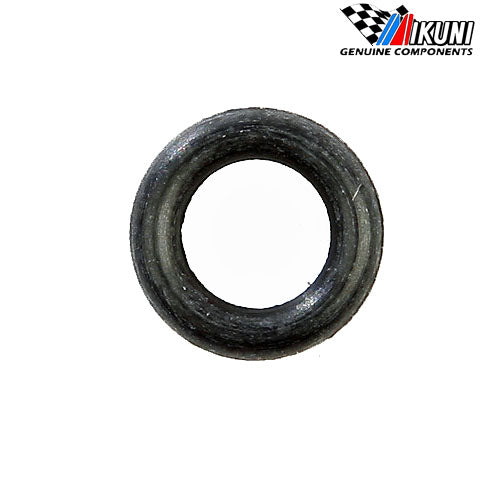

9. O-Ring, Low Speed MD12/16
10. O-Ring, Needle Valve KV/10

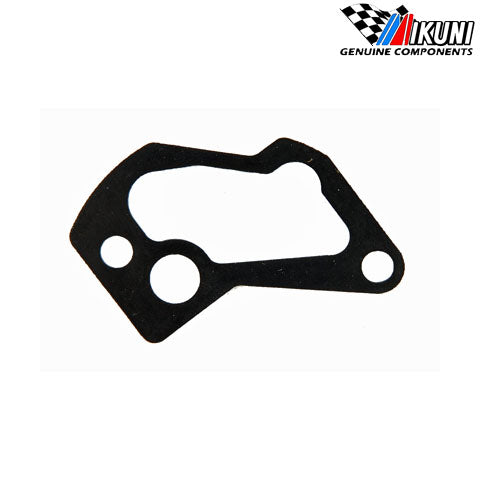

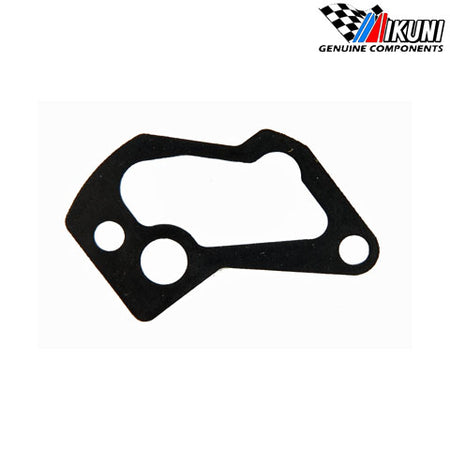

11. Gasket, Valve Body BN34/123

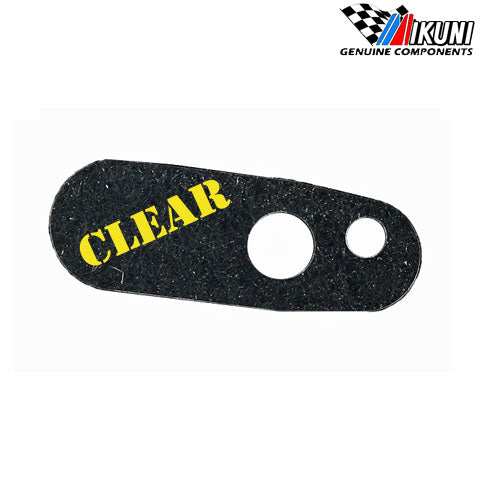

12. Check Valve (Clear) BN34/107

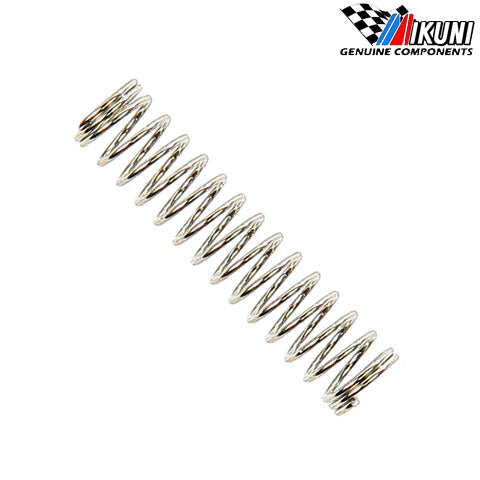

13. Spring, arm (115 grams) 730-03027

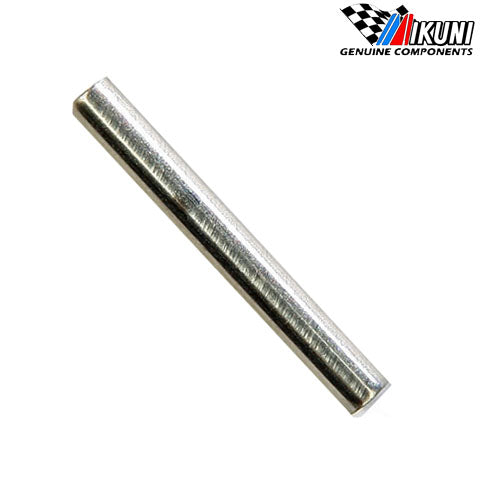

14. Pin, Arm VM30/97

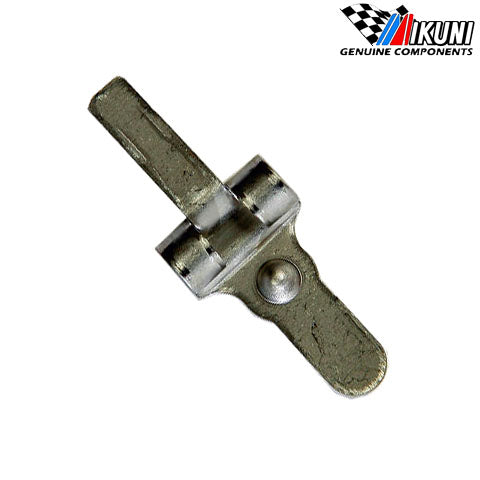

15. Arm (Stainless) BN38/534

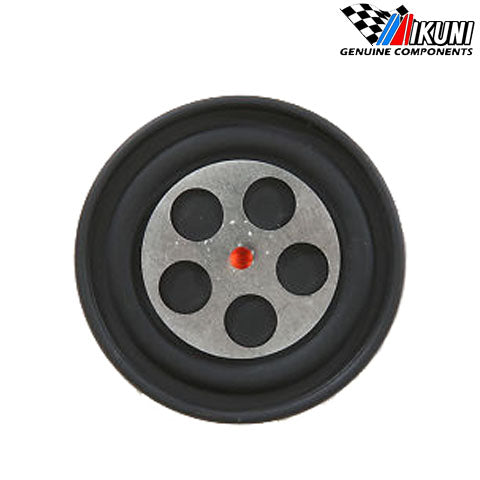

16. Diaphragm Assembly BN44/145
PARTS NOT INCLUDED IN KIT PART # MK-BN38/44 SPR

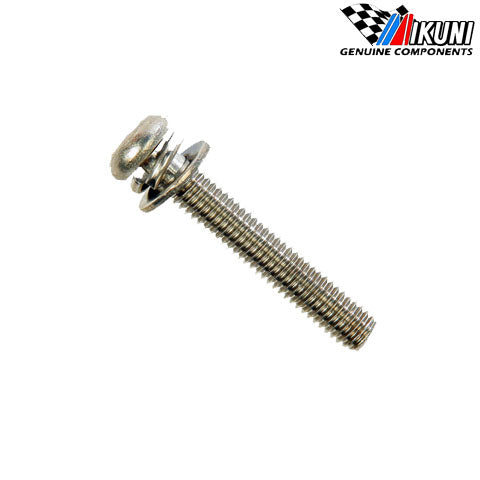

17. Screw with 3 washers 30mm (req. 4 / Sold Each) BN34/120-30

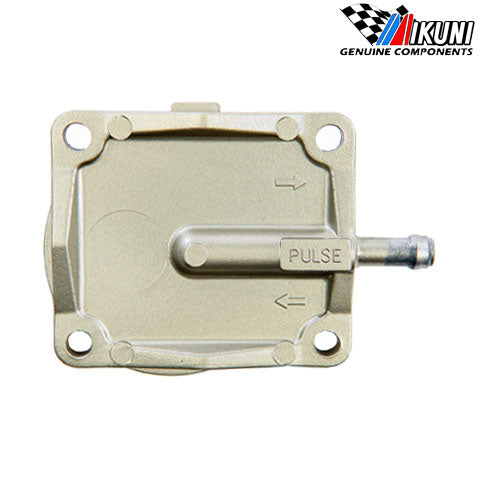

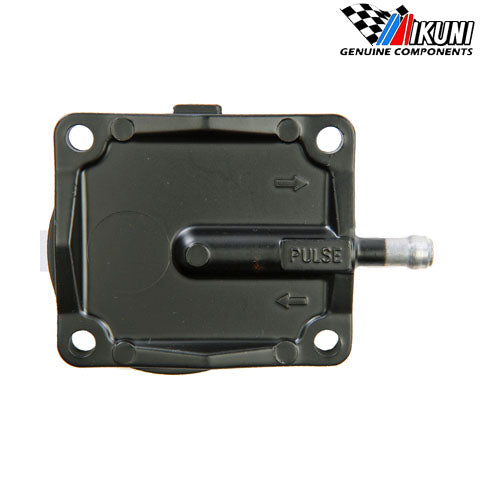

18. Cover, Pump (silver) 999-642-002-1B
18 Cover, Pump (black) 999-642-002-1A

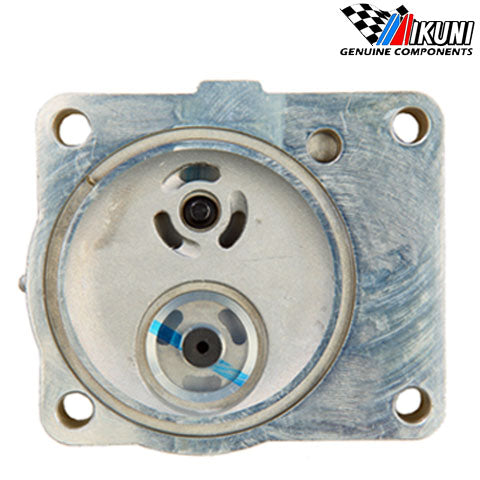

19a. *Body Assembly, Pump BN34/128
20. **Stop Screw, Idle BN44/109

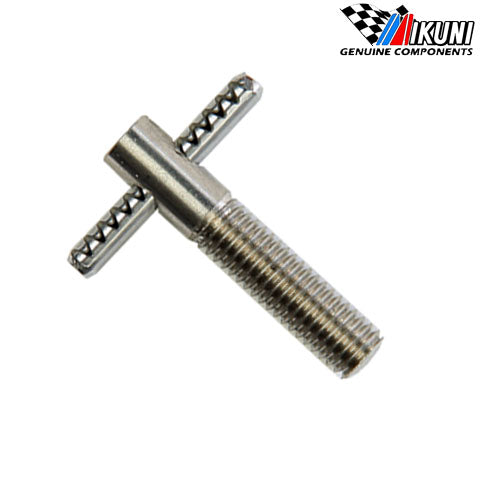

20a. *Stop Screw, Idle BN34/82
21. Washer BN38/39
22. **Spring, Idle -
22a. *Spring, Idle BN38/344
23. **Cap BN34/126
23a. Cap with Tab -

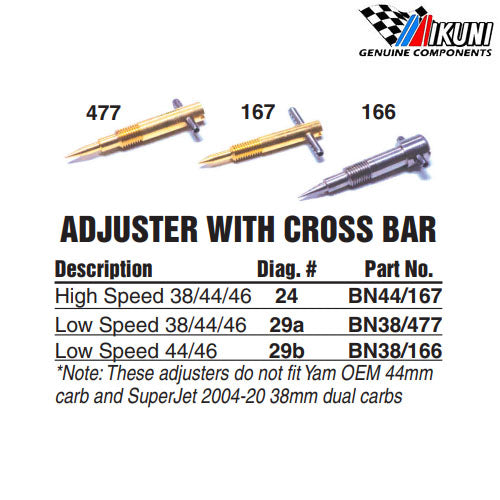

24. Adjuster, High Speed BN44/167
24.a Adjuster, High Speed (with Cross Bar) BN44/167
25. Spring, High Speed BN38/344

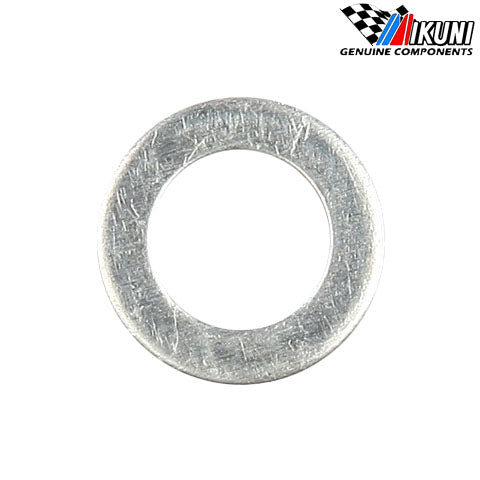

26 Washer, High Speed BN38/39
27. Washer, Low Speed (req. 3 / Sold Each) BN38/172

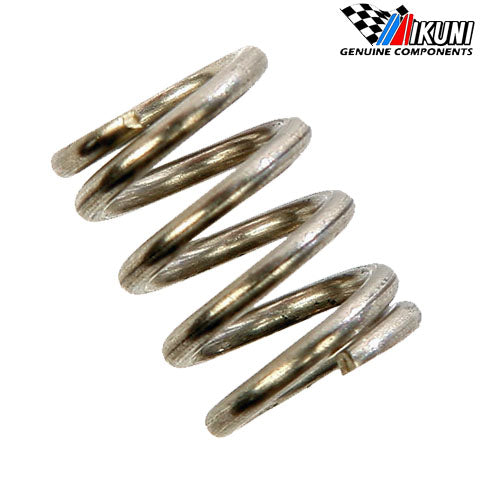

28. Spring, Low Speed (req. 2 / Sold Each) BN38/343
29. Adjuster, Low Speed 38mm 604-26008
29a. Adjuster, Low Speed (with Cross Bar) 38mm BN38/477
29b. Adjuster, Low Speed (with Cross Bar) 44mm BN38/166
30. Cap -
31. Needle Valve Assembly (See jetting section) -

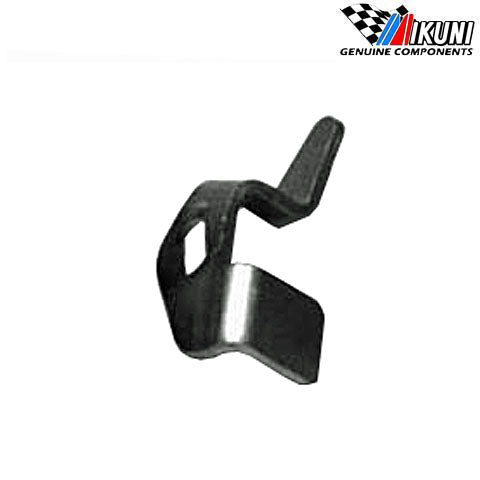

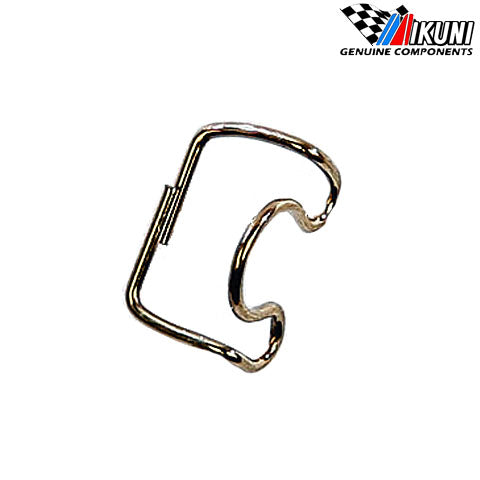

32. Spring Clip, N.V. VM15/285

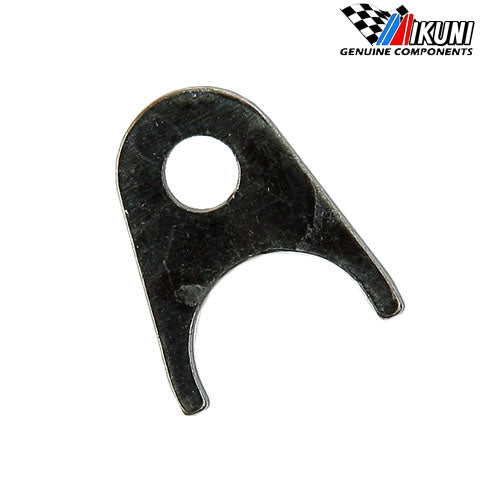

33. Plate, N.V. Retainer BN34/117-GG

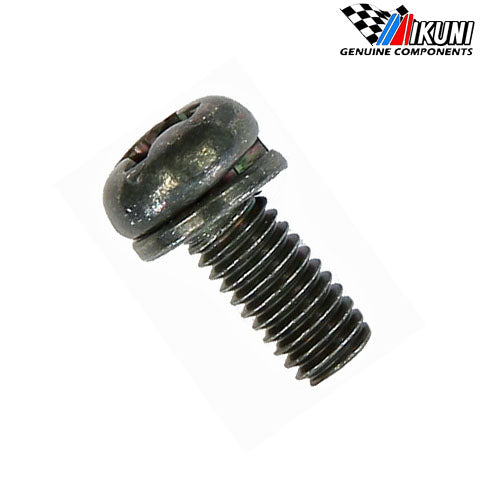

34. Screw with Washer CW2=0307-G
35. Jet, Low Speed (See jetting section) -
36. Jet, High Speed (See jetting section) -

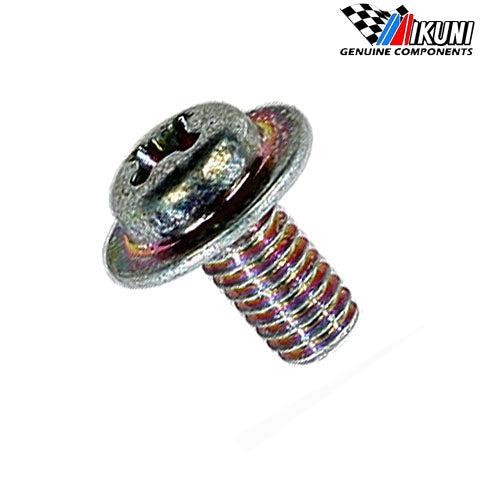

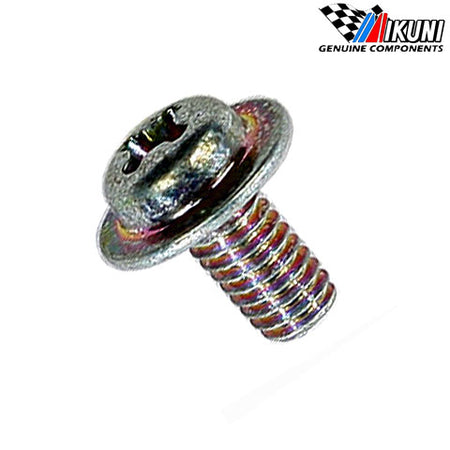

37. Screw BV15/121-05

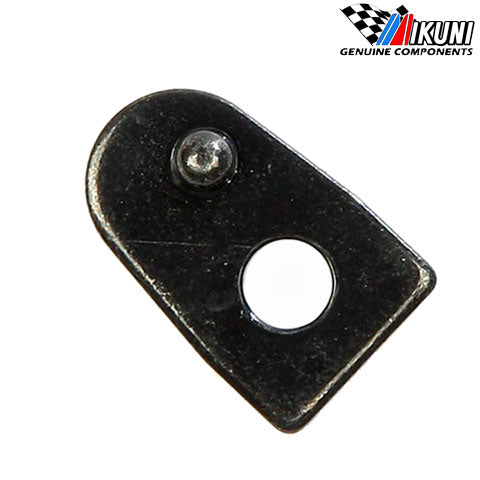

38. Plate, Valve BN34/108-GG

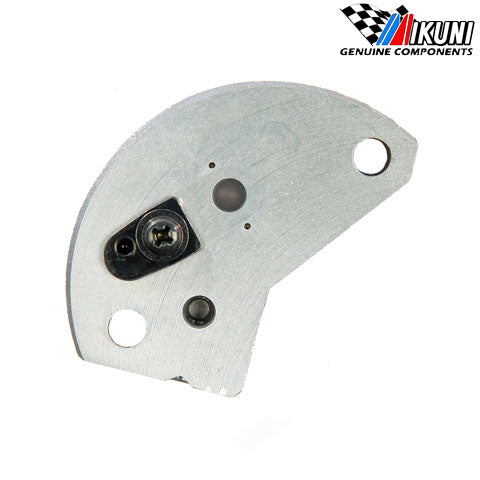

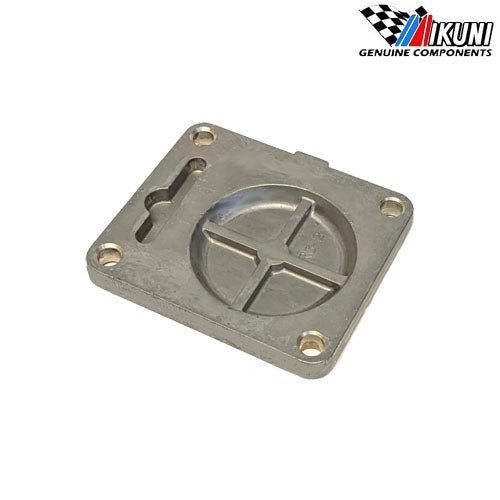

39. Valve Body Assembly BN44/165

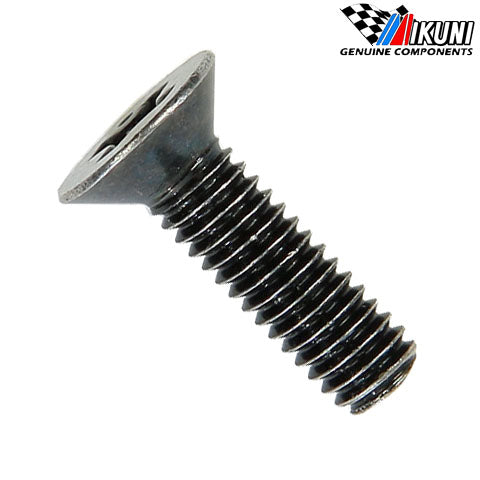

40. Screw (req. 2 / Sold Each) C5=0414-G

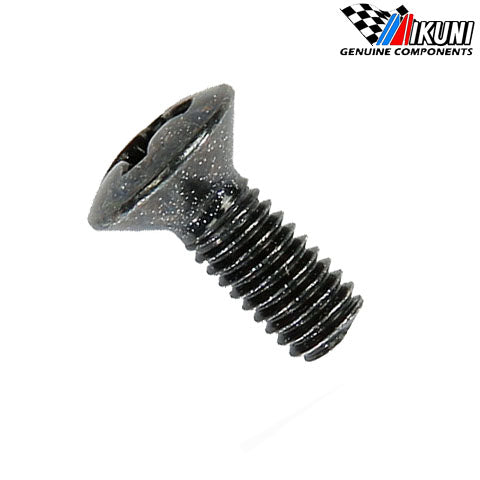

41. Screw C6=0308-G

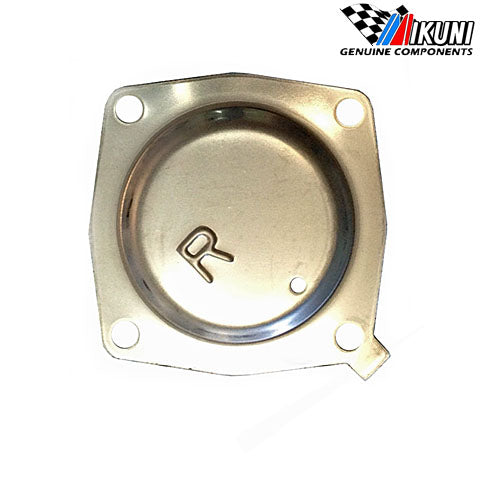

42. Cover BN44/147
43. Screw with Washer (req. 4 / Sold Each) MCWS-0512



* Note: Generic images and may not depict actual item.
