Kawasaki Ultra 310LX/310LX-S/310R/310X/310X SE Individual Gaskets
Couldn't load pickup availability
How-To Videos Brought To You By Erickson Machine and Performance.
Need help choosing the right part? Feel free to e-mail us.
Kawasaki Ultra 1500 310LX '14-23, Ultra 310LX-S '22-23, Ultra 310R '14-21, Ultra 310X '14-23, Ultra 310X SE '14-19 Individual Gaskets
Note: All Gaskets Sold Each.
| DESCRIPTION | FIG. NO. | REF. NO. | REQ’D | O.E. NO. | PART NO. |

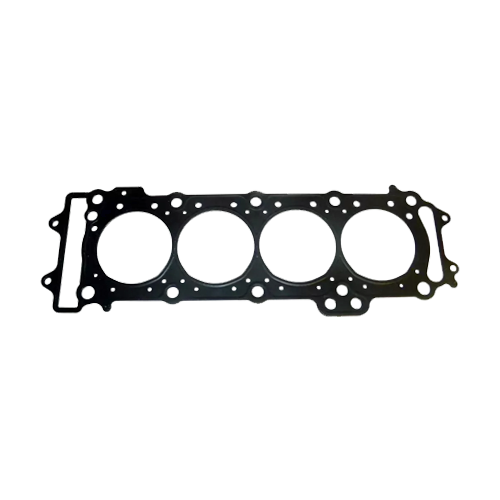

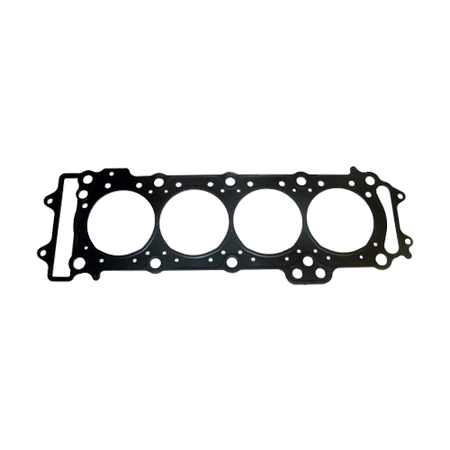

| Head Gasket | 2 | 3 | 1 | 11004-0744 | 007-315-08 |

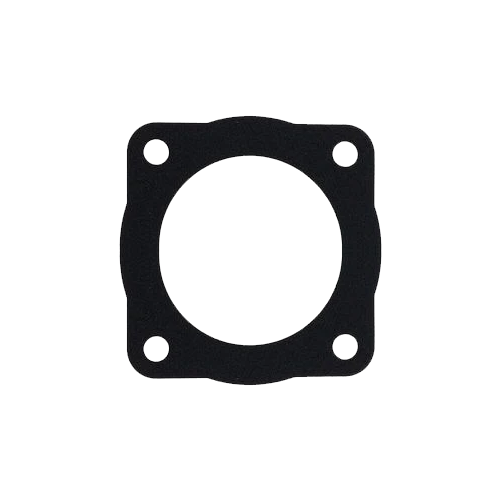

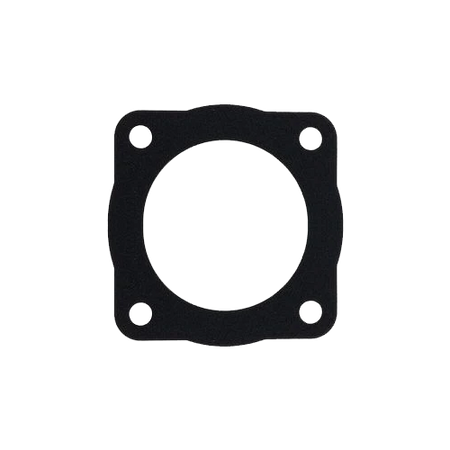

| Throttle Body Gasket 1 | 3 | 4 | 1 | 11061-0824 | 007-335-05 |
| Head Cover Gasket | 1 | 4 | 1 | 11061-0090 | 007-315-01 |
| Ventilation Plate Gasket | 1 | 1 | 1 | 11061-0814 | 007-315-02 |

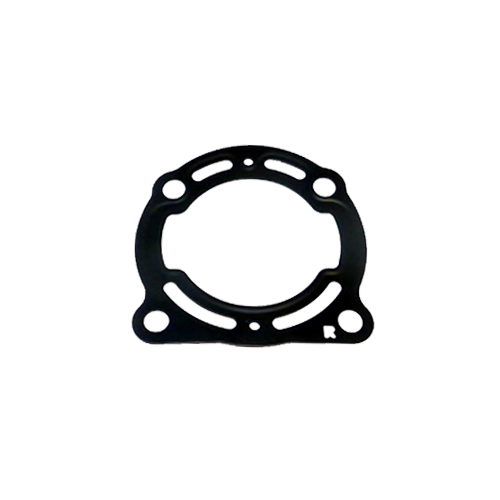

| Muffler Gasket | 8c | 3 | 2 | 11061-3768 | 007-328-06 |

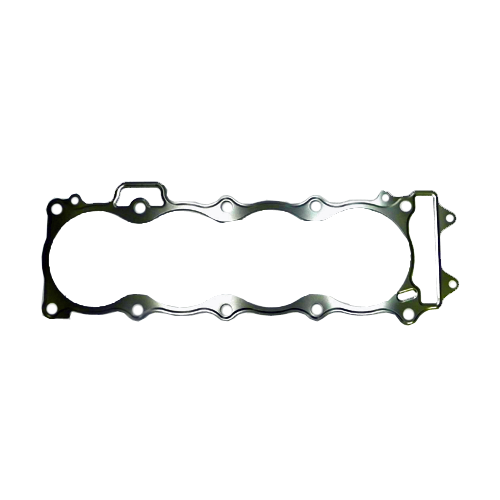

| Base Gasket | 9a | 1 | 1 | 11061-3770 | 007-334-01 |
| Throttle Body Gasket 2 | 4 | 1 | 1 | 11061-3766 | 007-335-01 |

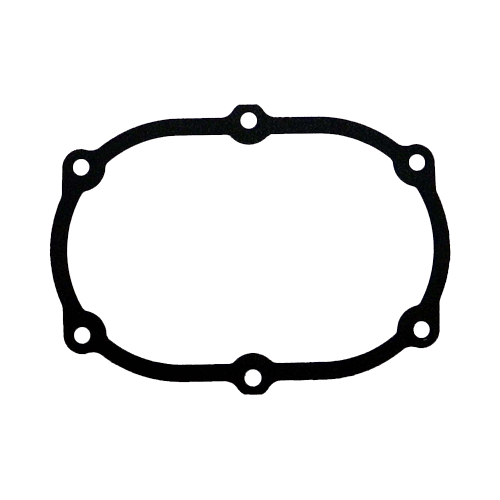

| Compressor Inlet Gasket | 7 | 1 | 1 | 11061-0760 | 007-335-03 |

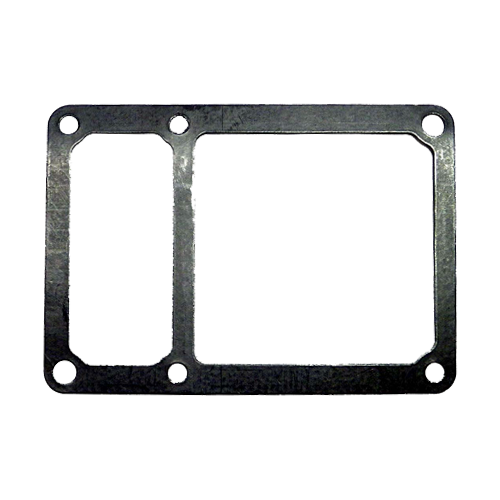

| Compressor Gasket | 7 | 2 | 1 | 11061-3763 | 007-335-04 |

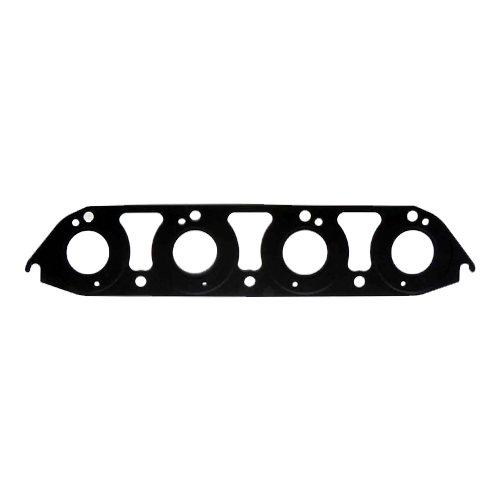

| Exhaust Gasket 1 | 8a | 1 | 1 | 11061-3742 | 007-336-06 |

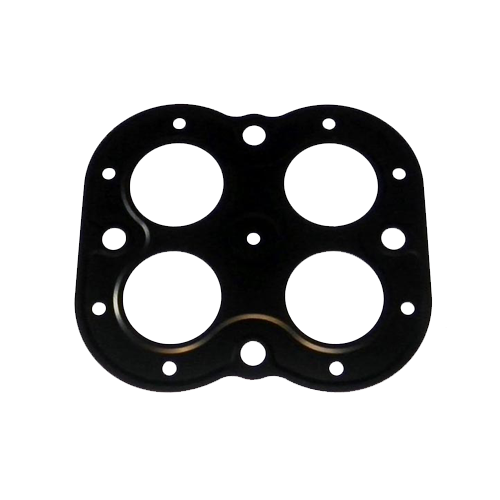

| Exhaust Gasket 2 | 8b | 2 | 1 | 11061-3762 | 007-336-07 |

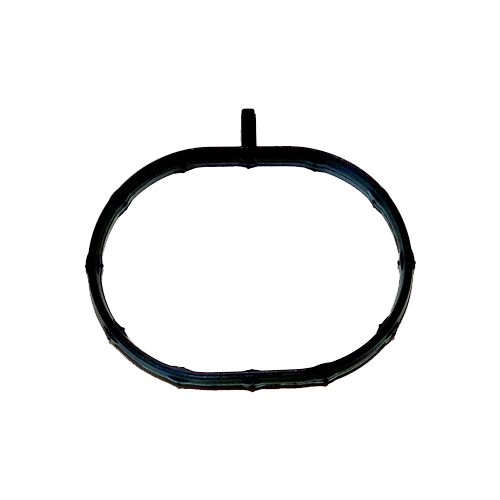

| Intake Manifold Gasket | 5 | 2 | 4 | 11061-3767 | 007-338-01 |
| Crankcase Pipe O-Ring | 2 | 1 | 2 | 670D1507 | 008-422 |
| Spark Plug Gasket | 1 | 5 | 4 | 11060-1906 | 008-428 |
| Oil Cap O-Ring | 1 | 3 | 1 | 92055-1295 | 008-429 |
| Injection Nozzle O-Ring | 5 | 3 | 4 | 92055-3782 | 008-441 |
| Fuel Injector Insulator Seal | 5 | 5 | 4 | 92093-0127 | 008-683-07 |
| Oil Pump Housing O-Ring 1 | 1 | 92055-3764 | 008-429-09 | ||
| Oil Cooler O-Ring 1 | 10 | 1 | 1 | 92055-3772 | 008-429-10 |
| Oil Cooler O-Ring 2 | 10 | 2 | 1 | 92055-3770 | 008-429-11 |
| Oil Cooler O-Ring 3 | 10 | 4 | 1 | 92055-3767 | 008-429-12 |
| Timing Chain Tension O-Ring 1 | 9 | 1 | 1 | 670D1509 | 008-422-01 |
| Timing Chain Tension O-Ring 2 | 9 | 2 | 1 | 92055-086 | 008-422-02 |
| Dipstick O-Ring | 1 | 92055-1150 | 008-422-03 | ||
| Oil Pump Housing O-Ring 2 | 3 | 670D2014 | 008-422-04 | ||
| Coupler Cover O-Ring | 14 | 1 | 1 | 92055-3762 | 008-420-01 |
| Generator Cover O-Ring | 14 | 2 | 1 | 92055-3761 | 008-420-02 |
| Crankshaft Coupler O-Ring | 12 | 4 | 1 | 92055-091 | 008-420-03 |
| Oil Pan Gasket | 15 | 1 | 1 | 11061-3710 | 007-327 |
| Output Cover Gasket | 14 | 3 | 1 | 11061-3709 | 007-315-03 |
| Bolt Seal Valve Cover | 1 | 3 | 7 | 92055-1352 | 009-746 |
| Valve Stem Seal | 1a | 1 | 16 | 010-048 |
- 2014-2024 Kawasaki Ultra 310LX 1500 Gaskets
- 2022-2024 Kawasaki Ultra 310LX-S 1500 Gaskets
- 2014-2021 Kawasaki Ultra 310R 1500 Gaskets
- 2014-2024 Kawasaki Ultra 310X 1500 Gaskets
- 2014-2019 Kawasaki Ultra 310X SE 1500 Gaskets
