Kawasaki Ultra 300X '11-13 / Ultra 300 LX '11-13 Individual Gaskets
Couldn't load pickup availability
How-To Videos Brought To You By Erickson Machine and Performance.
Need help choosing the right part? Feel free to e-mail us.
Kawasaki Ultra 300X '11-13 / Ultra 300 LX '11-13 Individual Gaskets
Note: All Gaskets Sold Each.
| DESCRIPTION | FIG. NO. | REF. NO. | REQ’D | O.E. NO. | PART NO. |

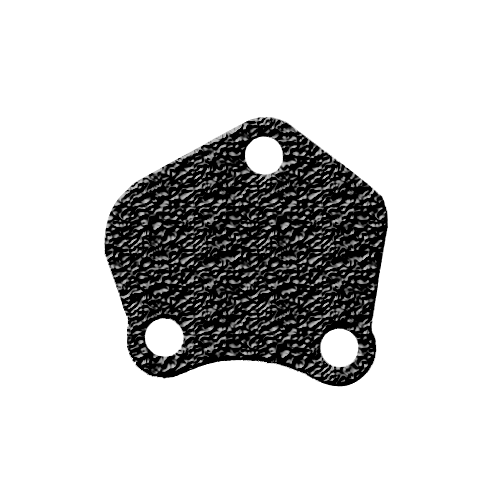

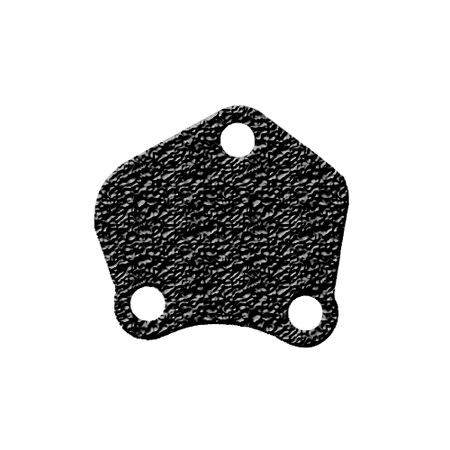

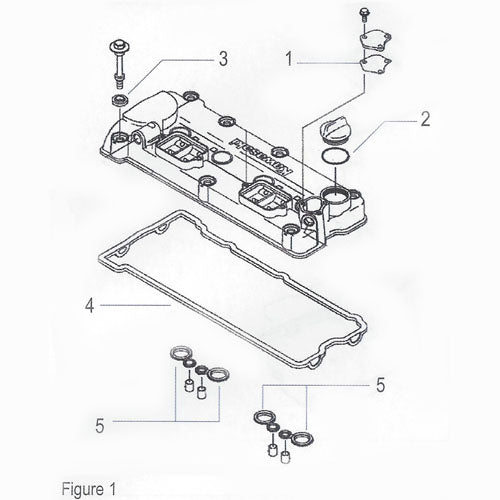

| Ventilation Plate Gasket | 1 | 1 | 1 | 11061-3728 | 007-315-02 |

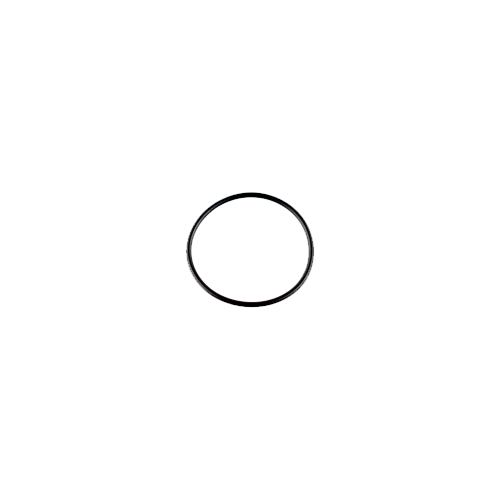

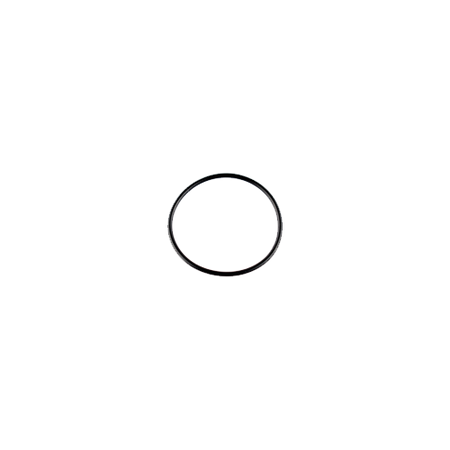

| Oil Cap O-Ring | 1 | 2 | 1 | 92055-1295 | 008-429 |
| Head Cover Bolt O-Ring | 1 | 3 | 7 | 92055-1352 | 009-746 |

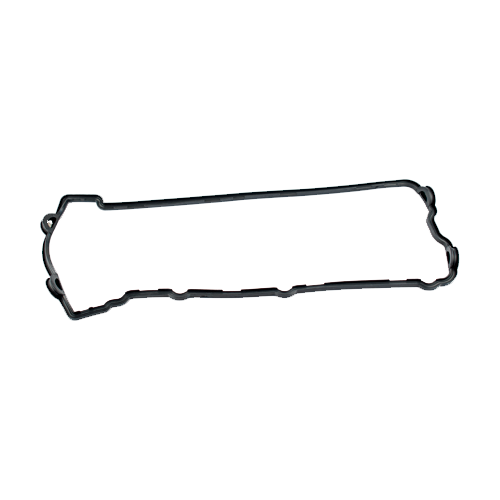

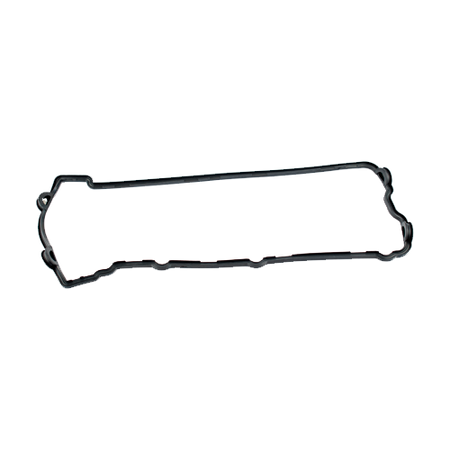

| Head Cover Gasket | 1 | 4 | 1 | 11061-0090 | 007-315-01 |

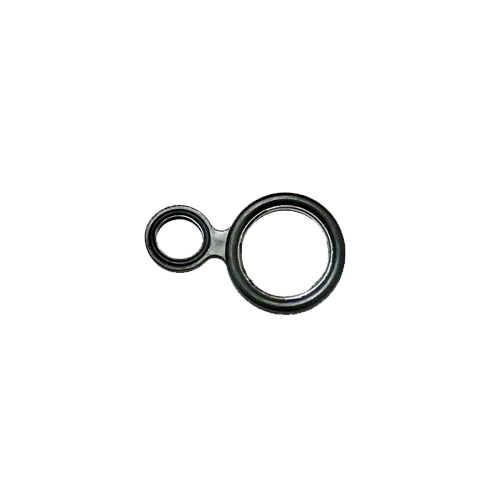

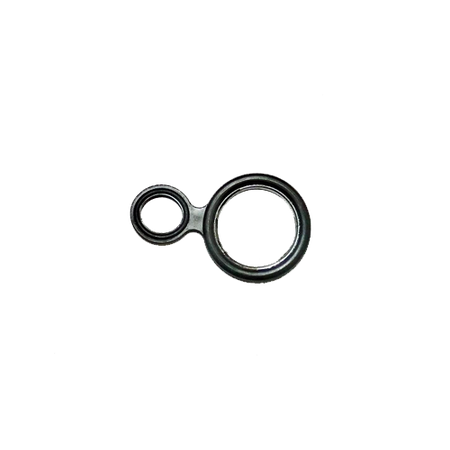

| Spark Plug O-Ring | 1 | 5 | 4 | 11061-0105 | 008-428 |

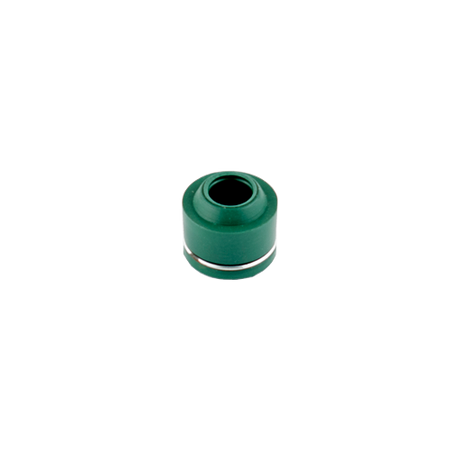

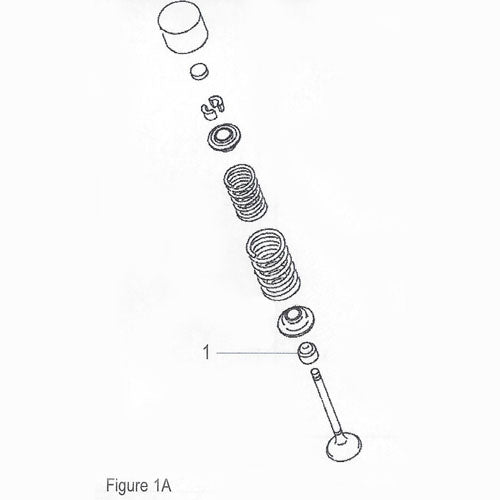

| Valve Stem Seal | 1A | 1 | 16 | 92049-1509 | 010-048 |

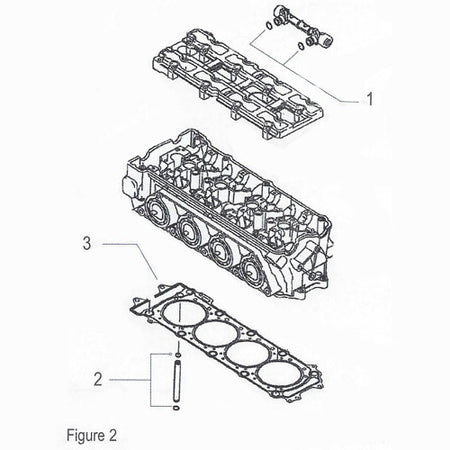

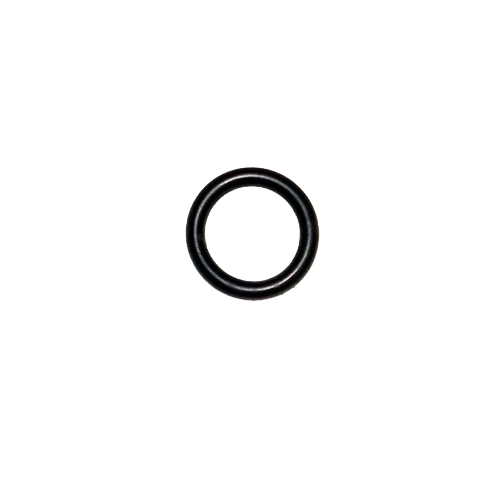

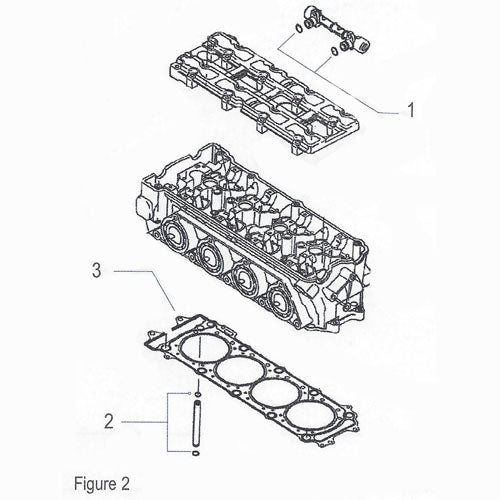

| Crank Case Pipe O-Ring | 2 | 2 | 2 | 670D1507 | 008-422 |

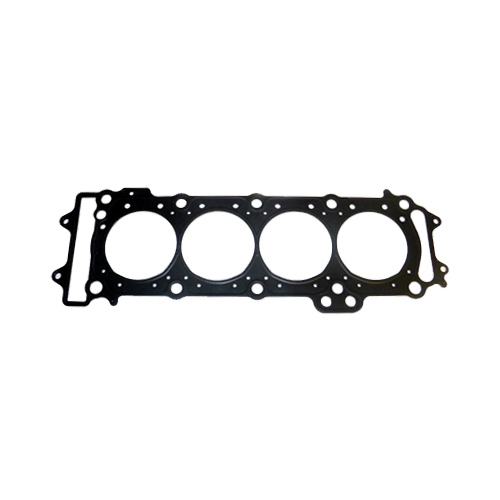

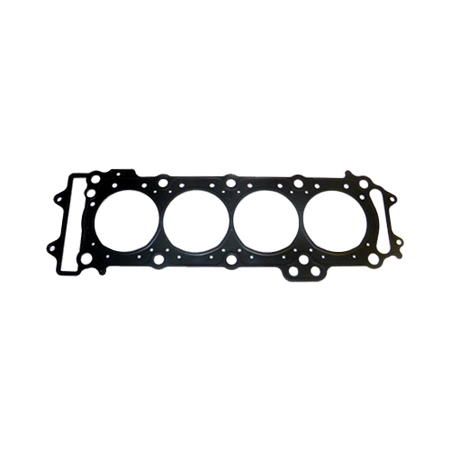

| Head Gasket | 2 | 3 | 1 | 11004-3724 | 007-315-07 |

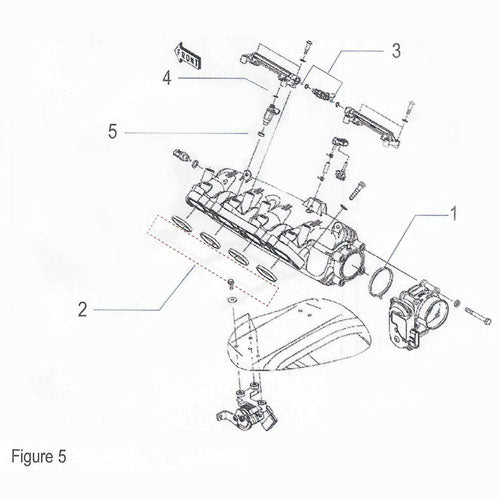

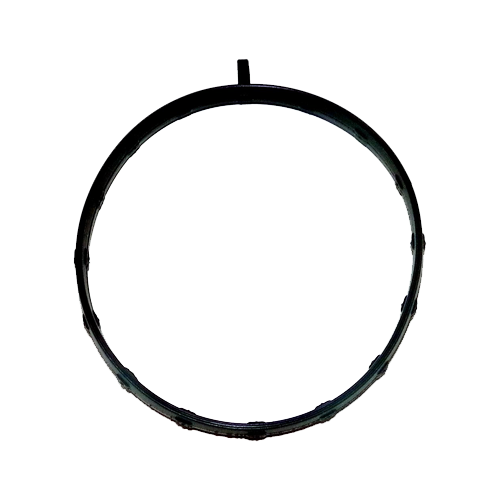

| Throttle Plate Gasket | 5 | 1 | 1 | 11061-3766 | 007-335-01 |

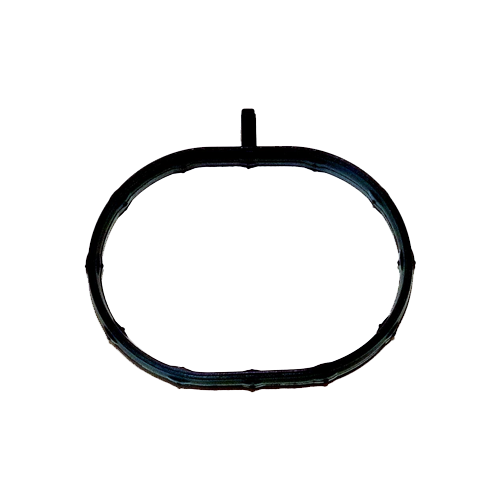

| Intake Manifold Gasket | 5 | 2 | 4 | 11061-3767 | 007-338-01 |

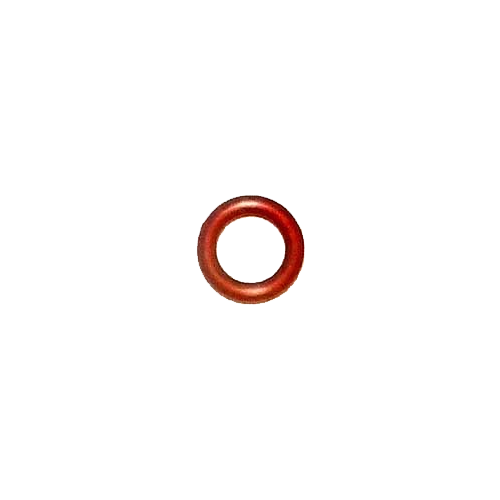

| Fuel Rail O-Ring | 5 | 3 | 2 | 92055-3782 | 008-441 |
| Fuel Rail O-Ring 2 | 5 | 4 | 4 | 92055-1622 | 008-441 |
| Fuel Injector Insulator | 5 | 5 | 4 | 92093-0127 | 008-683-07 |

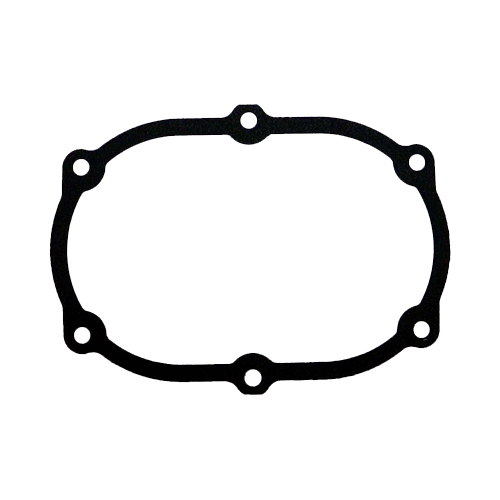

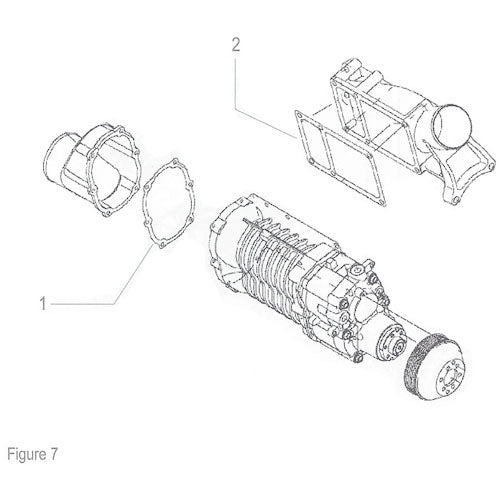

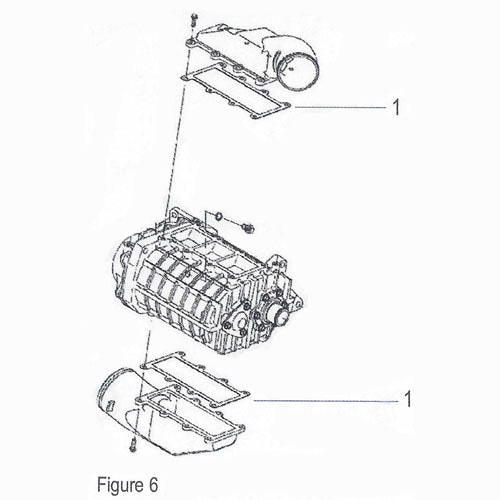

| Super Charger Gasket | 7 | 1 | 1 | 11061-0760 | 007-335-03 |

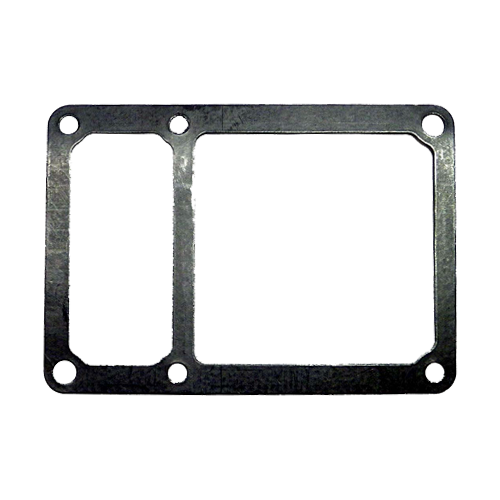

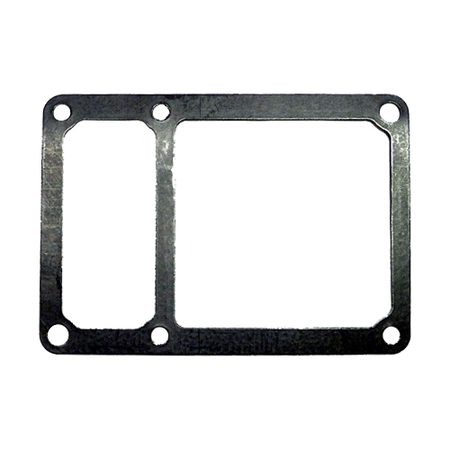

| Super Charger Gasket 2 | 7 | 2 | 1 | 11061-3763 | 007-335-04 |

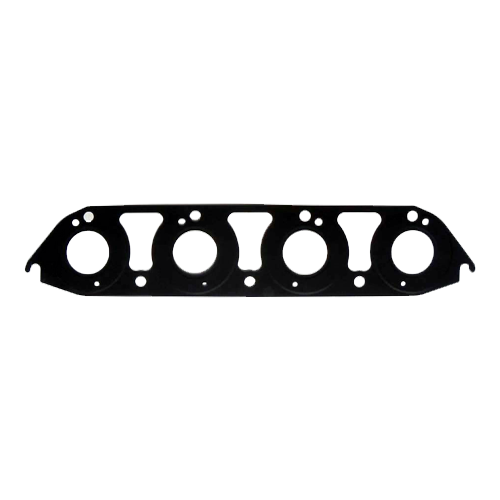

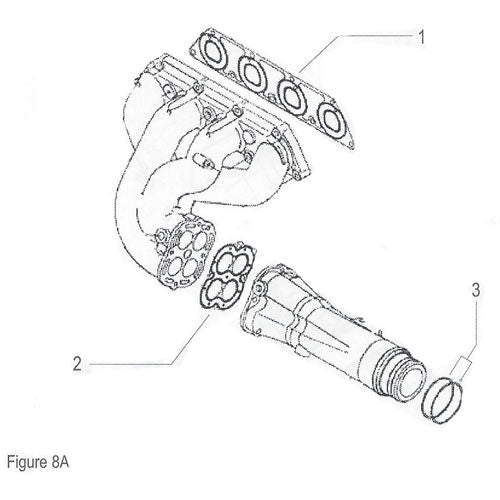

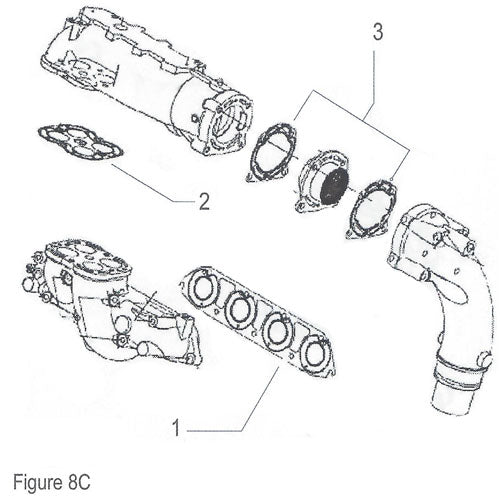

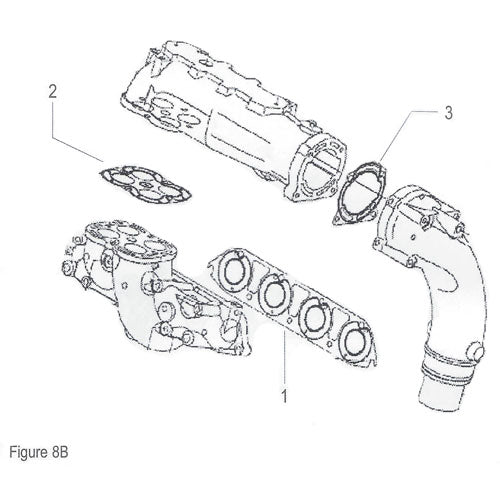

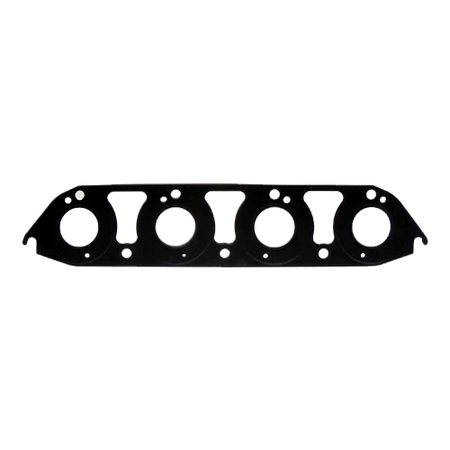

| Exhaust Manifold Gasket | 8C | 1 | 1 | 11061-3742 | 007-336-06 |

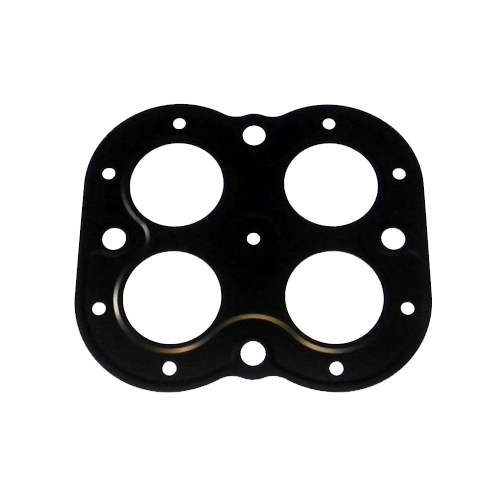

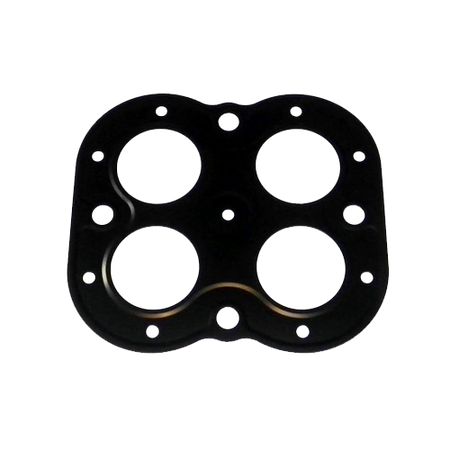

| Exhaust Pipe Gasket | 8C | 2 | 1 | 11061-3762 | 007-336-07 |

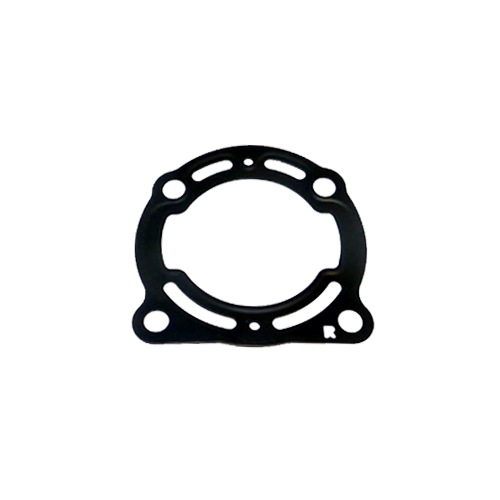

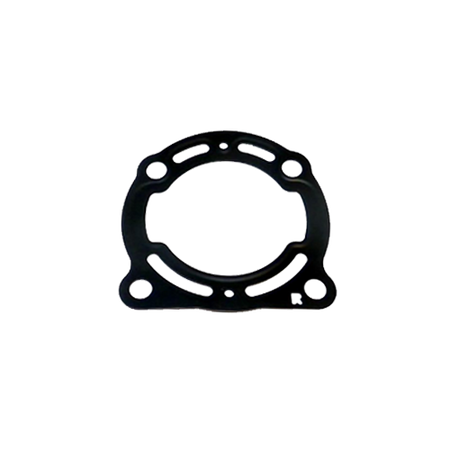

| Muffler Gasket | 8C | 3 | 2 | 11061-37768 | 007-328-06 |

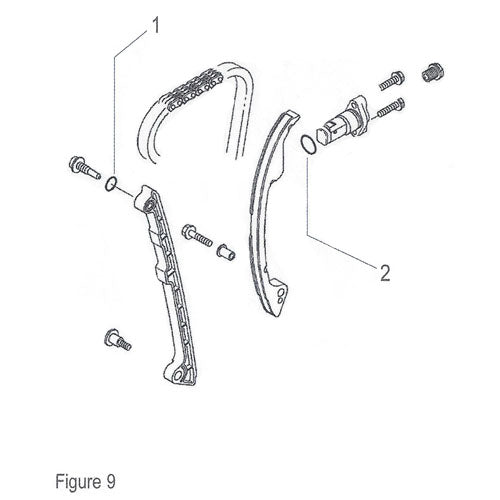

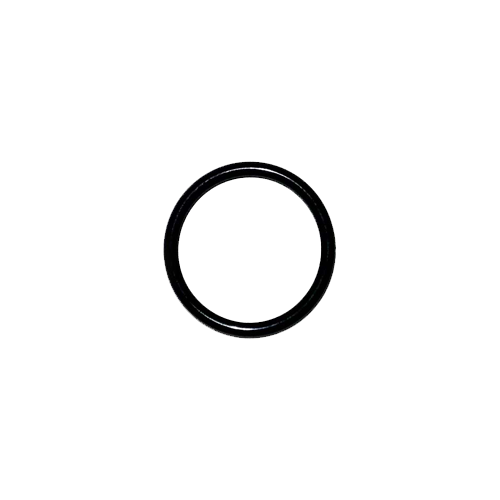

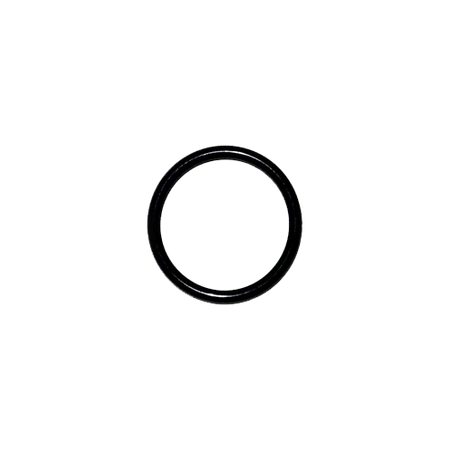

| Timing Chain Tensioner O-Ring | 9 | 1 | 1 | 92055-086 | 008-422-02 |

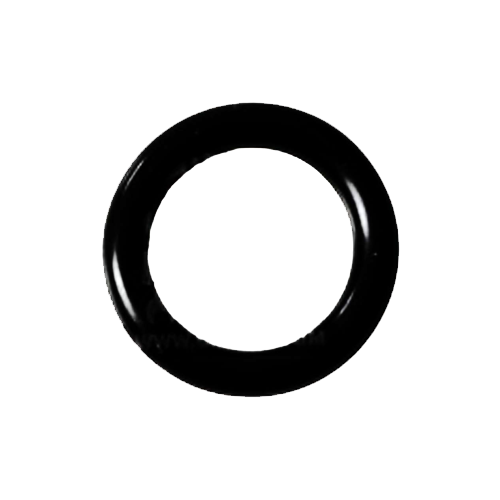

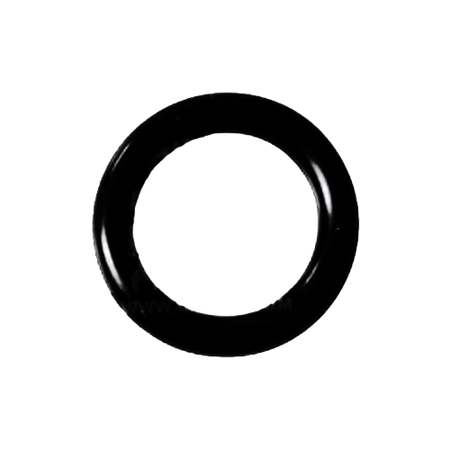

| Timing Chain Dampner O-Ring | 9 | 2 | 1 | 670D1509 | 008-422-01 |

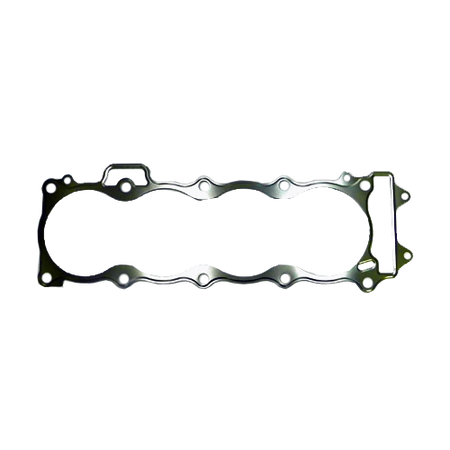

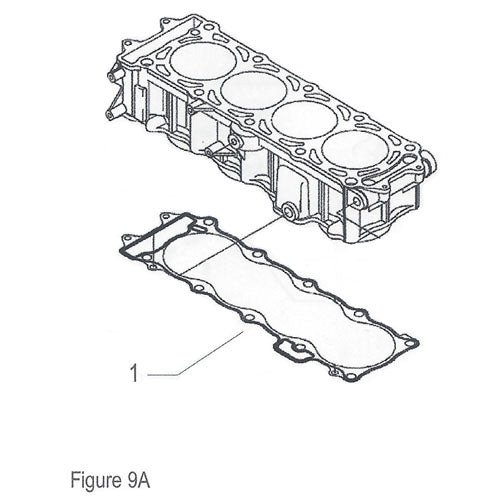

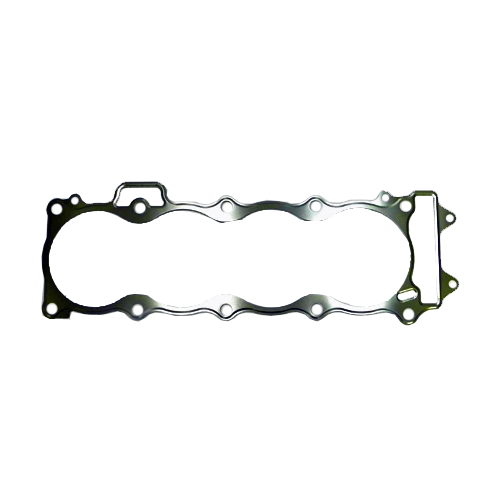

| Base Gasket | 9A | 1 | 1 | 11061-3708 | 007-334-01 |

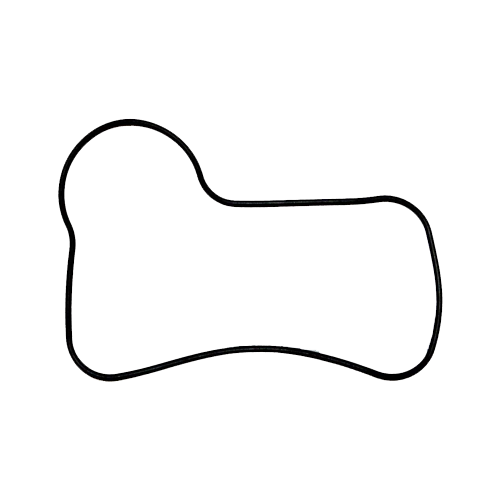

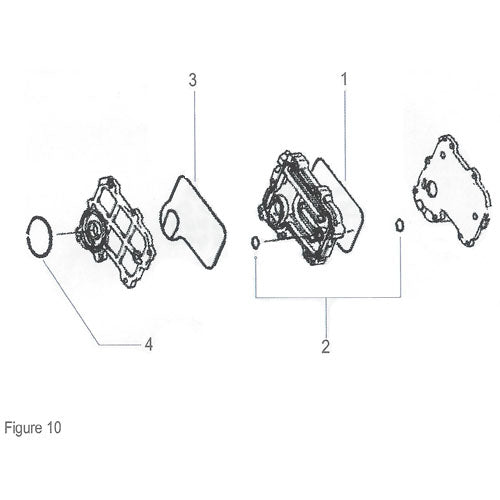

| Oil Cooler Body O-Ring | 10 | 1 | 1 | 92055-3772 | 008-429-10 |

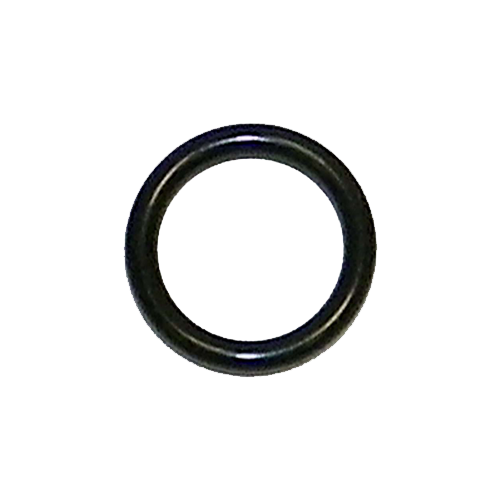

| Oil Pump Housing O-Ring | 10 | 2 | 2 | 670D2014 | 008-422-04 |

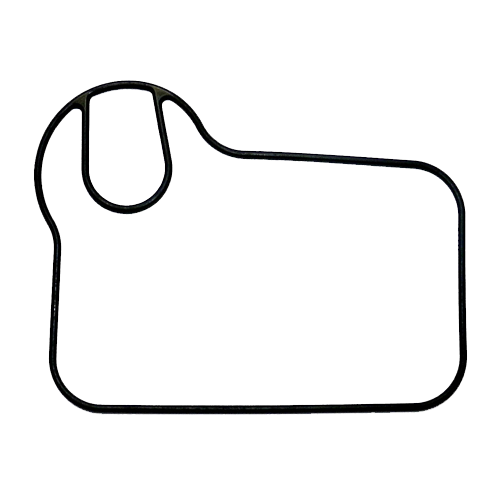

| Oil Cooler Body O-Ring | 10 | 3 | 1 | 92055-3770 | 008-429-11 |

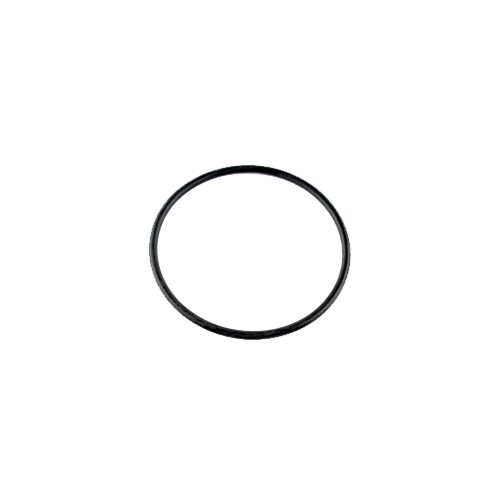

| Oil Cooler Body O-Ring | 10 | 4 | 1 | 92055-3767 | 008-429-12 |

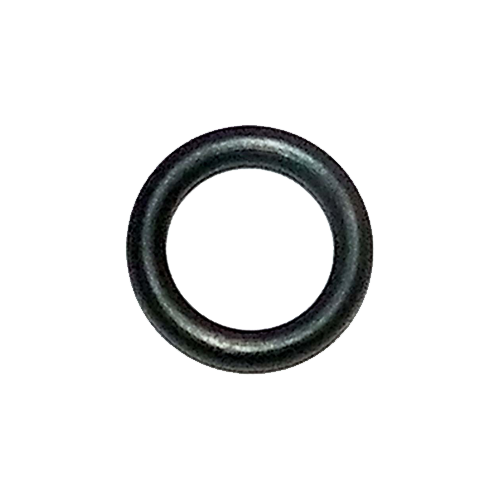

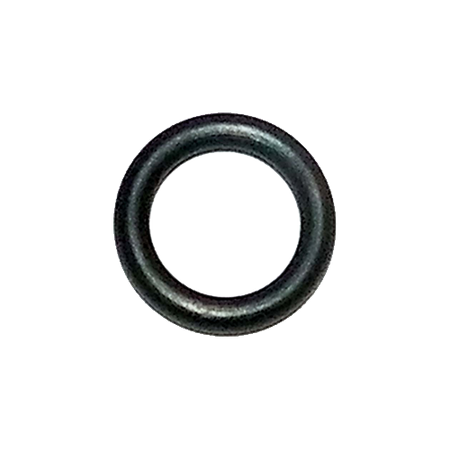

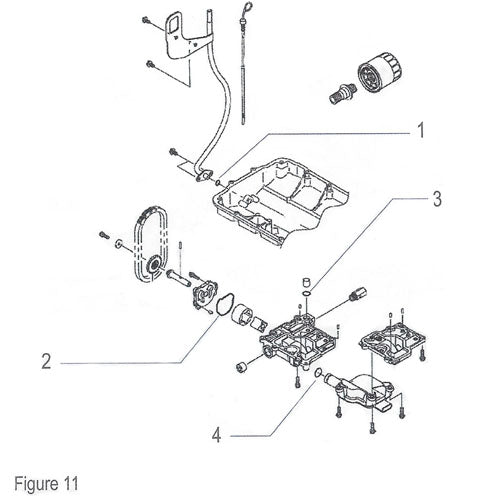

| Dip Stick O-Ring | 11 | 1 | 1 | 92055-1150 | 008-422-03 |

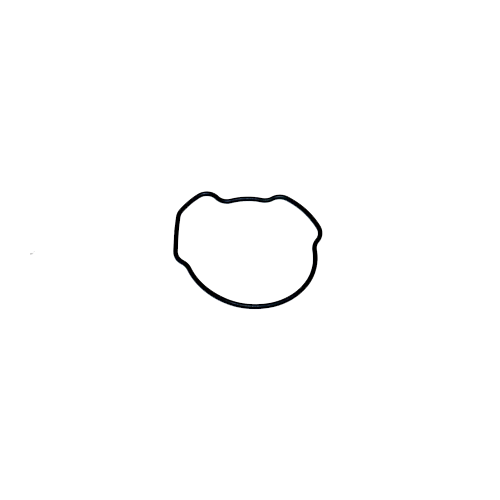

| Oil Pump Housing O-Ring 2 | 11 | 2 | 1 | 92055-3764 | 008-429-09 |
| Oil Pump Housing O-Ring 3 | 11 | 3 | 1 | 670D2014 | 008-422-04 |

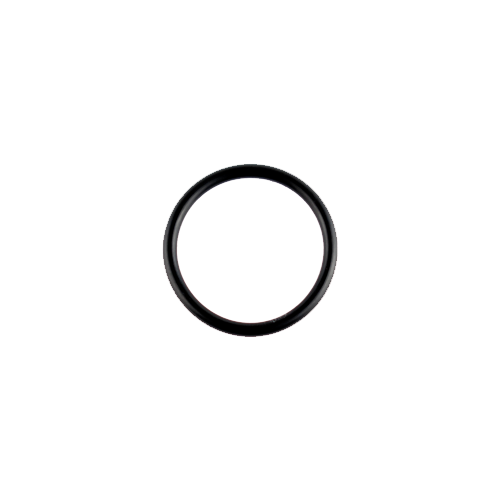

| Pick Up Tube O-Ring | 11 | 4 | 1 | 92055-1332 | 008-562 |

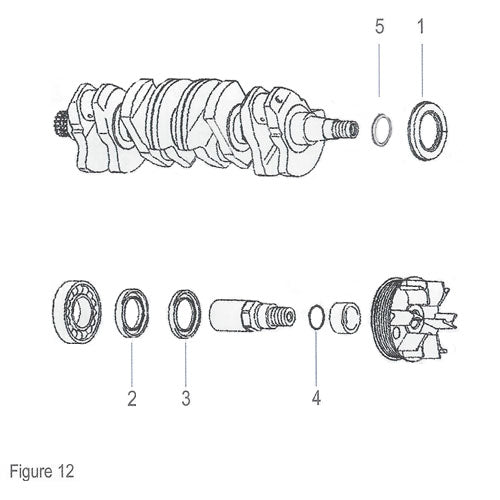

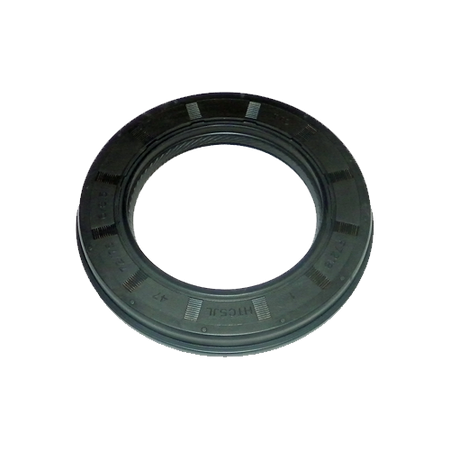

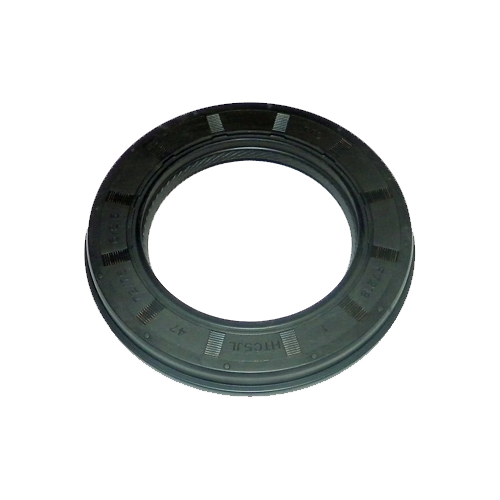

| Mag Side Crankshaft Oil Seal | 12 | 1 | 1 | 92049-3736 | 009-743T |

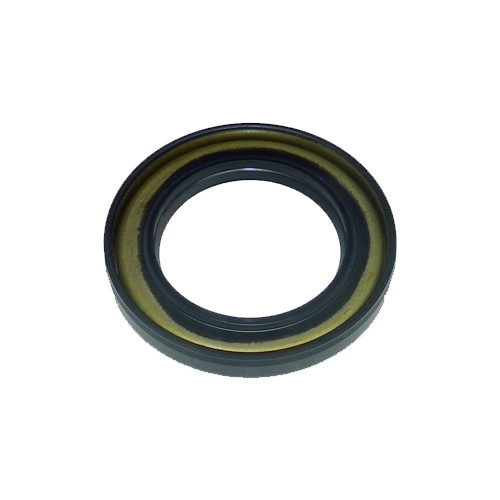

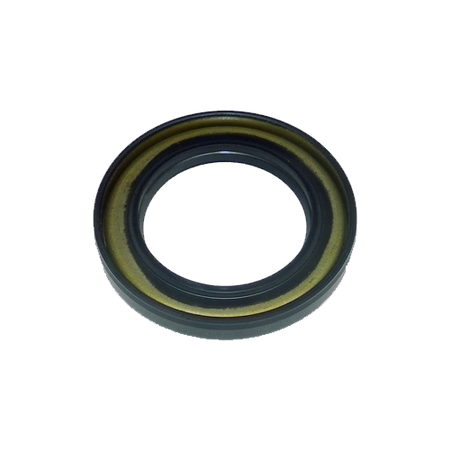

| PTO Inner Crankshaft Oil Seal | 12 | 2 | 1 | 92049-3737 | 009-744T |

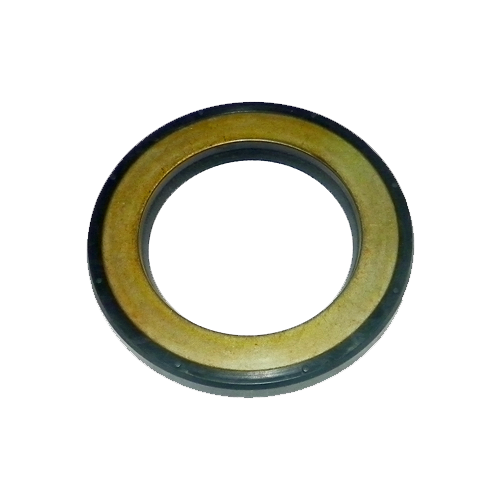

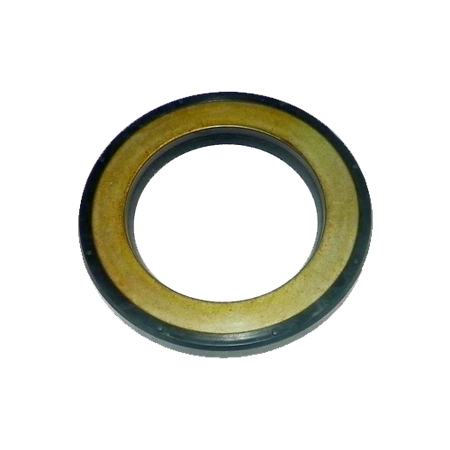

| PTO Outer Crankshaft Oil Seal | 12 | 3 | 1 | 92049-3738 | 009-745T |

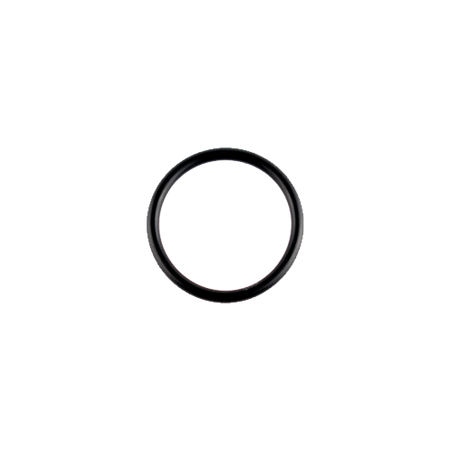

| Crankshaft Coupler O-Ring | 12 | 4 | 1 | 92055-091 | 008-420-03 |

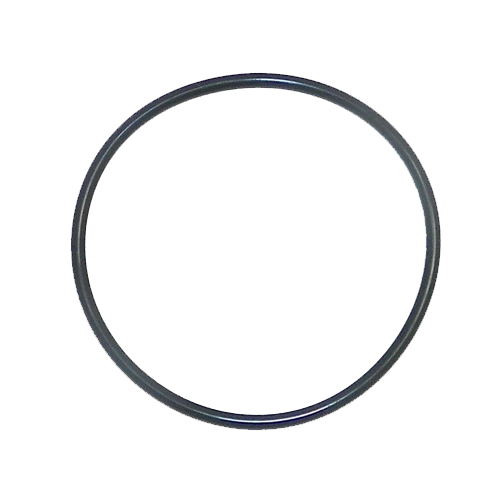

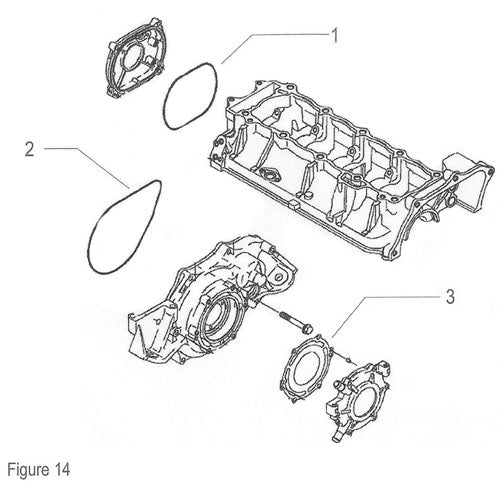

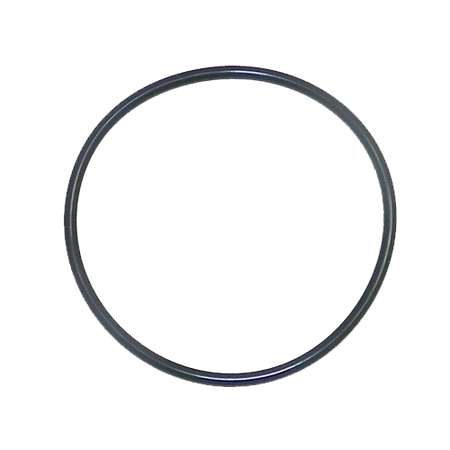

| Engine Cover O-Ring | 14 | 1 | 1 | 92055-3762 | 008-420-01 |

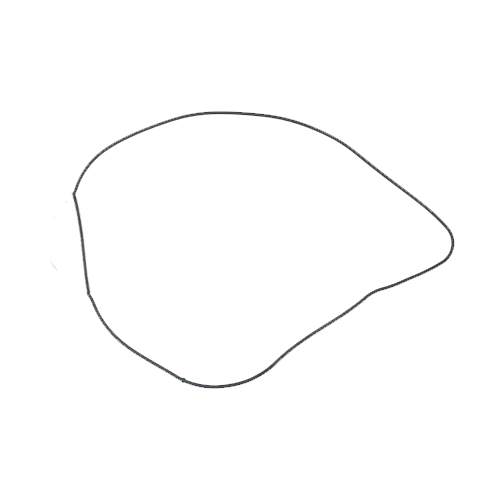

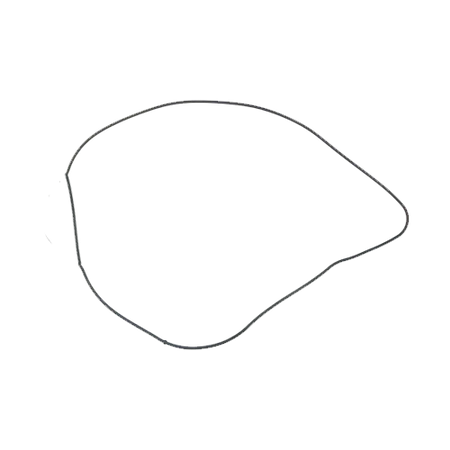

| Engine Cover O-Ring 2 | 14 | 2 | 1 | 92055-3761 | 008-420-02 |

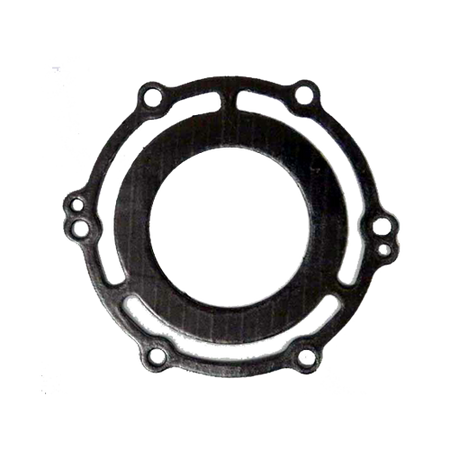

| Output Cover Gasket | 14 | 3 | 1 | 11061-3709 | 007-315-03 |

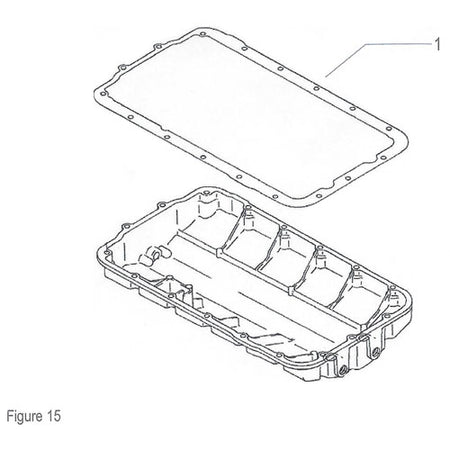

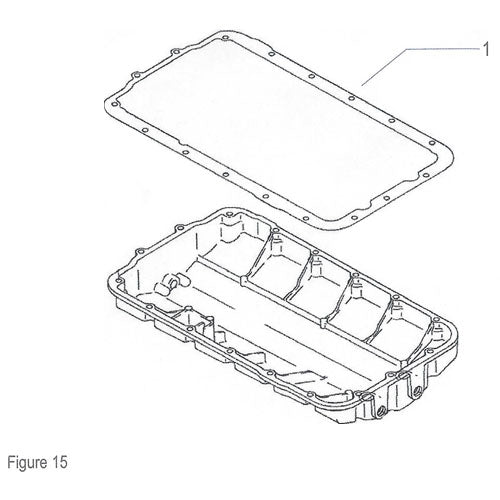

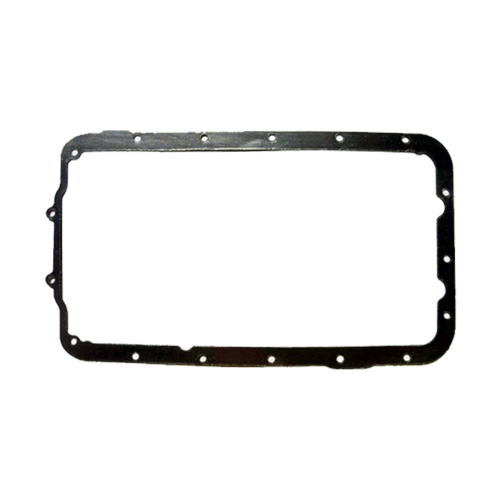

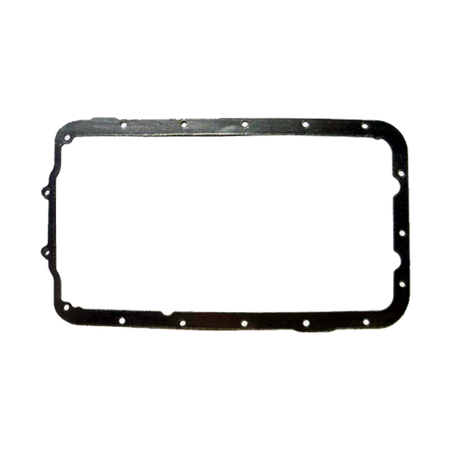

| Oil Pan Gasket | 15 | 1 | 1 | 11061-3710 | 007-327 |
- 2011 Kawasaki Ultra 300 X Gaskets
- 2012 Kawasaki Ultra 300 X Gaskets
- 2013 Kawasaki Ultra 300 X Gaskets
- 2011 Kawasaki Ultra 300 LX Gaskets
- 2012 Kawasaki Ultra 300 LX Gaskets
- 2013 Kawasaki Ultra 300 LX Gaskets
