Kawasaki Ultra 130 DI '01-04 Individual Gaskets

SKU
Original price $2.56 - Original price $37.73
Original price
$2.56
$2.56 - $37.73
Current price $2.56

Kawasaki Ultra 130 DI '01-04 Individual Gaskets.
Direct Fuel Injection.
Note: All Gaskets Sold Each.

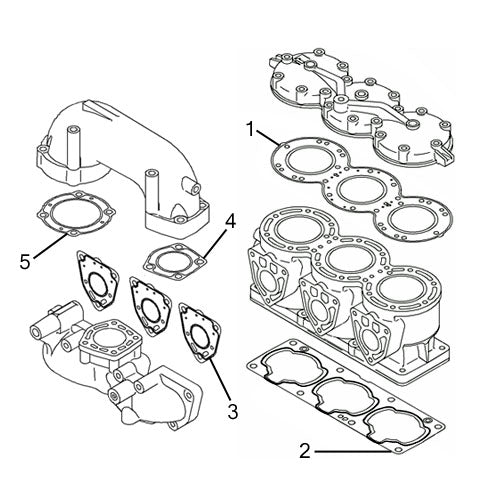

Ref. Description OEM # Qty. Req.

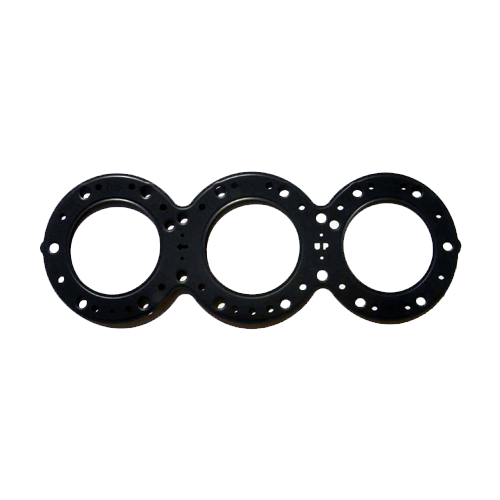

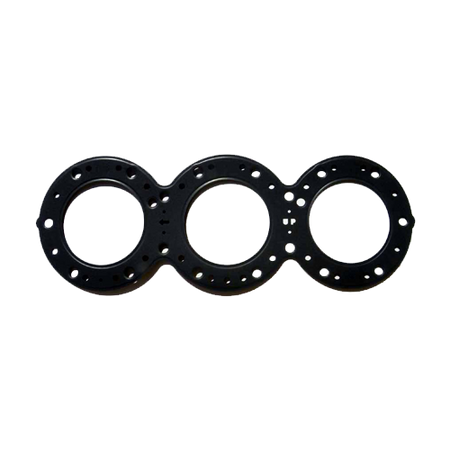

1 Head Gasket (Stainless Steel) 11004-3715 1

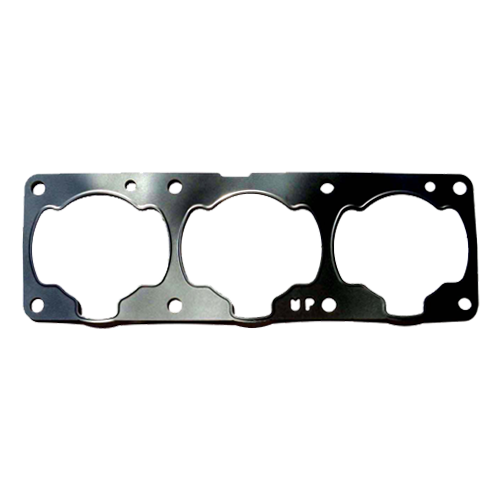

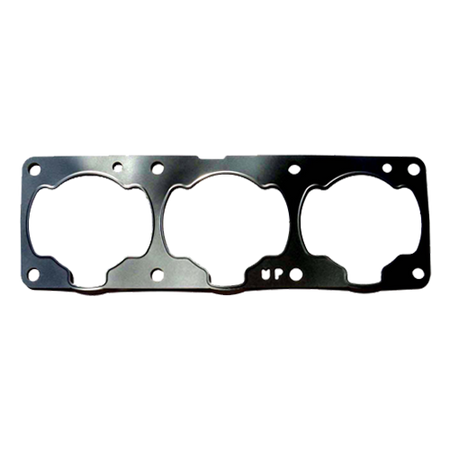

2 Cylinder Base Gasket 11060-3817 1

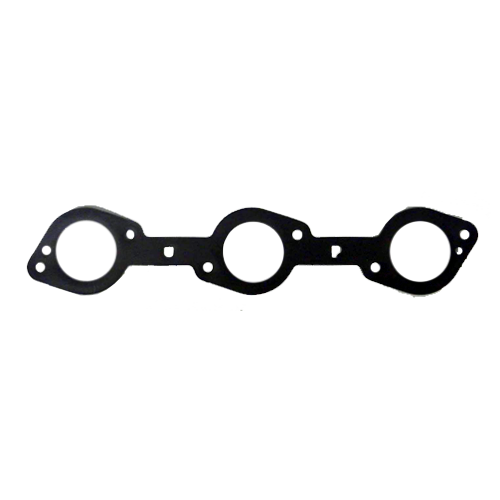

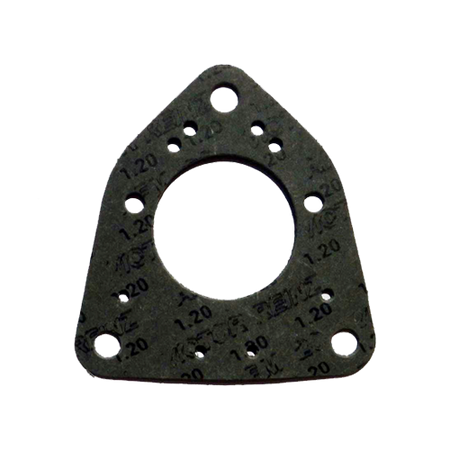

3 Exhaust Manifold To Cylinder Gasket (3 Req. Sold Each) 11060-3767 3

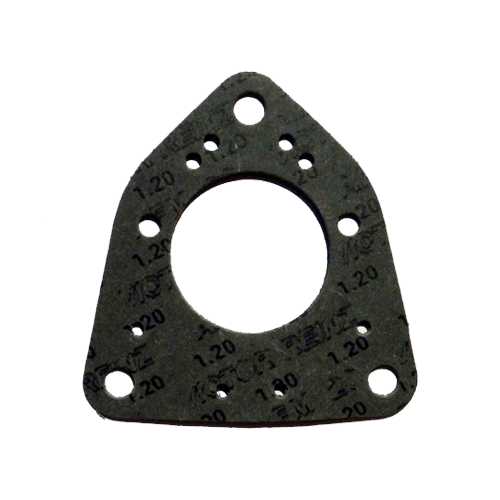

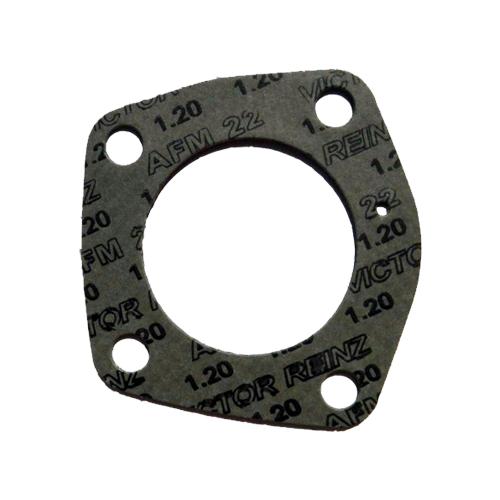

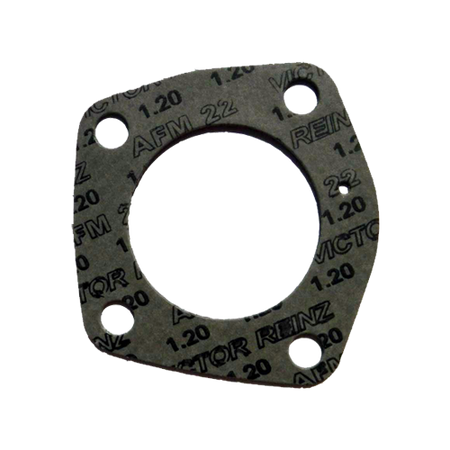

4 Exhaust Manifold To Head Pipe Gasket 11060-3768 1

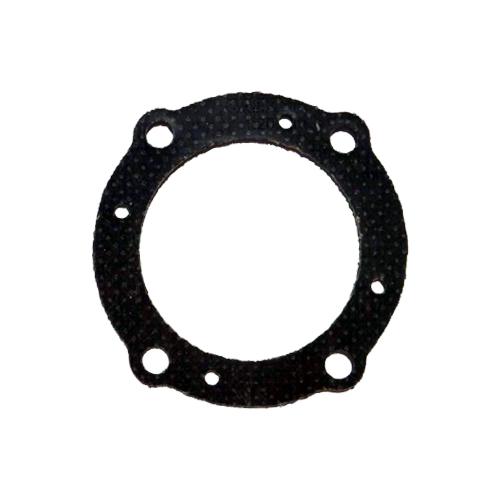

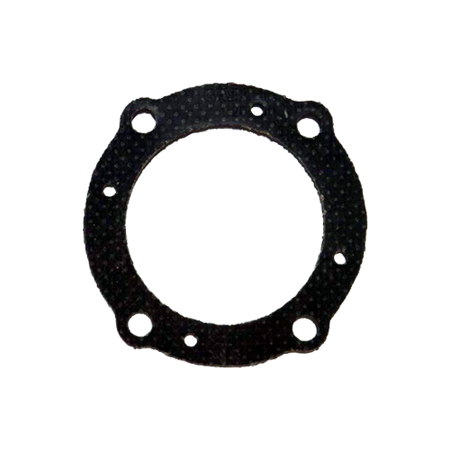

5 Exhaust Head Pipe To Chamber Gasket 11060-3769 1

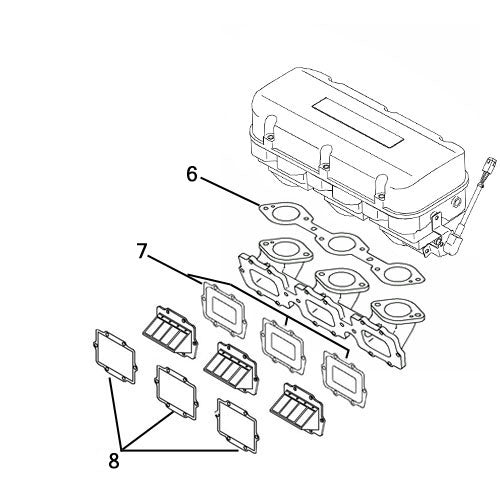

6 Throttle Base Gasket 11060-3753 1

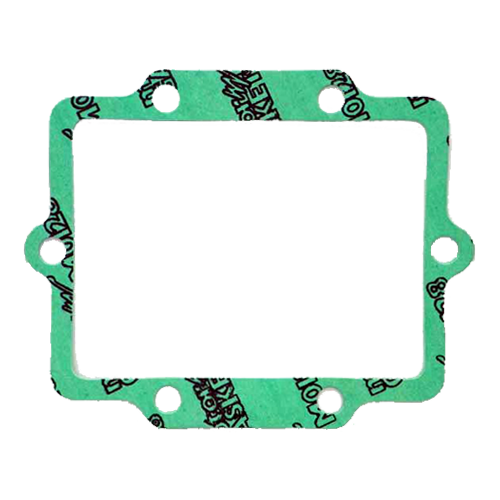

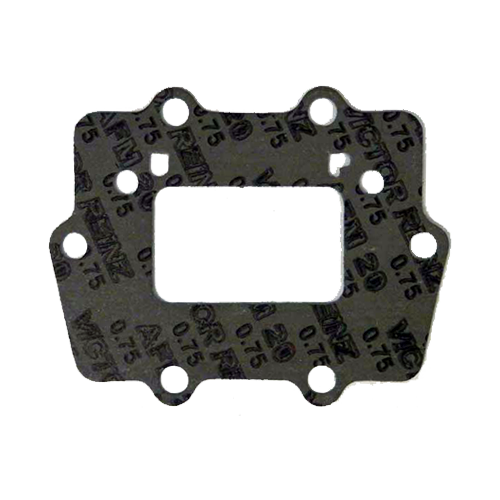

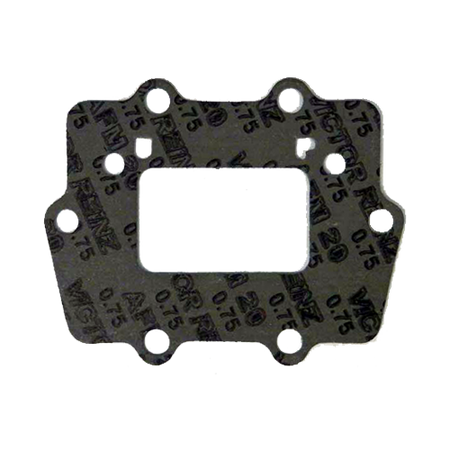

7 Reed Valve To Intake Manifold (3 Req. Sold Each) 11060-3757 3

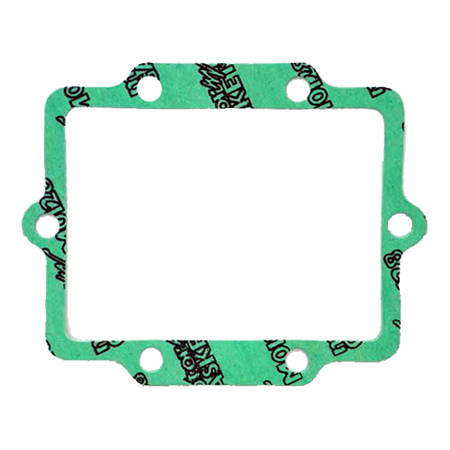

8 Reed Gasket To Crankcase (3 Req. Sold Each) 11060-3717 3

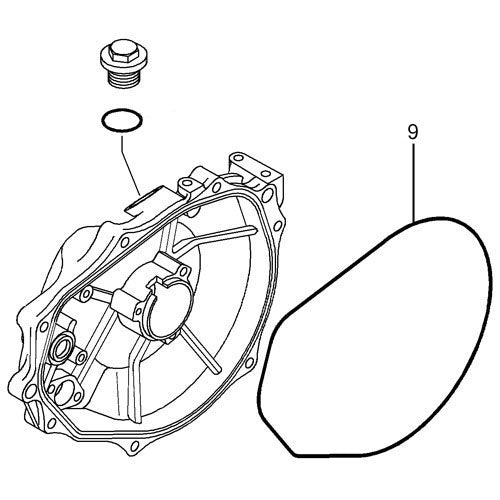

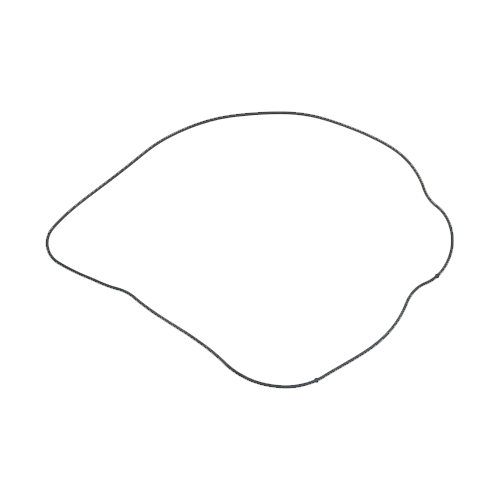

9 Flywheel Generator Cover O-Ring 92055-3712 1

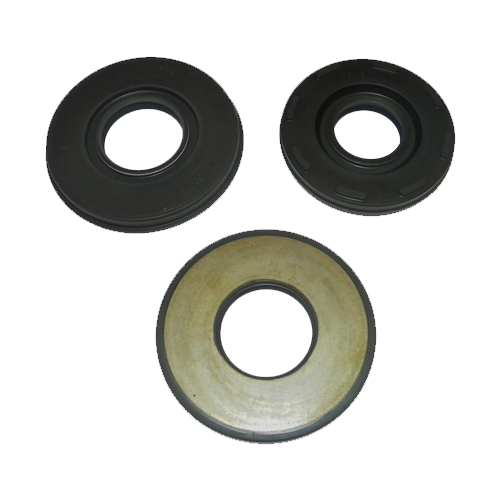

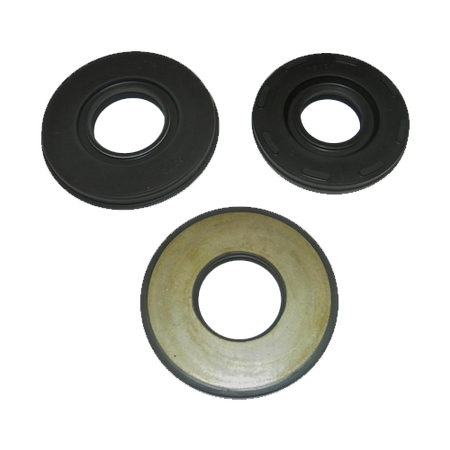

N/S Crankshaft Oil Seal Kit - 1 Kit
NOTE: N/S - Item Not Shown On Diagram.
