Kawasaki STX-12F 1200 '03-07 / STX-15F 1500 '04-19 Individual Gaskets
Couldn't load pickup availability
Need help identifying the right part for your ski? Contact Customer Support with your questions about compatibility, fitment, availability, or technical specifications.
How-To Videos Brought To You By Erickson Machine and Performance.
Kawasaki STX-12F 1200 03-07 / STX-15F 1500 04-19 Individual Gaskets
Note: All Gaskets Sold Each.
| DESCRIPTION | FIG. NO. | REF. NO. | REQ | O.E. NO. | PART NO. |

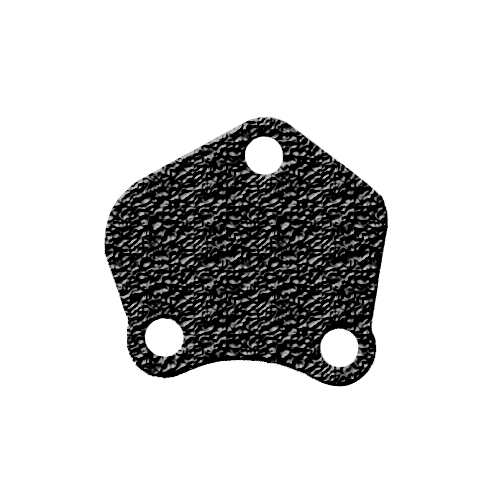

| Ventilation Plate Gasket | 1 | 1 | 1 | 11061-3728 | 007-315-02 |

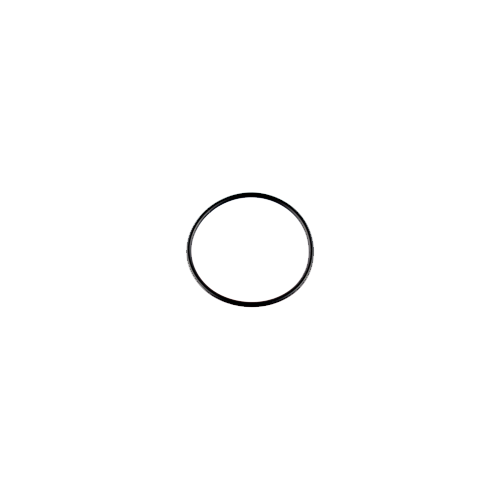

| Oil Cap O-Ring | 1 | 2 | 1 | 92055-1295 | 008-429 |

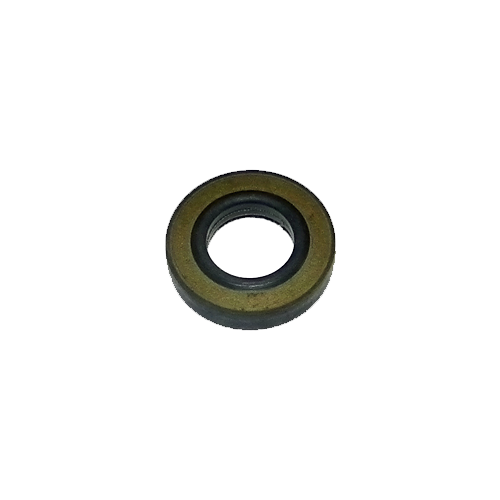

| Valve Cover Hold Down O-Ring | 1 | 3 | 7 | 92055-1352 | 009-746 |

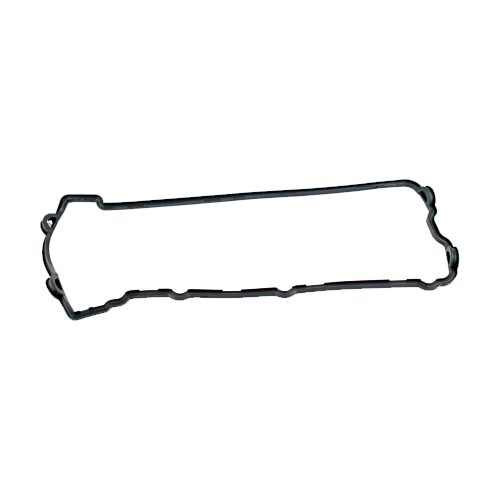

| Head Cover Gasket | 1 | 4 | 1 | 11061-0090 | 007-315-01 |

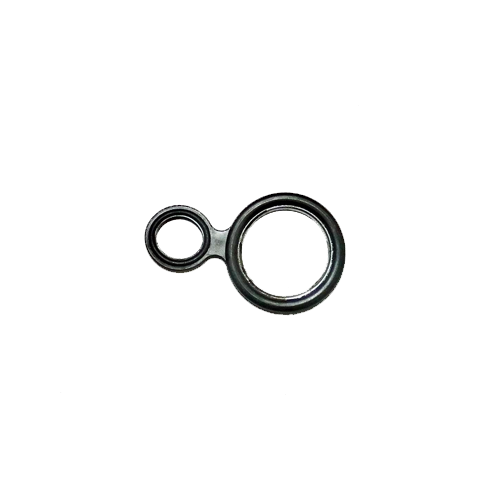

| Spark Plug O-Ring | 1 | 5 | 4 | 11061-0105 | 008-428 |

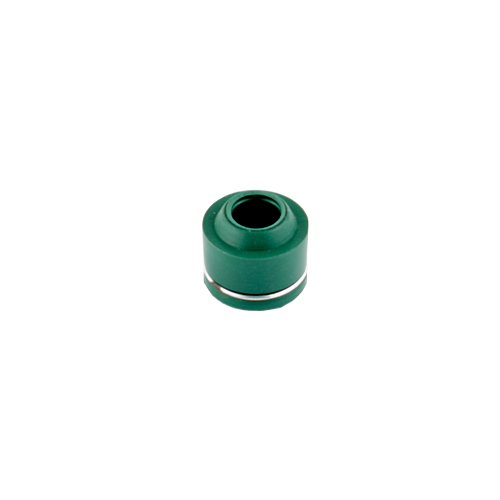

| Valve Stem Seal | 1A | 1 | 16 | 92049-1509 | 010-048 |

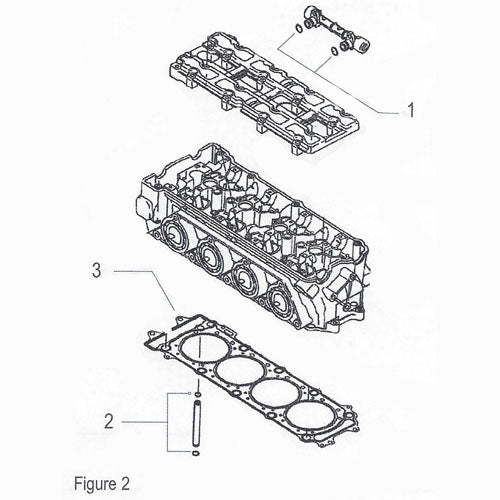

| Oil Pipe O-Ring | 2 | 1 | 2 | 670B2012 | 008-421 |

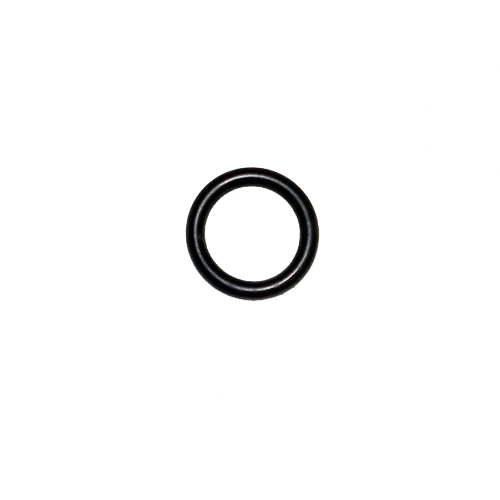

| Crank Case Pipe O-Ring | 2 | 2 | 2 | 670D1507 | 008-422 |

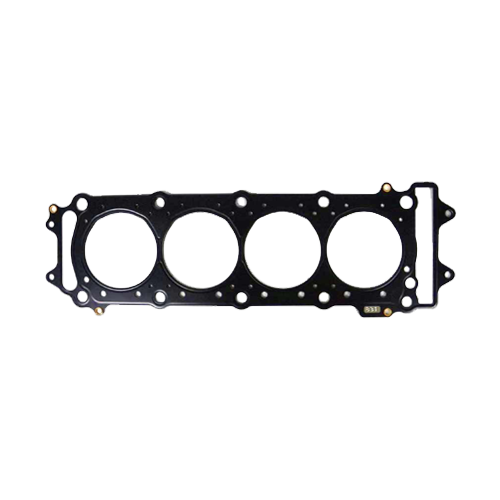

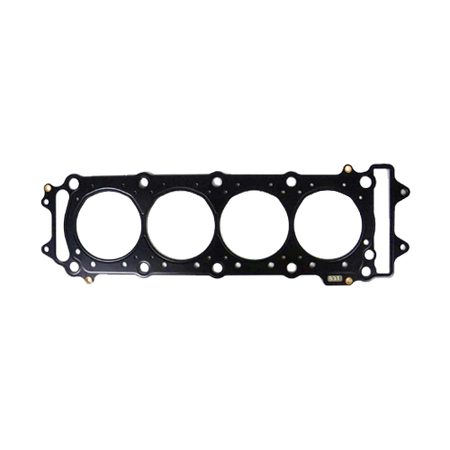

| Head Gasket | 2 | 3 | 1 | 11004-3721 | 007-315 |

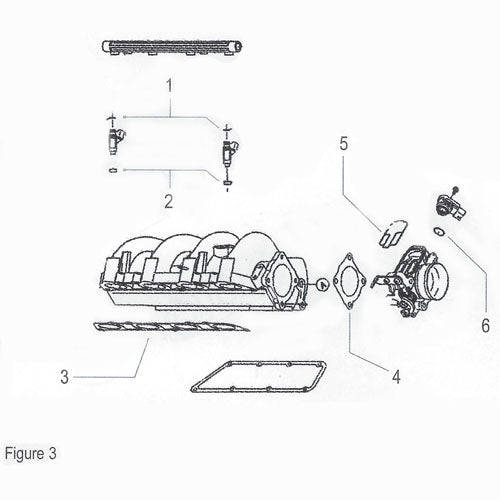

| Fuel Rail O-Ring | 3 | 1 | 4 | 92055-1622 | 008-441 |
| Fuel Injector Insulator | 3 | 2 | 4 | 16073-3707 | 008-429-02 |

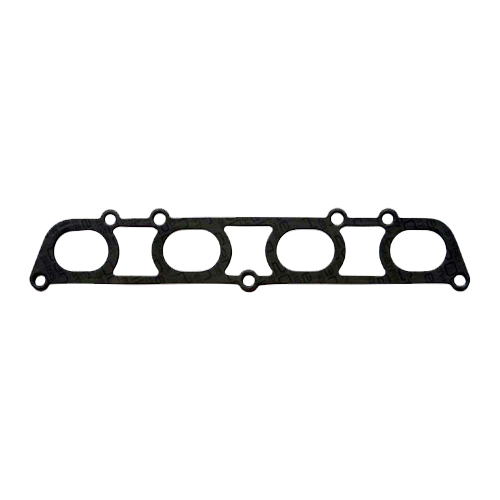

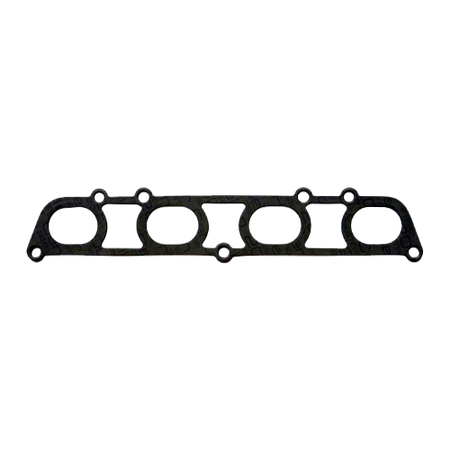

| Intake gasket | 3 | 3 | 1 | 11061-3716 | 007-335 |

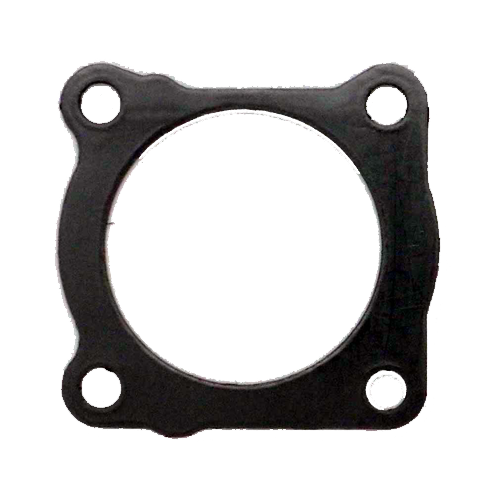

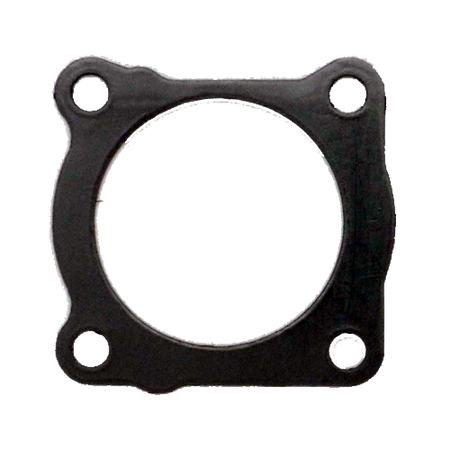

| Throttle Body Gasket | 3 | 4 | 1 | 11061-3738 | 007-338 |

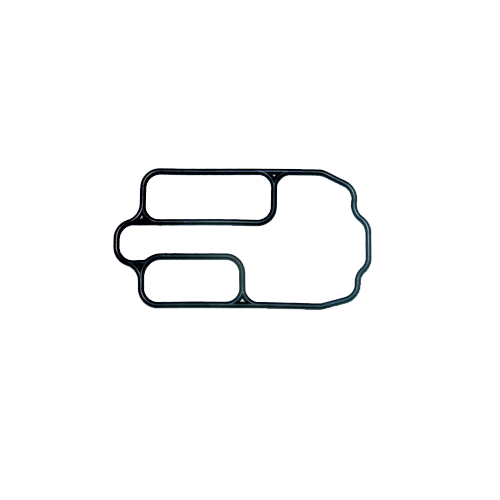

| Throttle Body O-Ring | 3 | 5 | 1 | 92055-3773 | 008-440 |
| Throttle Position Sensor O-Ring | 3 | 6 | 1 | 92055-3774 | 008-426 |

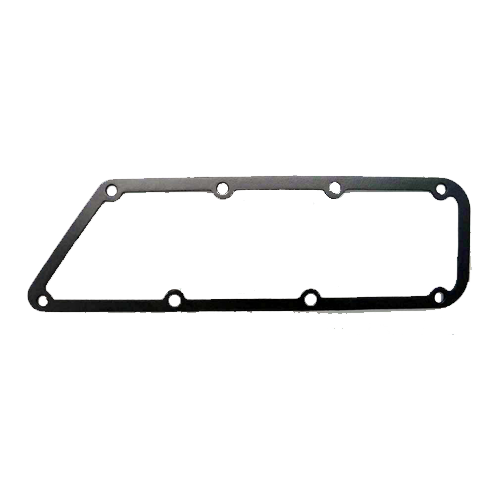

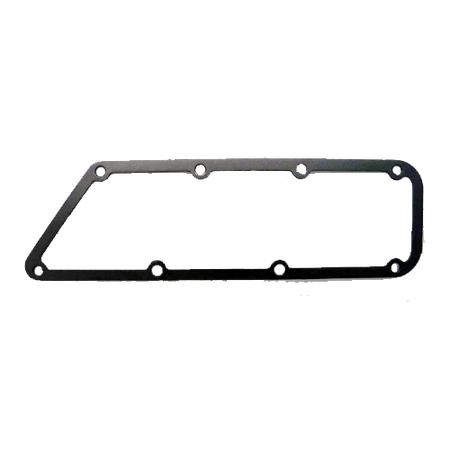

| Intake Plate Gasket | 3 | 7 | 1 | 11061-3737 | 007-337 |

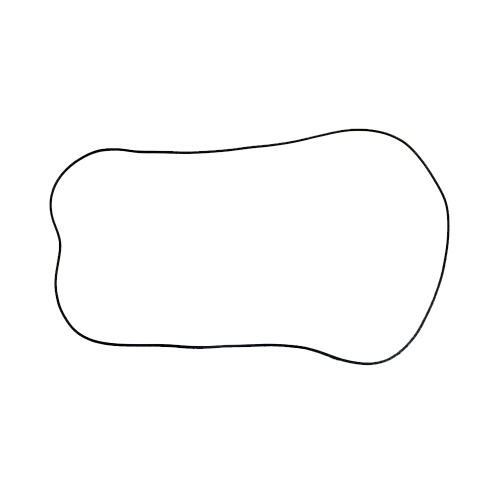

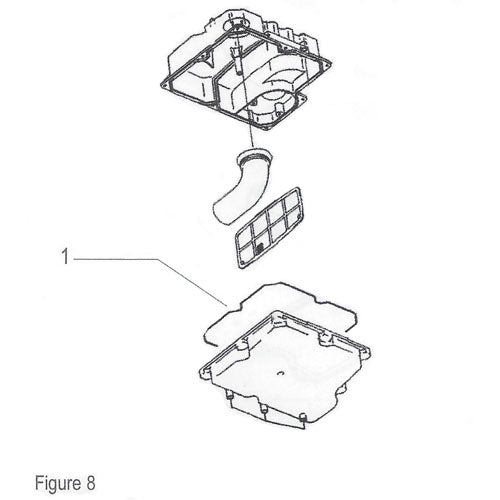

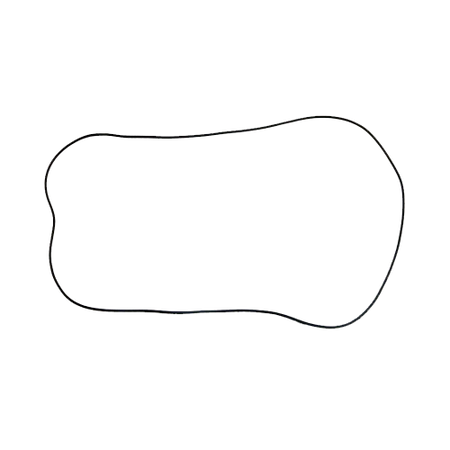

| Intake Silencer O-Ring | 8 | 1 | 1 | 92093-3766 | 008-431 |

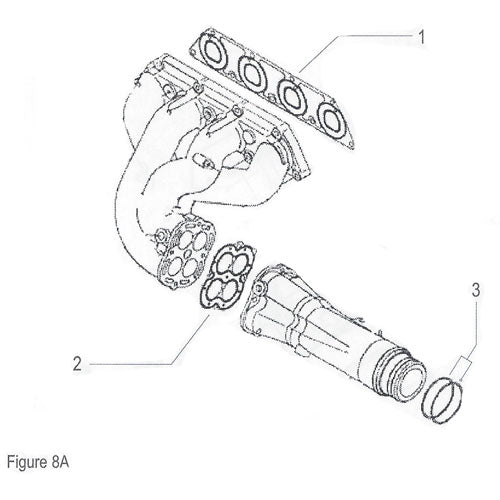

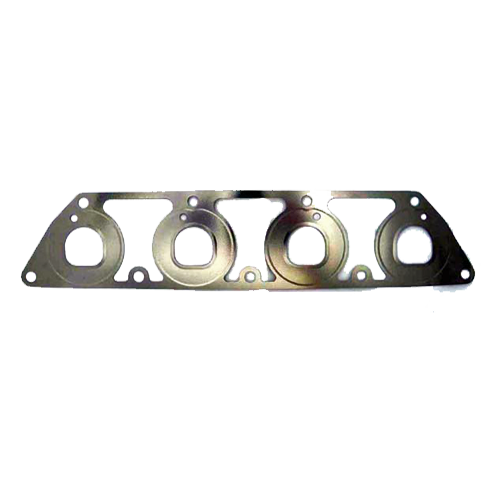

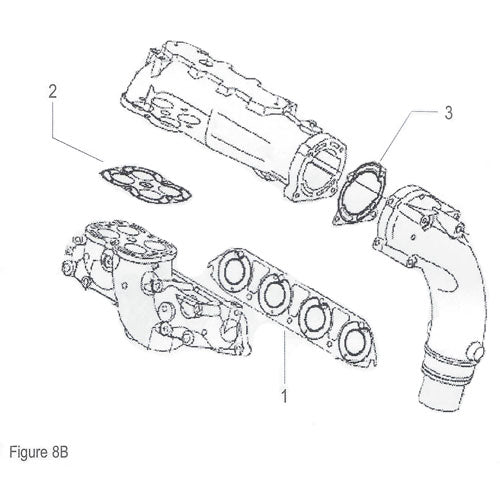

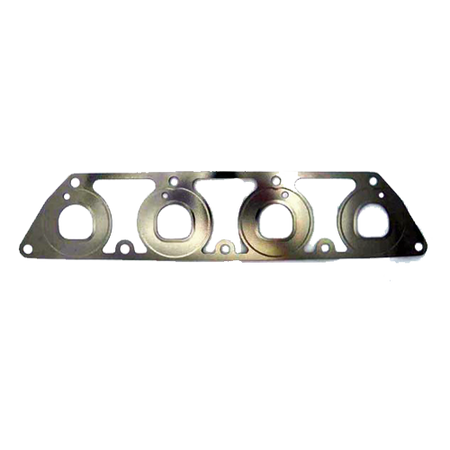

| Exhaust Manifold Gasket | 8A | 1 | 1 | 11061-3713 | 007-336-01 |

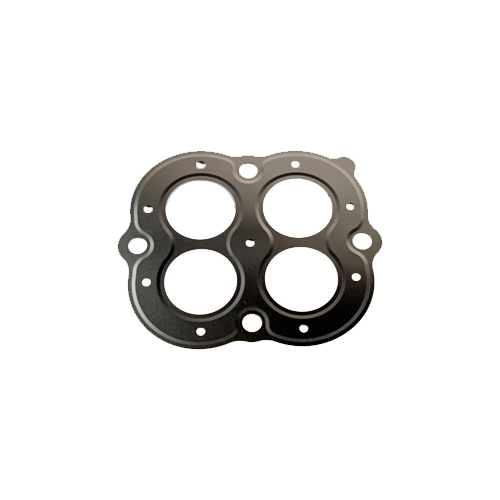

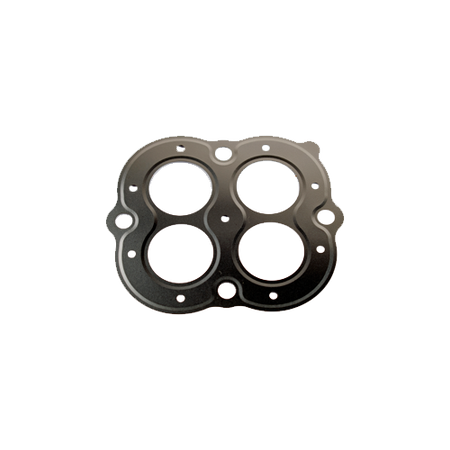

| Exhaust Pipe Gasket | 8A | 2 | 1 | 11061-3714 | 007-336-02 |

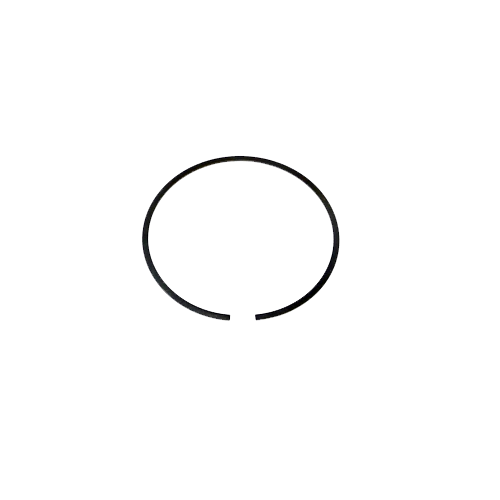

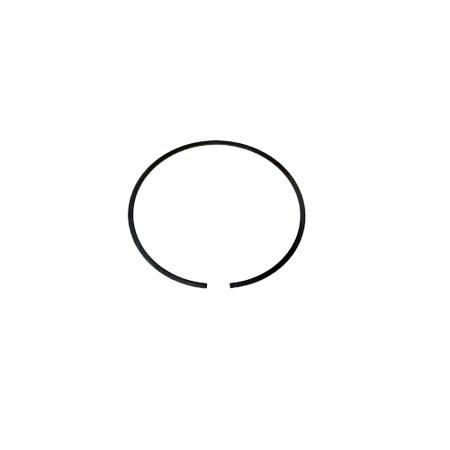

| Exhaust Ring | 8A | 3 | 2 | 43058-3733 | 008-420-06 |

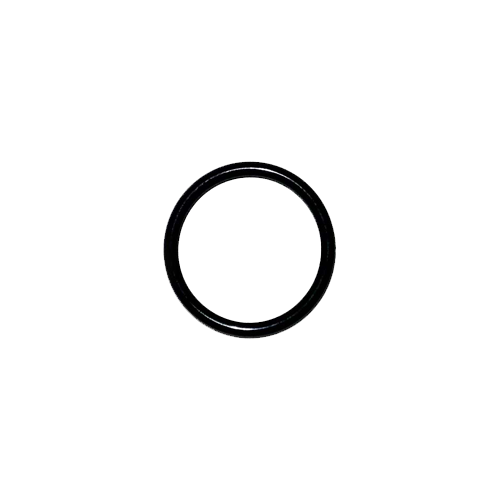

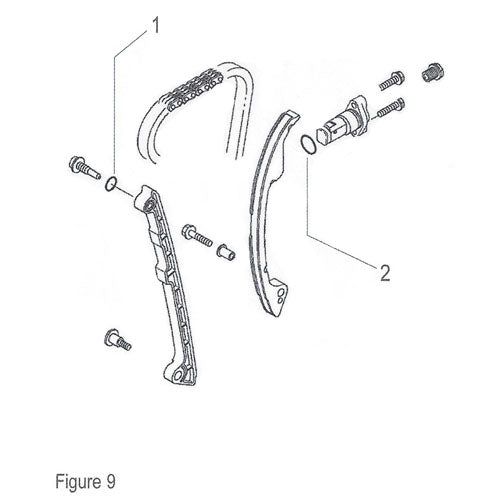

| Timing Chain Tensioner O-Ring | 9 | 1 | 1 | 670D1509 | 008-422-02 |

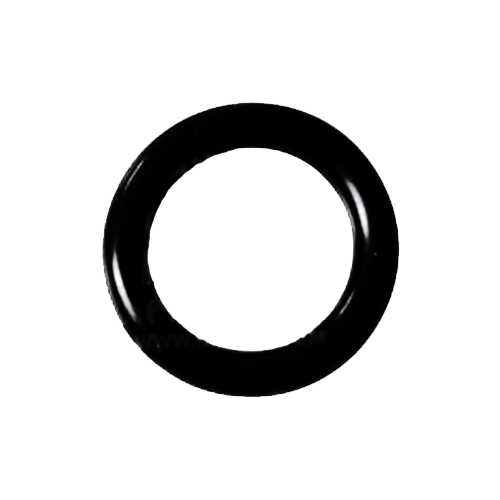

| Timing Chain Dampner O-Ring | 9 | 2 | 1 | 92055-086 | 008-422-01 |

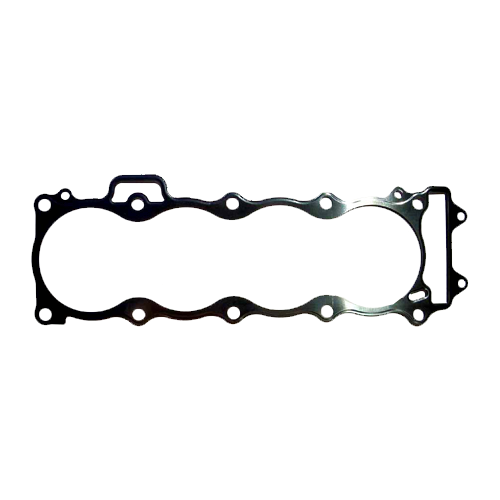

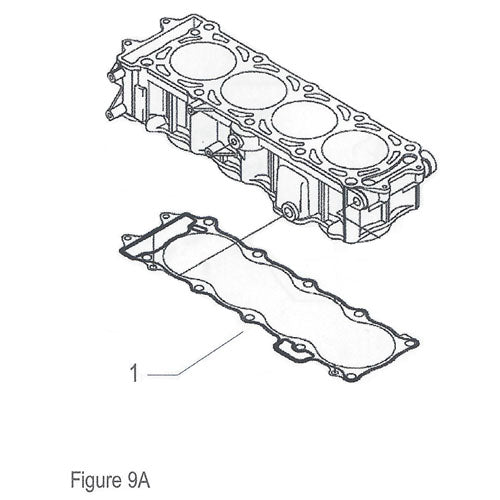

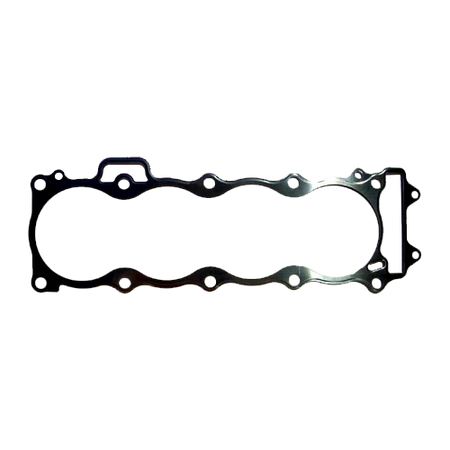

| Base Gasket | 9A | 1 | 1 | 11061-3708 | 007-334 |

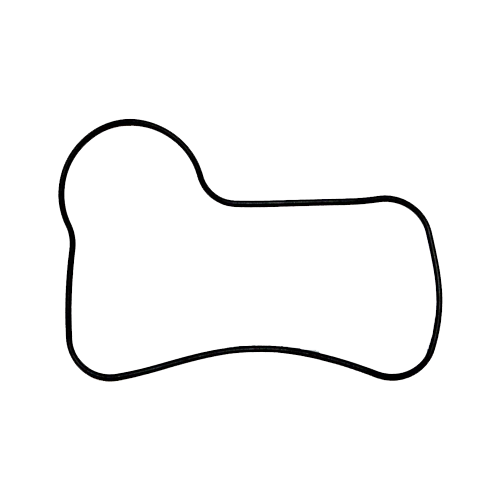

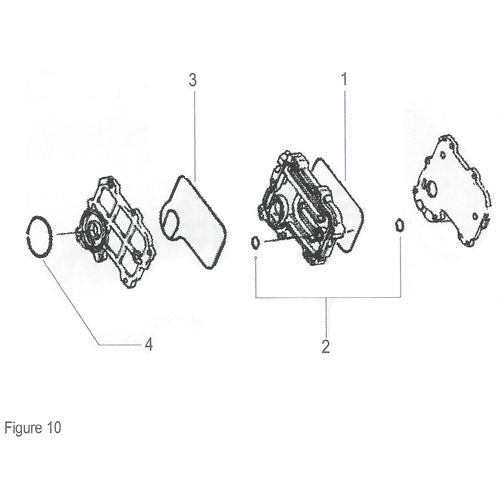

| Oil Cooler Body O-Ring 1 | 10 | 1 | 1 | 92055-3772 | 008-429-10 |

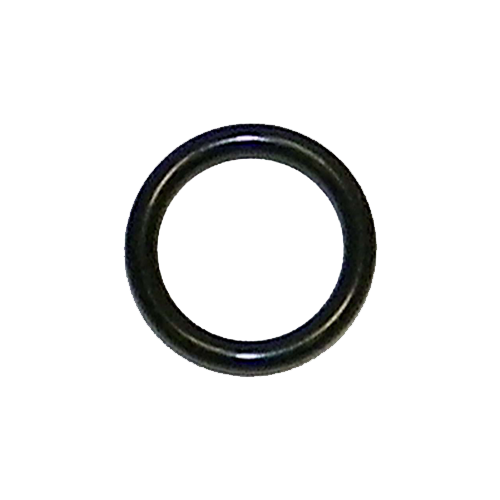

| Oil Pump Housing O-Ring 1 | 10 | 2 | 2 | 670D2014 | 008-422-04 |

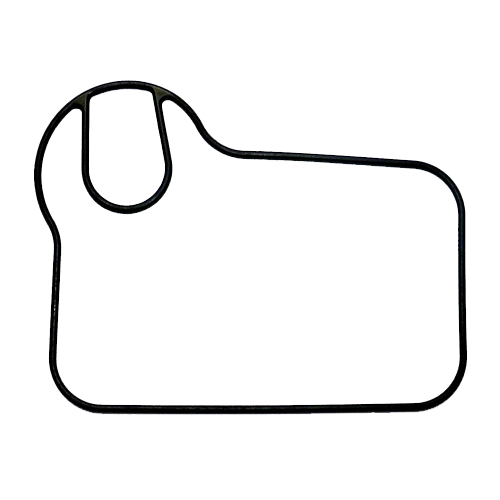

| Oil Cooler Body O-Ring 2 | 10 | 3 | 1 | 92055-3770 | 008-429-11 |

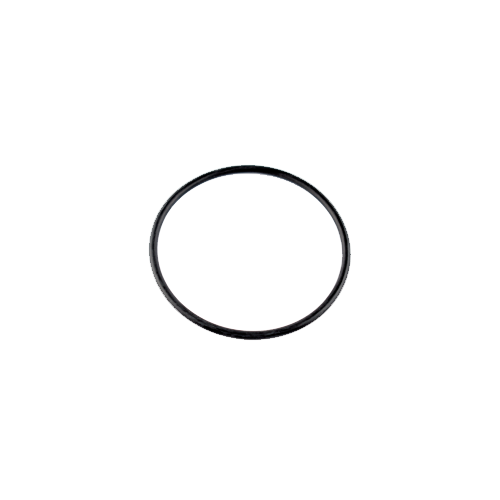

| Oil Cooler Body O-Ring 3 | 10 | 4 | 1 | 92055-3767 | 008-429-12 |

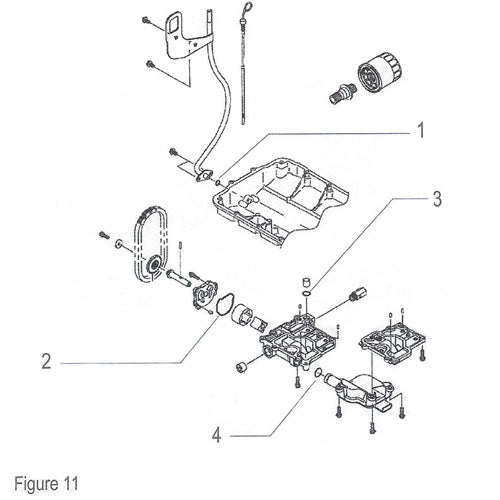

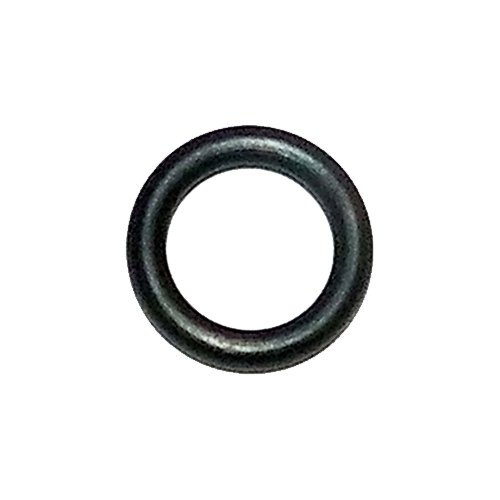

| Dip Stick O-Ring | 11 | 1 | 1 | 92055-1150 | 008-422-03 |

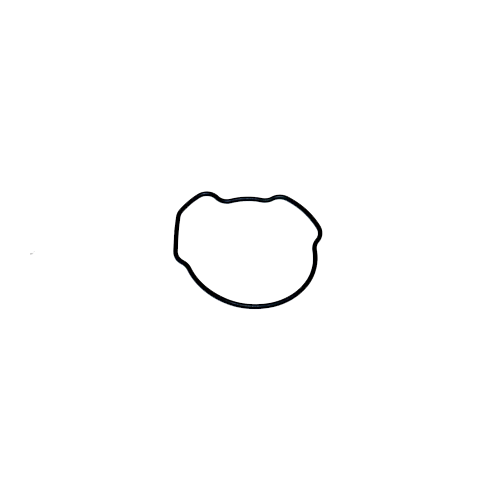

| Oil Pump Housing O-Ring | 11 | 2 | 1 | 92055-3764 | 008-429-09 |
| Crankcase Dowl O-Ring | 11 | 3 | 1 | 670D2014 | 008-422-04 |
| Pick Up Tube O-Ring | 11 | 4 | 1 | 92055-1332 | 008-562 |

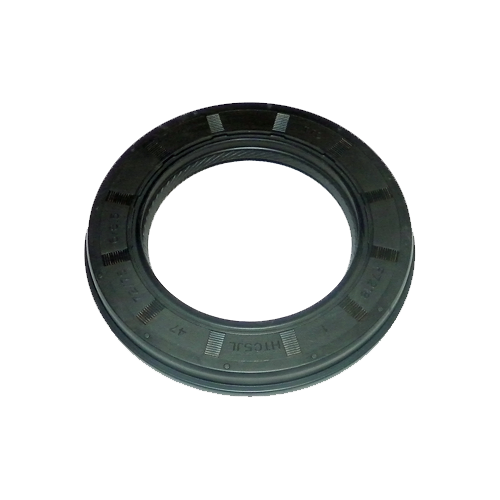

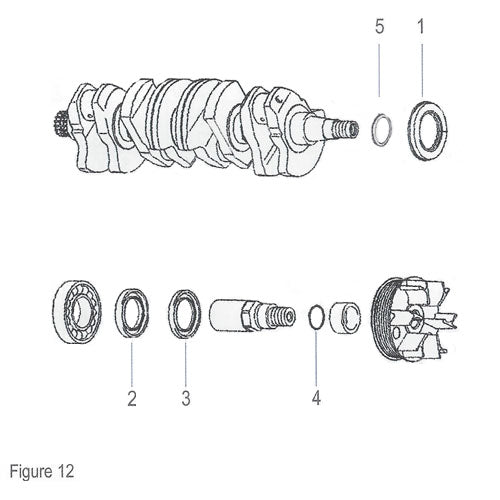

| Mag Side Crankshaft Oil Seal | 12 | 1 | 1 | 92049-3736 | 009-743T |

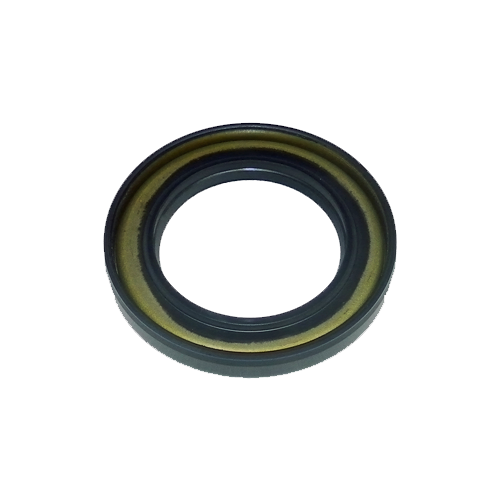

| PTO Inner Crankshaft Oil Seal | 12 | 2 | 1 | 92049-3737 | 009-744T |

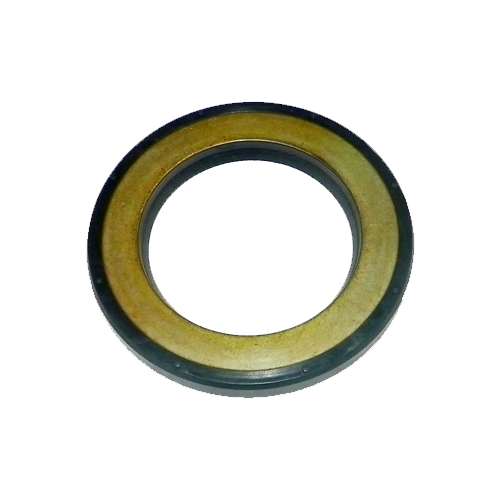

| PTO Outer Crankshaft Oil Seal | 12 | 3 | 1 | 92049-3738 | 009-745T |

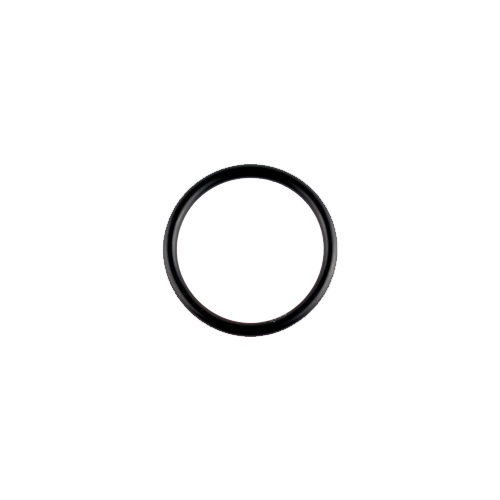

| Crankshaft Coupler O-Ring | 12 | 4 | 1 | 92055-091 | 008-420-03 |

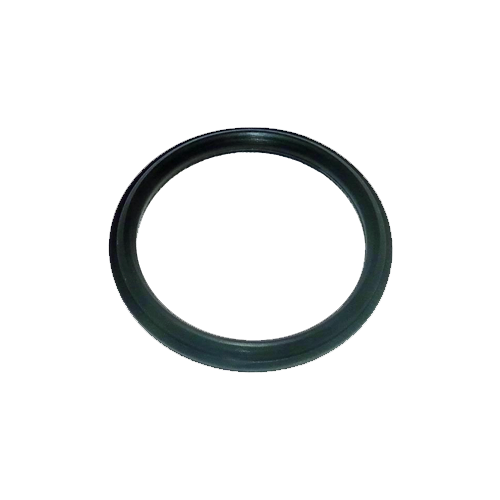

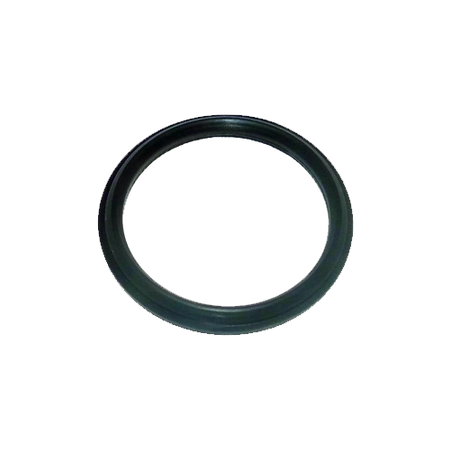

| Crankshaft Generator O-Ring | 12 | 5 | 1 | 92055-3769 | 008-420-04 |

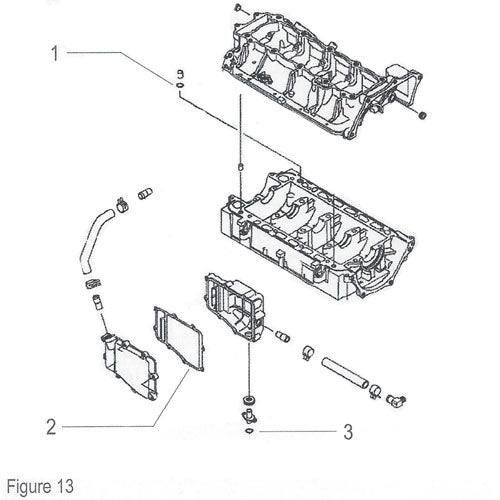

| Oil Pump Housing O-Ring 2 | 13 | 1 | 1 | 670D2014 | 008-422-04 |

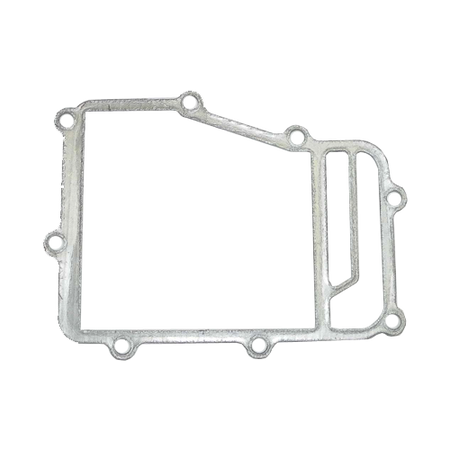

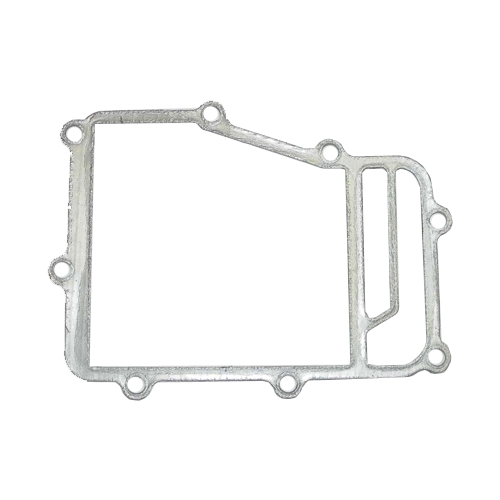

| Breather Case Gasket | 13 | 2 | 1 | 11061-3715 | 007-309-01 |

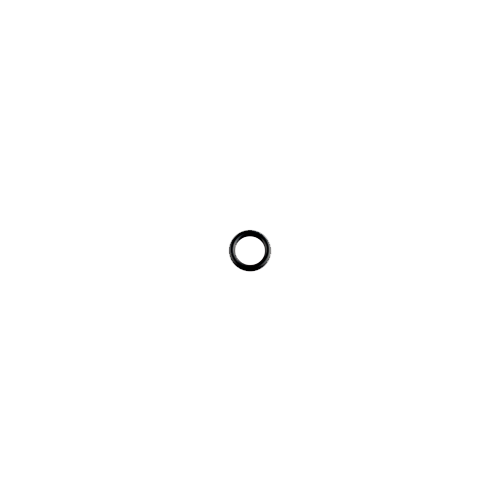

| Crankcase O-Ring | 13 | 3 | 1 | 92055-3768 | 008-422-05 |

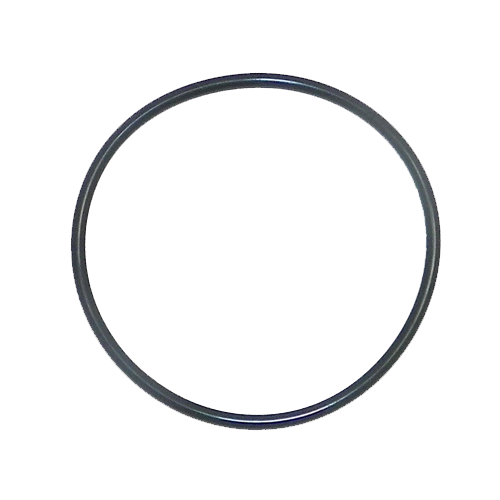

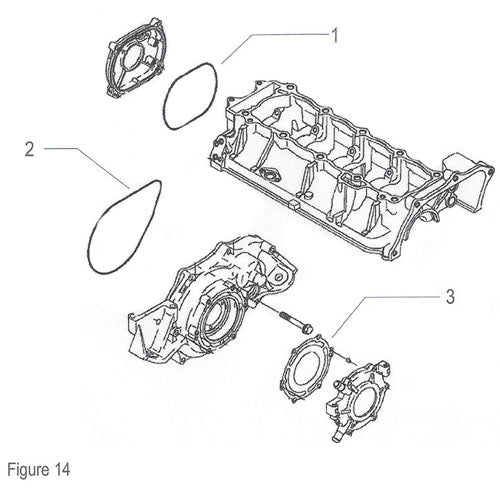

| Engine Cover O-Ring 1 | 14 | 1 | 1 | 92055-3762 | 008-420-01 |

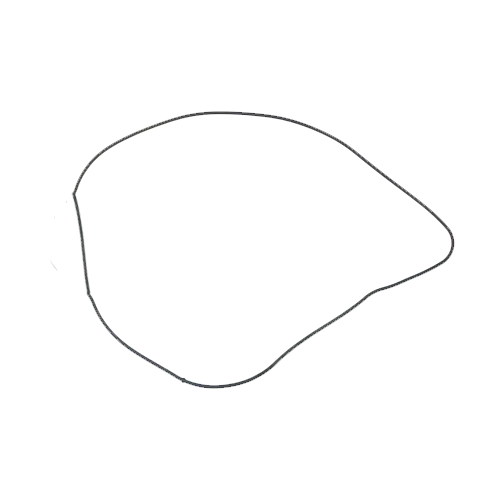

| Engine Cover O-Ring 2 | 14 | 2 | 1 | 92055-3761 | 008-420-02 |

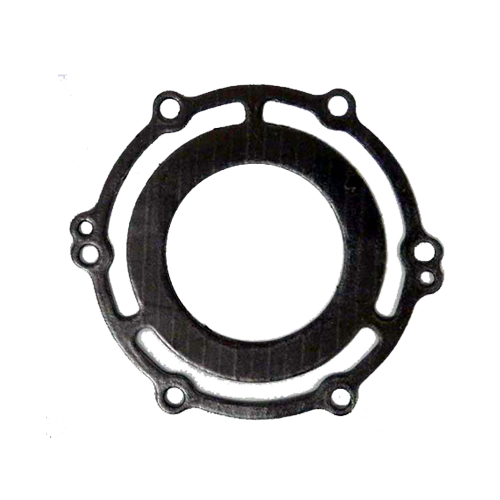

| Output Cover Gasket | 14 | 3 | 1 | 11061-3709 | 007-315-03 |

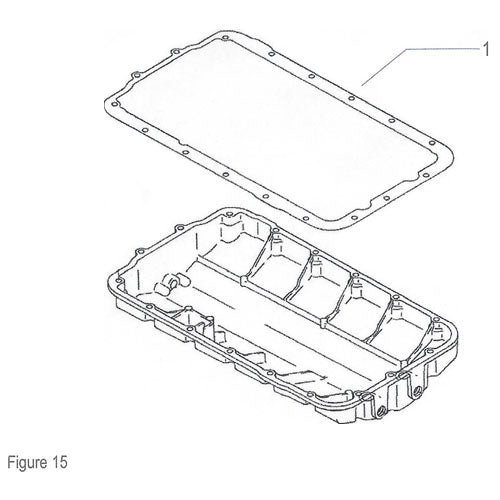

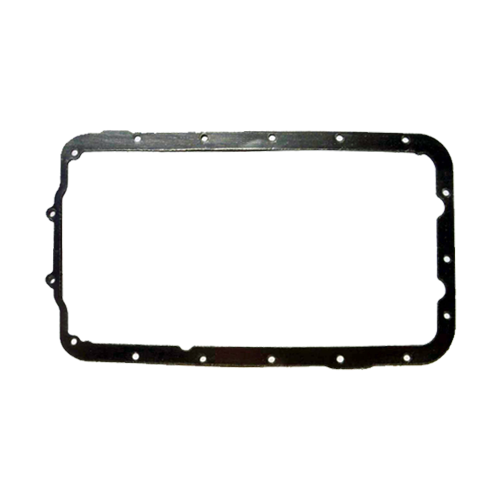

| Oil Pan Gasket | 15 | 1 | 1 | 11061-3710 | 007-327 |
- 2003 Kawasaki STX-12F 1200 Gaskets
- 2004 Kawasaki STX-12F 1200 Gaskets
- 2005 Kawasaki STX-12F 1200 Gaskets
- 2006 Kawasaki STX-12F 1200 Gaskets
- 2007 Kawasaki STX-12F 1200 Gaskets
- 2004 Kawasaki STX-15F 1500 Gaskets
- 2005 Kawasaki STX-15F 1500 Gaskets
- 2006 Kawasaki STX-15F 1500 Gaskets
- 2007 Kawasaki STX-15F 1500 Gaskets
- 2008 Kawasaki STX-15F 1500 Gaskets
- 2009 Kawasaki STX-15F 1500 Gaskets
- 2010 Kawasaki STX-15F 1500 Gaskets
- 2011 Kawasaki STX-15F 1500 Gaskets
- 2012 Kawasaki STX-15F 1500 Gaskets
- 2013 Kawasaki STX-15F 1500 Gaskets
- 2014 Kawasaki STX-15F 1500 Gaskets
- 2015 Kawasaki STX-15F 1500 Gaskets
- 2016 Kawasaki STX-15F 1500 Gaskets
- 2017 Kawasaki STX-15F 1500 Gaskets
- 2018 Kawasaki STX-15F 1500 Gaskets
- 2019 Kawasaki STX-15F 1500 Gaskets
