Kawasaki 750 ZXi '95-97 Individual Gaskets

$20.72
SKU 007-419-01

Kawasaki 750 ZXi '95-97 Individual Gaskets.
Stock Carburetor: Mikuni 40mm I Series Dual Carb.
Note: All Gaskets Sold Each.

Ref. # Description OEM # Qty. Req.

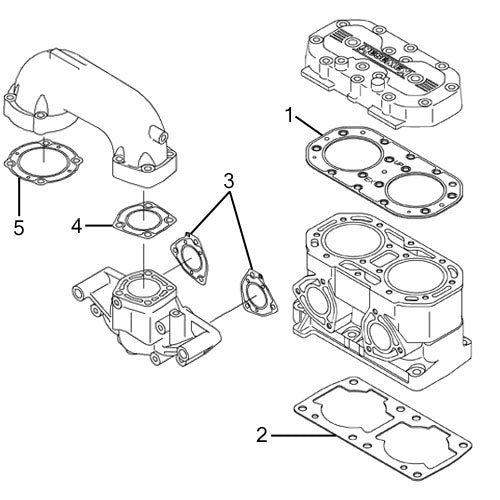

1 Head Gasket (Stainless Steel) 11004-3714 1
2 Cylinder Base Gasket 11009-3711 1
3 Exhaust Manifold To Cylinder Gasket 11060-3759 2
4 Exhaust Manifold To Head Pipe Gasket 11060-3754 1
5 Exhaust Pipe Gasket 11060-3755 1

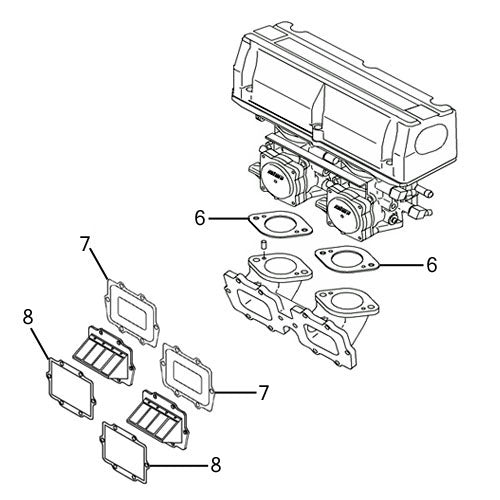

6 Carb. Base Gasket - Keihin CDK II 40mm 11060-3758 2
7 Reed Valve To Intake Manifold 11060-3757 2
8 Reed Gasket To Crankcase 11060-3717 2

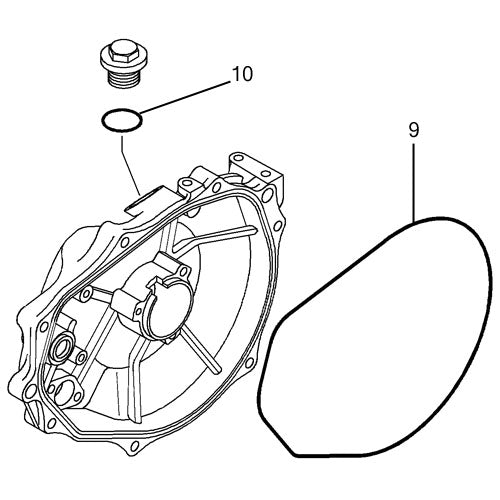

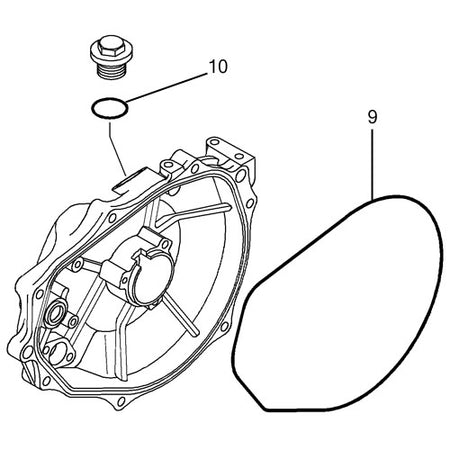

9 Flywheel Generator Cover O-Ring 92055-3712 1
10 Oil Cap O-Ring 92055-049 1
N/S Crankshaft Oil Seal Kit - 1 Kit
NOTE: N/S - Item Not Shown On Diagram.
