Kawasaki 750 SXi Pro '98-02 Individual Gaskets

$20.72
SKU 007-419-01

Kawasaki 750 SXi Pro '98-02 Individual Gaskets.
Stock Carburetor: Mikuni 40mm I Series Dual Carb.
Note: All Gaskets Sold Each.

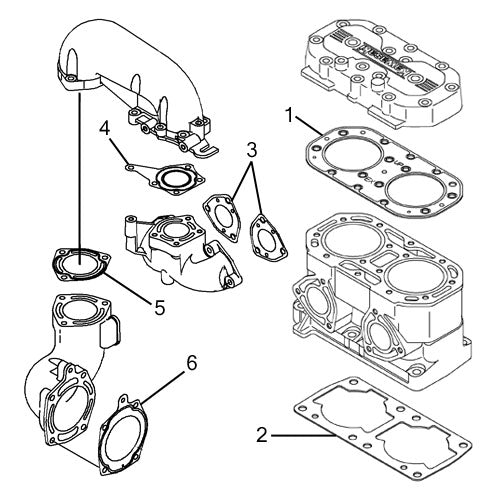

Ref. # Description OEM # Qty. Req.
1 Head Gasket (Stainless Steel) 11004-3714 1
2 Cylinder Base Gasket 11009-3711 1
3 Exhaust Manifold To Cylinder Gasket 11060-3721 2
4 Exhaust Manifold To Head Pipe Gasket 11060-3712 1
5 Exhaust Pipe Gasket 11060-3714 1
6 Muffler Gasket 11060-3713 1

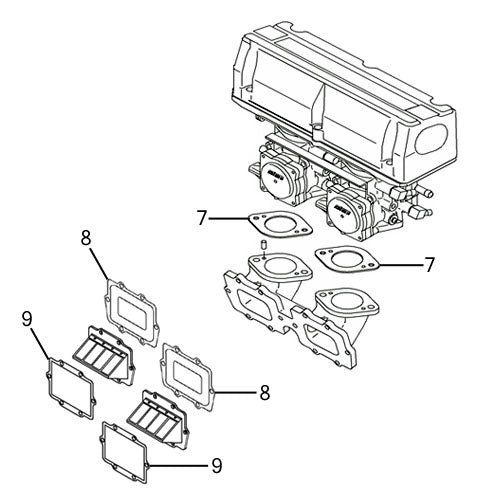

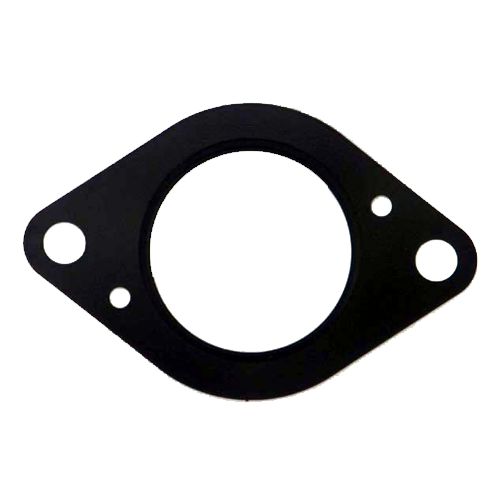

7 Carb. Base Gasket - Mikuni 40mm I-Series 11060-3761 2
8 Reed Valve To Intake Manifold 11060-3757 2
9 Reed Valve To Crankcase Gasket 11060-3717 2

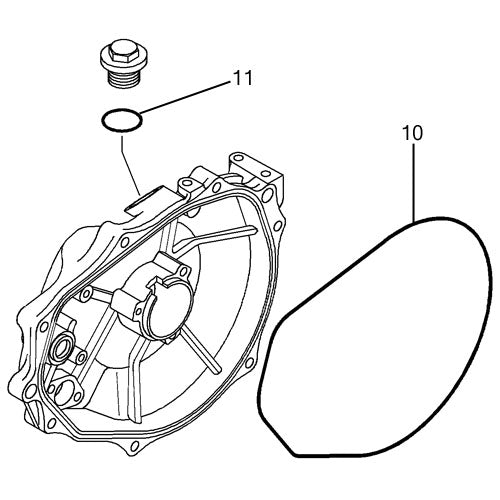

10 Flywheel Generator Cover O-Ring 92055-3712 1
11 Oil Cap O-Ring 92055-049 1
N/S Crankshaft Oil Seal Kit - 1 Kit
NOTE: N/S - Item Not Shown On Diagram.
