Kawasaki 750 SX '92-95 Individual Gaskets

$20.72
SKU 007-419-01

Kawasaki 750 SX '92-95 Individual Gaskets.
Stock Carburetor: Keihin CDK 40/34 38mm Single Carb.
Note: All Gaskets Sold Each.

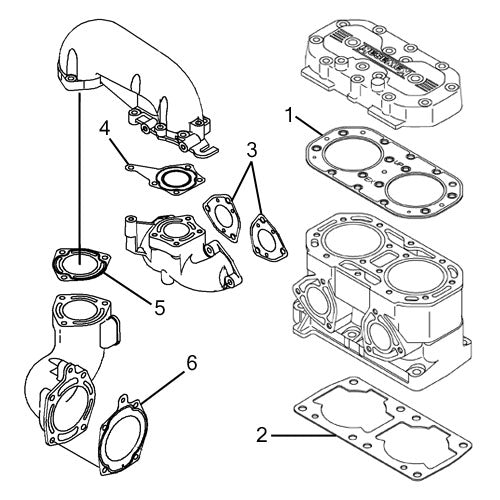

Ref. # Description OEM # Qty. Req.
1 Head Gasket (Stainless Steel) 11004-3714 1
2 Cylinder Base Gasket 11009-3711 1
3 Exhaust Manifold To Cylinder Gasket 11060-3721 2
4 Exhaust Manifold To Head Pipe Gasket 11060-3712 1
5 Exhaust Pipe Gasket 11060-3714 1
6 Muffler Gasket 11060-3713 1

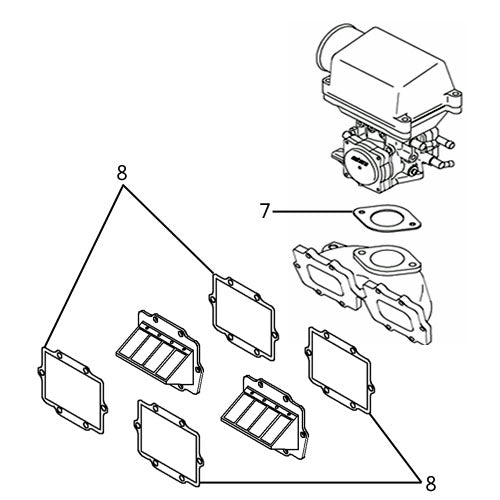

7 Carb. Base Gasket - Keihin CDK 40/34 38mm 11060-3716 1
8 Reed Valve Gasket 11060-3717 4

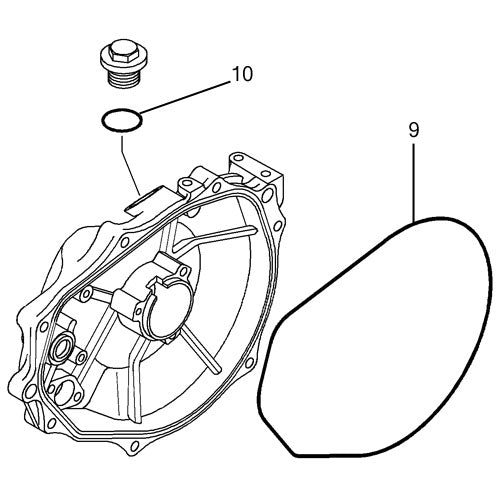

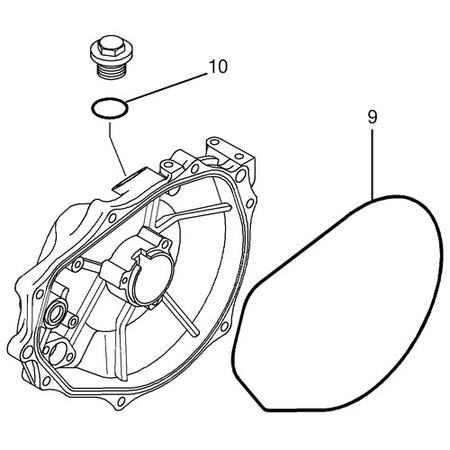

9 Flywheel Generator Cover O-Ring 92055-3712 1
10 Oil Cap O-Ring 92055-049 1
N/S Crankshaft Oil Seal Kit - 1 Kit
NOTE: N/S - Item Not Shown On Diagram.
