Kawasaki 750 STX '98 Individual Gaskets

$20.72
SKU 007-419-01

Kawasaki 750 STX '98 Individual Gaskets.
Stock Carburetor: Mikuni 40mm I Series Dual Carb.
Note: All Gaskets Sold Each.

Ref. # Description OEM # Qty. Req.

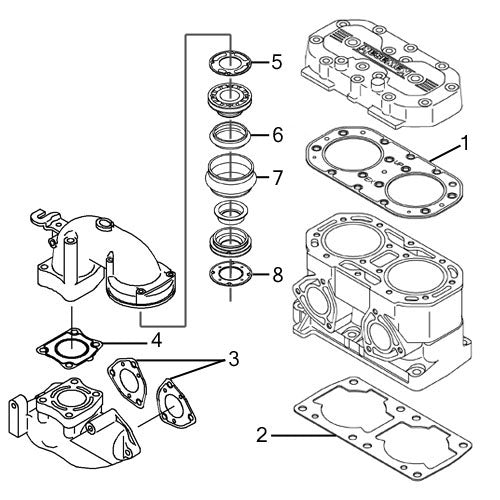

1 Head Gasket (Stainless Steel) 11004-3714 1
2 Cylinder Base Gasket 11009-3711 1
3 Exhaust Manifold To Cylinder Gasket 11060-3759 2
4 Exhaust Manifold To Head Pipe Gasket 92180-3704 1
5 Exhaust Head Pipe To Chamber Gasket 11060-3763 1
6 Exhaust Seal 92093-3744 1
7 Exhaust Joint Tube 92191-3733 1
8 Muffler Gasket 11060-3770 1

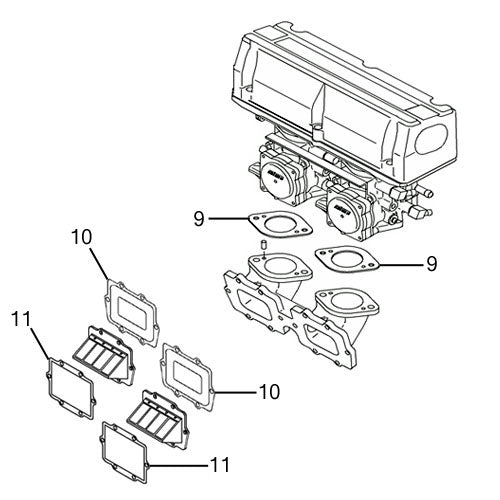

9 Carb. Base Gasket - Keihin CDK II 40mm 11060-3758 2
10 Reed Valve To Intake Manifold 11060-3757 2
11 Reed Gasket To Crankcase 11060-3717 2

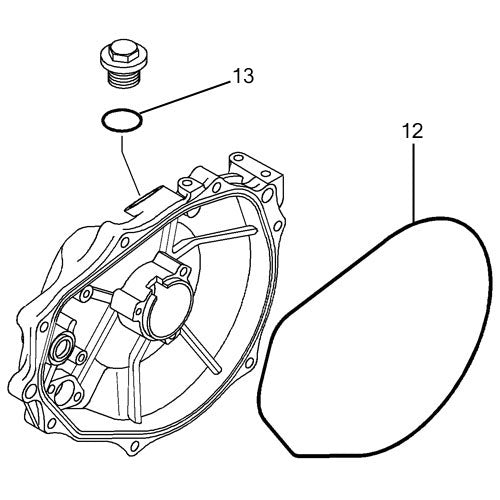

12 Flywheel Generator Cover O-Ring 92055-3712 1
13 Oil Cap O-Ring 92055-049 1
N/S Crankshaft Oil Seal Kit - 1 Kit
NOTE: N/S - Item Not Shown On Diagram.
