Kawasaki 750 ST '94-95 Individual Gaskets

$20.72
SKU 007-419-01

Kawasaki 750 ST '94-95 Individual Gaskets.
Stock Carburetor: Keihin CDK 40/34 38mm Single Carb.
Note: All Gaskets Sold Each.

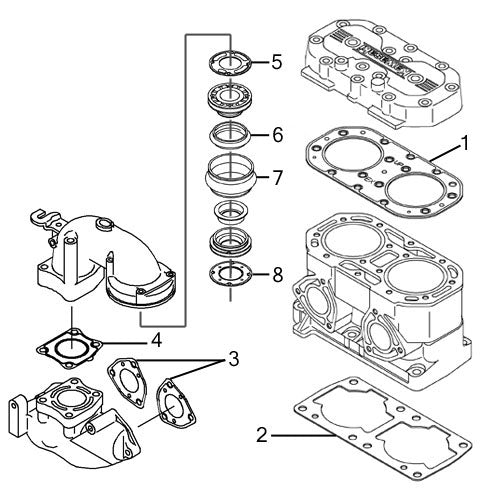

Ref. # Description OEM # Qty. Req.

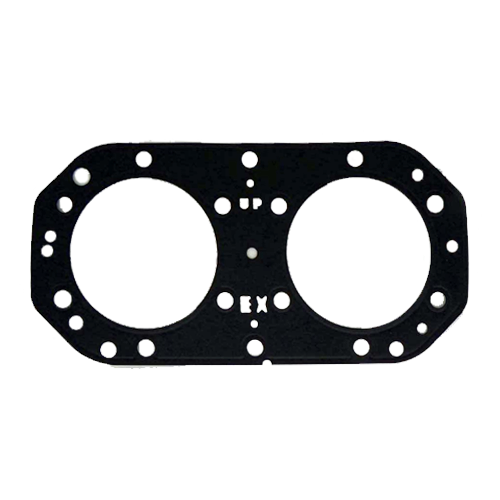

1 Head Gasket (Stainless Steel) 11004-3714 1

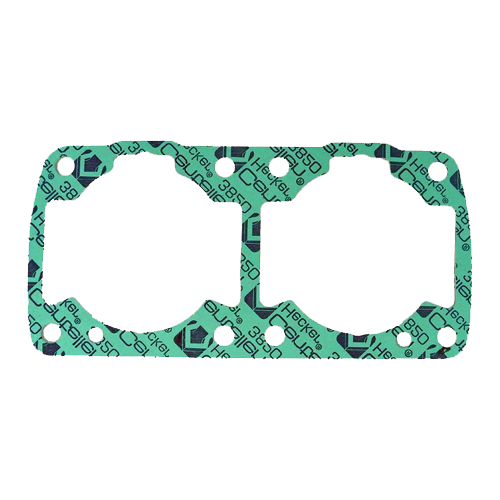

2 Cylinder Base Gasket 11009-3711 1

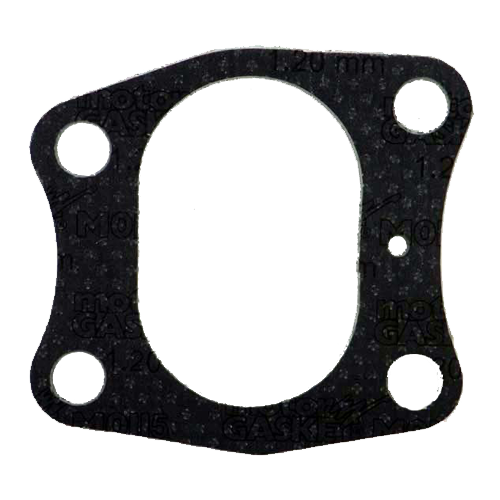

3 Exhaust Manifold To Cylinder Gasket 11060-3721 2
4 Exhaust Manifold To Head Pipe Gasket 11060-3732 1
5 Exhaust Pipe Gasket 11060-3718 1

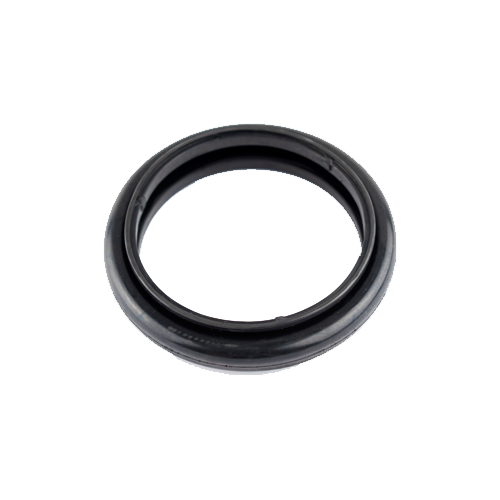

6 Exhaust Seal 92093-3738 1

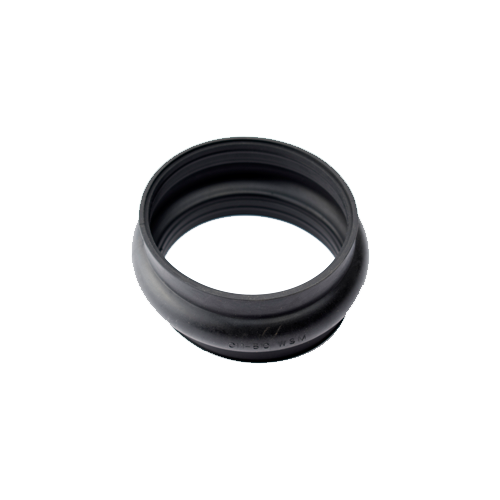

7 Exhaust Joint Tube 92190-3712 1
8 Muffler Gasket 11060-3724 1

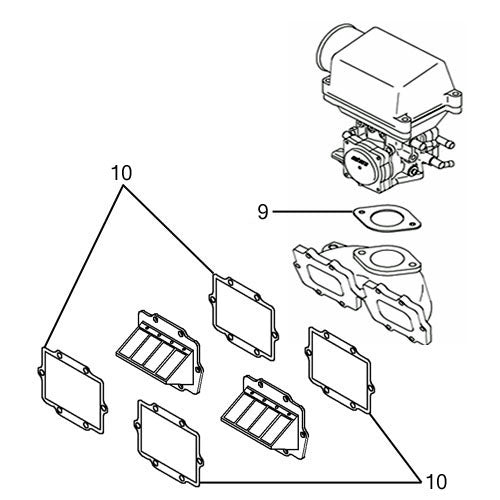

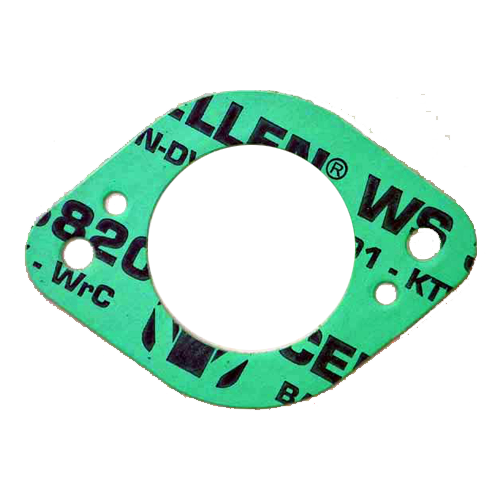

9 Carb. Base Gasket - Keihin CDK 40/34 38mm 11060-3716 1
10 Reed Valve Gasket 11060-3717 4

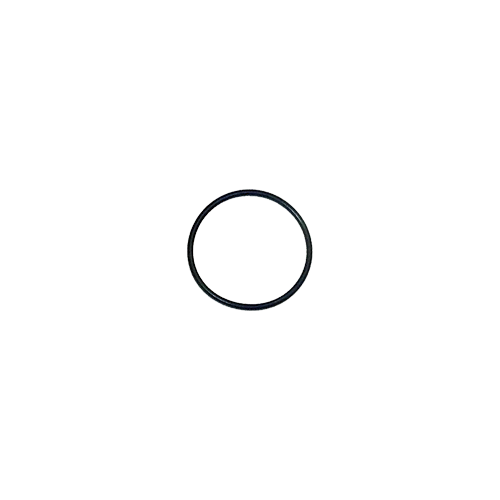

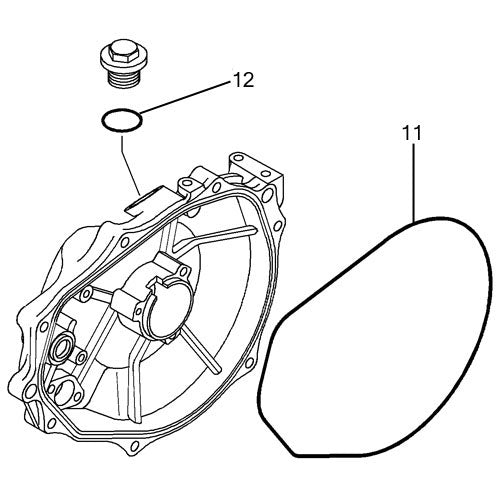

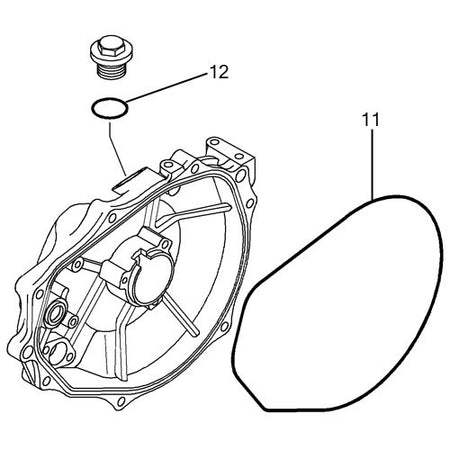

11 Flywheel Generator Cover O-Ring 92055-3712 1
12 Oil Cap O-Ring 92055-049 1

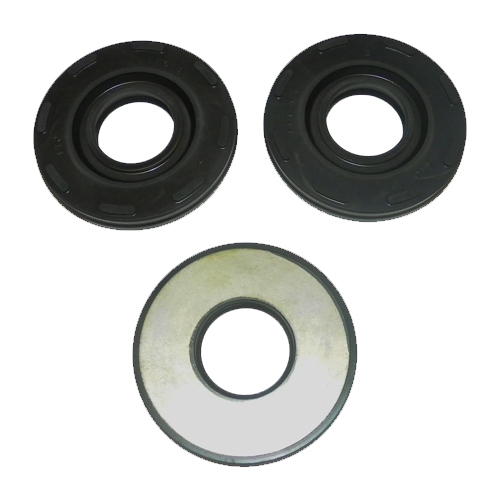

N/S Crankshaft Oil Seal Kit - 1 Kit
NOTE: N/S - Item Not Shown On Diagram.
