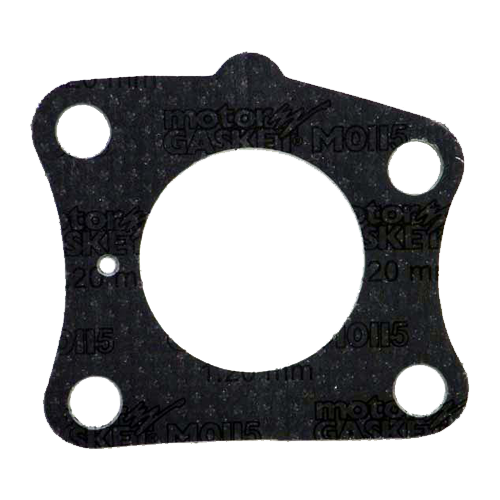

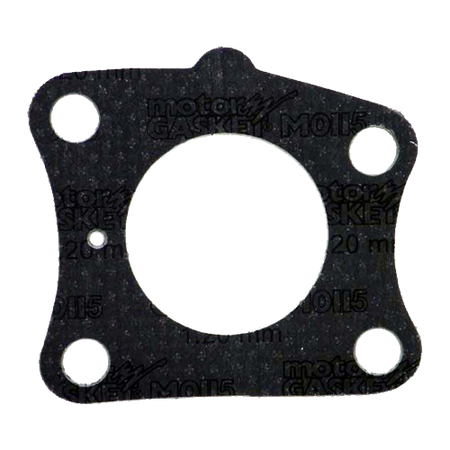

Kawasaki 750 SS '92-97 & 750SSXi '93-98 Individual Gaskets.
Stock Carburetor: Keihin CDK 40/34 38mm Single Carb.
Note: All Gaskets Sold Each.
| Ref. # | Description | OEM # | Qty. Req. |

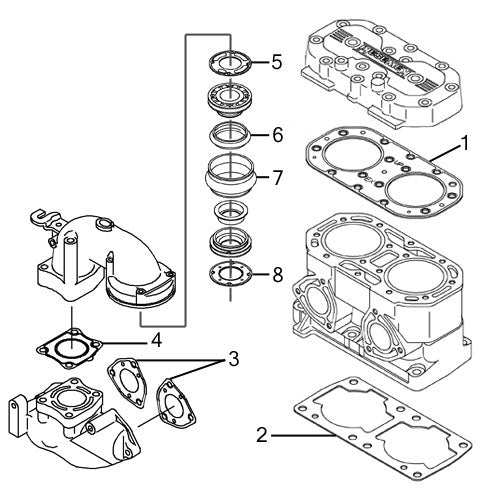

| 1 | Head Gasket (Stainless Steel) | 11004-3714 | 1 |
| 2 | Cylinder Base Gasket | 11009-3711 | 1 |
| 3 | Exhaust Manifold To Cylinder Gasket | 11060-3721 | 2 |
| 4A | Exhaust Manifold To Head Pipe Gasket SS '92-93 Models | 11060-3720 | 1 |
| 4B | Exhaust Manifold To Head Pipe Gasket SS '94-98 Models | 11060-3732 | 1 |
| 4C | Exhaust Manifold To Head Pipe Gasket SSXi '93-98 Models | 11060-3732 | 1 |
| 5 | Exhaust Pipe Gasket | 11060-3718 | 1 |
| 6 | Exhaust Seal | 92093-3738 | 1 |
| 7 | Exhaust Joint Tube | 92190-3712 | 1 |
| 8 | Muffler Gasket | 11060-3724 | 1 |

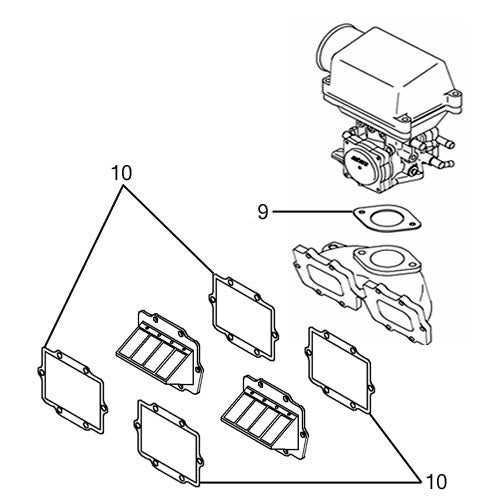

| 9 | Carb. Base Gasket - Keihin CDK 40/34 38mm | 11060-3716 | 1 |
| 10 | Reed Valve Gasket | 11060-3717 | 4 |

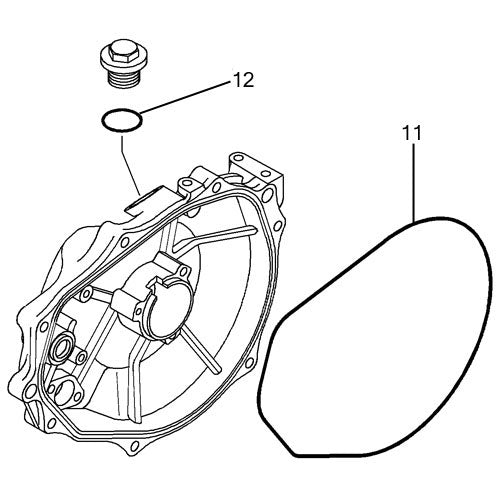

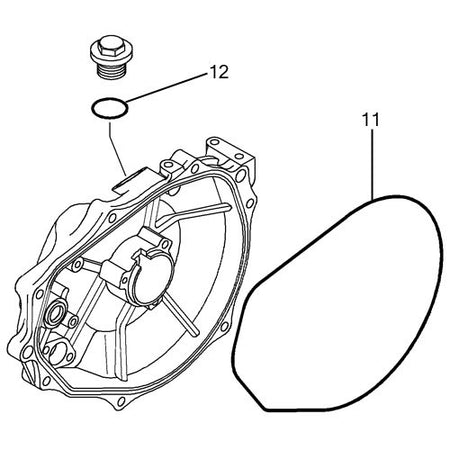

| 11 | Flywheel Generator Cover O-Ring | 92055-3712 | 1 |
| 12 | Oil Cap O-Ring | 92055-049 | 1 |
| N/S | Crankshaft Oil Seal Kit | - | 1 Kit |
| NOTE: N/S - Item Not Shown On Diagram. | |||
