Kawasaki 650 X2 '89-95 Individual Gaskets

$22.01
SKU 007-406

Kawasaki X2 650 '89-95 Individual Gaskets.
Stock Carburetor: Keihin CDK 28mm Single Carb '89-90 Models.
Stock Carburetor: Keihin CDK 38/32mm Single Carb '90-95 Models.
Note: All Gaskets Are Sold Each.

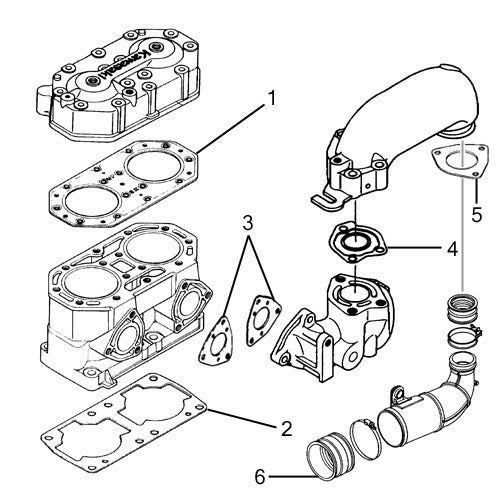

Ref. # Description OEM # Qty. Req.

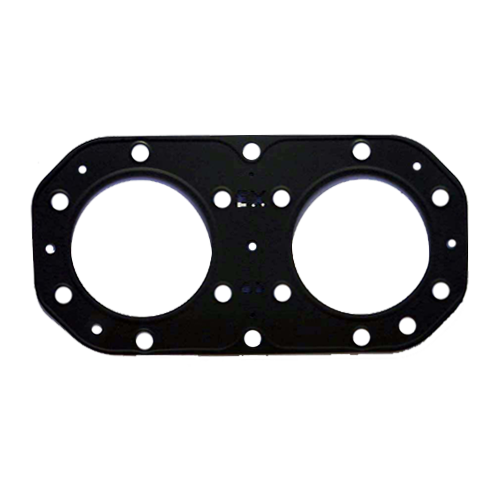

1 Head Gasket (Stainless Steel) 11004-3710 1

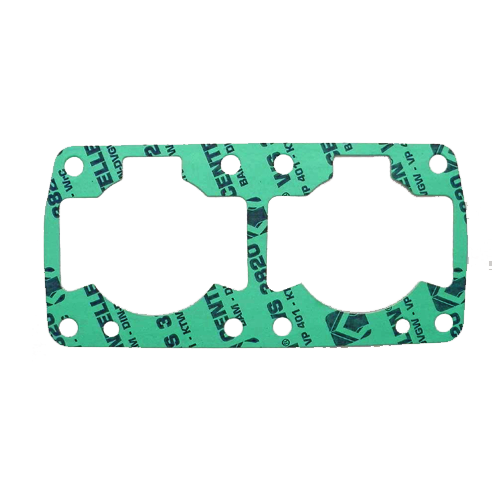

2 Cylinder Base Gasket 11009-3780 1

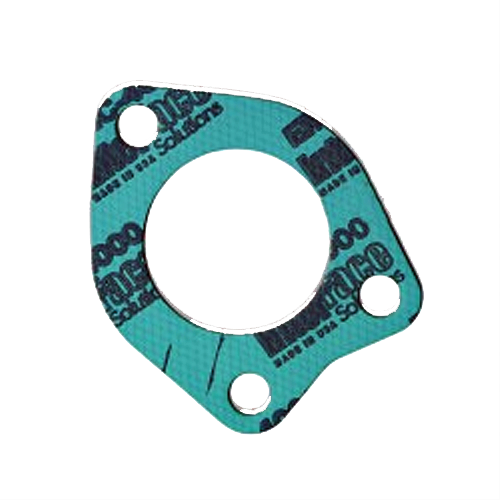

3 Exhaust Manifold To Cylinder Gasket 11060-3721 2
4 Exhaust Manifold To Head Pipe Gasket 11009-3752 1
5 Exhaust Head Pipe To Chamber '86-88 Models 11009-3724 1

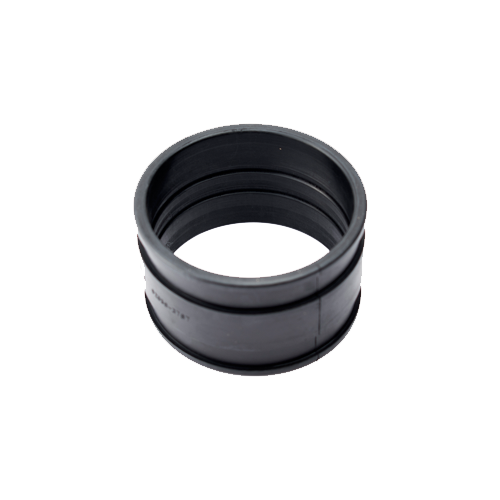

6 Exhaust Muffler Connecting Coupler '87-94 Models 92059-3767 1

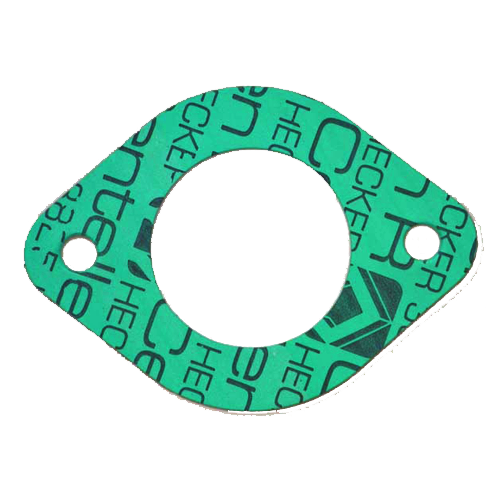

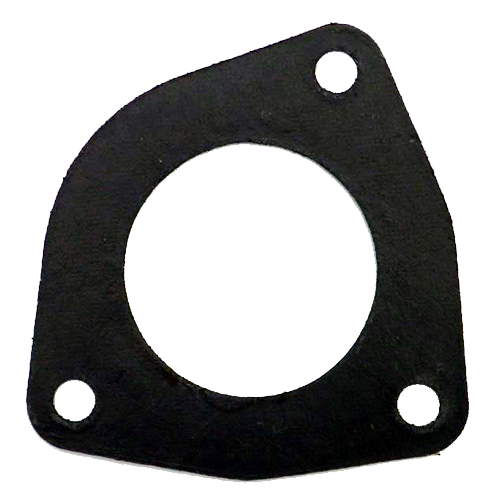

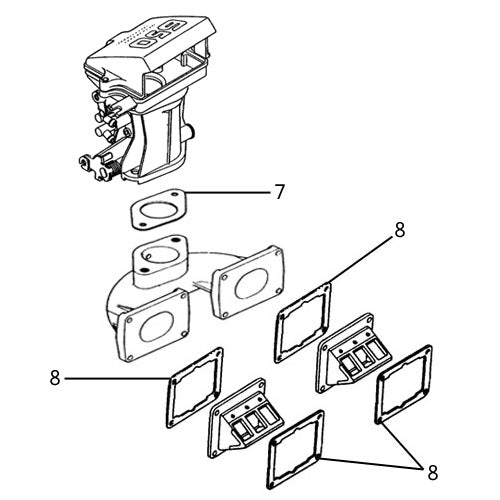

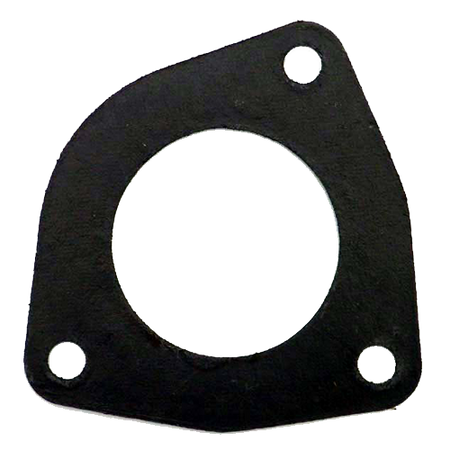

7A Carb. Base Gasket - Keihin CDK 28mm '87-90 Models 11009-3747 1
7B Carb. Base Gasket - Keihin CDK 38/32mm '90-95 Models 11060-3716 1

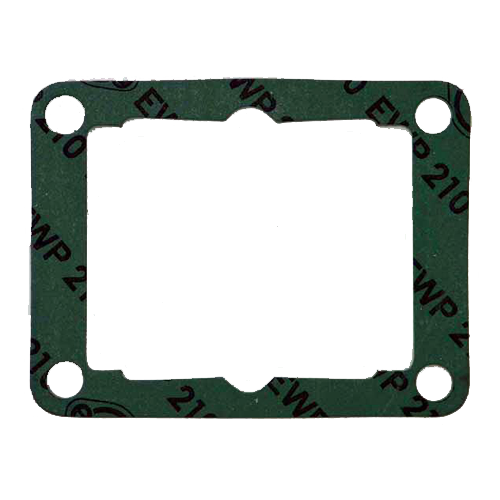

9 Reed Valve Gasket 11060-3703 4
10 Flywheel Generator Cover O-Ring 92055-3712 1
11 Oil Cap O-Ring 92055-515 1

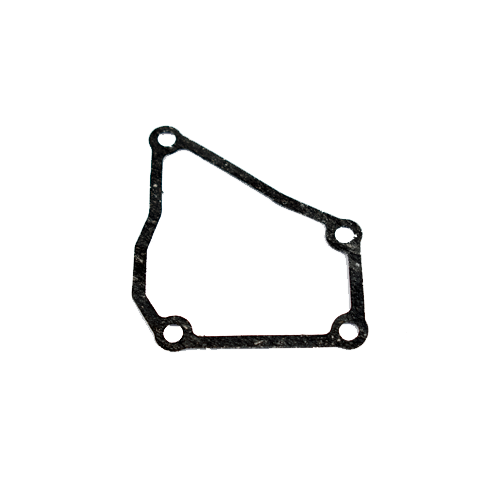

12 Electric Case Gasket '86-90 Models 11060-3708 1
N/S Crankshaft Oil Seal Kit - 1 Kit
NOTE: N/S - Item Not Shown On Diagram.
