Kawasaki 650 SX '87-95 Individual Gaskets

$22.01
SKU 007-406

Kawasaki 650SX '87-95 Individual Gaskets.
Stock Carburetor: Keihin CDK 28mm Single Carb '87-90 Models.
Stock Carburetor: Keihin CDK 38/32mm Single Carb '90-95 Models.
Note: All Gaskets Are Sold Each.

Ref. # Description OEM # Qty. Req.

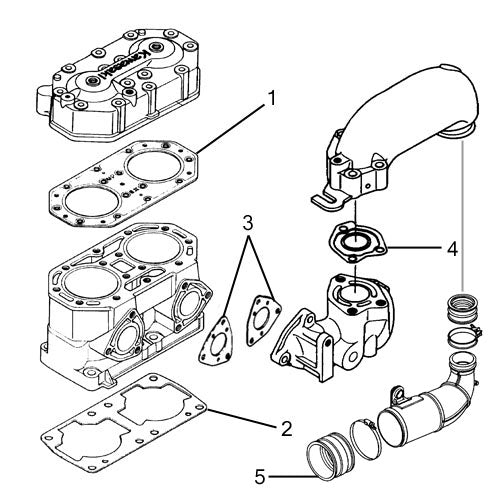

1 Head Gasket (Stainless Steel) 11004-3710 1
2 Cylinder Base Gasket 11009-3780 1
3 Exhaust Manifold To Cylinder Gasket 11060-3721 2
4 Exhaust Manifold To Head Pipe Gasket 11009-3752 1
5 Exhaust Muffler Connecting Coupler 92059-3767 1

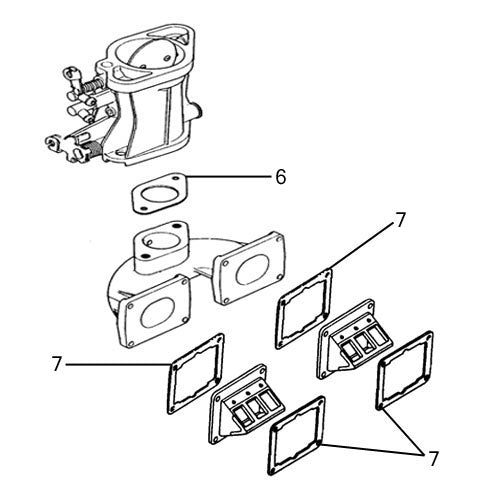

6A Carb. Base Gasket - Keihin CDK 28mm '87-90 Models 11009-3747 1
6B Carb. Base Gasket - Keihin CDK 38/32mm '90-95 Models 11060-3716 1
7 Reed Valve Gasket 11060-3703 4

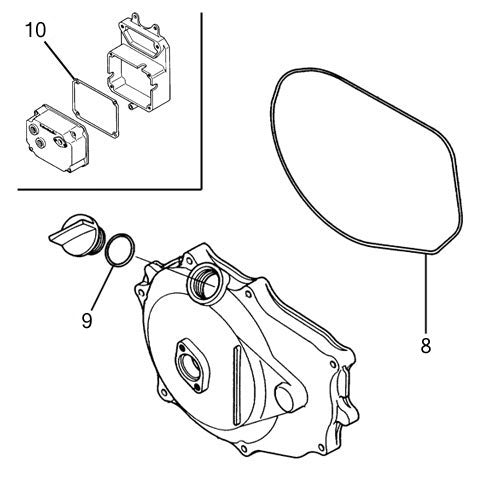

8 Flywheel Generator Cover O-Ring 92055-3712 1
9 Oil Cap O-Ring 92055-515 1

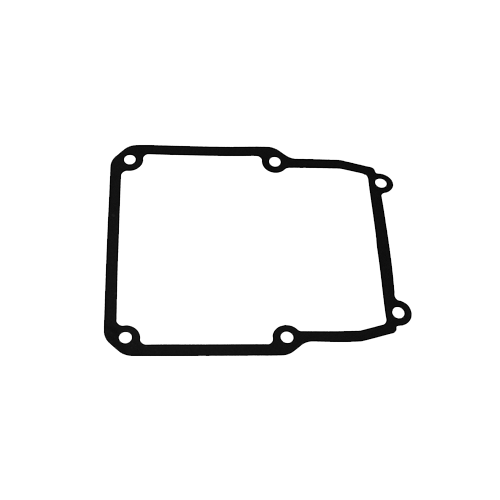

10 Electric Case Gasket '87-93 Models 11060-3707 1
N/S Crankshaft Oil Seal Kit - 1 Kit
NOTE: N/S - Item Not Shown On Diagram.
