Kawasaki 650 TS '89-95 Individual Gaskets

$22.01
SKU 007-406

Kawasaki 650 TS '89-95 Individual Gaskets.
Stock Carburetor: Keihin CDK 28mm Single Carb '89-90 Models.
Stock Carburetor: Keihin CDK 38/32mm Single Carb '90-95 Models.
Note: All Gaskets Sold Each.

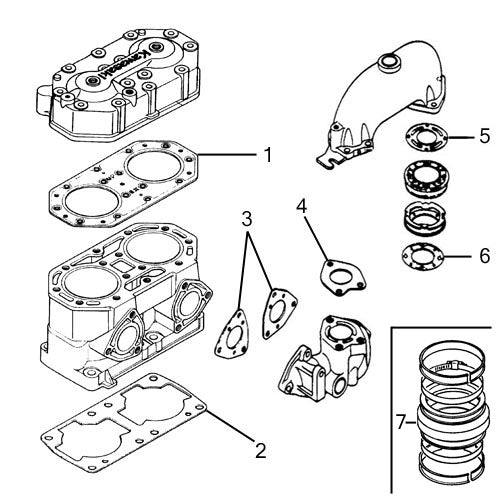

Ref. # Description OEM # Qty. Req.

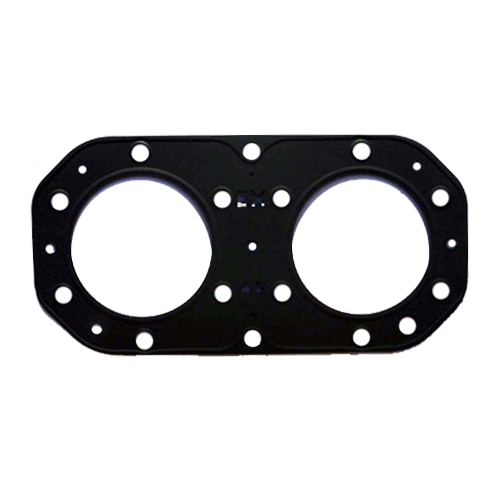

1 Head Gasket (Stainless Steel) 11004-3714 1

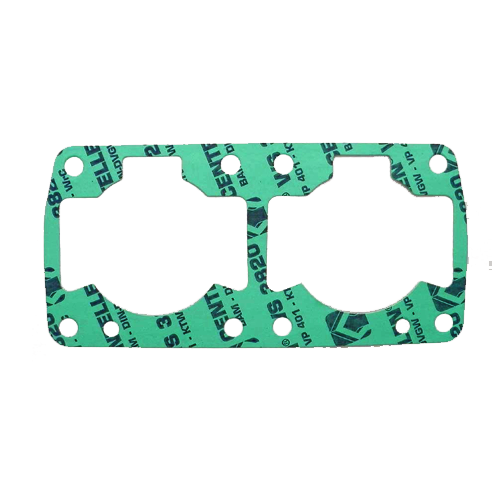

2 Cylinder Base Gasket 11009-3711 1
3 Exhaust Manifold To Cylinder Gasket 11060-3721 2

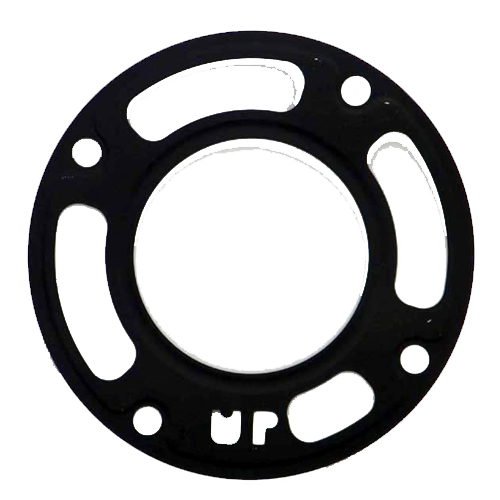

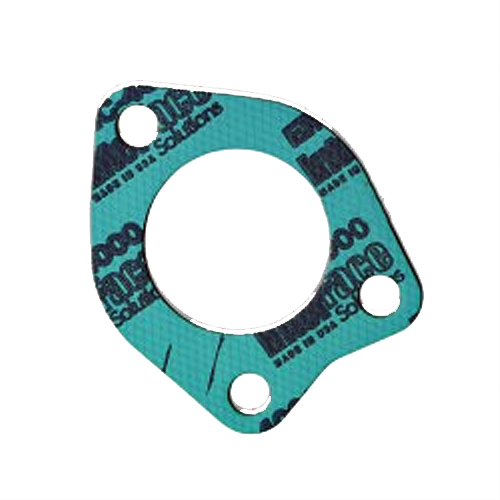

4 Exhaust Manifold To Head Pipe Gasket 11009-3725 1
5A Exhaust Head Pipe To Chamber Gasket '89-90 11009-3755 1
5B Exhaust Head Pipe To Chamber Gasket '91-96 11009-3718 1
6 Exhaust Pipe Gasket 11060-3718 1
7 Exhaust Joint Tube 92190-3712 1

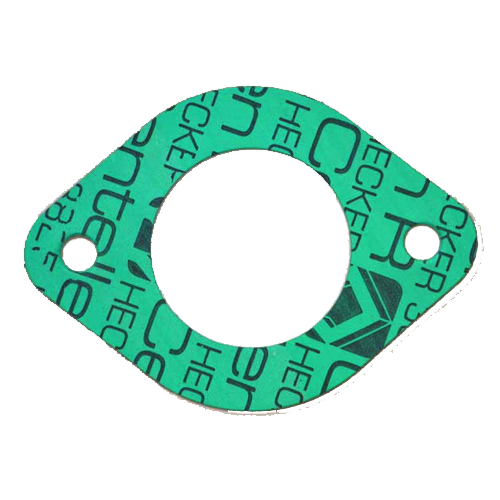

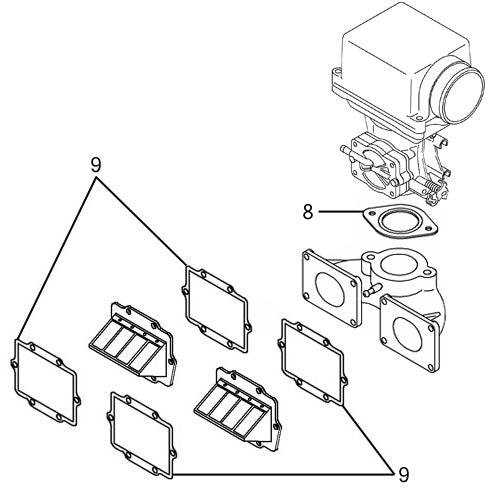

8A Carb. Base Gasket - Keihin CDK 28mm '89-90 Models 11009-3747 1
8B Carb. Base Gasket - Keihin CDK 38/32mm '91-95 Models 11060-3716 1

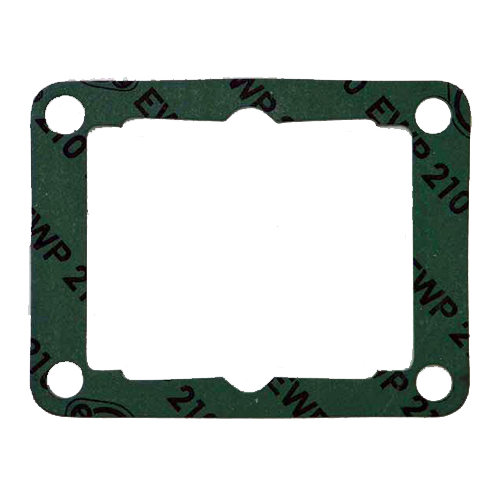

9 Reed Valve Gasket 11060-3717 4

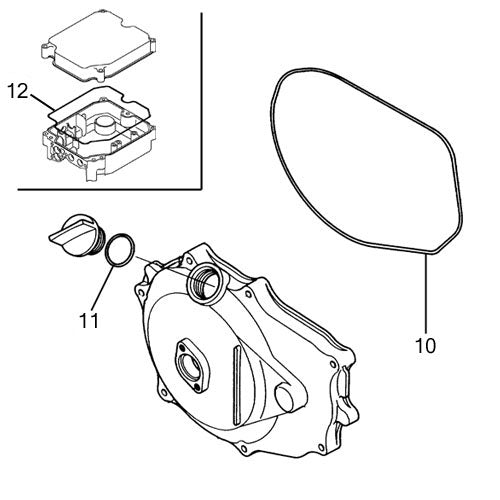

10 Flywheel Generator Cover O-Ring 92055-3712 1
11 Oil Cap O-Ring 92055-049 1
N/S Crankshaft Oil Seal Kit - 1 Kit
NOTE: N/S - Item Not Shown On Diagram.
