Kawasaki 550 Piston Rings - 2-Stroke

$17.87
SKU 010-912

Highly functional Riken Piston Rings fit Original OEM, WSM Performance and Pro X Performance pistons. Meticulous product design and advanced manufacturing backed by a strong production system make Riken Piston Rings the top choice for performance and value.

Note: Wiseco Performance Pistons use their own proprietary style piston rings. Please see the Wiseco Piston Ring section for ring replacement on Wiseco Pistons.

Fits: Kawasaki 550 '82-90.

OEM Kawasaki pistons, WSM Performance Pistons and Pro X Pistons.

NOTE:  From 1982 to 1985 Kawasaki used a different piston ring in their 550 motors. The ring is much thicker than the later model 550’s. The 010-912 ring will not fit OEM pistons with the thicker ring design. 010-912 ring thickness is 0.048"


2-Stroke Motor.

Standard Size Bore: 75mm - 13003-3019

Ring End Gap: .008~.016

One Kit Does One Piston. This is a single ring for this application.

Part Number Piston Size Bore Size
010-912 Standard 75.00mm
010-912-04 0.25 75.25mm
010-912-05 0.50 75.50mm
010-912-06 0.75 75.75mm
010-912-07 1.00 76.00mm

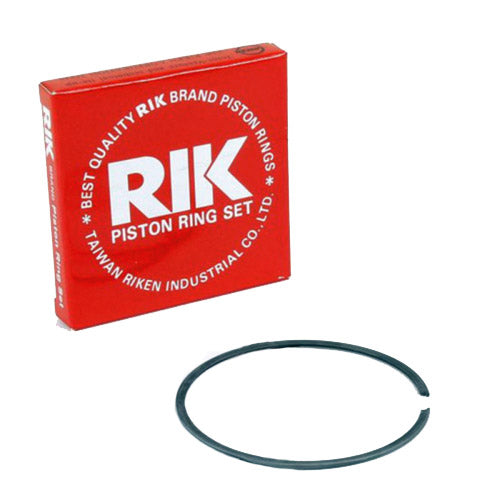

Note: Generic image and may not depict your actual kit.
