Kawasaki 550 '87-90 Individual Gaskets

$23.86
SKU 007-405

1987-1990 Kawasaki JS550 Individual Gaskets.
Stock Carburetor: Mikuni BN 44/40mm Single Carb.
Note: All Gaskets Are Sold Each.

Ref. # Description OEM # Qty. Req.

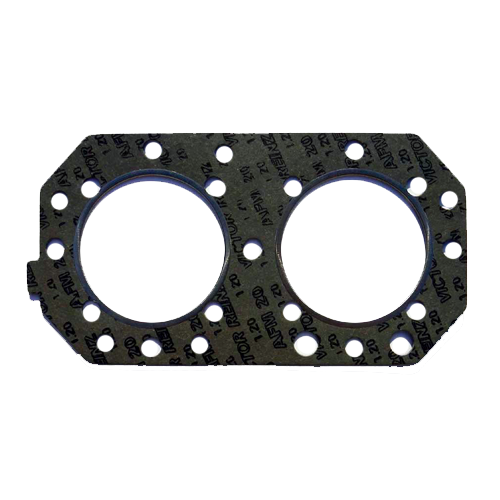

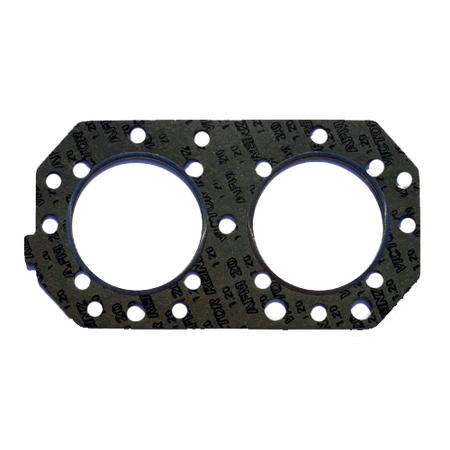

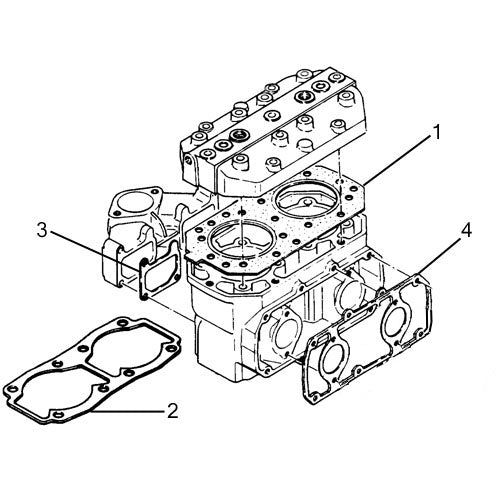

1 Head Gasket (Fiber) 11004-3709 1

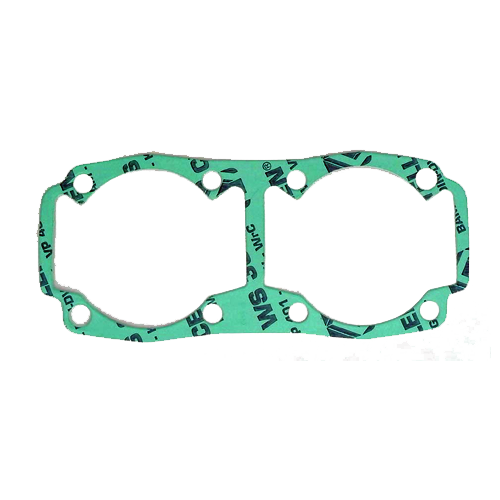

2 Cylinder Base Gasket 11009-3782 1
3 Intake Manifold Gasket 11009-3785 2
4 Exhaust Manifold To Cylinder Gasket 11009-3779 1

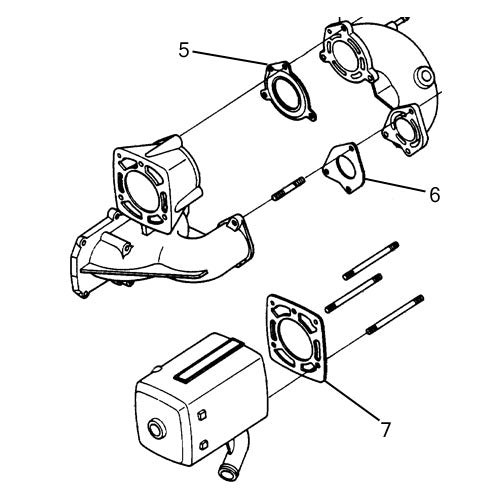

5 Exhaust Pipe Gasket #1 11009-2462 1
6 Exhaust Pipe Gasket #2 11009-2461 1
7 Muffler Gasket 11009-2446 1

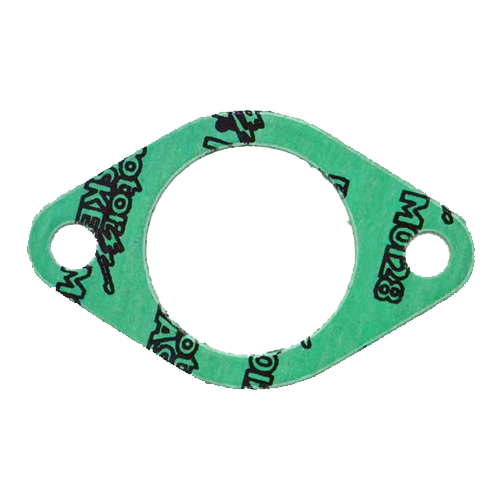

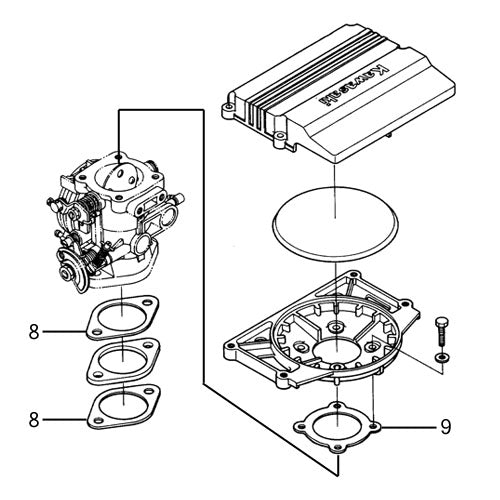

8 Carb. Base Gasket - Mikuni BN 44/40mm Single Carb 11009-3056 2

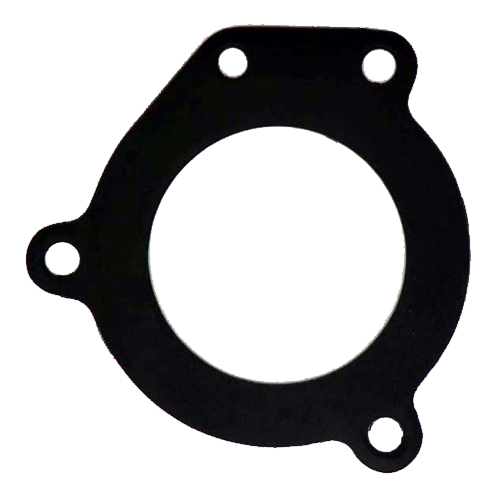

9 Flame Arrester Gasket 11009-3057 1

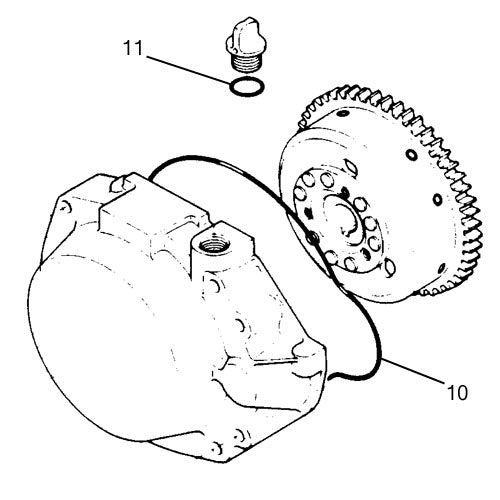

10 Flywheel Generator Cover O-Ring 92055-521 1
11 Oil Cap O-Ring 92055-515 1
N/S Crankcase O-Ring 670B-2016 1
N/S Crankshaft Oil Seal Kit - 1 Kit
NOTE: N/S - Item Not Shown On Diagram.
