Kawasaki 1200 Ultra 150 '99-05 Individual Gaskets

$35.69
SKU 007-317

Kawasaki 1200 Ultra 150 '99-05 Individual Gaskets.
Stock Carburetor: Keihin 38mm Triple Carb.
Note: All Gaskets Sold Each.

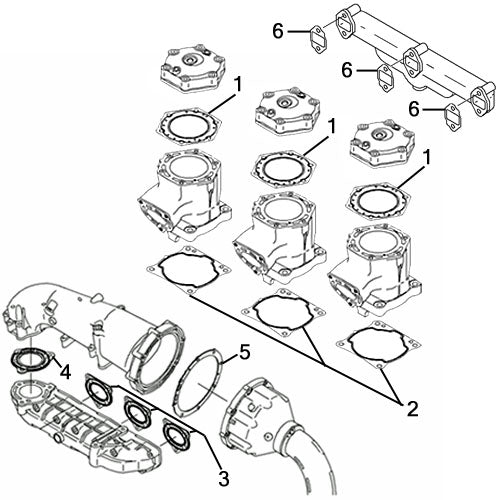

Ref. # Description OEM # Qty. Req.

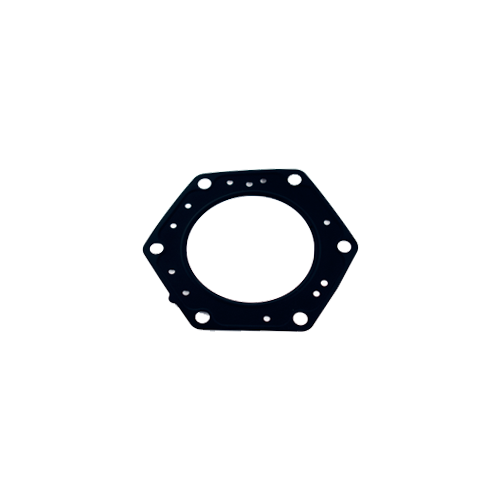

1 Head Gasket (Stainless Steel) 11004-3717 3

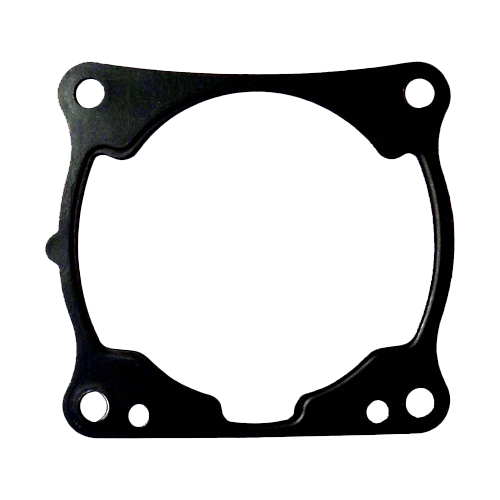

2 Cylinder Base Gasket 11060-3783 3
3 Exhaust Manifold To Cylinder Gasket 11060-3785 3
4 Exhaust Manifold To Head Pipe Gasket 11060-3786 1
5 Exhaust Head Pipe To Chamber Gasket 11060-3807 1
6 Water Pipe Gasket 11060-3784 3

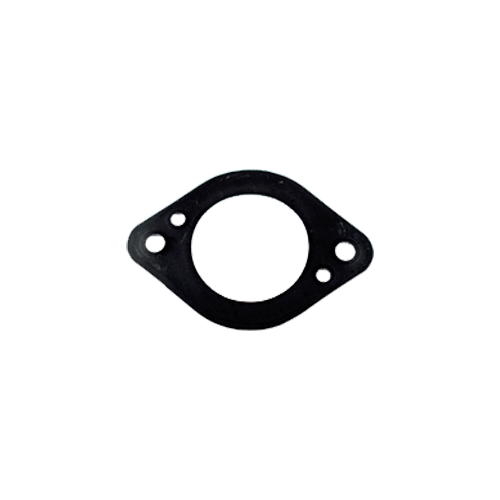

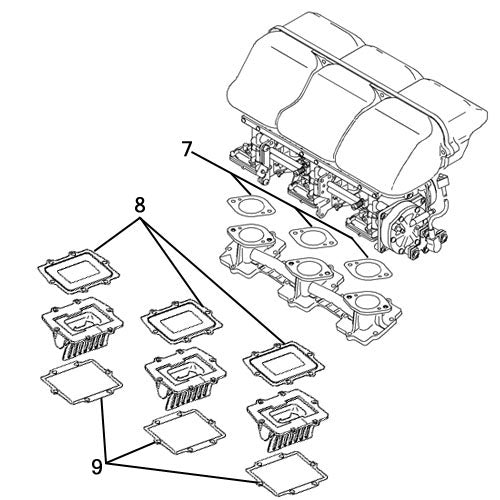

7 Carb. Base Gasket - Keihin 38mm 11060-3776 3
8 Reed Valve To Intake Manifold 11060-3757 3
9 Reed Gasket To Crankcase 11060-3717 3

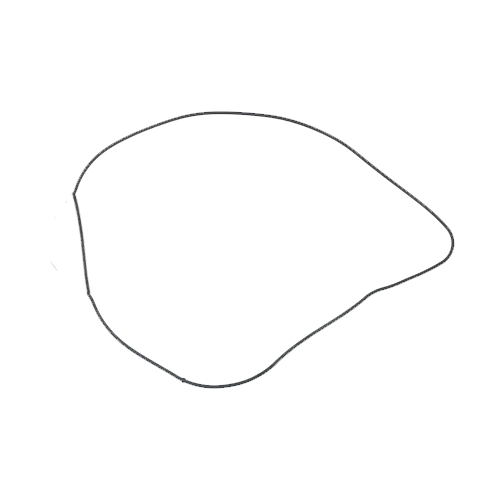

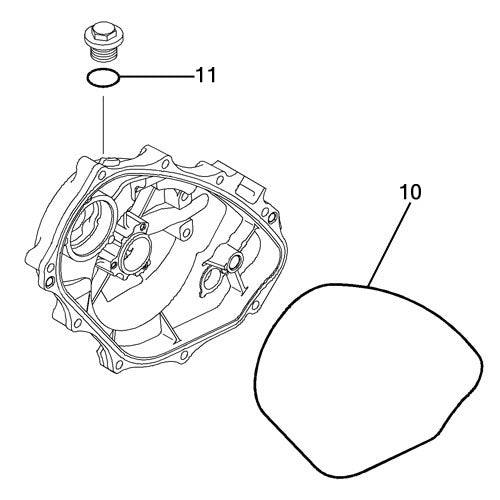

10 Flywheel Generator Cover O-Ring 92055-3748 1

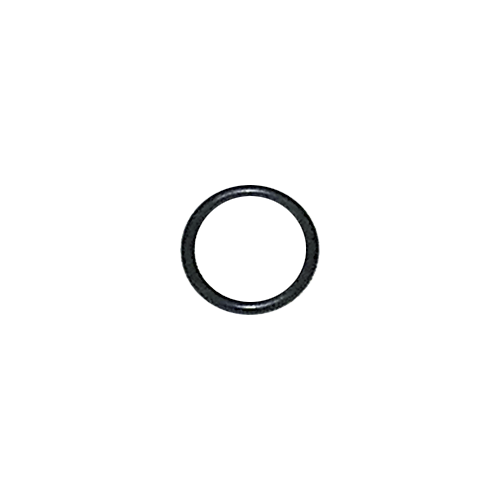

11 Generator Cover Oil Cap O-Ring 92055-515 1

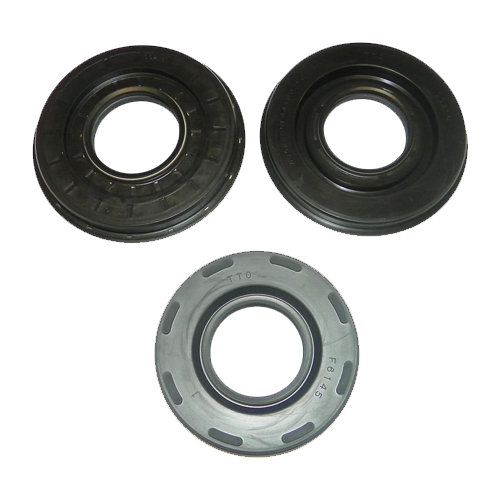

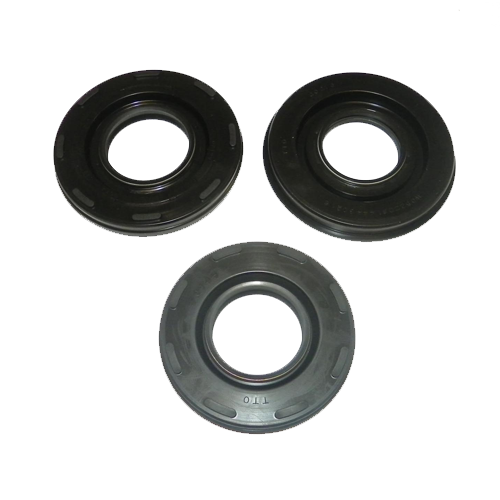

N/S Crankshaft Oil Seal Kit - '99 Models Only - 1 Kit
N/S Crankshaft Oil Seal Kit - '00 & Up Models - 1 Kit
NOTE: N/S - Item Not Shown On Diagram.
