Kawasaki 1100 ZXi '96-03 Individual Gaskets

$34.22
SKU 007-325

Kawasaki 1100 ZXi '96-03 Individual Gaskets.
Stock Carburetor: Keihin 38mm Triple Carb.
Note: All Gaskets Sold Each.

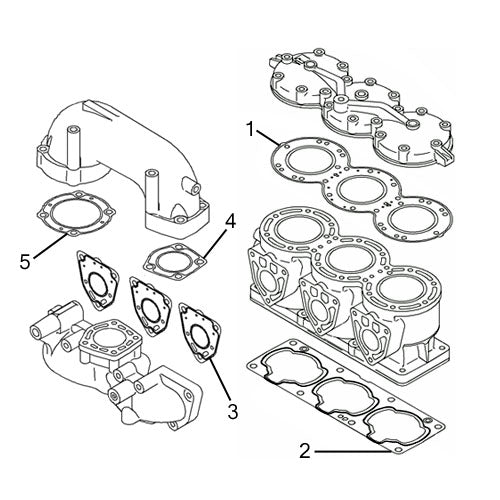

Ref. # Description OEM # Qty. Req.
1 Head Gasket (Stainless Steel) 11004-3715 1
2 Cylinder Base Gasket 11060-3817 1
3 Exhaust Manifold To Cylinder Gasket 11060-3767 3
4 Exhaust Manifold To Head Pipe Gasket 11060-3768 1
5 Exhaust Head Pipe To Chamber Gasket 11060-3769 1
6 Carb. Base Gasket - Keihin 38mm 11060-3776 3
7 Reed Valve To Intake Manifold 11060-3757 3
8 Reed Gasket To Crankcase 11060-3717 3

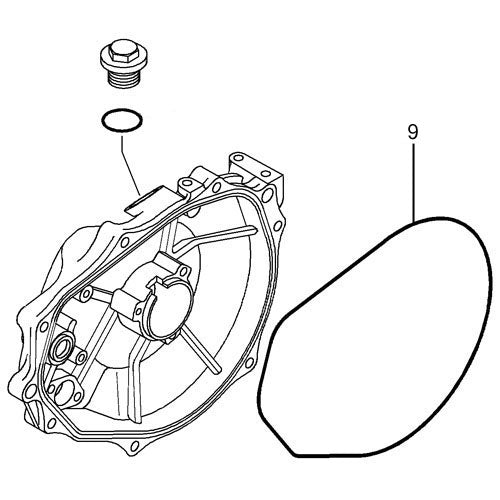

9 Flywheel Generator Cover O-Ring 92055-3712 1
N/S Crankshaft Oil Seal Kit - 1 Kit
NOTE: N/S - Item Not Shown On Diagram.
