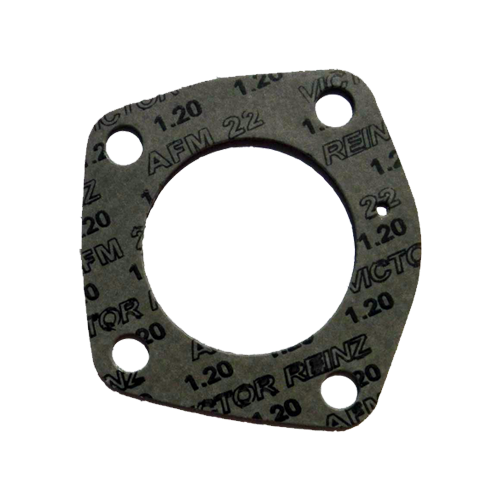

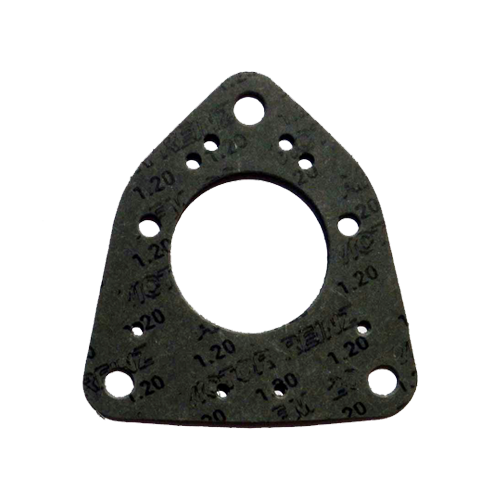

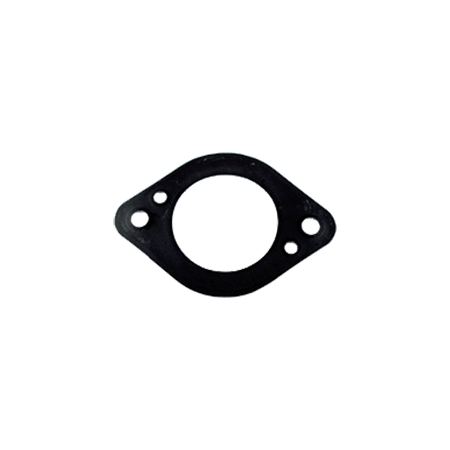

Kawasaki 1100 STX '97-99 Individual Gaskets.
Stock Carburetor: Keihin 38mm Triple Carb.
Note: All Gaskets Sold Each.

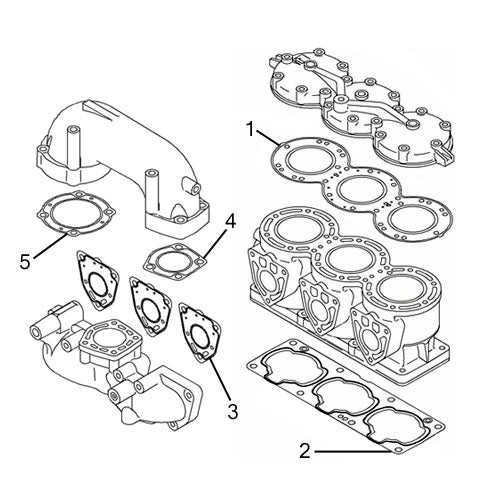

| Ref. # | Description | OEM # | Qty. Req. |

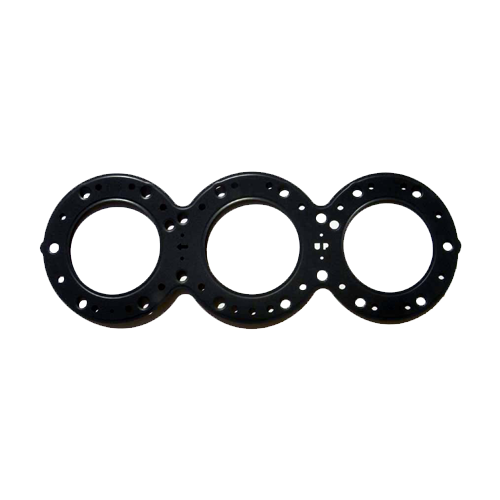

| 1 | Head Gasket (Stainless Steel) | 11004-3715 | 1 |

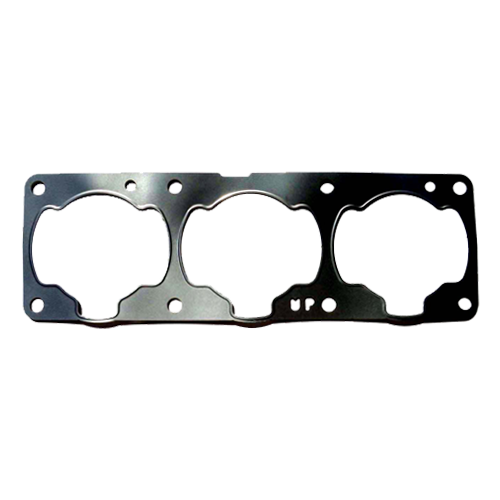

| 2 | Cylinder Base Gasket | 11060-3817 | 1 |
| 3 | Exhaust Manifold To Cylinder Gasket (3 Req.) | 11060-3767 | 3 |

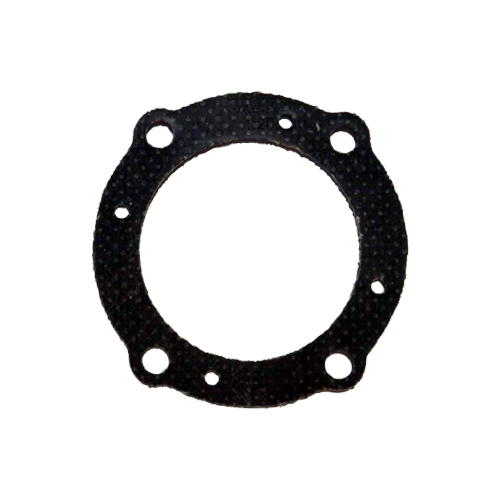

| 4 | Exhaust Manifold To Head Pipe Gasket | 11060-3768 | 1 |
| 5 | Exhaust Head Pipe To Chamber Gasket | 11060-3769 | 1 |

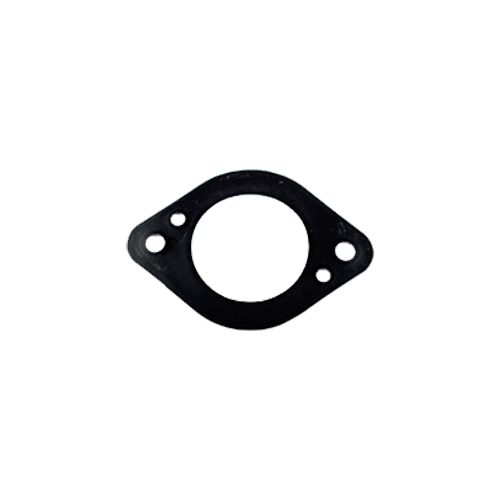

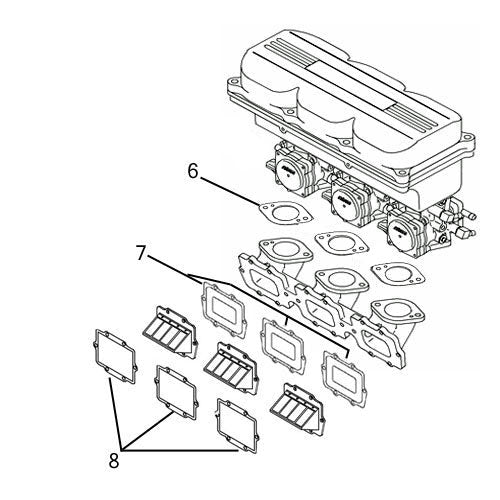

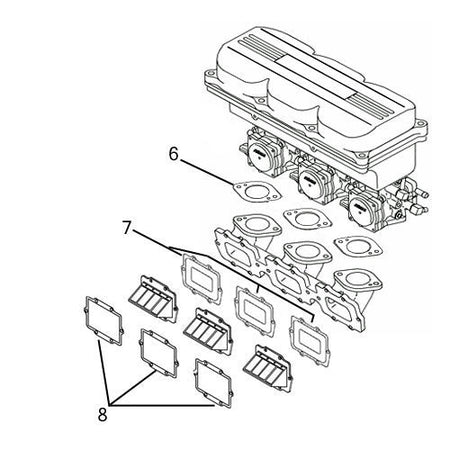

| 6 | Carb. Base Gasket - Keihin 38mm (3 Req.) | 11060-3776 | 3 |

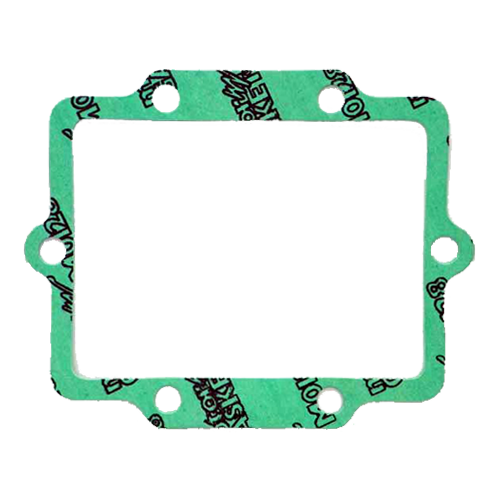

| 7 | Reed Valve To Intake Manifold (3 Req.) | 11060-3757 | 3 |
| 8 | Reed Gasket To Crankcase (3 Req.) | 11060-3717 | 3 |

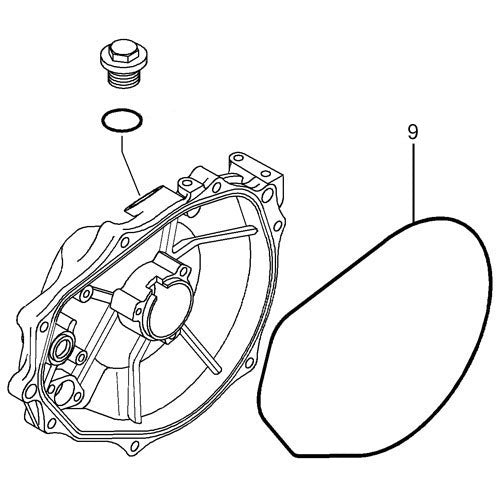

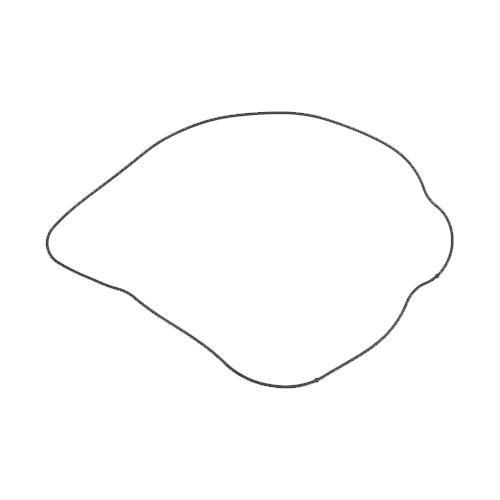

| 9 | Flywheel Generator Cover O-Ring | 92055-3712 | 1 |

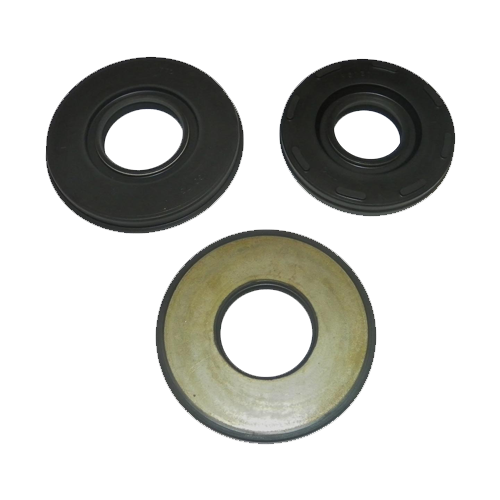

| N/S | Crankshaft Oil Seal Kit | - | 1 Kit |
| NOTE: N/S - Item Not Shown On Diagram. | |||
