ADA Racing Cylinder Head O-Rings

$19.95
SKU ORKITY785

ADA Racing Girdled and Non-Girdled Billet Cylinder Head O-Ring Kits.

YAMAHA O-RING KITS
Yamaha 701 and 760 Girdled and Non-Girdled Billet Head - Kit # ORKITY701
Kit Includes:
QTY: 1 - orya701 outer water jacket oring
QTY: 2 - or043 compression oring
QTY: 2 - or024 head to dome oring
QTY: 2 - or020 dome top oring

Yamaha 701 and 760 Super Big Bore Girdled and Non-Girdled Billet Head - Kit # ORKITY760SB
Kit Includes:
QTY: 1 - orya701 outer water jacket oring
QTY: 2 - or024 head shell to dome orings
QTY: 2 - or020 dome top orings
QTY: 2 - or044 compression orings

Yamaha 701 Girdled and Non-Girdled Billet Head Older 90's Style - Kit # ORKITY785
Includes all orings.

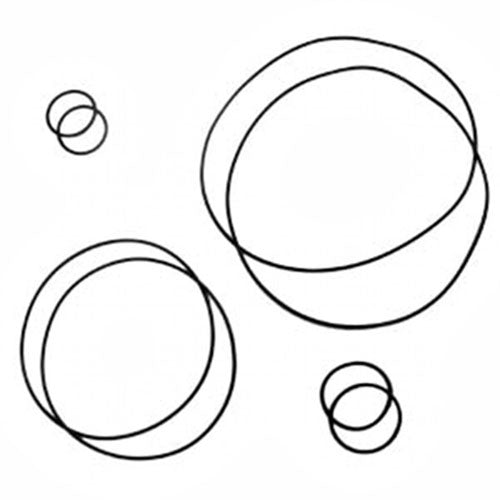

Yamaha 800 PV
Girdled and Non-Girdled Billet Head - Kit # ORKITY800
Kit Includes:
QTY: 2 - or048 outer oring
QTY: 2 - or043 compression oring
QTY: 2 - or024 head to dome oring
QTY: 2 - or020 dome top oring

Yamaha 989 ADA Billet Cylinder Head Only - Kit # ORKITY989
Includes all orings for the head.

Yamaha 1100/1200 (NPV) Girdled and Non-Girdled Billet Head - Kit # ORKITY1100
Kit Includes:
QTY: 1 - orya1100 outer oring
QTY: 3 - or043 compression oring
QTY: 3 - or024 head to dome oring
QTY: 3 - or020 dome top oring

Yamaha 1200 155hp PV Motor Girdled and Non-Girdled Billet Head - Kit # ORKITY1200
Kit Includes:
QTY: 3 - or048 outer oring
QTY: 3 - or043 compression oring
QTY: 3 - or024 head to dome oring
QTY: 3 - or020 dome top oring


KAWASAKI O-RING KITS
Kawasaki 550sx Girdled and Non-Girdled Billet Head - Kit # ORKITK550SX
Kit Includes:
QTY: 1 - orka550 outer oring
QTY: 2 - or041 compression oring
QTY: 2 - or024 head to dome oring
QTY: 2 - or020 dome top oring

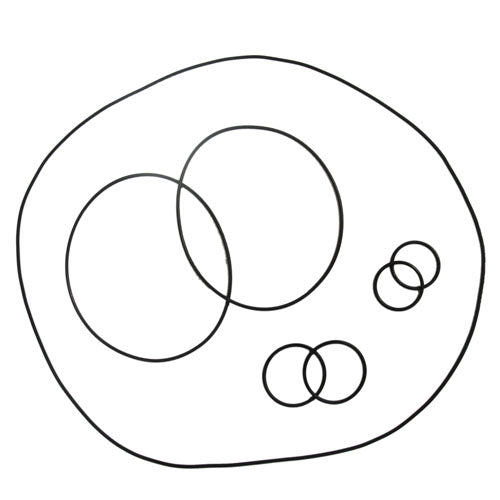

Kawasaki 650 Girdled and Non-Girdled Billet Head - Kit # ORKITK650
Kit Includes:
QTY: 1 - orka650 outer oring
QTY: 2 - or042 compression oring
QTY: 2 - or024 head to dome oring
QTY: 2 - or020 dome top oring

Kawasaki 750 and 800 Girdled and Non-Girdled Billet Head - Kit # ORKITK750
Kit Includes:
QTY: 1 - orka750 outer oring
QTY: 2 - or042 compression oring
QTY: 2 - or024 head to dome oring
QTY: 2 - or020 dome top oring

Kawasaki Big Bore and V2 750-800 Girdled Billet Head - Kit # ORKITK800BB
Kit Includes:
QTY: 1 - orka750 outer oring
QTY: 2 - or153 compression oring
QTY: 2 - or024 head to dome oring
QTY: 2 - or020 dome top oring

Kawasaki 900 Girdled and Non-Girdled Billet Head - Kit # ORKITK900
Kit Includes:
QTY: 1 - orka900 outer oring
QTY: 3 - or041 compression oring
QTY: 3 - or024 head to dome oring
QTY: 3 - or020 dome top oring

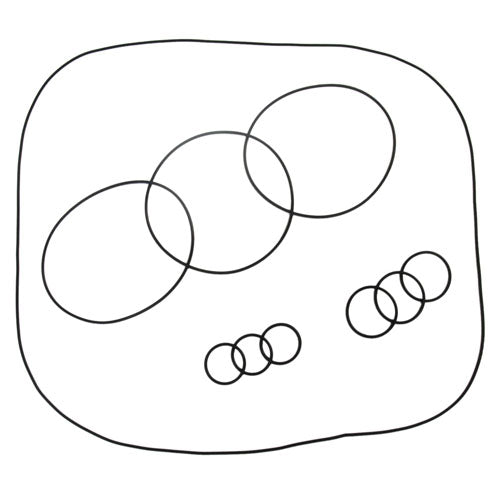

Kawasaki 1100 Girdled and Non-Girdled Billet Head - Kit # ORKITK1100
Kit Includes:
QTY: 1 - orka900 outer oring
QTY: 3 - or043 compression oring
QTY: 3 - or024 head to dome oring
QTY: 3 - or020 dome top oring

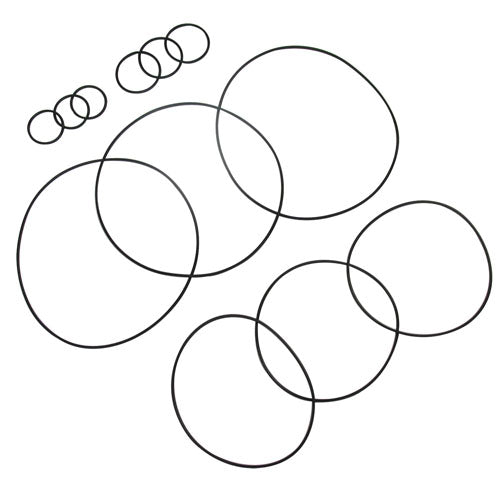

Kawasaki Ultra 150 & 1200 STXR Girdled and Non-Girdled Billet Head - Kit # ORKITKU150
Kit Includes:
QTY: 3 - or049 outer oring
QTY: 3 - or043 compression oring
QTY: 3 - or024 head to dome oring
QTY: 3 - or020 dome top oring


SEA DOO O-RING KITS
Sea Doo
Girdled and Non-Girdled Billet Head - Kit # ORKITSD951
Kit Includes:
QTY: 1 - orsd951 outer oring
QTY: 2 - or044 compression oring
QTY: 2 - or024 head to dome oring
QTY: 2 - or020 dome top oring


ADA Racing Cylinder Head Individual O-Rings:

  • OR016 - Buna oring that seals the exhaust bracket to the top of the ADA Racing cylinder head.

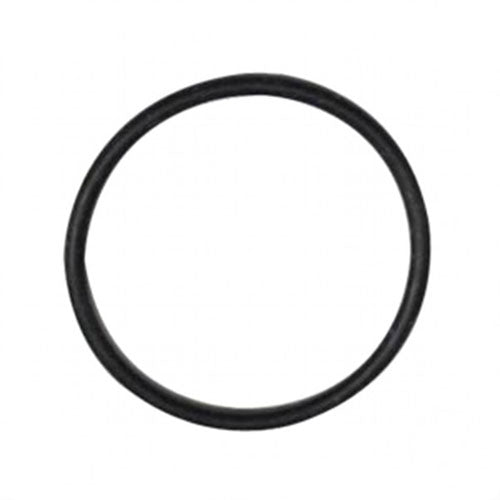

  • OR020 - Small 020 buna oring goes into the groove around the spark plug hole on the dome. Seals dome to head shell. Fits all ADA pwc and Banshee domes.
  • OR024 - Small 024 buna oring goes into the groove in the top of the head shell. Seals the head shell to the dome. Fits all ADA pwc and Banshee heads.
  • OR041 - Large 041 viton oring on the face of the dome. Seals dome to cylinder surface. Fits ADA Racing Kawasaki 550sx Polaris 785 Pro and Kawasaki 900 billet domes.
  • OR042 - Large 042 viton oring on the face of the dome. Seals dome to cylinder surface.
  • OR043 - Large 043 viton oring on the face of the dome. Seals dome to cylinder surface. Used in ADA Racing billet domes for Kawasaki 1100, Kawasaki Ultra 150, and all Yamaha PWC Domes.
  • OR044 - Large 044 viton oring on the face of the dome. Seals dome to cylinder surface.

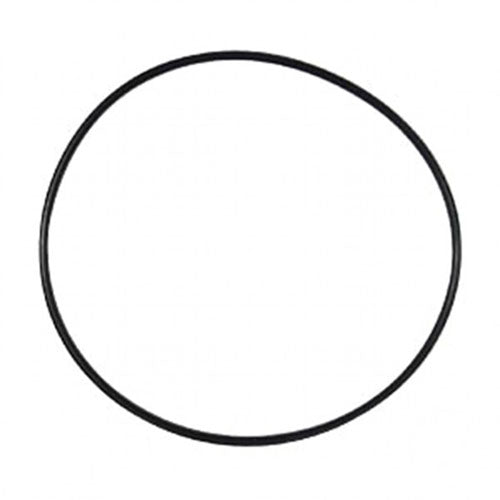

  • OR047 - Large buna orings, go in the large grooves on the base of the head shell. Seals the head shell to the cylinder surface.
  • OR048 - Large buna orings, go in the large grooves on the base of the head shell. Seals the head shell to the cylinder surface.
  • OR049 - Large buna orings, go in the large grooves on the base of the head shell. Seals the head shell to the cylinder surface.
  • OR153 - Compression sealing viton oring for Kawasaki 800 big bore domes. Seals the dome to the top of the cylinder. This oring is 3/32 which is thicker than our standard compression orings. These are only for our domes that go with our big bore and V2 heads for the Kawasaki 800.
  • ORKA750 - Large outer head shell oring for ADA Racing Kawasaki 750 and 800 billet heads. Fits both girdled and non-girdled heads.

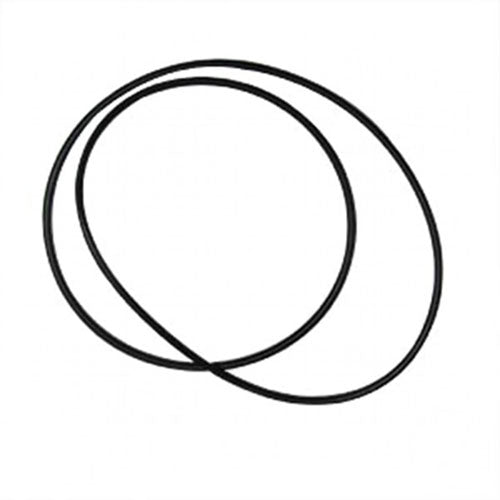

  • ORKA900 - Large custom cut buna oring, goes in the large groove around the edge of the head shell. Seals the head shell to the cylinder surface.
  • ORYA1100 - Large custom cut buna oring, goes in the large groove around the edge of the head shell. Seals the head shell to the cylinder surface.
  • ORYA701 - Large custom cut buna oring, goes in the large groove around the edge of the head shell. Seals the head shell to the cylinder surface.
