ADA Racing Kawasaki 800 V2 Girdled Cylinder Head Kit

SKU
Original price $389.90 - Original price $434.80
Original price
$389.90
$389.90 - $434.80
Current price $389.90

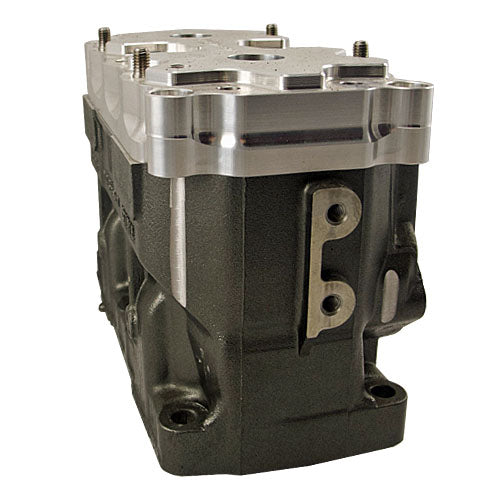

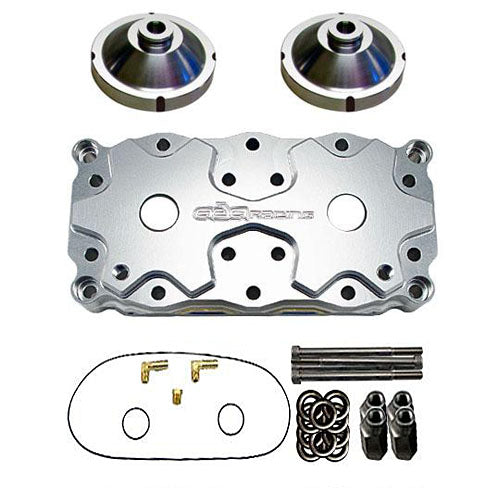

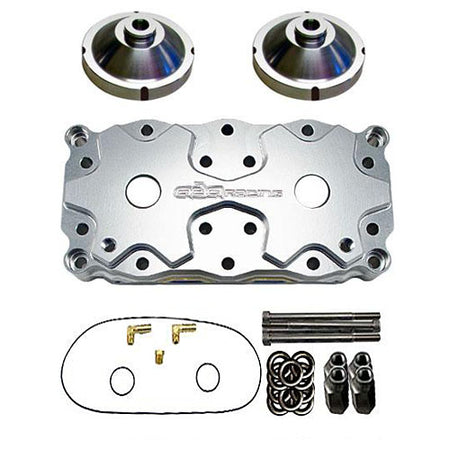

The ADA Racing Kawasaki V2 Cylinder Head Kit for Kawasaki 750/800 engines. This girdled head uses offset base nuts and requires grinding on the outside of the cylinder to make clearance for the girdle studs. We also changed to larger diameter domes, so going from a standard bore to a big bore just requires new domes and not a new head. The head is completely sealed by o-rings and no head gasket is required.

ADA Racing Billet Dome for ADA Racing Kawasaki 800 V2 girdled head and big bore heads. Squish relief is .005" @ 83mm with a 4-degree angle. These domes will not fit the ADA Racing standard headshells, as the diameter is larger than our standard domes. They are notched to fit around the head studs and use a larger diameter compression o-ring (part # OR153).

ADA Racing Drop Dome for Kawasaki 800 big bore. This dome has a .050" drop at 84.5mm. Can be used with 84.5-85mm bore size. Use with a .060" base gasket. These domes are only for use with the ADA Racing 800 V2 girdled head.

82-83mm Bore Billet Dome has .005” squish relief at 83mm with a 4˚ angle. These domes will not fit standard ADA headshells, as the diameter is larger than standard domes. They are notched to fit around the head studs.
KA8330 - 30cc V2 Domes - 82-83mm Bore
KA8328 - 28cc V2 Domes - 82-83mm Bore
KA8326 - 26cc V2 Domes - 82-83mm Bore
KA8324 - 24cc V2 Domes - 82-83mm Bore
KA8322 - 22cc V2 Domes - 82-83mm Bore

83.5-85mm Big Bore Billet Dome has .010” squish relief at 85mm with a 4˚ angle. These domes only fit V2 Billet headshells, as the diameter is larger than ADA standard domes. They are notched to fit around the head studs.
KA8534 - 34cc V2 Dome - 83.5-85mm Big Bore
KA8532 - 32cc V2 Dome - 83.5-85mm Big Bore
KA8530 - 30cc V2 Dome - 83.5-85mm Big Bore
KA8528 - 28cc V2 Dome - 83.5-85mm Big Bore
KA8526 - 26cc V2 Dome - 83.5-85mm Big Bore
KA8524 - 24cc V2 Dome - 83.5-85mm Big Bore
KA8522 - 22cc V2 Dome - 83.5-85mm Big Bore

84.5-85mm Big Bore Size Domes .50” Drop at 84.5mm. Can be used with 84.5-85mm bore size. Use with a .060” base gasket. These domes are only for use with the ADA Racing V2 girdled head.
KA8530D50 - 30cc/.50” Drop @ 84.5mm V2 Dome
KA8528D50 - 28cc/.50” Drop @ 84.5mm V2 Dome
KA8526D50 - 26cc/.50” Drop @ 84.5mm V2 Dome

Note: Version 2 head requires grinding the cylinder for girdle stud clearance. We have seen situations where certain Kawasaki 800 SXR cylinders do not produce the expected compression with the ADA Racing Domes, usually producing lower numbers.  We do not know why this has happened and unfortunately can not tell until the aftermarket head and domes have been installed and compression tested but in all cases, this has been due to the cylinder itself and not the ADA domes
