Sea Doo 580 (All) Individual Gaskets.
Stock Carburetor: Mikuni BN 38mm Single Carb.
Note: All Gaskets Are Sold Each. "*" See Below For Applications.
| Ref. # | Description | OEM # | Qty. Req. |
| 1 | Cylinder O-Ring (Inner) | 293300026 | 2 |
| 2 | Cylinder O-Ring (Outer) | 290850040 | 2 |
| 3 | Spark Plug O-Ring | 290430782 | 2 |
| 4A | Head Cover O-Ring '88-91 Models | 293300027 | 1 |
| 4B | Head Cover O-Ring '92-96 Models | 290950360 | 1 |
| 5 | Sensor O-Ring | 290430200 | 1 |

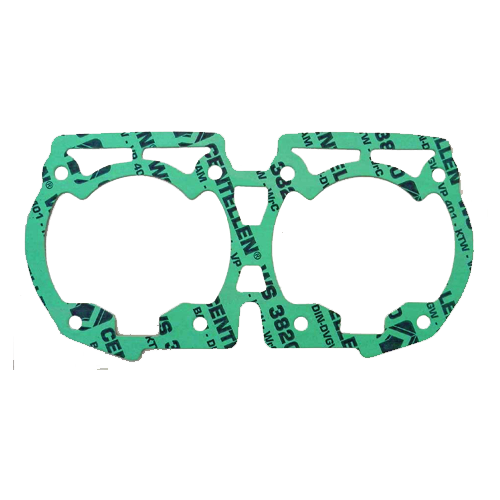

| 6A | Cylinder Base Gasket '88-91 Models | 290850775 | 1 |
| 6B | Cylinder Base Gasket '92-96 Models | 290931160 | 1 |

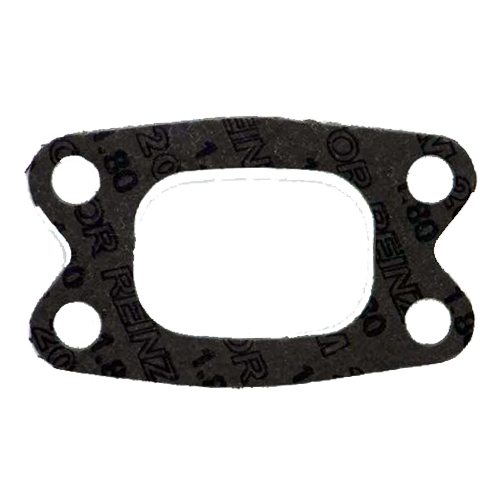

| 7A | Exhaust Manifold To Cylinder Gasket '88-91 Models | 290850630 | 2 |
| 7B | Exhaust Manifold To Cylinder Gasket '92-96 Models | 290850637 | 2 |
| 8 | Exhaust Manifold To Head Pipe Gasket | 290950250 | 1 |
| 9 | Carb. Base Gasket - Mikuni 38mm | 290850372 | 1 |
| 10A | Rotary Cover Front O-Ring* | 290850160 | 1 |
| 10B | Rotary Cover Front O-Ring* | 290831705 | 1 |
| 11 | Rotary Cover Rear O-Ring | 293300023 | 1 |
| 12 | Oil Injection O-Ring | 293300018 | 1 |
| 13A | Flywheel Cover O-Ring '89-91 | 290950130 | 1 |
| 13B | Flywheel Cover O-Ring '92 & Up | 290831555 | 1 |

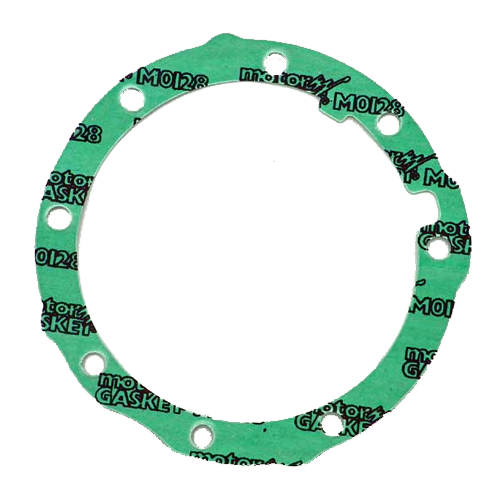

| 14A | Flywheel Housing Gasket - Yellow Motor '88-91 | 290850600 | 1 |
| 14B | Flywheel Housing Gasket - White Motor | 290850605 | 1 |
| 15 | Starter Gasket '88-94 | 290830905 | 1 |
| 16 | Water Pump Gasket '88-90 | 290831615 | 1 |
| 17 | Water Pump O-Ring ' 91 | 293300021 | 1 |
| N/S | Crankshaft Oil Seal Kit (Outer Seals Only) | - | 1 Kit |
| NOTE: N/S - Item Not Shown On Diagram. | |||
* Ref: 10A Fits: 1993 Sea Doo SPX 580, 1989-1996 Sea Doo SP 580, 1993-1996 Sea Doo SPI 580, 1992-1996 Sea Doo GTS 580, 1992-1993 Sea Doo GTX 580, 1991-1992 Sea Doo XP 580
* Ref: 10B Fits: 1993 Sea-Doo SPX 580, 1991-1994 Sea-Doo SP 580, 1993-1994 Sea-Doo SPI 580, 1990-1991 Sea-Doo GT 580, 1992-1994 Sea-Doo GTS 580, 1992-1993 Sea-Doo GTX 580, 1991-1992 Sea-Doo XP 580
